Forest Deventer CRS Traversing: a 1 1/8 inch channel rod that bends
Deventer CRS rod by Forest, with 2026 retail prices, sizes, finishes and specifications.
What is the Forest Deventer CRS Traversing?
The Forest Deventer CRS Traversing rod is a 1 1/8 inch aluminum channel rod, drawn by hand or baton, rated for 4 lb of drapery per foot, that curves to an 8 inch radius. It is the Forest decorative rod for bay windows. A 6 ft Forest Deventer CRS rod (single) costs $1,040.73; a 12 ft one costs $1,660.53. A 6 ft Forest Deventer CRS rod (double) costs $2,081.44; a 12 ft one costs $3,320.92.
Deventer CRS runs the drapery on carriers inside an h-shaped rail treated with a dry lubricant, so it traverses smoothly while looking like a rod. It comes in seven finishes from satin brass and shiny white to antique bronze, graphite and taupe, with end cap, ball or notched finials. The longest one-piece rod is 19 feet; longer runs are joined.
Forest Deventer CRS rod specifications
Forest's published figures for the US market (forestdh.com, the 2026 brochure and the 2026 catalog).
| Profile | 1 1/8 in aluminum h-rail with a dry lubricant, 5.16 oz per foot |
|---|---|
| Maximum fabric weight | 4 lb per foot, depending on the application |
| Longest one-piece rod | 19 ft |
| Mounting | Wall or ceiling |
| Operation | Hand or baton draw, one-way or center-open, pinch pleat or ripplefold |
| Bends and curves | Curves and reverse curves to an 8 in radius or a continuous curve (exact template required) |
| Finials | End cap, ball or notched |
| Finishes | 7: 24 Satin Brass, 25 Shiny White, 29 Satin Nickel, 59 Shiny Black, 81 Antique Bronze, 89 Graphite, 95 Taupe |
| Assembled set | Rail with its end cap finial and end stop, masters, carriers, brackets and a 36 in white fiberglass baton |
How much does a Forest Deventer CRS rod cost?
A 6 ft Forest Deventer CRS rod (single) costs $1,040.73; a 12 ft one costs $1,660.53.
A 6 ft Forest Deventer CRS rod (double) costs $2,081.44; a 12 ft one costs $3,320.92.
| Length | Single | Double |
|---|---|---|
| 3 ft | $834.13 | $1,668.28 |
| 4 ft | $834.13 | $1,668.28 |
| 5 ft | $937.43 | $1,874.86 |
| 6 ft | $1,040.73 | $2,081.44 |
| 8 ft | $1,247.33 | $2,494.60 |
| 10 ft | $1,453.93 | $2,907.76 |
| 12 ft | $1,660.53 | $3,320.92 |
| 14 ft | $1,867.13 | $3,734.08 |
| 16 ft | $2,073.73 | $4,147.24 |
| 20 ft | $2,486.93 | $4,973.56 |
| Option | First 4 feet | Each additional foot | Catalog page |
|---|---|---|---|
| Single | $834.13 | $103.30 | p. 39 |
| Double | $1,668.28 | $206.58 | p. 39 |
Forest prices an assembled system as one amount for the first 4 feet plus a fixed amount for each additional foot; the catalog prints no price for part of a foot, so a length between two whole feet is priced at the next whole foot, and anything up to 4 feet costs the 4-foot price. Longer runs are quoted at the measure.
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
Forest Deventer CRS rod parts and 2026 prices
24 parts and accessories with their 2026 retail prices, as printed in the Forest 2026 catalog. Parts sold by the box show the price each when bought by the full box, the box quantity, and the price each for a broken box. XX in a part number stands for the finish code; see the finishes below.
Show all 24 parts and prices
| Part number | Description | Finish or option | Price | Unit | Pack | Catalog |
|---|---|---|---|---|---|---|
| 51419-XX | 1 1/8" Aluminum CRS Rail | $23.21 | per ft | p. 40 | ||
| 2207-25 | 60% fullness, 2 5/8" OC | $2.38 | each | box of 500; broken box $2.84 each | p. 40 | |
| 2206-25 | 80% fullness, 2 3/8" OC | $1,190.00 | per roll | p. 40 | ||
| 53415-90 | Rail Connector aluminum, 3" | $57.55 | each | p. 40 | ||
| 53401-XX | Single Wall Bracket | $84.05 | each | p. 40 | ||
| 52002-25 | Slim Line Ball Bearing Carrier | 59 black, 65 brown, 90 grey +10% | $0.80 | each | box of 1000; broken box $0.98 each | p. 40 |
| 53402-XX | Extended Single Wall Bracket | $110.66 | each | p. 40 | ||
| B8809-24-00 | Underlap L Plastic Snap Master | 59 black +10% | $15.43 | each | box of 25; broken box $18.55 each | p. 40 |
| 53406-XX | Double Wall Bracket Do not use w/ Ripplefold | $158.83 | each | p. 40 | ||
| 52504-25 | Underlap L Standard Multi-Functional Master Use stiffener w/ exposed baton or hooks w/ hidden baton | 59 black +10% | $8.81 | each | box of 100; broken box $10.56 each | p. 40 |
| 53407-XX | Extended Double Wall Bracket | $177.89 | each | p. 40 | ||
| 53412-XX | Inside Mount Bracket | $132.94 | each | p. 40 | ||
| 52504-25A | Underlap L Standard Multi-Functional Master w/ snaps | 59A black +10% | $10.67 | each | box of 100; broken box $12.79 each | p. 40 |
| 53408-XX | Flush Ceiling Bracket Cannot use finials | 22 chrome, 25 white, 24 gold, 29 satin nickel, 59 black, 70 bronze | $30.67 | each | p. 40 | |
| 52412-25A | Butt L Wheeled Butt Master w/snap adaptor | 59A black, 65A brown, 90A grey +10% | $37.73 | each | box of 50; broken box $45.29 each | p. 40 |
| 52430-XX | End Cap Finial | $58.16 | each | p. 40 | ||
| 2552-25 | Extension Arm | $14.44 | each | box of 50; broken box $17.30 each | p. 40 | |
| 52431-XX | Ball Finial | $121.92 | each | p. 40 | ||
| V799-2-00 | End Stop | $1.06 | each | box of 100; broken box $1.28 each | p. 40 | |
| 52432-XX | Notched Finial | $67.16 | each | p. 40 | ||
| B8809-23-00 | Overlap R | $15.43 | each | box of 25; broken box $18.55 each | p. 40 | |
| 52502-25 | Overlap R | $8.81 | each | box of 100; broken box $10.56 each | p. 40 | |
| 52502-25A | Overlap R | $10.67 | each | box of 100; broken box $12.79 each | p. 40 | |
| 52411-25A | Butt R | $37.73 | each | box of 50; broken box $45.29 each | p. 40 |
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
What finishes does the Forest Deventer CRS rod come in?
Finish codes as Forest prints them; the code replaces XX in the part number.
- 24Satin Brass
- 25Shiny White
- 29Satin Nickel
- 59Shiny Black
- 81Antique Bronze
- 89Graphite
- 95Taupe

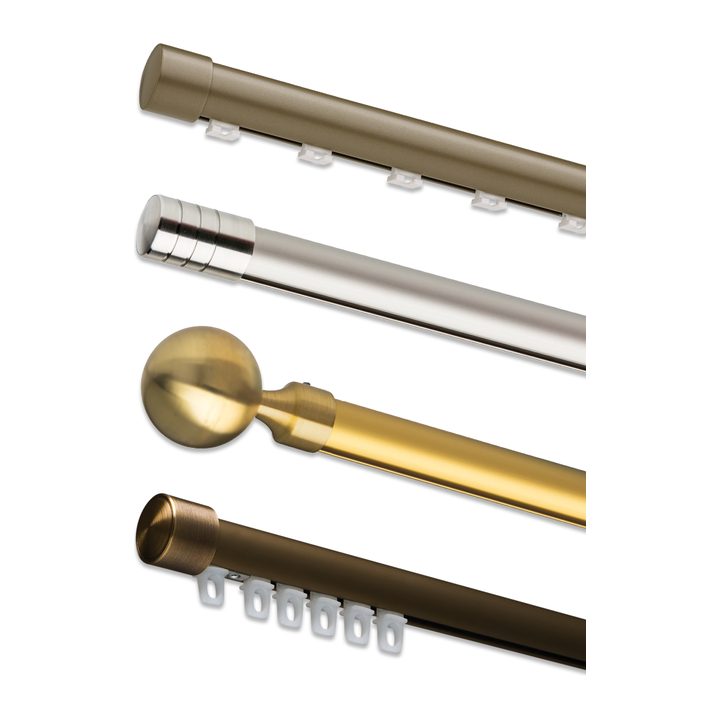

Forest Deventer CRS rod finials and prices
H is the height and P the projection from the end of the rod, where Forest publishes them. Pictures from Forest's library show one finish of each finial.
Flush Ceiling Bracket Cannot use Finial53408-XX
$30.67 each
End Cap Finial52430-XX
$58.16 each
Ball Finial52431-XX
$121.92 each
Notched Finial52432-XX
$67.16 each
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
Where the Forest Deventer CRS rod fits
Curved bay windows are where Deventer CRS earns its place: in older Fort Lauderdale and Coral Gables homes it lets the drapery follow the bay on one rod. The motorized equivalent is Deventer MRS.
Forest Deventer CRS rod: frequently asked
How much does a Forest Deventer CRS rod cost?
A 6 ft Forest Deventer CRS rod (single) costs $1,040.73; a 12 ft one costs $1,660.53. A 6 ft Forest Deventer CRS rod (double) costs $2,081.44; a 12 ft one costs $3,320.92. Prices are Forest's 2026 retail for the hardware only; installation is quoted at the measure.
What is the weight limit of the Forest Deventer CRS rod?
Forest rates it at 4 lb per foot, depending on the application.
What finishes does the Forest Deventer CRS rod come in?
24 Satin Brass, 25 Shiny White, 29 Satin Nickel, 59 Shiny Black, 81 Antique Bronze, 89 Graphite, 95 Taupe. XX in a part number stands for the finish code.
Can the Deventer CRS rod follow a bay window?
Yes. Forest curves and reverse curves Deventer CRS to an 8 inch radius or a continuous curve from an exact template of the window.
