Somfy Tilt, Cord Lift and Top-Down Bottom-Up motors: battery motors for blinds and cellular shades
Somfy Tilt, Cord Lift and Top-Down Bottom-Up motors, with 2026 retail prices for every model, specifications and Somfy's documents.
What are the Somfy Tilt, Cord Lift and Top-Down Bottom-Up motors?
These are Somfy's battery motors for blinds: the Tilt 50 WireFree that turns the slats of 2 inch horizontal blinds, the Cord Lift WireFree motors that raise cellular and pleated shades in a headrail, and the Top-Down Bottom-Up WireFree motors, with the shaft and headrail adaptors that fit them to other brands' headrails. In 2026 the Somfy Tilt, Cord Lift and Top-Down Bottom-Up motors range runs from $126.04 (Tilt 50 WireFree Through-Shaft RTS) to $173.50 (Cord Lift WireFree TLW25 Zigbee (External Battery)), retail, product only.
The Tilt 50 comes in RTS and Zigbee; paired with the Situo 5 Variation remote it turns the slats in small steps for precise light control. The Cord Lift motors come as CL32 RTS and TLW25 RTS, and as TLV25 and TLW25 Zigbee, all on an external battery. The adaptors on this page match the motor shaft and body to specific headrail makes.
How much does the Somfy Tilt, Cord Lift and Top-Down Bottom-Up motors cost?
In 2026 the Somfy Tilt, Cord Lift and Top-Down Bottom-Up motors range runs from $126.04 (Tilt 50 WireFree Through-Shaft RTS) to $173.50 (Cord Lift WireFree TLW25 Zigbee (External Battery)), retail, product only.
| Product | SKU | Control | Power supply | Noise | 2026 retail |
|---|---|---|---|---|---|
| Tilt 50 WireFree™ Through-Shaft RTS | 1240276 | RTS, Battery (WireFree) | DC 12V | 56 dB | $126.04 |
| Tilt 50 WireFree™ Through-Shaft Zigbee (External Battery) | 1241783 | Zigbee, Battery (WireFree) | DC 12V | 49 dB | $133.01 |
| Cord Lift WireFree™ TLW25 RTS (External Battery) | 1003294 | RTS, Battery (WireFree) | DC 12V | 50 dB | $135.65 |
| Cord Lift WireFree™ CL32 RTS (External Battery) | 1002422 | RTS, Battery (WireFree) | DC 12V | 56 dB | $138.93 |
| Cord Lift WireFree™ TLV25 Zigbee (External Battery) | 1246811 | Zigbee, Battery (WireFree) | DC 12V | 46 dB | $151.57 |
| Cord Lift WireFree™ TLW25 Zigbee (External Battery) | 1241780 | Zigbee, Battery (WireFree) | DC 12V | 46 dB | $173.50 |
| Clever™ Tilt Blind Motorization Kit | 9027548 | RTS | DC 12V | - | On request |
| Top-down Bottom-up 25 WireFree™ Zigbee | 1246325 | Zigbee, Battery (WireFree) | DC 12V | 53 dB | On request |
| Top-down Bottom-up 45 WireFree™ Zigbee | 1246323 | Zigbee, Battery (WireFree) | DC 12V | 51 dB | On request |
Parts and accessories
Show all 24 parts and prices
| Product | SKU | Unit | 2026 retail |
|---|---|---|---|
| 4mm Square Shaft Adaptor | 9027060 | each | $3.68 |
| 5.5mm Hexagonal Shaft Adaptor | 9025929 | each | $3.17 |
| 5mm Hex Shaft Adaptor for Somfy CTS (CL32 Only) | 9013285 | each | $2.06 |
| 5mm Hexagonal Shaft Adaptor | 9025930 | each | $3.17 |
| 5mm Square Shaft Adaptor (CL32 Only) | 9013268 | each | $2.73 |
| 6.4mm Square Shaft Adaptor | 9025932 | each | $3.89 |
| 6mm Hexagonal Shaft Adaptor | 9025928 | each | $3.55 |
| 6mm Square Shaft Adaptor | 9025931 | each | $3.17 |
| CTS Cone for 40mm Octagonal Tube | 9162144 | each | $3.25 |
| CTS40 Kit for Gutter Rail 2" x 2 1/4" (57mm x 51mm) Headrail | 1781118 | each | $7.01 |
| D Shaft Adaptor | 9027062 | each | $5.69 |
| Gutter Headrail Adaptor for Through-Shaft | 9025742 | each | $3.82 |
| Headrail Adaptor (for Graber/Bali EasyUp Cord Loop) (CL32 Only) | 9013288 | each | $1.97 |
| Headrail Adaptor for Comfortex/Turnils Global Rail Adaptor (CL32 Only) | 9015900 | each | $4.52 |
| Headrail Adaptor for Decora Sun Headrail | 9025739 | each | $4.11 |
| Headrail Adaptor for Turnils (TLV25 & TLW25) | 9026427 | each | $2.30 |
| Headrail Adaptors for HT Window (TDBU25, TLV25, & TLW25) | 9029519 | each | On request |
| Headrail Wiring Accessory | 9029622 | each | On request |
| Ladder Braid Crimps for CTS40 System | 9163292 | each | $0.33 |
| Low Profile Headrail Adaptor for Through-Shaft | 9025743 | each | $3.82 |
| Shaft Adaptor HT Window (TDBU25, TLV25, & TLW25) | 9026430 | each | $2.30 |
| Shaft Adaptor Turnils (TLV25 & TLW25) | 9026428 | each | $1.72 |
| Spears Shaft Adaptor (CL32 Only) | 9013283 | each | $2.24 |
| V Notch Shaft Adaptor (CL32 Only) | 9015899 | each | $3.95 |
Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.

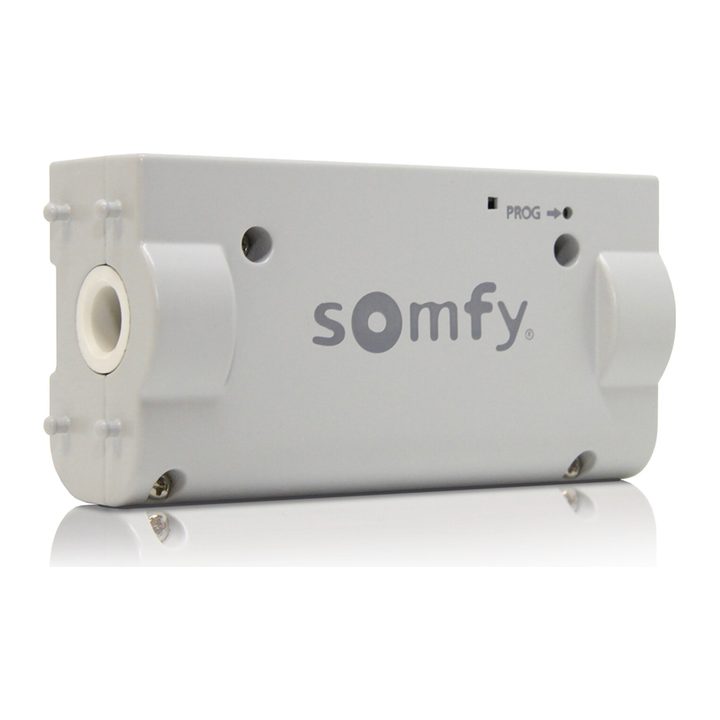

Tilt 50 WireFree Through-Shaft RTS specifications
Somfy's published figures for the Tilt 50 WireFree Through-Shaft RTS (SKU 1240276). Other models on this page differ in control, torque and power; see the price table.
| Protection Index | IP 20 |
|---|---|
| Radio Frequency | 433.420 MHz |
| Range in open field | 656.2 ft |
| Consumption during operation | 5.4 W |
| Power supply | DC - RGE 12 - 12V |
| Noise level (dB) | 56 dB |
| Approvals | UKCA, RCM, NOM, EAC, CE |
| Embedded Technologies | RTS |
| Applications | Interior Window Coverings / Blinds |
Tilt 50 WireFree Through-Shaft RTS documents from Somfy
Spec sheets and installation guides published by Somfy (PDF, opens on somfy.com).
- Tilt Only 50 WireFree RTS Through Shaft_Spec Sheet_
- Tilt Only 50 WireFree_ RTS Spec Flyer
- Rechargable Li-ion Battery Pack Consumer Instructions
- Reloadable Battery Tube Consumer Instructions
- Programming Guide - TaHoma by Somfy with RTS Motors
- External Li-ion Battery Pack Quick Guide 8-2020
- RTS Pocket Programming Guide
- TO50 WireFree RTS Instructions
Where the Tilt, Cord Lift and TDBU motors fits
These motors motorize wood and faux wood blinds and cellular shades, and suit children's rooms where cords should be out of reach. For roller shades, see the shade motors.
Somfy Tilt, Cord Lift and Top-Down Bottom-Up motors: frequently asked
How much does the Somfy Tilt, Cord Lift and Top-Down Bottom-Up motors cost?
In 2026 the Somfy Tilt, Cord Lift and Top-Down Bottom-Up motors range runs from $126.04 (Tilt 50 WireFree Through-Shaft RTS) to $173.50 (Cord Lift WireFree TLW25 Zigbee (External Battery)), retail, product only. Installation, programming and wiring are quoted at the measure.
Can a Somfy motor tilt the slats of a wood blind?
Yes. The Tilt 50 WireFree Through-Shaft motor tilts 2 inch horizontal blinds, and with the Situo 5 Variation remote the slats move in small increments.
Do these prices include installation?
No. Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.
