Somfy motor controllers and relays: group controllers, relays and synchronization controls
Somfy motor controllers and relays, with 2026 retail prices for every model, specifications and Somfy's documents.
What are the Somfy motor controllers and relays?
These are Somfy's controllers for wired motors: the IGC 4n1 Motor Controller and its RTS receiver, the Group Control System II, synchronization controls, relays for two and three motors, the smart motor control, a sequencing receiver and a photo eye. In 2026 the Somfy motor controllers and relays range runs from $13.12 (Metal Box for Smart Motor Cont) to $603.25 (IGC 4n1 Motor Controller (4 Motors)), retail, product only.
The IGC 4n1 drives up to four WT motors individually or in groups, with preset positions at 25, 50 and 75 percent, and several can be daisy-chained. The GCS II drives up to four wired motors as one group from low-voltage switches.
How much does the Somfy motor controllers and relays cost?
In 2026 the Somfy motor controllers and relays range runs from $13.12 (Metal Box for Smart Motor Cont) to $603.25 (IGC 4n1 Motor Controller (4 Motors)), retail, product only.
| Product | SKU | Technology | Power | Finish | 2026 retail |
|---|---|---|---|---|---|
| Metal Box for Smart Motor Cont | 2005566 | - | - | - | $13.12 |
| Isolation Control | 1822135 | - | AC 120V/60Hz | - | $45.55 |
| Smart Motor Control | 2005720 | - | - | - | $108.65 |
| Photo Eye Beam | 2005630 | - | - | - | $120.71 |
| Sequencing Receiver Surface | 2005632 | - | - | - | $129.06 |
| Synchronization Control RTS Radio Receiver | 1810481 | RTS | AC 120V/60Hz | - | $137.32 |
| Relay 2 motor - Metal Box (RI2M) | 2005718 | - | AC 120V/60Hz | - | $152.80 |
| Relay 3 motor - Metal Box (RI3M) | 2005719 | - | AC 120V/60Hz | - | $174.16 |
| IGC 4n1 RTS Radio Receiver | 1811492 | RTS | DC 12V | - | $179.32 |
| Synchronization (Momentary Output GCS Control) | 1822159 | - | AC 120V/60Hz | - | $239.50 |
| Single Motor Controller for Outdoor Digital Key Pad | 1810513 | - | AC 120V/60Hz | - | $315.67 |
| Synchronization (Maintained Output) IGC Control | 1822161 | - | AC 120V/60Hz | - | $337.05 |
| Group Control System II (GCS II) | 1810476 | - | AC 120V/60Hz | - | $344.38 |
| IGC 4n1 Motor Controller (4 Motors) | 1811416 | - | AC 120V/60Hz | Grey | $603.25 |
| IGC 4n1 Motor Controller (Shutter Mode) | 1870902 | - | AC 120V/60Hz | Grey | $603.25 |
Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.

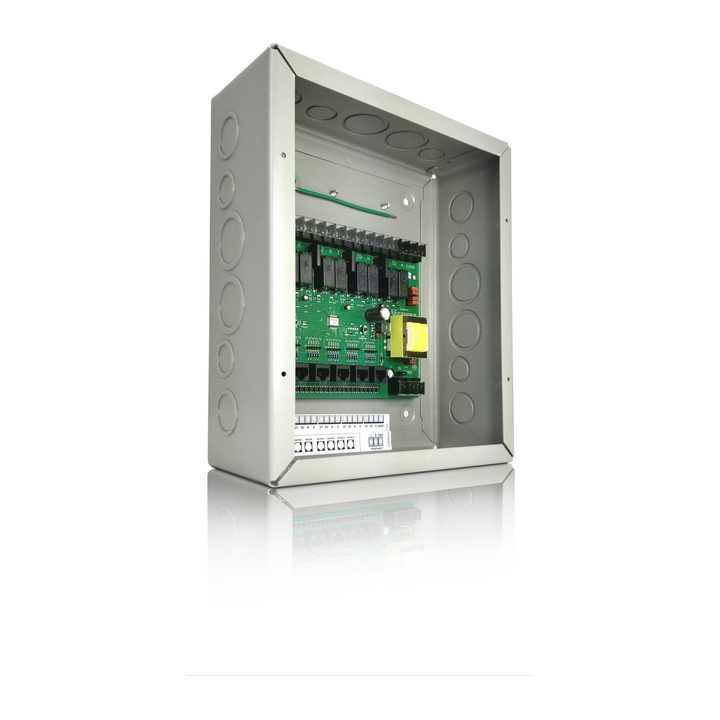

IGC 4n1 Motor Controller (4 Motors) specifications
Somfy's published figures for the IGC 4n1 Motor Controller (4 Motors) (SKU 1811416). Other models on this page differ in control, torque and power; see the price table.
| Protection Index | IP 20 |
|---|---|
| Consumption during operation | 186.425 W |
| Power supply | AC - RGE 2 - 120V/60HZ |
| Color / Finish | Grey |
| Approvals | UL |
| Embedded Technologies | Wired |
| Applications | Interior Window Coverings / Blinds, Interior Window Coverings / Shades |
IGC 4n1 Motor Controller (4 Motors) documents from Somfy
Spec sheets and installation guides published by Somfy (PDF, opens on somfy.com).
- IGC4n1-Part 1811416-PHYS SPEC
- IGC4n1-Part 1811416-PHYS SPEC DWG
- IGC 4n1 Spec Sheet
- IGC 4n1 Physical Spec Sheet PDF
- IGC 4N1 Motor Controller Instructions
- IGC4N1-WIRING-03_IGC4N1 to animeo Solo with Sensors-WIRE DETAIL
- IGC4N1-WIRING-04_IGC4n1 with IGC4n1 RTS Receiver-WIRE DETAIL
- IGC4N1-WIRING-01_IGC4n1 Extended System-WIRE DETAIL
Where the motor controllers and relays fits
Group controllers belong on wired projects where banks of shades must move together from one switch.
Somfy motor controllers and relays: frequently asked
How much does the Somfy motor controllers and relays cost?
In 2026 the Somfy motor controllers and relays range runs from $13.12 (Metal Box for Smart Motor Cont) to $603.25 (IGC 4n1 Motor Controller (4 Motors)), retail, product only. Installation, programming and wiring are quoted at the measure.
How many motors does an IGC 4n1 control?
Up to four Somfy WT motors, individually or in groups.
Do these prices include installation?
No. Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.
