Somfy Digital Network (SDN): the wired network for RS485 motors
Somfy Digital Network (SDN), with 2026 retail prices for every model, specifications and Somfy's documents.
What is the Somfy Digital Network (SDN)?
The Somfy Digital Network (SDN) is Somfy's wired network for RS485 motors: PoE gateways, the Data Panel, PowerConnect rack and surface panels, power distribution enclosures, interfaces, bus boosters, cables and connectors. In 2026 the Somfy Digital Network (SDN) range runs from $14.16 (DB9 to RJ45 Adaptor for RS232 (For Use with URTSI)) to $2,794.39 (SDN PowerConnect Rack-Mount Panel, Dual Kit), retail, product only.
The SDN PoE Gateway powers and controls up to four 24V RS485 motors from one standard Cat 5e or Cat 6 cable, delivering up to 51W. The Data Panel adds four isolated bus segments, each supporting 255 devices and 4000 ft of bus wiring. Power distribution enclosures come for 5, 10, 15 and 20 motors.
How much does the Somfy Digital Network (SDN) cost?
In 2026 the Somfy Digital Network (SDN) range runs from $14.16 (DB9 to RJ45 Adaptor for RS232 (For Use with URTSI)) to $2,794.39 (SDN PowerConnect Rack-Mount Panel, Dual Kit), retail, product only.
| Product | SKU | Technology | Power | Finish | 2026 retail |
|---|---|---|---|---|---|
| DB9 to RJ45 Adaptor for RS232 (For Use with URTSI) | 9015028 | - | - | - | $14.16 |
| DB9 to RJ45 Adaptor for RS485 (For Use with URTSI, UAI+ and SDN) | 9015029 | RS485 | - | - | $14.16 |
| Drapery Adaptor for Power over Ethernet (PoE) Gateway | 9025012 | PoE | - | - | $24.02 |
| Power over Ethernet (PoE) Gateway to Motor Adaptor | 9025010 | PoE | - | - | $44.85 |
| ZBDMI Data & Power Cable | 9027112 | - | - | - | $50.14 |
| Motor Daisy-Chain Adaptor for SDN Power over Ethernet (PoE) Gateway | 9020451 | PoE | AC 120V/60Hz | - | $56.25 |
| RTS Receiver for SDN V2 | 1871471 | RTS | DC 24V | - | $147.08 |
| SDN Data Hub V2 | 1870951 | - | DC 24V | - | $147.08 |
| SDN Bus Booster | 9027694 | - | AC 90-240V/50-60Hz | - | $274.39 |
| SDN 0-10V Interface V2 | 1870857 | - | AC 120V/60Hz | - | $283.90 |
| USB to RS485 Adaptor for SDN | 9015260 | RS485 | - | - | $295.34 |
| RS232 to RS485 Converter for SDN | 1810496 | RS485 | - | - | $299.38 |
| SDN Power over Ethernet (PoE) Gateway | 1860326 | PoE | PoE 48V | Silver | $345.27 |
| SDN Power over Ethernet (PoE) Kit (Gateway and 9025010 Adaptor) | 1870445 | PoE | PoE 48V | - | $386.38 |
| Electronic Lightning Protection RS485 | 9025706 | RS485 | - | Yellow | $403.85 |
| Electronic Lightning Protection Power Supply | 9025707 | - | - | Yellow | $428.77 |
| SDN PowerConnect™ Rack-Mount Panel | 1871027 | - | - | - | $1,421.71 |
| SDN PowerConnect™ Surface-Mount Panel | 1871026 | - | - | Grey | $1,536.59 |
| Data Panel | 1870260 | - | AC 90-240V/50-60Hz | Grey | $1,869.31 |
| SDN PowerConnect™ Rack-Mount Panel, Dual Kit | 1871312 | - | - | - | $2,794.39 |
Parts and accessories
Show all 23 parts and prices
| Product | SKU | Technology | Power | Finish | 2026 retail |
|---|---|---|---|---|---|
| 4-Conductor 26 AWG Modular Cable RJ9 to RJ45 - 12 ft. (Data Only, Black) | 9018543 | - | - | - | $18.95 |
| 4-Conductor 26 AWG Modular Cable RJ9 to RJ45 - 12 ft. (Power & Data, Grey) | 9018547 | - | - | - | $18.95 |
| 4-Conductor 26 AWG Modular Cable RJ9 to RJ45 - 2.5 ft. (Data Only, Black) | 9018541 | - | - | - | $10.51 |
| 4-Conductor 26 AWG Modular Cable RJ9 to RJ45 - 2.5 ft. (Power & Data, Grey) | 9018545 | - | - | - | $10.51 |
| 4-Conductor 26 AWG Modular Cable RJ9 to RJ45 - 24 ft. (Data Only, Black) | 9018544 | - | - | - | $23.90 |
| 4-Conductor 26 AWG Modular Cable RJ9 to RJ45 - 24 ft. (Power & Data, Grey) | 9018548 | - | - | - | $23.90 |
| 4-Conductor 26 AWG Modular Cable RJ9 to RJ45 - 8 ft. (Data Only, Black) | 9018542 | - | - | - | $16.25 |
| 4-Conductor 26 AWG Modular Cable RJ9 to RJ45 - 8 ft. (Power & Data, Grey) | 9018546 | - | - | - | $16.25 |
| 8 ft. Cable with RJ12 Plug | 9015443 | - | - | - | $10.65 |
| Modular Cable, 7 ft. | 9013346 | - | - | - | $13.72 |
| PoE Limit Setting Tool | 9030018 | PoE | - | - | On request |
| PoE Shielded RJ45 Female to Female coupler | 9028957 | PoE | - | - | $9.84 |
| Power Distribution Enclosure Kit - 10 Motor | 1870192 | - | AC 120V/60Hz | Grey | $1,298.26 |
| Power Distribution Enclosure Kit - 15 Motor | 1870197 | - | AC 120V/60Hz | Grey | $1,681.30 |
| Power Distribution Enclosure Kit - 20 Motor | 1870198 | - | AC 120V/60Hz | Grey | $2,003.83 |
| Power Distribution Enclosure Kit - 5 Motor | 1870196 | - | AC 120V/60Hz | Grey | $813.86 |
| RJ45 Female to Female Coupler | 9026095 | - | - | - | $8.12 |
| RS485 Motor Limit Setting & Address Reader Tool | 9017142 | RS485 | - | - | $403.78 |
| SDN Low-voltage Power & Data Cable, Non-Plenum Rated | 9020126 | - | - | - | On request |
| SDN Low-Voltage Power & Data Cable, Plenum Rated | 9020127 | - | - | - | On request |
| SDN Weidmuller 5-position Female Field Installable Connector | 9025113 | - | - | - | $5.29 |
| SDN Weidmuller 5-position Male Field Installable Connector | 9020743 | - | - | - | $9.73 |
| Weidmüller 2-Position Connector | 9027985 | - | - | - | $6.69 |
Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.

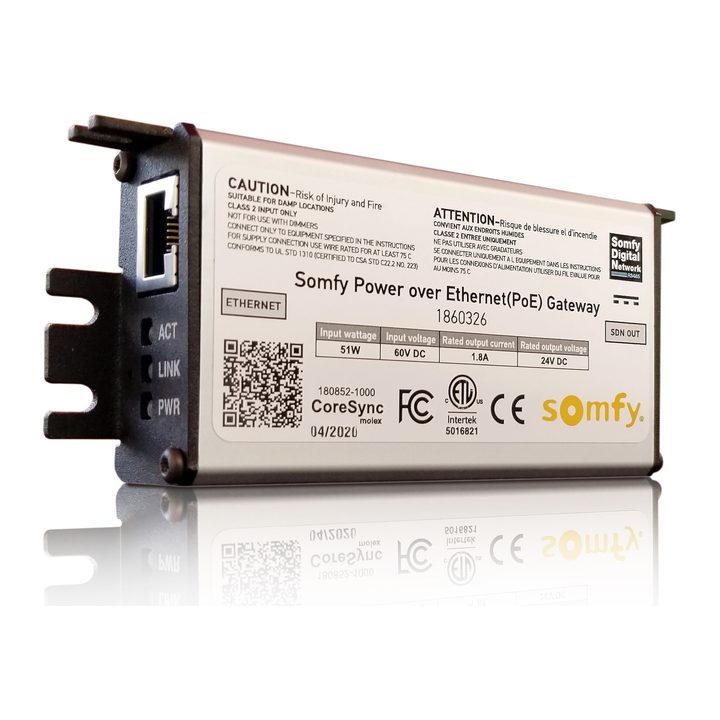

SDN Power over Ethernet (PoE) Gateway specifications
Somfy's published figures for the SDN Power over Ethernet (PoE) Gateway (SKU 1860326). Other models on this page differ in control, torque and power; see the price table.
| Connectivity Types | PoE |
|---|---|
| Consumption during operation | 3 W |
| Power supply | POE - RGE 14 - 48V |
| Consumption in standby mode | 0.5 W |
| Color / Finish | Silver |
| Applications | Interior Window Coverings / Blinds, Interior Window Coverings / Draperies, Interior Window Coverings / Shades |
SDN Power over Ethernet (PoE) Gateway documents from Somfy
Spec sheets and installation guides published by Somfy (PDF, opens on somfy.com).
- SDN Power over Ethernet (PoE) Gateway Spec Sheet
- SDN Power over Ethernet Gateway-Part 1860326-PHYS SPEC DWG
- SDN Power over Ethernet Gateway-Part 1860326-PHYS SPEC_2020
- Power over Ethernet(PoE) Gateway Instructions
- Programming Guide - PoE Gateway
- POE-WIRING-13_PoE Gateway with Single Irismo and Touch Panel-WIRE DETAIL
- POE-WIRING-12_PoE Gateway with Single ST50 and Touch Panel-WIRE DETAIL
- POE-WIRING-09_PoE Gateway with Single ST50 and Keypad-WIRE DETAIL
Where the Somfy Digital Network (SDN) fits
SDN is the backbone for our largest wired projects; we are SDN Specialist certified, trained to design, wire, address and program full SDN systems and integrate them with Crestron, Control4 and building systems. See Somfy SDN explained.
Somfy Digital Network (SDN): frequently asked
How much does the Somfy Digital Network (SDN) cost?
In 2026 the Somfy Digital Network (SDN) range runs from $14.16 (DB9 to RJ45 Adaptor for RS232 (For Use with URTSI)) to $2,794.39 (SDN PowerConnect Rack-Mount Panel, Dual Kit), retail, product only. Installation, programming and wiring are quoted at the measure.
How many motors does an SDN PoE gateway run?
Up to four low-voltage RS485 motors, with up to 51W of power, over a standard Cat 5e or Cat 6 cable.
Do these prices include installation?
No. Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.
