Somfy RTS interfaces and receivers: interfaces that connect RTS motors to control systems
Somfy RTS interfaces and receivers, with 2026 retail prices for every model, specifications and Somfy's documents.
What are the Somfy RTS interfaces and receivers?
These Somfy interfaces connect RTS motors to control systems: the URTSI II, the Somfy Connect UAI Plus and BMS Interface, the Control4 to Digital Motor Interface, the RTS dry contact interface, the RTS repeater and antenna, universal and lighting receivers and a 1 to 99 channel IR transmitter. In 2026 the Somfy RTS interfaces and receivers range runs from $35.56 (IR Sensor (Miniature) with 3 ft. Cable with Connector for URTSI II) to $2,523.29 (Somfy Connect BMS Interface V2), retail, product only.
The URTSI II converts RS232, RS485 and IR commands into RTS, with 16 channels per unit and up to 16 units linked for 256 channels. The RTS repeater and remote antenna extend radio range in large or concrete buildings.
How much does the Somfy RTS interfaces and receivers cost?
In 2026 the Somfy RTS interfaces and receivers range runs from $35.56 (IR Sensor (Miniature) with 3 ft. Cable with Connector for URTSI II) to $2,523.29 (Somfy Connect BMS Interface V2), retail, product only.
| Product | SKU | Technology | Power | Finish | 2026 retail |
|---|---|---|---|---|---|
| IR Sensor (Miniature) with 3 ft. Cable with Connector for URTSI II | 9015078 | - | - | - | $35.56 |
| 1-99 Channel IR Transmitter | 1810498 | - | - | - | $44.25 |
| RTS Dry Contact Interface (Single Channel) | 1810493 | RTS, Dry contact (DCT) | - | White | $79.43 |
| Outdoor RTS Lighting Receiver (500 W) | 1810875 | RTS | AC 120V/60Hz | - | $158.06 |
| RTS Repeater | 1810791 | RTS | AC 120V/60Hz | - | $171.35 |
| Universal RTS Receiver (For 110V AC Motors) | 1810627 | RTS | AC 120V/60Hz | Alpine White | $181.85 |
| Control4 to Digital Motor Interface | 1870533 | Zigbee | DC 24V | - | $232.65 |
| Universal RTS Interface II (URTSI II-16 Channel) | 1810872 | RTS | - | - | $476.57 |
| Somfy Connect Universal Automation Interface (UAI) Plus | 1870272 | - | DC 24V | Grey | $1,131.91 |
| Somfy Connect BMS Interface V2 | 1871168 | - | DC 24V | - | $2,523.29 |
Parts and accessories
| Product | SKU | Technology | Power | 2026 retail |
|---|---|---|---|---|
| Remote RTS Antenna | 2400472 | RTS | NOT APPLICABLE | $57.97 |
Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.

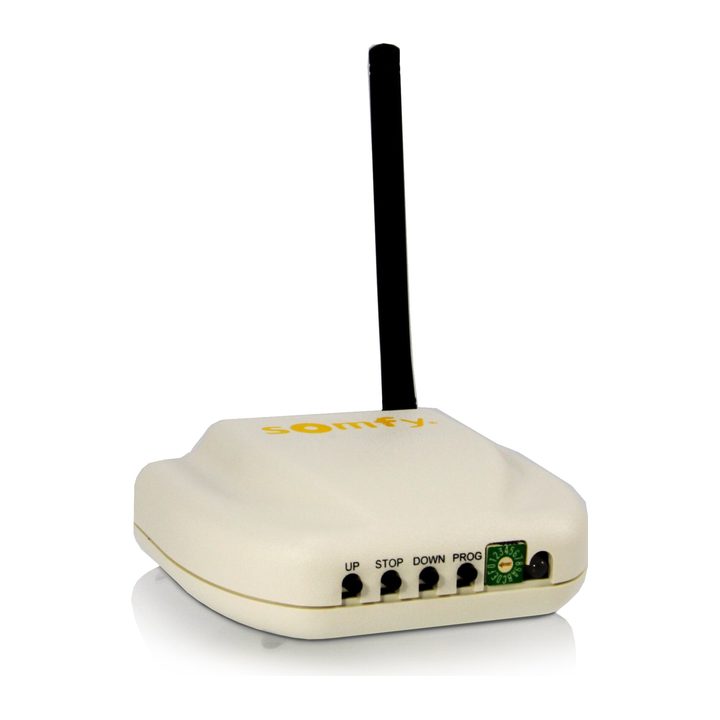

Universal RTS Interface II (URTSI II-16 Channel) specifications
Somfy's published figures for the Universal RTS Interface II (URTSI II-16 Channel) (SKU 1810872). Other models on this page differ in control, torque and power; see the price table.
| Radio Frequency | 433.420 MHz |
|---|---|
| Embedded Technologies | RTS |
| Applications | Awning, Exterior Solar Screens, Interior Window Coverings / Blinds, Interior Window Coverings / Draperies, Interior Window Coverings / Shades, Pergola, Rolling shutter |
Universal RTS Interface II (URTSI II-16 Channel) documents from Somfy
Spec sheets and installation guides published by Somfy (PDF, opens on somfy.com).
Where the RTS interfaces and receivers fits
The URTSI II is the usual bridge when a Crestron, Savant or Control4 system has to drive RTS shades. See Crestron shades and home automation.
Somfy RTS interfaces and receivers: frequently asked
How much does the Somfy RTS interfaces and receivers cost?
In 2026 the Somfy RTS interfaces and receivers range runs from $35.56 (IR Sensor (Miniature) with 3 ft. Cable with Connector for URTSI II) to $2,523.29 (Somfy Connect BMS Interface V2), retail, product only. Installation, programming and wiring are quoted at the measure.
How does Crestron control Somfy RTS shades?
Through an RTS interface such as the URTSI II, which turns RS232, RS485 or IR commands into RTS radio commands.
Do these prices include installation?
No. Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.
