Lutron M Screen Fabric
27 colourways, openness 1%, 3%, 5%, solar screen, up to 120 inches wide. Every swatch and every specification, from a certified Lutron dealer in Fort Lauderdale and Miami Beach.
A quieter neutral palette in 1%, 3% and 5%
M Screen shares E Screen's fiberglass and vinyl construction and 120-inch width but carries a different, softer colour card: White/White, White/Pearl, White/Linen, White/Stone, Pearl/Pearl, Pearl/Linen, Linen/Stone, Charcoal/Grey and Charcoal/Charcoal, each in 1%, 3% and 5%. The Stone and Linen combinations are the reason to look at it: they sit between the bright whites and the greys, and they flatter warm interiors, travertine floors and wood ceilings that a pure white screen can make look cold.
It carries the same certifications as E Screen (GREENGUARD, RoHS, lead free, anti-microbial) and the same NFPA 701 fire listing, so it moves between residential and commercial work without a second spec. One difference to know: M Screen is not railroadable, so very wide openings are made with seams or split into two shades on one headrail.
M Screen
9 colours, 27 colourways. Openness 1%, 3%, 5%; up to 120 in wide; fire listed.
Colourways
Every M Screen colourway, with Lutron's published figures
| Swatch | Colour | Code | Openness | Tv | Ts | Rs | As | Back | Width | Sample no. | Docs |
|---|---|---|---|---|---|---|---|---|---|---|---|

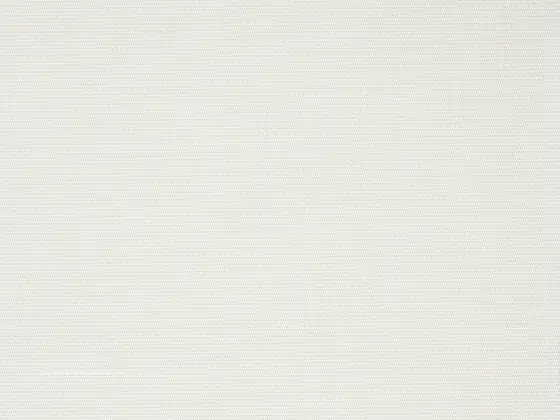

| White/White | S0202-M-1 | 1% | 12% | 15% | 76% | 9% | Same as Face | 120 in | WSF-S0202-M-1 | HPD | |

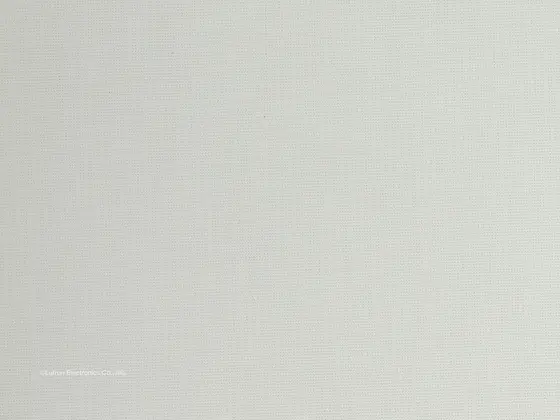

| White/White | S0202-M-3 | 3% | 16% | 18% | 71% | 11% | Same as Face | 120 in | WSF-BMS-3-WH | HPD | |

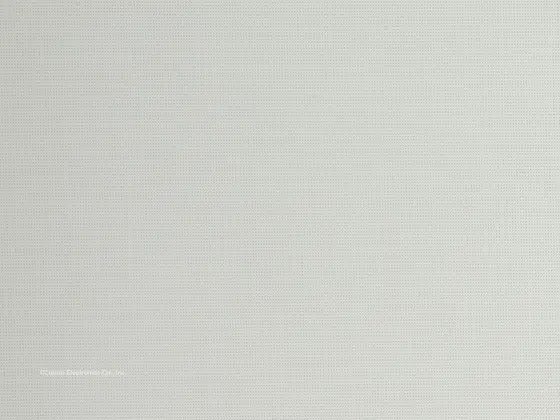

| White/White | S0202-M-5 | 5% | 16% | 19% | 71% | 10% | Same as Face | 120 in | WSF-BMS-5-WH | HPD | |

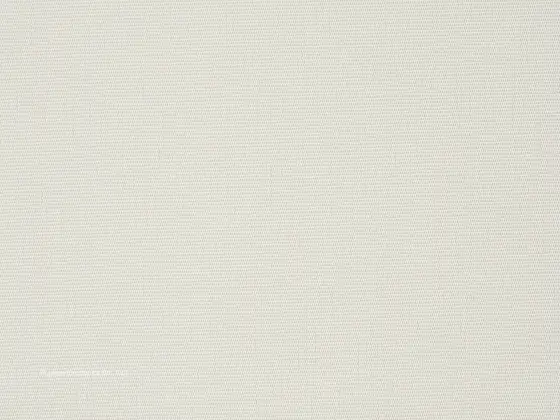

| White/Stone | S0222-M-1 | 1% | 16% | 18% | 67% | 15% | Same as Face | 120 in | WSF-S0222-M-1 | HPD | |

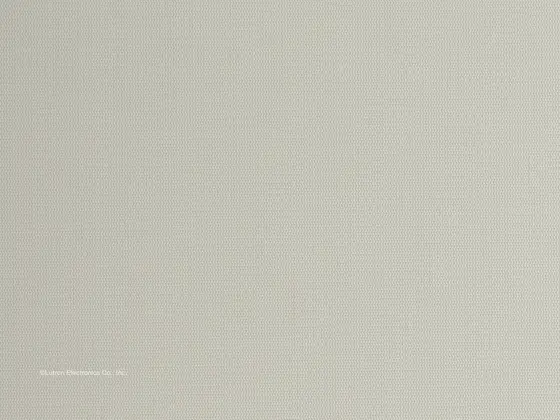

| White/Stone | S0222-M-3 | 3% | 18% | 21% | 62% | 17% | Same as Face | 120 in | WSF-BMS-3-WH-ST | HPD | |

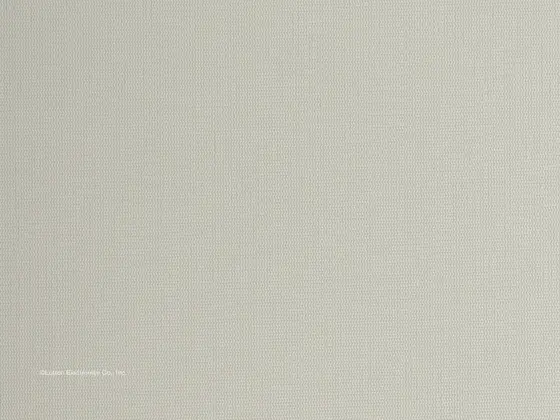

| White/Stone | S0222-M-5 | 5% | 18% | 21% | 61% | 18% | Same as Face | 120 in | WSF-BMS-5-WH-ST | HPD | |

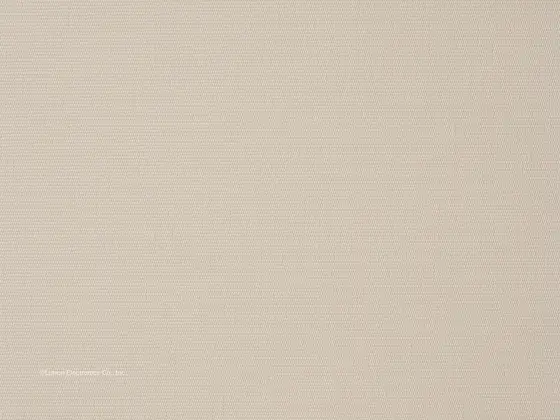

| Linen/Stone | S2022-M-1 | 1% | 18% | 21% | 50% | 29% | Same as Face | 120 in | WSF-S2022-M-1 | HPD | |
| Linen/Stone | S2022-M-3 | 3% | 16% | 21% | 51% | 28% | Same as Face | 120 in | WSF-BMS-3-L-ST | HPD | |

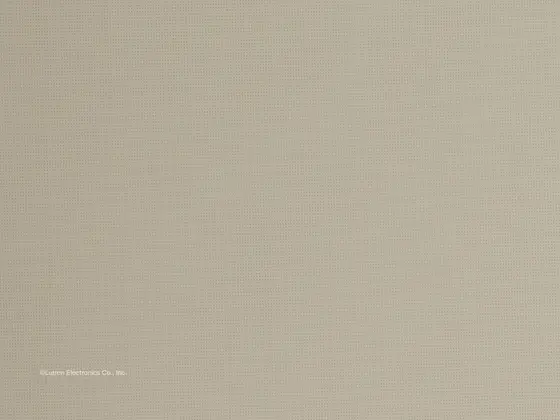

| Linen/Stone | S2022-M-5 | 5% | 18% | 22% | 50% | 28% | Same as Face | 120 in | WSF-BMS-5-L-ST | HPD | |

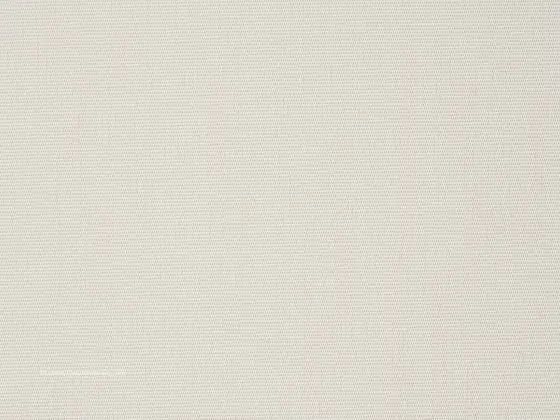

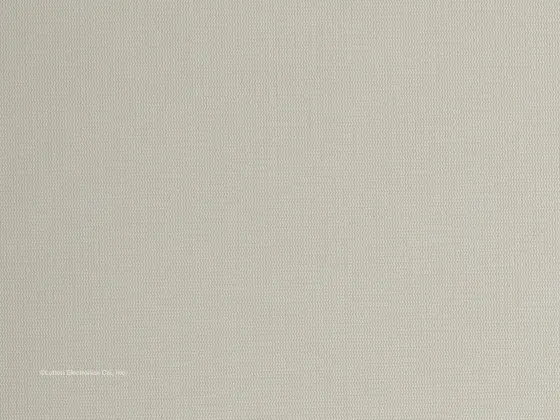

| White/Linen | S0220-M-1 | 1% | 12% | 15% | 67% | 18% | Same as Face | 120 in | WSF-S0220-M-1 | HPD | |

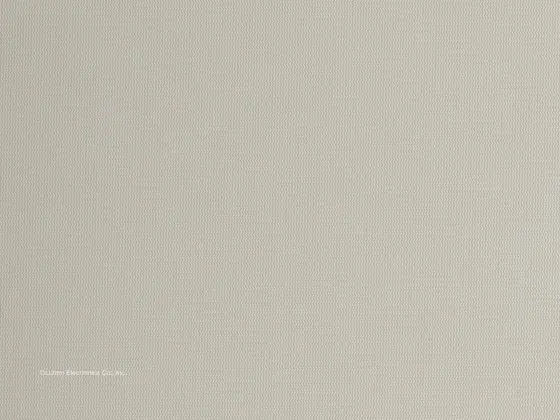

| White/Linen | S0220-M-3 | 3% | 11% | 15% | 64% | 21% | Same as Face | 120 in | WSF-BMS-3-WH-L | HPD | |
| White/Linen | S0220-M-5 | 5% | 15% | 19% | 61% | 20% | Same as Face | 120 in | WSF-BMS-5-WH-L | HPD | |

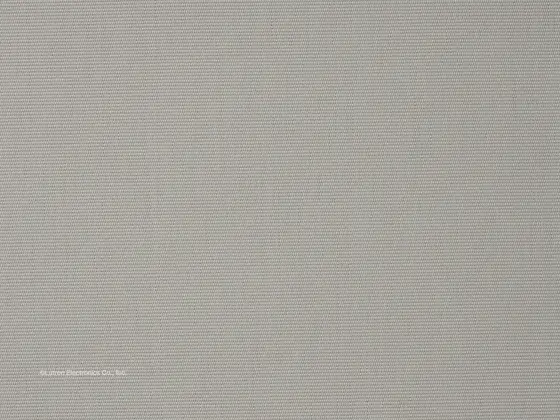

| Pearl/Linen | S0720-M-1 | 1% | 5% | 8% | 36% | 56% | Same as Face | 120 in | WSF-S0720-M-1 | HPD | |

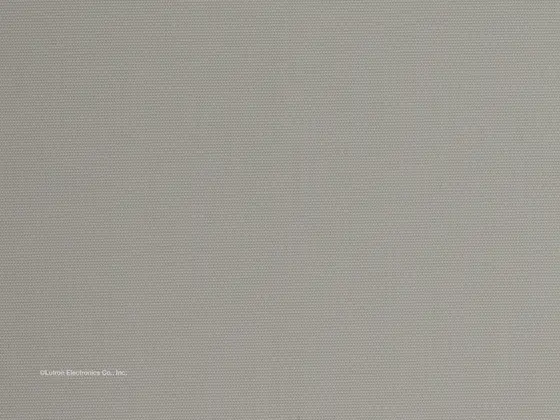

| Pearl/Linen | S0720-M-3 | 3% | 8% | 11% | 40% | 49% | Same as Face | 120 in | WSF-BMS-3-P-L | HPD | |

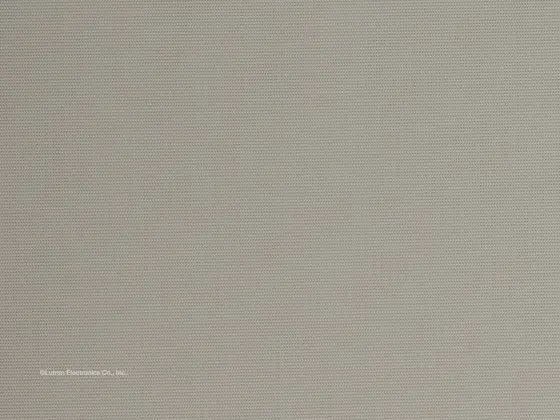

| Pearl/Linen | S0720-M-5 | 5% | 9% | 12% | 39% | 49% | Same as Face | 120 in | WSF-BMS-5-P-L | HPD | |

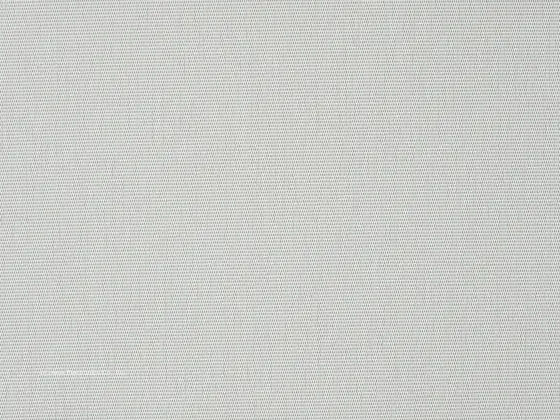

| White/Pearl | S0207-M-1 | 1% | 7% | 9% | 59% | 32% | Same as Face | 120 in | WSF-S0207-M-1 | HPD | |

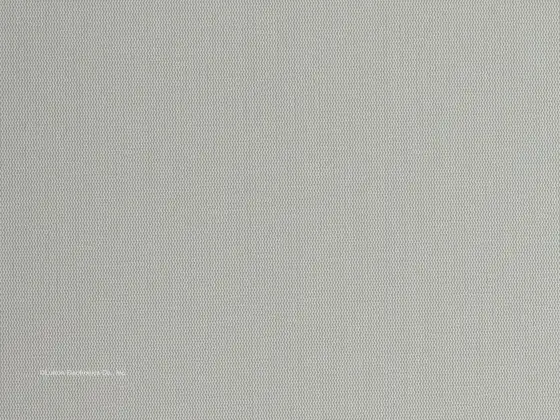

| White/Pearl | S0207-M-3 | 3% | 8% | 10% | 54% | 36% | Same as Face | 120 in | WSF-BMS-3-WH-P | HPD | |

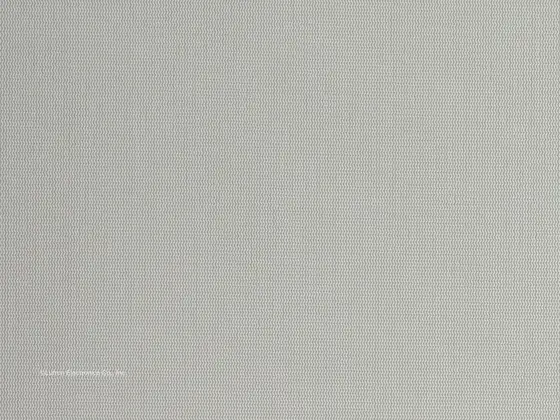

| White/Pearl | S0207-M-5 | 5% | 12% | 15% | 52% | 33% | Same as Face | 120 in | WSF-BMS-5-WH-P | HPD | |

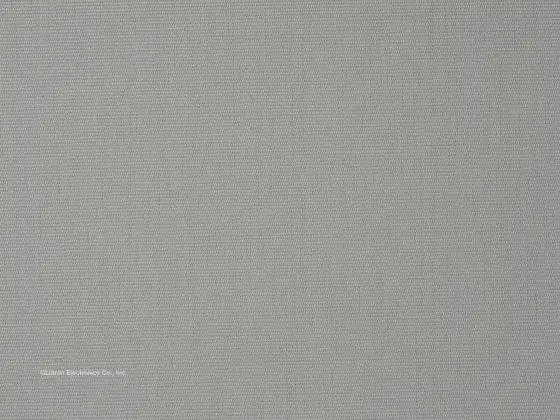

| Pearl/Pearl | S0707-M-1 | 1% | 4% | 5% | 32% | 63% | Same as Face | 120 in | WSF-S0707-M-1 | HPD | |
| Pearl/Pearl | S0707-M-3 | 3% | 5% | 7% | 34% | 59% | Same as Face | 120 in | WSF-BMS-3-P | HPD | |

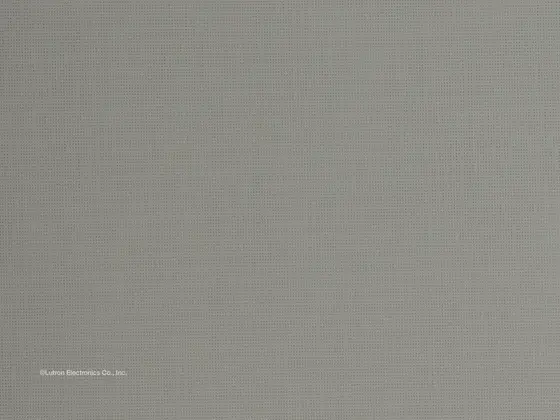

| Pearl/Pearl | S0707-M-5 | 5% | 7% | 10% | 33% | 57% | Same as Face | 120 in | WSF-BMS-5-P | HPD | |

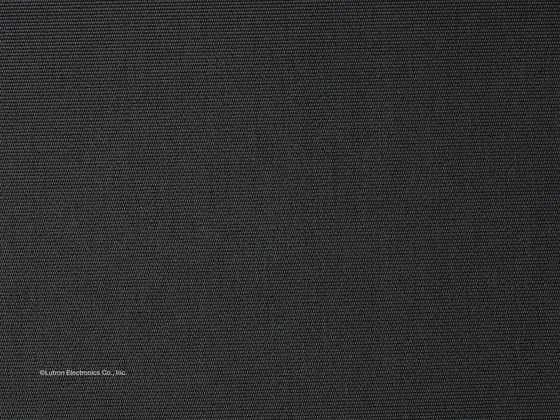

| Charcoal/Grey | S3001-M-1 | 1% | 2% | 2% | 7% | 91% | Same as Face | 120 in | WSF-S3001-M-1 | HPD | |

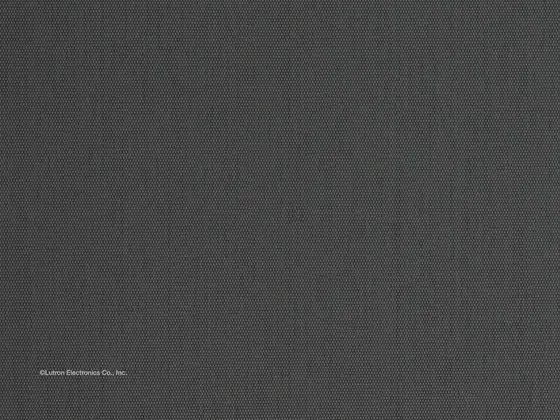

| Charcoal/Grey | S3001-M-3 | 3% | 2% | 2% | 8% | 90% | Same as Face | 120 in | WSF-BMS-3-C-G | HPD | |

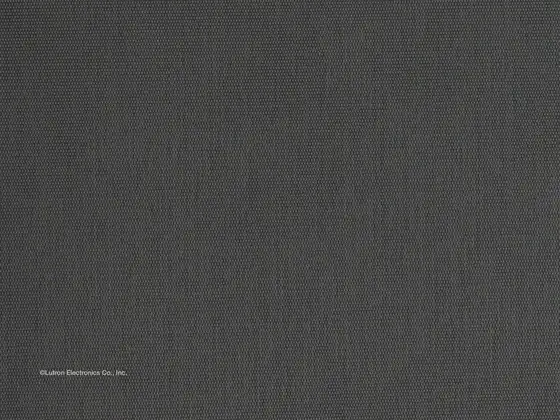

| Charcoal/Grey | S3001-M-5 | 5% | 5% | 6% | 8% | 86% | Same as Face | 120 in | WSF-BMS-5-C-G | HPD | |

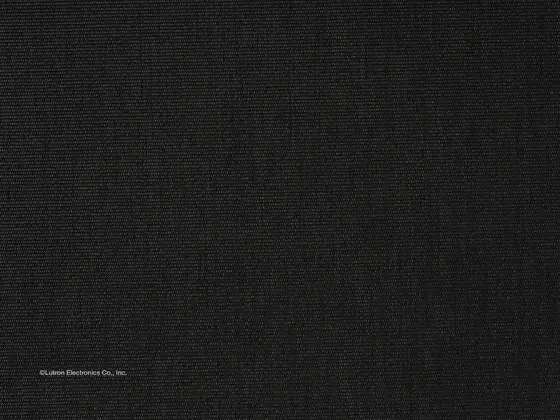

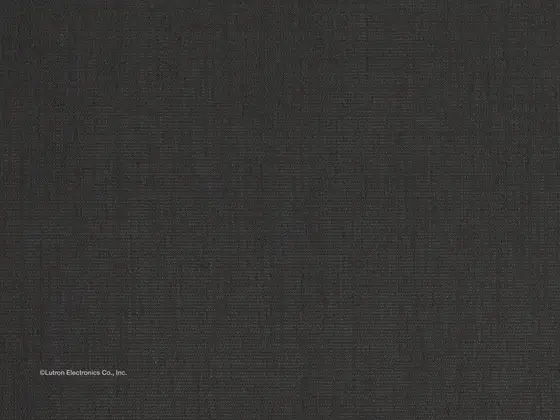

| Charcoal/Charcoal | S3030-M-1 | 1% | 1% | 1% | 4% | 95% | Same as Face | 120 in | WSF-S3030-M-1 | HPD | |

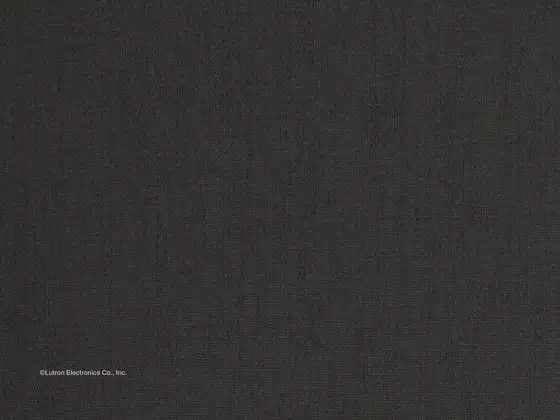

| Charcoal/Charcoal | S3030-M-3 | 3% | 3% | 3% | 4% | 93% | Same as Face | 120 in | WSF-BMS-3-C | HPD | |
| Charcoal/Charcoal | S3030-M-5 | 5% | 3% | 3% | 4% | 93% | Same as Face | 120 in | WSF-BMS-5-C | HPD |
Tv = visible light transmitted, Ts = solar energy transmitted, Rs = solar energy reflected, As = solar energy absorbed, as published by Lutron. Sample numbers are Lutron memo-sample codes; we bring the samples to the consultation.
Where M Screen works here
Coral Gables and Boca Raton interiors with warm stone and wood are where M Screen earns its place. Linen/Stone at 3% on a lanai wall gives a room the look of a woven textile from inside while behaving exactly like a technical screen. On a bright white contemporary condo, E Screen is usually the closer match; when the client says the white shades in the showroom feel too clinical, M Screen is what we bring out next.
M Screen: frequently asked
E Screen or M Screen?
Same performance, different colour cards. E Screen has the widest openness range (0.5% to 10%) and the charcoal KOOLBLACK options; M Screen adds Stone and Linen tones that suit warm interiors. We usually order samples from both for the first appointment.
How wide can a Lutron M Screen shade be?
Lutron publishes a maximum usable fabric width of 120 inches for M Screen. It can be seamed for wider openings, or two shades share one headrail and move together. We confirm the exact limit for the chosen system when we measure.
Which Lutron shades use M Screen?
M Screen is made up on Lutron roller shades and tensioned skylight shades. Colourways approved for tensioned shades can also cover skylights and sloped glass. As a certified Lutron dealer in Fort Lauderdale and Miami Beach we order it for any Lutron system it is offered on and install it with our own team.
Can I see M Screen samples before ordering?
Yes. Lutron makes memo samples of every M Screen colourway on this page; tell us which colours you are considering and we order them from Lutron for your consultation. Both our Fort Lauderdale workroom (by appointment) and our Miami Beach showroom have Lutron shades running so you can see the fabrics in motion.
