Somfy Altus RTS: the RTS tube motor for exterior and large shades
Somfy Altus RTS, with 2026 retail prices for every model, specifications and Somfy's documents.
What is the Somfy Altus RTS?
The Somfy Altus RTS is a 120V tube motor with a built-in RTS radio receiver, made in the 40, 50 and 60 series with torques from 4 to 100 Nm. Somfy positions it mainly for exterior applications. In 2026 the Somfy Altus RTS range runs from $298.45 (Altus RTS 404S2 RH with Fast Connector) to $573.70 (Altus RTS 660R2), retail, product only.
Altus RTS answers the full range of RTS remotes, wall switches, sensors and the TaHoma switch, so no control wiring is needed, only power. The model code gives the torque: an Altus RTS 525A2 is a 25 Nm motor, and the 6100R2 a 100 Nm motor for the largest shades and screens. Somfy lists the 525A2 at 56 dB, louder than the Sonesse range, which is why it is used outdoors rather than in bedrooms.
How much does the Somfy Altus RTS cost?
In 2026 the Somfy Altus RTS range runs from $298.45 (Altus RTS 404S2 RH with Fast Connector) to $573.70 (Altus RTS 660R2), retail, product only.
| Product | SKU | Control | Torque | Power supply | Noise | 2026 retail |
|---|---|---|---|---|---|---|
| Altus® RTS 404S2 RH with Fast Connector | 1240260 | RTS | 4 Nm | AC 120V/60Hz | 57 dB | $298.45 |
| Altus® RTS 409R2 RH with Fast Connector | 1240261 | RTS | 9 Nm | AC 120V/60Hz | 54 dB | $310.25 |
| Altus® RTS 506S2 | 1033399 | RTS | 6 Nm | AC 120V/60Hz | 55 dB | $335.41 |
| Altus® RTS 510S2 | 1038165 | RTS | 10 Nm | AC 120V/60Hz | 60 dB | $409.35 |
| Altus® RTS 525A2 | 1043423 | RTS | 25 Nm | AC 120V/60Hz | 56 dB | $439.84 |
| Altus® RTS 530R2 | 1038169 | RTS | 30 Nm | AC 120V/60Hz | - | $445.93 |
| Altus® RTS 540R2 | 1240556 | RTS | 40 Nm | AC 120V/60Hz | - | $479.51 |
| Altus® RTS 535A2 | 1038168 | RTS | 35 Nm | AC 120V/60Hz | 56 dB | $480.54 |
| Altus® RTS 550R2 | 1038170 | RTS | 50 Nm | AC 120V/60Hz | 55 dB | $512.48 |
| Altus® RTS 680R2 | 1164261 | RTS | 80 Nm | AC 120V/60Hz | 65 dB | $522.33 |
| Altus® RTS 6100R2 | 1166289 | RTS | 100 Nm | AC 120V/60Hz | 65 dB | $570.22 |
| Altus® RTS 660R2 | 1162271 | RTS | 60 Nm | AC 120V/60Hz | 63 dB | $573.70 |
Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.

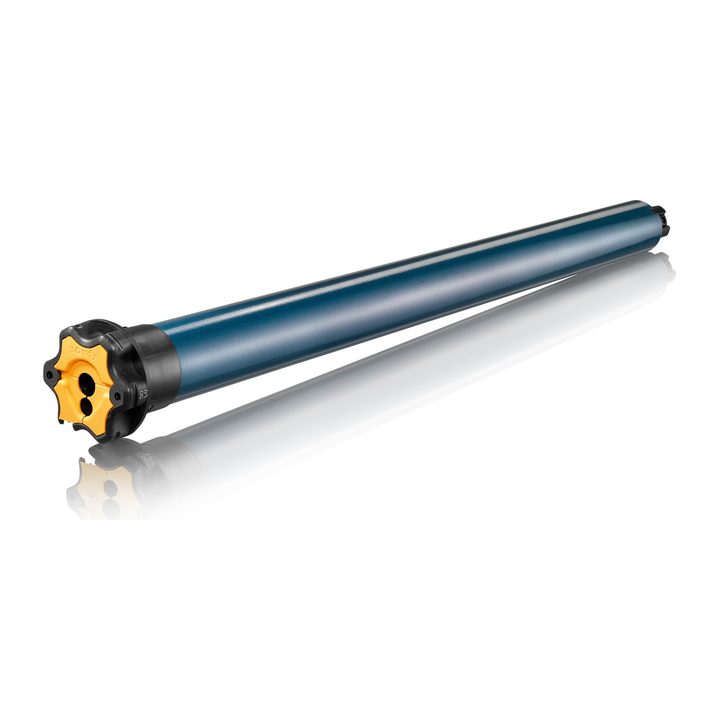

Altus RTS 525A2 specifications
Somfy's published figures for the Altus RTS 525A2 (SKU 1043423). Other models on this page differ in control, torque and power; see the price table.
| Protection Index | IP 44 |
|---|---|
| Radio Frequency | 433.420 MHz |
| Number of channels | 12 |
| Range in open field | 656.2 ft |
| Consumption during operation | 180 W |
| Power supply | AC - RGE 2 - 120V/60HZ |
| Consumption in standby mode | 0 W |
| Noise level (dB) | 56 dB |
| Approvals | UR |
| Embedded Technologies | RTS |
| Applications | Awning, Exterior Solar Screens, Interior Window Coverings / Blinds, Interior Window Coverings / Shades, Projection screen, Retractable Insect Screens, Rolling shutter |
| Width (with packaging) | 3.47 in |
| Height (with packaging) | 3.66 in |
Altus RTS 525A2 documents from Somfy
Spec sheets and installation guides published by Somfy (PDF, opens on somfy.com).
Where the Altus RTS fits
Altus RTS motors drive exterior solar screens and large roller shades on terraces and pool houses, where a Sonesse motor's quietness is not needed. Our own exterior shades are sun and wind comfort screens, not hurricane protection. See also the Maestria RTS for zip screens.
Somfy Altus RTS: frequently asked
How much does the Somfy Altus RTS cost?
In 2026 the Somfy Altus RTS range runs from $298.45 (Altus RTS 404S2 RH with Fast Connector) to $573.70 (Altus RTS 660R2), retail, product only. Installation, programming and wiring are quoted at the measure.
How do I read the Altus RTS model number?
The digits after the series give the torque in newton metres: 525A2 is 25 Nm, 550R2 is 50 Nm and 6100R2 is 100 Nm.
Do these prices include installation?
No. Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.
Compare with other Somfy shade and blind motors
Somfy Altus RTS in Fort Lauderdale, Miami, Boca Raton & Palm Beach
Exotic Shades is a certified Somfy Expert and SDN Specialist. Our workroom and showroom are at 4539 Powerline Rd in Fort Lauderdale, our second showroom is South of Fifth in Miami Beach, and the same in-house team measures, builds, installs and programs from Miami to Palm Beach.
Get a quote for the Somfy Altus RTS
We measure, choose the motor and controls with you and quote the product, the shade or drapery and the installation together. One free hour with our team routinely saves owners thousands in avoidable mistakes.
