Somfy Roll Up: compact motors for roller shades and blinds
Somfy Roll Up, with 2026 retail prices for every model, specifications and Somfy's documents.
What is the Somfy Roll Up?
The Somfy Roll Up range is a family of compact motors for interior roller shades: WireFree RTS battery motors in 24 and 28 sizes, wired Roll Up R28 motors in three mounting styles, and the Roll Up 30 Short in PoE and RS485 versions. In 2026 the Somfy Roll Up range runs from $115.91 (Roll Up Wired R28 (Ear Mount)) to $209.30 (Roll Up 28 WireFree RTS V2 (Li-ion)), retail, product only.
Somfy describes the Roll Up 28 WireFree V2 as suited to mid to large windows, with an embedded lithium-ion battery, a removable charging cable and a solar charging option. The wired R28 comes with ear, pin or star-hole mounting to fit different brackets. All the RTS versions work with Somfy's RTS remotes, wall switches and TaHoma.
How much does the Somfy Roll Up cost?
In 2026 the Somfy Roll Up range runs from $115.91 (Roll Up Wired R28 (Ear Mount)) to $209.30 (Roll Up 28 WireFree RTS V2 (Li-ion)), retail, product only.
| Product | SKU | Control | Power supply | Noise | 2026 retail |
|---|---|---|---|---|---|
| Roll Up Wired R28 (Ear Mount) | 1002833 | - | DC 24V | 57 dB | $115.91 |
| Roll Up Wired R28 (Pin Mount) | 1002832 | - | DC 24V | 57 dB | $115.91 |
| Roll Up Wired R28 (Starhole Mount) | 1002834 | - | DC 24V | 57 dB | $115.91 |
| Roll Up 24 WireFree™ RTS (Li-ion) | 1240278 | RTS, Battery (WireFree) | DC 12V | 60 dB | $156.20 |
| Roll Up 28 WireFree™ RTS V2 (External Battery) | 1241162 | RTS, Battery (WireFree) | DC 12V | 54 dB | $176.25 |
| Roll Up 28 WireFree™ RTS V2 (Li-ion) | 1241150 | RTS, Battery (WireFree) | DC 12V | 54 dB | $209.30 |
| Roll Up 30 Short PoE 48V DC | 1246903 | PoE | PoE 48V | 46 dB | On request |
| Roll Up 30 Short RS485 24V DC | 1246901 | RS485 | DC 24V | 46 dB | On request |
Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.
Discontinued Roll Up models and their replacements
Somfy no longer sells these models. Where Somfy names a replacement, it is linked to its row and price.
| Discontinued model | SKU | Replaced by |
|---|---|---|
| Roll Up 28 WireFree™ RTS | 1240292 | Roll Up 28 WireFree™ RTS V2 (External Battery) (1241162) |
| Roll Up 28 WireFree™ RTS (Li-ion) | 1240291 | Roll Up 28 WireFree™ RTS V2 (Li-ion) (1241150) |

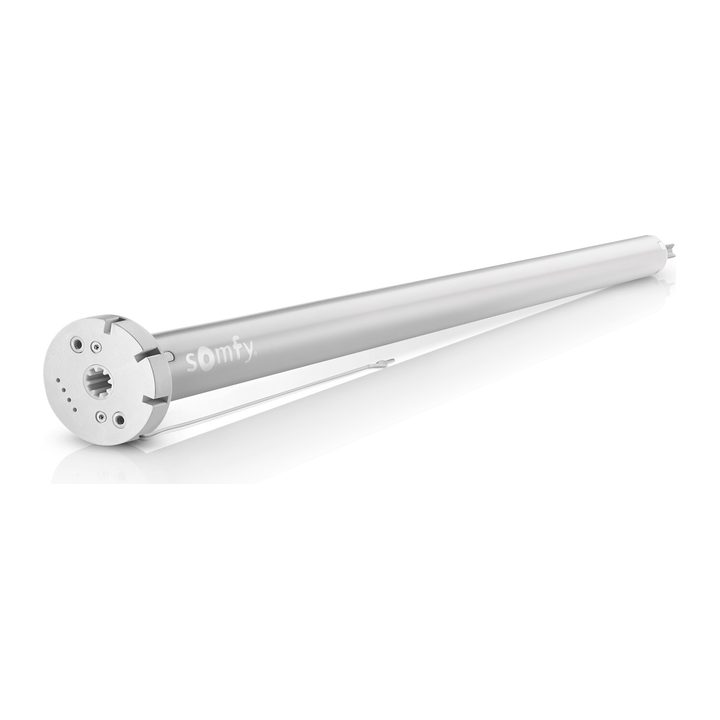

Roll Up 28 WireFree RTS V2 (Li-ion) specifications
Somfy's published figures for the Roll Up 28 WireFree RTS V2 (Li-ion) (SKU 1241150). Other models on this page differ in control, torque and power; see the price table.
| Protection Index | IP 20 |
|---|---|
| Radio Frequency | 433.420 MHz |
| Number of channels | 12 |
| Range in open field | 656.2 ft |
| Number of batteries | 1 |
| Consumption during operation | 0.269 W |
| Power supply | DC - RGE 12 - 12V |
| Consumption in standby mode | 0.001 W |
| Noise level (dB) | 54 dB |
| Approvals | SASO, CE |
| Compatible Protocols | RTS |
| Embedded Technologies | RTS |
| Applications | Interior Window Coverings / Blinds, Interior Window Coverings / Shades |
Roll Up 28 WireFree RTS V2 (Li-ion) documents from Somfy
Spec sheets and installation guides published by Somfy (PDF, opens on somfy.com).
Where the Roll Up fits
Roll Up motors are a practical choice for rental units and guest rooms, and for motorizing shades that are already hung. For the quietest battery option, compare the Sonesse 28 WireFree.
Somfy Roll Up: frequently asked
How much does the Somfy Roll Up cost?
In 2026 the Somfy Roll Up range runs from $115.91 (Roll Up Wired R28 (Ear Mount)) to $209.30 (Roll Up 28 WireFree RTS V2 (Li-ion)), retail, product only. Installation, programming and wiring are quoted at the measure.
Can a Roll Up 28 WireFree be charged by the sun?
Yes. Somfy lists solar charging as an option for the Roll Up 28 WireFree Li-ion; see the Somfy solar panels.
Do these prices include installation?
No. Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.
