Somfy LT50 and LT60 wired motors: the standard 120V wired tube motors
Somfy LT50 and LT60 wired motors, with 2026 retail prices for every model, specifications and Somfy's documents.
What are the Somfy LT50 and LT60 wired motors?
The Somfy LT50 and LT60 are standard 120V AC wired tube motors with a star head, controlled by a wired wall switch; the model name gives the torque and speed, from 6 Nm at 38 rpm to 100 Nm at 14 rpm. The range also includes the 40 mm LS40 (412R2) and two RS485 motors. In 2026 the Somfy LT50 and LT60 wired motors range runs from $238.26 (506S2 6/38 SJTW) to $524.81 (6100R2 100/14 SJTW), retail, product only.
Somfy describes the LT50 AC as its basic, entry-level motor for projects where the walls are open: four wires, power and a switch, and no power drawn in standby. A 525A2 25/20 SJTW, for example, is a 25 Nm motor at 20 rpm with an SJTW power cable. The LS40 412R2 fits tubes with an internal diameter of 37 mm or more and sets its limits with a knob on the motor head.
How much does the Somfy LT50 and LT60 wired motors cost?
In 2026 the Somfy LT50 and LT60 wired motors range runs from $238.26 (506S2 6/38 SJTW) to $524.81 (6100R2 100/14 SJTW), retail, product only.
| Product | SKU | Control | Torque | Speed | Power supply | Noise | 2026 retail |
|---|---|---|---|---|---|---|---|
| 506S2 6/38 SJTW | 1033401 | - | 6 Nm | 38 rpm | AC 120V/60Hz | 55 dB | $238.26 |
| 412R2 RH without Fast Connector | 1024192 | - | 12 Nm | - | AC 120V/60Hz | 54 dB | $246.46 |
| 510R2 10/14 SJTW | 1038172 | - | 10 Nm | 14 rpm | AC 120V/60Hz | 45 dB | $247.23 |
| 515A2 15/20 SJTW | 1040063 | - | 15 Nm | 20 rpm | AC 120V/60Hz | - | $274.22 |
| 520R2 20/14 SJTW | 1042055 | - | 20 Nm | 14 rpm | AC 120V/60Hz | 48 dB | $296.68 |
| 510S2 10/38 SJTW | 1038171 | - | 10 Nm | 38 rpm | AC 120V/60Hz | 60 dB | $300.05 |
| 515S2 15/38 RH SJTW | 1040061 | - | 15 Nm | 38 rpm | AC 120V/60Hz | 60 dB | $333.78 |
| 515S2 15/38 SJTW | 1040062 | - | 15 Nm | 38 rpm | AC 120V/60Hz | 60 dB | $333.78 |
| 530R2 30/14 SJTW | 1045793 | - | 30 Nm | 14 rpm | AC 120V/60Hz | 55 dB | $350.62 |
| 525A2 25/20 SJTW | 1043424 | - | 25 Nm | 20 rpm | AC 120V/60Hz | 56 dB | $359.41 |
| 535A2 35/20 SJTW | 1047368 | - | 35 Nm | 20 rpm | AC 120V/60Hz | - | $368.61 |
| 540R2 40/14 SJTW | 1049894 | - | 40 Nm | 14 rpm | AC 120V/60Hz | 55 dB | $384.33 |
| 550R2 50/14 SJTW | 1051464 | - | 50 Nm | 14 rpm | AC 120V/60Hz | - | $400.09 |
| 660R2 60/14 SJTW | 1162272 | - | 60 Nm | 14 rpm | AC 120V/60Hz | 63 dB | $432.67 |
| 680R2 80/14 SJTW | 1164262 | - | 80 Nm | 14 rpm | AC 120V/60Hz | 65 dB | $474.22 |
| 515S2 RS485 | 1002427 | RS485 | 15 Nm | - | AC 120V/60Hz | 55 dB | $482.88 |
| 535A2 RS485 | 1002288 | RS485 | 35 Nm | - | AC 120V/60Hz | 55 dB | $508.20 |
| 6100R2 100/14 SJTW | 1166290 | - | 100 Nm | 14 rpm | AC 120V/60Hz | 67 dB | $524.81 |
Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.

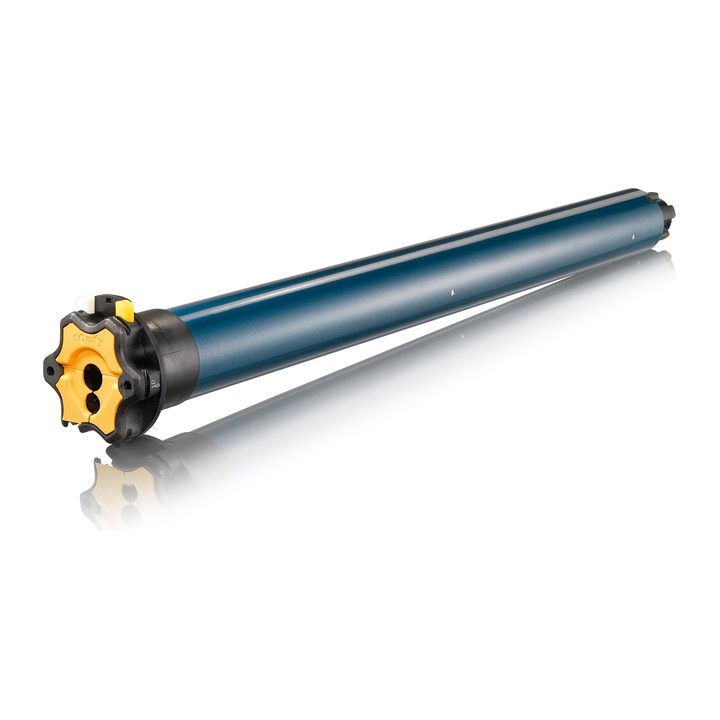

525A2 25/20 SJTW specifications
Somfy's published figures for the 525A2 25/20 SJTW (SKU 1043424). Other models on this page differ in control, torque and power; see the price table.
| Protection Index | IP 44 |
|---|---|
| Consumption during operation | 180 W |
| Power supply | AC - RGE 2 - 120V/60HZ |
| Consumption in standby mode | 0 W |
| Noise level (dB) | 56 dB |
| Approvals | UR |
| Embedded Technologies | Wired |
| Applications | Awning, Rolling shutter |
| Width (with packaging) | 3.54 in |
| Height (with packaging) | 3.66 in |
525A2 25/20 SJTW documents from Somfy
Spec sheets and installation guides published by Somfy (PDF, opens on somfy.com).
Where the LT50 and LT60 wired motors fits
Wired LT motors make sense in new construction and full renovations, where we can run 120V and switch legs to each window before drywall. For radio control on the same motor body, see Altus RTS; for quiet interiors, Sonesse 50.
Somfy LT50 and LT60 wired motors: frequently asked
How much does the Somfy LT50 and LT60 wired motors cost?
In 2026 the Somfy LT50 and LT60 wired motors range runs from $238.26 (506S2 6/38 SJTW) to $524.81 (6100R2 100/14 SJTW), retail, product only. Installation, programming and wiring are quoted at the measure.
What do the numbers in 525A2 25/20 mean?
25/20 is 25 Nm of torque at 20 revolutions per minute. The same torque appears in the model code (525), and the letter gives the speed class.
Do these prices include installation?
No. Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.
