Somfy Sonesse 50: the quiet 120V motor for larger and coupled shades
Somfy Sonesse 50, with 2026 retail prices for every model, specifications and Somfy's documents.
What is the Somfy Sonesse 50?
The Somfy Sonesse 50 is a quiet 120V AC tube motor for larger interior and exterior shades, sold as the 506S2 and 510S2 in wired, RTS radio and RS485 versions. In 2026 the Somfy Sonesse 50 range runs from $234.08 (Sonesse 506S2 PA) to $539.83 (Sonesse 510S2 RS485), retail, product only.
Somfy lists the 506S2 RTS at 45.1 dB. The 510S2 is the one Somfy recommends for large multi-banded or coupled shades, where one motor drives several shades on a shared shaft. This page also carries the Sonesse 50 cables, drive wheels, pin end caps and brackets that complete the installation.
How much does the Somfy Sonesse 50 cost?
In 2026 the Somfy Sonesse 50 range runs from $234.08 (Sonesse 506S2 PA) to $539.83 (Sonesse 510S2 RS485), retail, product only.
| Product | SKU | Control | Torque | Power supply | Noise | 2026 retail |
|---|---|---|---|---|---|---|
| Sonesse® 506S2 PA | 1001801 | - | 6 Nm | AC 120V/60Hz | 45 dB | $234.08 |
| Sonesse® 506S2 RH | 1001812 | - | 6 Nm | AC 120V/60Hz | 45 dB | $250.21 |
| Sonesse® 506S2 | 1001814 | - | 6 Nm | AC 120V/60Hz | 45 dB | $274.94 |
| Sonesse® 510S2 | 1001813 | - | 10 Nm | AC 120V/60Hz | 47.2 dB | $276.73 |
| Sonesse® 510S2 PA | 1002323 | - | 10 Nm | AC 120V/60Hz | 47.2 dB | $276.73 |
| Sonesse® 510S2 RH | 1001810 | - | 10 Nm | AC 120V/60Hz | 47.2 dB | $276.73 |
| Sonesse® 506S2 RTS | 1001809 | RTS | 6 Nm | AC 120V/60Hz | 45.1 dB | $343.83 |
| Sonesse® 506S2 RTS RH | 1001806 | RTS | 6 Nm | AC 120V/60Hz | 45.1 dB | $403.13 |
| Sonesse® 510S2 RTS | 1001807 | RTS | 10 Nm | AC 120V/60Hz | 47.2 dB | $444.36 |
| Sonesse® 510S2 RTS RH | 1001805 | RTS | 10 Nm | AC 120V/60Hz | 47.2 dB | $463.56 |
| Sonesse® 506S2 RS485 | 1002286 | RS485 | 6 Nm | AC 120V/60Hz | 45 dB | $479.41 |
| Sonesse® 510S2 RS485 | 1002287 | RS485 | 10 Nm | AC 120V/60Hz | 47.2 dB | $539.83 |
Parts and accessories
Show all 23 parts and prices
| Product | SKU | Unit | 2026 retail |
|---|---|---|---|
| 56mm OD Aluminum Sonesse® 50 Tube (16 ft. Lengths) - Mill Finish | 1780743 | not stated | $6.35 |
| 56mm OD Aluminum Sonesse® 50 Tube (16 ft. Lengths) - White Powder Coat | 1780744 | not stated | $6.85 |
| Sonesse® 50 & LT50 Motor Pigtail to Fast Connector SJTW 4C Cable - 1.6 ft. | 9020804 | each | $38.96 |
| Sonesse® 50 & LT50 RTS/RS485 Motor Pigtail to Fast Connector SJTW 3C Cable - 1.6 ft. | 9020803 | each | $38.96 |
| Sonesse® 50 & LT50/LT60 RTS/RS485 SJTW 3C Cable - 10 ft. | 9018190 | each | $17.36 |
| Sonesse® 50 & LT50/LT60 RTS/RS485 SJTW 3C Cable - 10 ft. (Black) | 9028737 | each | $32.17 |
| Sonesse® 50 & LT50/LT60 RTS/RS485 SJTW 3C Cable - 24 ft. | 9020985 | each | $55.94 |
| Sonesse® 50 & LT50/LT60 RTS/RS485 SJTW 3C Cable - 24 ft. (Black) | 9028738 | each | $55.94 |
| Sonesse® 50 & LT50/LT60 RTS/RS485 SJTW 3C Cable with NEMA Plug - 1.5 ft. | 9021049 | each | $19.99 |
| Sonesse® 50 & LT50/LT60 RTS/RS485 SJTW 3C Cable with NEMA Plug - 10 ft. | 9021051 | each | $24.55 |
| Sonesse® 50 & LT50/LT60 RTS/RS485 SJTW 3C Cable with NEMA Plug - 18 ft. | 9021052 | each | $26.33 |
| Sonesse® 50 & LT50/LT60 RTS/RS485 SJTW 3C Cable with NEMA Plug - 24 ft. | 9021053 | each | $37.84 |
| Sonesse® 50 & LT50/LT60 RTS/RS485 SJTW 3C Cable with NEMA Plug - 6 ft. | 9021050 | each | $22.55 |
| Sonesse® 50 & LT50/LT60 SJTW 4C Cable - 10 ft. | 9018345 | each | $31.98 |
| Sonesse® 50 & LT50/LT60 SJTW 4C Cable - 24 ft. | 9021046 | each | $59.93 |
| Sonesse® 50 Adjustable Idler End Bracket - Ceiling Mount 55P | 9014110 | each | $31.43 |
| Sonesse® 50 Crown (for 56mm Acmeda Tube 10Nm Max) | 9014125 | each | $2.87 |
| Sonesse® 50 Drive (for 56mm Acmeda Tube 10Nm Max) | 9014126 | each | $3.56 |
| Sonesse® 50 Drive Wheel 50mm x 1.5mm Hard Clip- Quiet Accessory for Sonesse® Motors | 9016630 | each | $11.99 |
| Sonesse® 50 Drive Wheel 50mm x 1.5mm Soft Clip- Quiet Accessory for Sonesse® Motors | 9018455 | each | $11.99 |
| Sonesse® 50 Pin End Cap 10mm - Quiet Accessory for 2" Tube | 9016628 | each | $44.69 |
| Sonesse® 50 Pin End Cap 12mm - Quiet Accessory for 2" Tube | 9018228 | each | $44.69 |
| Sonesse® 50 Star Head Motor Bracket 55P | 9014135 | each | $8.24 |
Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.
Where Somfy's price list does not state the unit (tubes sold in lengths, cartons), the table says so; we confirm it on the quote.
Discontinued Sonesse 50 models and their replacements
Somfy no longer sells these models. Where Somfy names a replacement, it is linked to its row and price.
| Discontinued model | SKU | Replaced by |
|---|---|---|
| Sonesse® 506S2 PS | 1001800 | No direct replacement listed by Somfy |
| Sonesse® 510S2 PS | 1002324 | No direct replacement listed by Somfy |

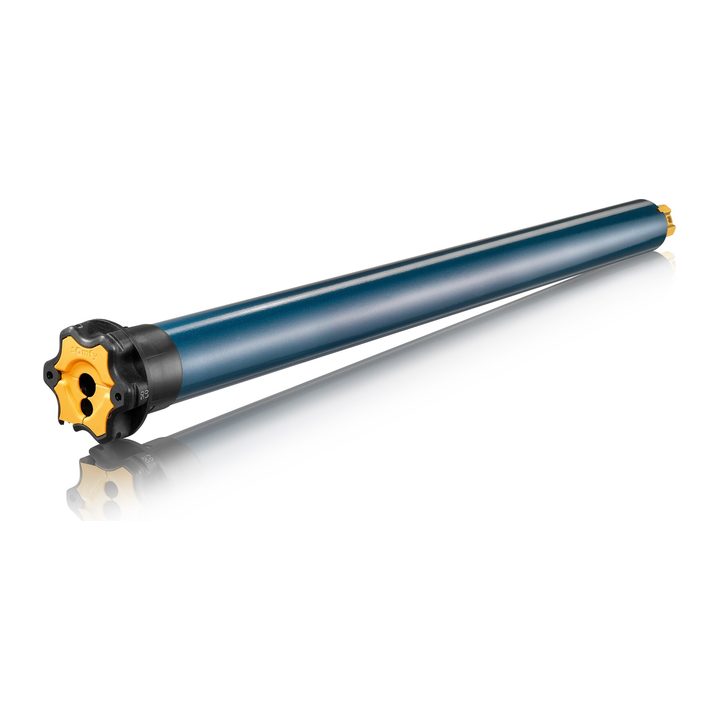

Sonesse 506S2 RTS specifications
Somfy's published figures for the Sonesse 506S2 RTS (SKU 1001809). Other models on this page differ in control, torque and power; see the price table.
| Protection Index | IP 44 |
|---|---|
| Radio Frequency | 433.420 MHz |
| Range in open field | 656.2 ft |
| Consumption during operation | 140 W |
| Power supply | AC - RGE 2 - 120V/60HZ |
| Consumption in standby mode | 0.5 W |
| Noise level (dB) | 45.1 dB |
| Approvals | UR |
| Embedded Technologies | RTS |
| Applications | Exterior Solar Screens, Interior Window Coverings / Shades, Projection screen |
| Weight (with packaging) | 4.94 lb |
Sonesse 506S2 RTS documents from Somfy
Spec sheets and installation guides published by Somfy (PDF, opens on somfy.com).
Where the Sonesse 50 fits
The Sonesse 50 suits wide living room shades and groups of coupled shades across a window wall, the typical layout in Brickell, Sunny Isles and Fort Lauderdale beach condos. At Landmark Ranch Estates in Southwest Ranches we ran coupled rollers on Sonesse 50 motors in ceiling pockets, controlled from the home's keypads. For the quietest option in the same size class, compare the Sonesse ULTRA 50.
Somfy Sonesse 50: frequently asked
How much does the Somfy Sonesse 50 cost?
In 2026 the Somfy Sonesse 50 range runs from $234.08 (Sonesse 506S2 PA) to $539.83 (Sonesse 510S2 RS485), retail, product only. Installation, programming and wiring are quoted at the measure.
What is the difference between the Sonesse 506S2 and 510S2?
The number after 5 is the torque in newton metres: the 506S2 is a 6 Nm motor and the 510S2 a 10 Nm motor for larger or coupled shades.
Do these prices include installation?
No. Product only. Installation, programming and wiring are quoted at the measure. Prices are 2026 retail in US dollars, before tax, and may change.
Compare with other Somfy shade and blind motors
Somfy Sonesse 50 in Fort Lauderdale, Miami, Boca Raton & Palm Beach
Exotic Shades is a certified Somfy Expert and SDN Specialist. Our workroom and showroom are at 4539 Powerline Rd in Fort Lauderdale, our second showroom is South of Fifth in Miami Beach, and the same in-house team measures, builds, installs and programs from Miami to Palm Beach.
Get a quote for the Somfy Sonesse 50
We measure, choose the motor and controls with you and quote the product, the shade or drapery and the installation together. One free hour with our team routinely saves owners thousands in avoidable mistakes.
