Forest CM Ceiling Mount System: a low ceiling-mount curtain track
CM track by Forest, with 2026 retail prices, sizes, finishes and specifications.

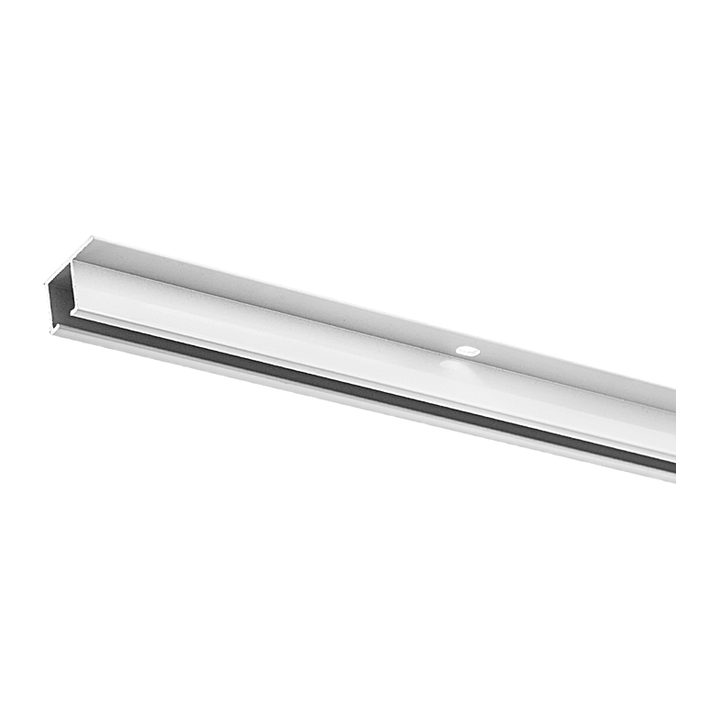

What is the Forest CM Ceiling Mount System?
The Forest CM Ceiling Mount System is a low-profile aluminum track screwed straight to the ceiling through holes drilled every 16 inches, with the same 6 lb per foot rating as CS. It suits drapery that should start at the ceiling line without brackets showing. A 6 ft Forest CM track (white) costs $193.82; a 12 ft one costs $276.56.
CM is the ceiling-only sibling of the CS track. There are no brackets: the track itself is fixed through its pre-drilled holes, which keeps it tight to the plaster and quick to install on a long run. It accepts the same carriers and masters as CS, so ripplefold, pinch pleat and cubicle-style draperies all work, drawn by hand or with a baton. Forest prices assembled CM sets in white only, which is what most ceilings want anyway.
Forest CM track specifications
Forest's published figures for the US market (forestdh.com, the 2026 brochure and the 2026 catalog).
| Profile | Low-profile aluminum track screwed straight to the ceiling, pre-drilled every 16 in |
|---|---|
| Maximum fabric weight | 6 lb per foot, depending on the application |
| Track lengths | 12, 14 and 16 ft sticks |
| Mounting | Direct ceiling mount |
| Operation | Hand or baton draw, one-way or center-open |
| Stackback per width | Ripplefold 6 in, pinch pleat 7 in, cubicle 5 in |
| Finishes | Assembled CM sets are priced in white only |
| Assembled set | Track, brackets, masters, pinch pleat or ripplefold carriers and a 36 in white fiberglass baton |
How much does a Forest CM track cost?
A 6 ft Forest CM track (white) costs $193.82; a 12 ft one costs $276.56.
| Length | White |
|---|---|
| 3 ft | $166.24 |
| 4 ft | $166.24 |
| 5 ft | $180.03 |
| 6 ft | $193.82 |
| 8 ft | $221.40 |
| 10 ft | $248.98 |
| 12 ft | $276.56 |
| 14 ft | $304.14 |
| 16 ft | $331.72 |
| 20 ft | $386.88 |
| 24 ft | $442.04 |
| Option | First 4 feet | Each additional foot | Catalog page |
|---|---|---|---|
| White | $166.24 | $13.79 | p. 3 |
Forest prices an assembled system as one amount for the first 4 feet plus a fixed amount for each additional foot; the catalog prints no price for part of a foot, so a length between two whole feet is priced at the next whole foot, and anything up to 4 feet costs the 4-foot price. Longer runs are quoted at the measure.
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
Forest CM track parts and 2026 prices
64 parts and accessories with their 2026 retail prices, as printed in the Forest 2026 catalog. Parts sold by the box show the price each when bought by the full box, the box quantity, and the price each for a broken box.
Show all 64 parts and prices
| Part number | Description | Finish or option | Price | Unit | Pack | Catalog |
|---|---|---|---|---|---|---|
| 51012-25 | white 12' track length | $5.62 | per ft | p. 4 | ||
| 3901-25 | Ceiling Splice/Bracket | 59 black +10% | $2.64 | each | box of 50; broken box $3.18 each | p. 4 |
| 3002-25 | Klick On Ceiling Bracket | $1.79 | each | box of 100; broken box $2.15 each | p. 4 | |
| 51016-59 | black 16' track length | $6.18 | per ft | p. 4 | ||
| 51212-25 | CM Ceiling Mount Track | $6.94 | per ft | p. 4 | ||
| 3003-25 | Heavy Duty Ceiling Bracket w/ Smart Klick | 59 black, 65 brown, 90 grey +10% | $2.63 | each | box of 100; broken box $3.18 each | p. 4 |
| 30031-25 | Ceiling Bracket Cover use with 3003-XX | 59 black, 65 brown, 90 grey +10% | $1.10 | each | box of 100; broken box $1.32 each | p. 4 |
| 3906-25 | Track Connector | 59 black, 65 brown, 90 grey +10% | $24.44 | each | p. 4 | |
| 53202-25 | 3" Smart Klick Wall Bracket w/ wide base, adjusts 3-4.5" | 59 black, 65 brown, 90 grey +10% | $6.34 | each | box of 100; broken box $7.61 each | p. 4 |
| 55091-25 | 90 deg Pre-Bent CS Corners 24" x 24" | 59 black, 65 brown, 90 grey +10% | $22.28 | each | box of 12; broken box $26.74 each | p. 4 |
| 53206-25 | 6" Smart Klick Double Wall | 59 black, 65 brown, 90 grey +10% | $11.16 | each | box of 50; broken box $13.39 each | p. 4 |
| 52304-25 | End Cap - Short | 59 black, 65 brown, 90 grey +10% | $3.91 | each | box of 400; broken box $4.70 each | p. 4 |
| 3280-25 | 3" Wall Bracket, heavy duty projection 2 1/2" | 59 black, 65 brown, 90 grey +10% | $14.58 | each | box of 20; broken box $17.50 each | p. 4 |
| 52301-25 | End Cap w/ Economy Slide Add 2004-25 w/ Ripplefold | 59 black, 65 brown, 90 grey +10% | $1.43 | each | box of 400; broken box $1.71 each | p. 4 |
| 3285-25 | 4" Wall Bracket, heavy duty projection 3 1/2" | 59 black, 90 grey +10% | $17.25 | each | box of 20; broken box $20.70 each | p. 4 |
| 52303-25 | Left Return End Cap w/ Return Plate, Snap for pinch pleat or Ripplefold | $2.72 | each | box of 100; broken box $3.26 each | p. 4 | |
| 3281-25 | 6" Double Wall Bracket | 59 black, 65 brown, 90 grey +10% | $20.89 | each | box of 15; broken box $25.08 each | p. 4 |
| 9100-00 | Channel Protector | $21.26 | each | p. 4 | ||
| 3001-25 | Regular Duty Ceiling Bracket | 59 black, 90 grey +10% | $1.54 | each | box of 100; broken box $1.87 each | p. 4 |
| 32801-25 | Wall Bracket Cover use with 3280, 3285 & 3281 | 59 black, 90 grey +10% | $3.76 | each | box of 50; broken box $4.51 each | p. 4 |
| 51014-25 | white 14' track length | $5.62 | per ft | p. 4 | ||
| 51016-25 | white 16' track length | $5.62 | per ft | p. 4 | ||
| 51020-25 | white 20' track length | $5.62 | per ft | p. 4 | ||
| 51020-59 | black 20' track length | $6.18 | per ft | p. 4 | ||
| 51016-65 | brown 16' track length | $6.18 | per ft | p. 4 | ||
| 51016-90 | grey 16' track length | $6.18 | per ft | p. 4 | ||
| 51214-25 | white 14' track length | $6.94 | per ft | p. 4 | ||
| 51216-25 | white 16' track length | $6.94 | per ft | p. 4 | ||
| 52302-25 | Right Return | $2.72 | each | box of 100; broken box $3.26 each | p. 4 | |
| 2107-25 | 60% fullness, 2 5/8" OC | 25, 59 black | $1.82 | each | roll of 500; broken box $2.20 each | p. 5 |
| 52108-25 | Stop Carrier prevents slide back | $2.64 | each | box of 100; broken box $3.18 each | p. 5 | |
| 52003-25 | Economy Slide | 59 black, 65 brown +10% | $0.35 | each | box of 2000; broken box $0.42 each | p. 5 |
| 52100-25 | Ball Bearing Carrier w/ Stainless Hook | 59 black, 65 brown, 90 grey +10% | $2.23 | each | box of 1000; broken box $2.69 each | p. 5 |
| 2207-25 | 60% fullness, 2 5/8" OC | $1,190.00 | per roll | p. 5 | ||
| 52005-25 | Button Slide Carrier | $0.29 | each | box of 1000; broken box $0.34 each | p. 5 | |
| 52105-25 | Button Slide Carrier w/ Hook | $0.88 | each | box of 500; broken box $1.04 each | p. 5 | |
| 2007-25 | Pendant for Snap Tape Carrier | 59 black +10% | $0.26 | each | bag of 500; broken box $0.31 each | p. 5 |
| 52502-25 | Overlap R | $8.81 | each | box of 100; broken box $10.56 each | p. 5 | |
| 52504-25 | Underlap L Standard Multi-Functional Master Use stiffener w/ exposed baton or hooks w/ hidden | 59 black +10% | $8.81 | each | box of 100; broken box $10.56 each | p. 5 |
| 52502-25A | Overlap R | $10.67 | each | box of 100; broken box $12.79 each | p. 5 | |
| 52504-25A | Underlap L Standard Multi-Functional Master w/ snaps and baton adaptor | 59A black +10% | $10.67 | each | box of 100; broken box $12.79 each | p. 5 |
| 2004-25 | Snap Carrier for accordiafold | 59 black, 65 brown, 90 grey +10% | $0.68 | each | bag of 500; broken box $0.80 each | p. 5 |
| 52002-25 | Slim Line Ball Bearing Carrier | 59 black, 65 brown, 90 grey +10% | $0.80 | each | box of 1000; broken box $0.98 each | p. 5 |
| 52502-25B | Overlap R | $8.81 | each | box of 50; broken box $10.56 each | p. 5 | |
| 52504-25B | Underlap L Standard Multi-Functional w/ baton adaptor for stiffener. Stainless steel for outdoor use. | $8.81 | each | box of 50; broken box $10.56 each | p. 5 | |
| 52008-25 | Slim Line Klick Carrier draperies hang to conceal | 59 black, 65 brown +10% | $1.30 | each | box of 250; broken box $1.57 each | p. 5 |
| 52509-25 | Underlap L Swivel Foot Multi-Functional Master | 59 black, 65 brown, 90 grey +10% | $15.54 | each | box of 100; broken box $18.61 each | p. 6 |
| 2552-25 | 6" Extension Arm | $14.44 | each | box of 50; broken box $17.30 each | p. 6 | |
| 52509-25A | Underlap L Swivel Foot Multi-Functional Master w/ snaps | 59 black, 65 brown, 90 grey +10% | $18.40 | each | box of 100; broken box $22.07 each | p. 6 |
| 2551-25 | Small Extension Arm | $5.22 | each | box of 50; broken box $6.29 each | p. 6 | |
| 52503-25 | Underlap L Stiffener Master | $8.81 | each | box of 50; broken box $10.56 each | p. 6 | |
| 2305-25 | Twist On End Stop | 59 black, 65 brown, 90 grey +10% | $2.64 | each | box of 100; broken box $3.18 each | p. 6 |
| 52403-25 | Underlap L Stiffener Master w/ snaps and adaptor | $10.79 | each | box of 50; broken box $12.95 each | p. 6 | |
| 2308-25 | Return Plate reversible, 2 1/2" return | $10.00 | each | box of 100; broken box $11.98 each | p. 6 | |
| 52409-25 | Butt L Standard Butt Master | 59 black +10% | $21.36 | each | box of 50; broken box $25.66 each | p. 6 |
| 52307-90 | End Lock | $1.18 | each | box of 100; broken box $1.42 each | p. 6 | |
| 52412-25A | Butt L Wheeled Butt Master | 59A black, 65A brown, 90A grey +10% | $37.73 | each | box of 50; broken box $45.29 each | p. 6 |
| 54110-25 | 36" Fiberglass Baton w/ snap | $9.26 | each | box of 100; broken box $11.11 each | p. 6 | |
| 52508-25 | Overlap R | $15.54 | each | box of 100; broken box $18.61 each | p. 6 | |
| 52508-25A | Overlap R | $18.40 | each | box of 100; broken box $22.07 each | p. 6 | |
| 52501-25 | Overlap R | $8.81 | each | box of 50; broken box $10.56 each | p. 6 | |
| 52401-25 | Overlap R | $10.79 | each | box of 50; broken box $12.95 each | p. 6 | |
| 52410-25 | Butt R | $21.36 | each | box of 50; broken box $25.66 each | p. 6 | |
| 52411-25A | Butt R | $37.73 | each | box of 50; broken box $45.29 each | p. 6 |
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
What finishes does the Forest CM track come in?
Finish codes as Forest prints them; the code replaces XX in the part number.
- 25White
- 59Black
- 65Brown
- 90Grey
Where the Forest CM track fits
CM earns its place in condos with flat concrete ceilings and no soffit, where the drapery has to hang from the ceiling to hide the top of a sliding door and there is no room for a bracket projection. For a flush look with the track set into the ceiling, compare CS Recess or the recessed tracks we plaster in with the builder.
Forest CM track: frequently asked
How much does a Forest CM track cost?
A 6 ft Forest CM track (white) costs $193.82; a 12 ft one costs $276.56. Prices are Forest's 2026 retail for the hardware only; installation is quoted at the measure.
What is the weight limit of the Forest CM track?
Forest rates it at 6 lb per foot, depending on the application.
What finishes does the Forest CM track come in?
25 White, 59 Black, 65 Brown, 90 Grey. XX in a part number stands for the finish code.
What is the difference between the Forest CM and CS tracks?
CM screws directly to the ceiling through its own pre-drilled holes and comes assembled in white; CS mounts on brackets to a wall or ceiling, bends and curves, and comes in four colours. Both carry 6 lb per foot.
Compare with other Forest tracks
Forest CM track in Fort Lauderdale, Miami, Boca Raton & Palm Beach
Exotic Shades supplies and installs Forest hardware with drapery sewn in our own Fort Lauderdale workroom. Our workroom and showroom are at 4539 Powerline Rd in Fort Lauderdale, our second showroom is South of Fifth in Miami Beach, and the same in-house team measures and installs from Miami to Palm Beach.
Get a quote for Forest CM track
We measure, choose the hardware with you and quote the hardware, the drapery and the installation together. One free hour with our team routinely saves owners thousands in avoidable mistakes.
