Forest CS Recess Contract System: the CS track made to sit inside the ceiling
CS Recess track by Forest, with 2026 retail prices, sizes, finishes and specifications.
What is the Forest CS Recess Contract System?

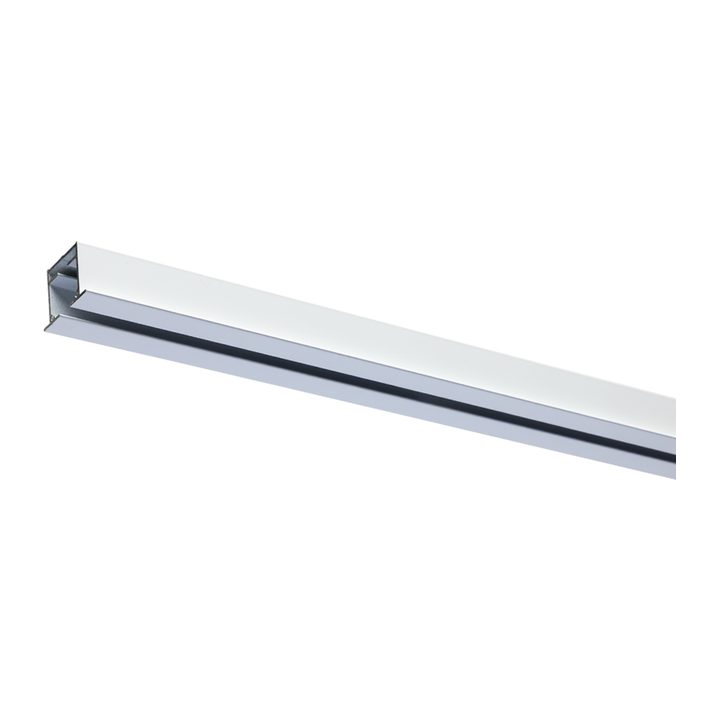

The Forest CS Recess Contract System is the CS track in a 7/8 inch profile made to be set into the ceiling, so the drapery hangs from a slot with no brackets in view. It carries 6 lb per foot, is drawn by hand or baton, and can be bent to an 8 inch radius. A 6 ft Forest CS Recess track (white) costs $244.81; a 12 ft one costs $411.13.
The recess version keeps what makes CS useful, the load rating, the carriers and masters, the bending, and changes the mounting: the track is screwed into a ceiling pocket through holes drilled every 10 inches, finished with a short end cap. It is white, and Forest bends it from an exact template when the ceiling line turns a corner.
Forest CS Recess track specifications
Forest's published figures for the US market (forestdh.com, the 2026 brochure and the 2026 catalog).
| Profile | 7/8 in x 7/8 in aluminum track, pre-drilled every 10 in |
|---|---|
| Maximum fabric weight | 6 lb per foot, depending on the application |
| Mounting | Recessed into the ceiling |
| Operation | Hand or baton draw, one-way or center-open |
| Bends | Bends and reverse bends to an 8 in radius (exact template required) |
| Stackback per width | Ripplefold 6 in, pinch pleat 7 in, cubicle 5 in |
| Finishes | 25 White |
| Assembled set | Track, brackets, short end cap, masters, carriers and a 36 in white fiberglass baton |
How much does a Forest CS Recess track cost?
A 6 ft Forest CS Recess track (white) costs $244.81; a 12 ft one costs $411.13.
| Length | White |
|---|---|
| 3 ft | $189.37 |
| 4 ft | $189.37 |
| 5 ft | $217.09 |
| 6 ft | $244.81 |
| 8 ft | $300.25 |
| 10 ft | $355.69 |
| 12 ft | $411.13 |
| 14 ft | $466.57 |
| 16 ft | $522.01 |
| 20 ft | $632.89 |
| 24 ft | $743.77 |
| Option | First 4 feet | Each additional foot | Catalog page |
|---|---|---|---|
| White | $189.37 | $27.72 | p. 11 |
Forest prices an assembled system as one amount for the first 4 feet plus a fixed amount for each additional foot; the catalog prints no price for part of a foot, so a length between two whole feet is priced at the next whole foot, and anything up to 4 feet costs the 4-foot price. Longer runs are quoted at the measure.
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
Forest CS Recess track parts and 2026 prices
24 parts and accessories with their 2026 retail prices, as printed in the Forest 2026 catalog. Parts sold by the box show the price each when bought by the full box, the box quantity, and the price each for a broken box.
Show all 24 parts and prices
| Part number | Description | Finish or option | Price | Unit | Pack | Catalog |
|---|---|---|---|---|---|---|
| 52019-25 | white 19.7' CS Recess Track | $15.94 | per ft | p. 12 | ||
| 52008-25 | Slim Line Klick Carrier draperies hang to conceal track | $1.30 | each | box of 250; broken box $1.57 each | p. 12 | |
| 3910-90 | CS Recess Track Connector | $16.93 | each | p. 12 | ||
| 52108-25 | Stop Carrier prevents slide back | $2.64 | each | box of 100; broken box $3.18 each | p. 12 | |
| 52314-25 | CS Recess End Cap Short Metal, powder coated | $30.35 | each | p. 12 | ||
| 52100-25 | Ball Bearing Carrier | 59 black, 65 brown, 90 grey +10% | $2.23 | each | box of 1000; broken box $2.69 each | p. 12 |
| 52311-25 | CS Recess End Cap Long Metal, powder coated | $62.00 | each | p. 12 | ||
| 52504-25 | Underlap L Standard Multi-Functional Master Use stiffener w/ exposed baton or hooks w/ hidden baton | 59 black +10% | $8.81 | each | box of 100; broken box $10.56 each | p. 12 |
| 2207-25 | 60% fullness, 2 5/8" OC | $2.38 | each | box of 500; broken box $2.84 each | p. 12 | |
| 2206-25 | 80% fullness, 2 3/8" OC | $1,190.00 | per roll | p. 12 | ||
| 52504-25A | Underlap L Standard Multi-Functional Master w/ snaps and baton adaptor | 59A black +10% | $10.67 | each | box of 100; broken box $12.79 each | p. 12 |
| 2107-25 | 60% fullness, 2 5/8" OC | 25, 59 black | $1.82 | each | box of 500; broken box $2.20 each | p. 12 |
| 52412-25A | Butt L Wheeled Butt Master | 59A black, 65A brown, 90A grey +10% | $37.73 | each | box of 50; broken box $45.29 each | p. 12 |
| 2552-25 | 6" Extension Arm for master | $14.44 | each | box of 50; broken box $17.30 each | p. 12 | |
| 2007-25 | Pendant for Snap Tape Carrier | 59 black +10% | $0.26 | each | bag of 500; broken box $0.31 each | p. 12 |
| 2551-25 | Small Extension Arm | $5.22 | each | box of 50; broken box $6.29 each | p. 12 | |
| 2305-25 | Twist On End Stop | 59 black, 65 brown, 90 grey +10% | $2.64 | each | box of 100; broken box $3.18 each | p. 12 |
| 2004-25 | Snap Carrier for accordiafold | 59 black, 65 brown, 90 grey +10% | $0.68 | each | bag of 500; broken box $0.80 each | p. 12 |
| 52307-90 | End Lock | $1.18 | each | box of 100; broken box $1.42 each | p. 12 | |
| 52002-25 | Slim Line Ball Bearing Carrier | 59 black, 65 brown, 90 grey +10% | $0.80 | each | box of 1000; broken box $0.98 each | p. 12 |
| 54110-25 | 36" Fiberglass Baton | $9.26 | each | box of 100; broken box $11.11 each | p. 12 | |
| 52502-25 | Overlap R | $8.81 | each | box of 100; broken box $10.56 each | p. 12 | |
| 52502-25A | Overlap R | $10.67 | each | box of 100; broken box $12.79 each | p. 12 | |
| 52411-25A | Butt R | $37.73 | each | box of 50; broken box $45.29 each | p. 12 |
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
What finishes does the Forest CS Recess track come in?
Finish codes as Forest prints them; the code replaces XX in the part number.
- 25White
Where the Forest CS Recess track fits
A recessed track has to be planned before the ceiling is closed. On renovations in Las Olas and on new condo fit-outs in Miami, we give the contractor the pocket dimensions at framing and fit the track after paint. If the drapery will be motorized, the recessed choice is RMS instead. See how we plan pockets on our recessed curtain tracks page.
Forest CS Recess track: frequently asked
How much does a Forest CS Recess track cost?
A 6 ft Forest CS Recess track (white) costs $244.81; a 12 ft one costs $411.13. Prices are Forest's 2026 retail for the hardware only; installation is quoted at the measure.
What is the weight limit of the Forest CS Recess track?
Forest rates it at 6 lb per foot, depending on the application.
What finishes does the Forest CS Recess track come in?
25 White. XX in a part number stands for the finish code.
When does a recessed track have to be decided?
Before drywall. The ceiling pocket is framed to the track, so we issue the pocket size to the builder at framing and install the track and drapery after paint.
Compare with other Forest tracks
Forest CS Recess track in Fort Lauderdale, Miami, Boca Raton & Palm Beach
Exotic Shades supplies and installs Forest hardware with drapery sewn in our own Fort Lauderdale workroom. Our workroom and showroom are at 4539 Powerline Rd in Fort Lauderdale, our second showroom is South of Fifth in Miami Beach, and the same in-house team measures and installs from Miami to Palm Beach.
Get a quote for Forest CS Recess track
We measure, choose the hardware with you and quote the hardware, the drapery and the installation together. One free hour with our team routinely saves owners thousands in avoidable mistakes.
