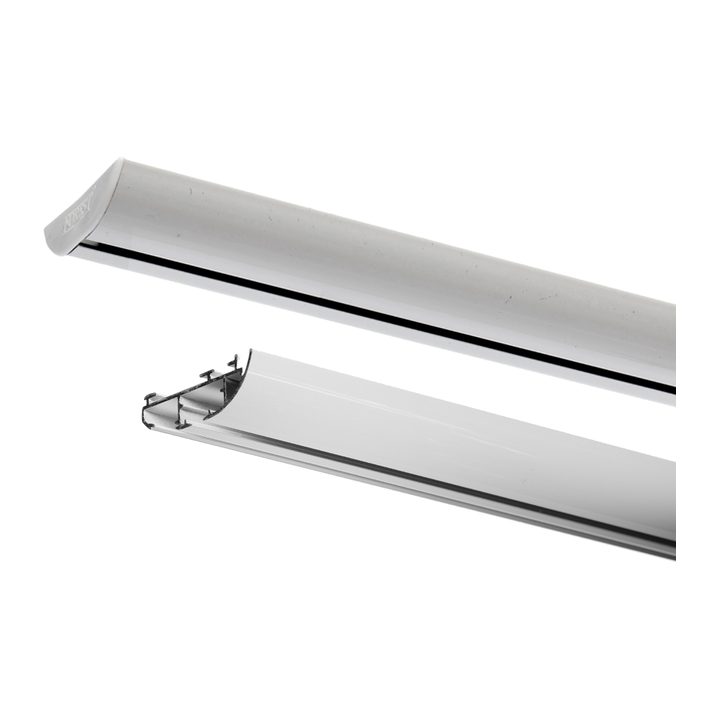

Forest DSXL and DSXL LED Design System XL: the larger design track, with or without LED light
DSXL track by Forest, with 2026 retail prices, sizes, finishes and specifications.
What is the Forest DSXL and DSXL LED Design System XL?
The Forest DSXL Design System XL is a larger version of the DS track, rated for 3 lb per foot, and DSXL LED adds a dimmable 3000 K light strip that washes the drapery or the track. Both are white and can be drawn by hand or motorized. A 6 ft Forest DSXL track (DSXL) costs $459.14; a 12 ft one costs $757.58. A 6 ft Forest DSXL track (DSXL LED) costs $2,985.33; a 12 ft one costs $3,923.19.
DSXL keeps the shaped front of DS in a bigger section. The LED version carries a strip rated for 30,000 hours that lights either the back of the drapery or the track itself, dimmable, with click-together connectors instead of soldering. The assembled price includes the lighting parts when specified.
Forest DSXL track specifications
Forest's published figures for the US market (forestdh.com, the 2026 brochure and the 2026 catalog).
| Profile | The larger DS profile in white aluminum; the LED version adds a light strip |
|---|---|
| Maximum fabric weight | 3 lb per foot, depending on the application |
| Mounting | Wall or ceiling |
| Operation | Hand or baton draw, one-way or center-open; can be motorized |
| LED lighting | Dimmable 3000 K strip lighting the drapery or the track, rated for 30,000 hours |
| Stackback per width | Ripplefold 6 in, pinch pleat 7 in, cubicle 5 in, accordiafold 5 in |
| Finishes | 25 White |
| Assembled set | Track, brackets, masters, carriers, lighting parts where specified and a 36 in white fiberglass baton |
How much does a Forest DSXL track cost?
A 6 ft Forest DSXL track (DSXL) costs $459.14; a 12 ft one costs $757.58.
A 6 ft Forest DSXL track (DSXL LED) costs $2,985.33; a 12 ft one costs $3,923.19.
| Length | DSXL | DSXL LED |
|---|---|---|
| 3 ft | $359.66 | $2,672.71 |
| 4 ft | $359.66 | $2,672.71 |
| 5 ft | $409.40 | $2,829.02 |
| 6 ft | $459.14 | $2,985.33 |
| 8 ft | $558.62 | $3,297.95 |
| 10 ft | $658.10 | $3,610.57 |
| 12 ft | $757.58 | $3,923.19 |
| 14 ft | $857.06 | $4,235.81 |
| 16 ft | $956.54 | $4,548.43 |
| 20 ft | $1,155.50 | $5,173.67 |
| Option | First 4 feet | Each additional foot | Catalog page |
|---|---|---|---|
| DSXL | $359.66 | $49.74 | p. 17 |
| DSXL LED | $2,672.71 | $156.31 | p. 17 |
Forest prices an assembled system as one amount for the first 4 feet plus a fixed amount for each additional foot; the catalog prints no price for part of a foot, so a length between two whole feet is priced at the next whole foot, and anything up to 4 feet costs the 4-foot price. Longer runs are quoted at the measure.
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
Forest DSXL track parts and 2026 prices
25 parts and accessories with their 2026 retail prices, as printed in the Forest 2026 catalog. Parts sold by the box show the price each when bought by the full box, the box quantity, and the price each for a broken box.
Show all 25 parts and prices
| Part number | Description | Finish or option | Price | Unit | Pack | Catalog |
|---|---|---|---|---|---|---|
| 2119-25 | DSXL Track 19' 8" x 20 cannot be | $19.22 | per ft | p. 18 | ||
| B8809-23-00 | Overlap R | $15.43 | each | box of 25; broken box $18.55 each | p. 18 | |
| B8809-24-00 | Underlap L Plastic Snap Master | $15.43 | each | box of 25; broken box $18.55 each | p. 18 | |
| 9040-25 | FES Butt Master | $6.22 | each | box of 25; broken box $7.46 each | p. 18 | |
| 3119-25 | DSXL LED Track 19' 8" x 20 | $20.87 | per ft | p. 18 | ||
| 2305-25 | Twist On End Stop | 59 black, 65 brown, 90 grey +10% | $2.64 | each | box of 100; broken box $3.18 each | p. 18 |
| 3000-00 | LED Strip, 3000k/24v 30,000 hr lifespan Dimmable | $84.31 | each | p. 18 | ||
| 2400-25 | DSXL End Cap white plastic | $2.90 | each | box of 20; broken box $3.47 each | p. 18 | |
| 52940-25 | Power Supply | $204.20 | each | p. 18 | ||
| 3400-25 | DSXL LED End Cap white plastic | $2.63 | each | box of 20; broken box $3.16 each | p. 18 | |
| 3103-25 | LED Dimmer Allows control of light strip with remote. | $344.87 | each | p. 18 | ||
| 3402-25 | DSXL LED Flat End Cap white plastic | $2.63 | each | box of 20; broken box $3.16 each | p. 18 | |
| 3100-00 | with 6' 6" cord | $42.02 | each | p. 18 | ||
| 2302-25 | DSXL Swivel Ceiling Bracket | $3.11 | each | box of 100; broken box $3.73 each | p. 18 | |
| 3105-25 | with 13" cord LED Cable Connects LED Strip 3000-00 | $34.16 | each | p. 18 | ||
| 2301-25 | DSXL Wall Bracket w/ Swivel | $51.35 | each | box of 5; broken box $61.58 each | p. 18 | |
| 3106-25 | LED Extension Cable for LED Cables 3100-00 and 3105-25 6' 6" | $37.96 | each | p. 18 | ||
| 2114-25 | 60% fullness, 2 5/8" OC | 25, 59 black | $1.48 | each | roll of 500; broken box $1.76 each | p. 18 |
| 3010-00 | LED Strip Cover | $86.45 | each | p. 18 | ||
| 2114-25 | 60% fullness, 2 5/8" OC | 25, 59 black | $740.00 | per roll | p. 18 | |
| 3030-00 | Mounting Device for LED Strip | $426.72 | each | p. 18 | ||
| 52960-25 | EasyTouch Remote white | $364.72 | each | p. 18 | ||
| 2001-25 | Klick Carrier for PP | $0.68 | each | box of 500; broken box $0.80 each | p. 18 | |
| 2201-25 | Klick Carrier w/ Hook | $1.76 | each | box of 100; broken box $2.14 each | p. 18 | |
| 52961-00 | EasyTouch Remote Holder Optional and must be ordered separately | $10.58 | each | p. 18 |
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
What finishes does the Forest DSXL track come in?
Finish codes as Forest prints them; the code replaces XX in the part number.
- 25White
Where the Forest DSXL track fits
The LED version is a lighting decision as much as a drapery one, so we bring it up with the lighting designer or electrician early: it needs a power supply near the track. It works well on feature walls in Brickell and Edgewater apartments where the drapery is the backdrop to the living room. If the track will be motorized too, see DSXL LED Motorized.
Forest DSXL track: frequently asked
How much does a Forest DSXL track cost?
A 6 ft Forest DSXL track (DSXL) costs $459.14; a 12 ft one costs $757.58. A 6 ft Forest DSXL track (DSXL LED) costs $2,985.33; a 12 ft one costs $3,923.19. Prices are Forest's 2026 retail for the hardware only; installation is quoted at the measure.
What is the weight limit of the Forest DSXL track?
Forest rates it at 3 lb per foot, depending on the application.
What finishes does the Forest DSXL track come in?
25 White. XX in a part number stands for the finish code.
What colour is the DSXL LED light?
Warm white, 3000 K, dimmable, from a strip rated for 30,000 hours.
Compare with other Forest tracks
