Forest DS Design System: a shaped track with the brackets hidden
DS track by Forest, with 2026 retail prices, sizes, finishes and specifications.

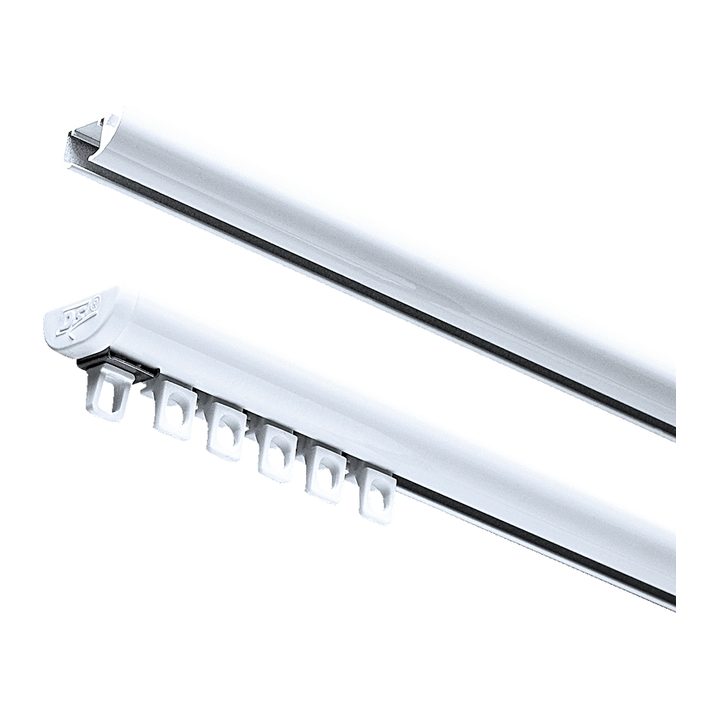

What is the Forest DS Design System?
The Forest DS Design System is a shaped aluminum curtain track, 15/16 by 7/16 inch, whose brackets sit hidden behind the profile. It carries 3 lb per foot and suits sheers and light drapery where the track stays in view. A 6 ft Forest DS track (white) costs $274.47; a 12 ft one costs $409.83. A 6 ft Forest DS track (graphite) costs $301.90; a 12 ft one costs $450.76.
DS is chosen for how it looks as much as for what it carries. The front of the profile is shaped, the Smart Klick brackets are behind it, and it comes in white or graphite. It bends and curves from an exact template, takes ripplefold, pinch pleat and accordiafold carriers, and draws by hand or with a baton.
Forest DS track specifications
Forest's published figures for the US market (forestdh.com, the 2026 brochure and the 2026 catalog).
| Profile | 15/16 in x 7/16 in shaped aluminum extrusion, brackets hidden behind the profile |
|---|---|
| Maximum fabric weight | 3 lb per foot, depending on the application |
| Mounting | Wall or ceiling, Smart Klick brackets |
| Operation | Hand or baton draw, one-way or center-open |
| Bends and curves | Can be bent and curved (exact template required) |
| Stackback per width | Ripplefold 6 in, pinch pleat 7 in, cubicle 5 in, accordiafold 5 in |
| Finishes | 2: 25 White, 89 Graphite |
| Assembled set | Track, brackets, masters, pinch pleat or ripplefold carriers and a 36 in white fiberglass baton |
How much does a Forest DS track cost?
A 6 ft Forest DS track (white) costs $274.47; a 12 ft one costs $409.83.
A 6 ft Forest DS track (graphite) costs $301.90; a 12 ft one costs $450.76.
| Length | White | Graphite |
|---|---|---|
| 3 ft | $229.35 | $252.28 |
| 4 ft | $229.35 | $252.28 |
| 5 ft | $251.91 | $277.09 |
| 6 ft | $274.47 | $301.90 |
| 8 ft | $319.59 | $351.52 |
| 10 ft | $364.71 | $401.14 |
| 12 ft | $409.83 | $450.76 |
| 14 ft | $454.95 | $500.38 |
| 16 ft | $500.07 | $550.00 |
| 20 ft | $590.31 | $649.24 |
| 24 ft | $680.55 | $748.48 |
| Option | First 4 feet | Each additional foot | Catalog page |
|---|---|---|---|
| White | $229.35 | $22.56 | p. 15 |
| Graphite | $252.28 | $24.81 | p. 15 |
Forest prices an assembled system as one amount for the first 4 feet plus a fixed amount for each additional foot; the catalog prints no price for part of a foot, so a length between two whole feet is priced at the next whole foot, and anything up to 4 feet costs the 4-foot price. Longer runs are quoted at the measure.
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
Forest DS track parts and 2026 prices
32 parts and accessories with their 2026 retail prices, as printed in the Forest 2026 catalog. Parts sold by the box show the price each when bought by the full box, the box quantity, and the price each for a broken box.
Show all 32 parts and prices
| Part number | Description | Finish or option | Price | Unit | Pack | Catalog |
|---|---|---|---|---|---|---|
| 1116-25 | DS Design System Track | 89 graphite +10% | $8.94 | per ft | p. 16 | |
| 32801-25 | Wall Bracket Cover use with 3280, 3285 & 3281 | 59 black, 90 grey +10% | $3.76 | each | box of 50; broken box $4.51 each | p. 16 |
| 3905-25 | Track Connector key 3904-00 | 59 black, 90 grey +10% | $12.06 | each | box of 50; broken box $14.46 each | p. 16 |
| 2001-25 | Klick Carrier, for pinch pleat | 59 black, 65 brown, 90 grey +10% | $0.68 | each | box of 500; broken box $0.80 each | p. 16 |
| 2310-25 | DS End Cap w/ screw | 89 graphite +10% | $2.54 | each | box of 100; broken box $3.04 each | p. 16 |
| 2004-25 | Snap Carrier, for accordiafold Two Piece Connected Snap Carrier w/ Square Base Use 1 1/4" snap tape | 59 black +10% | $0.68 | each | box of 500; broken box $0.80 each | p. 16 |
| 2114-25 | Two Piece Connected Snap Carrier w/ Square Base Use 1 1/4" snap tape | 25, 59 black | $1.76 | each | p. 16 | |
| 9100-00 | Channel Protector | $21.26 | each | p. 16 | ||
| 3001-25 | Regular Duty Ceiling Bracket | 59 black, 90 grey +10% | $1.54 | each | box of 100; broken box $1.87 each | p. 16 |
| 3901-25 | Ceiling Splice/Bracket | 59 black +10% | $2.64 | each | box of 50; broken box $3.18 each | p. 16 |
| 52003-25 | Economy Slide | 65 brown +10% | $0.35 | each | box of 2000; broken box $0.42 each | p. 16 |
| 3003-25 | Heavy Duty Ceiling Bracket w/ Smart Klick | 59 black, 65 brown, 90 grey +10% | $2.63 | each | box of 100; broken box $3.18 each | p. 16 |
| 52004-25 | Low Profile Ball Bearing Carrier | $1.81 | each | box of 1000; broken box $2.21 each | p. 16 | |
| 2201-25 | Klick Carrier w/ Stainless Hook Use with grommets | 59 black +10% | $1.76 | each | box of 100; broken box $2.14 each | p. 16 |
| 30031-25 | Ceiling Bracket Cover use with 3003-XX | 59 black, 65 brown, 90 grey +10% | $1.10 | each | box of 100; broken box $1.32 each | p. 16 |
| 52005-25 | Button Slide Carrier | $0.29 | each | 1,000; broken box $0.34 each | p. 16 | |
| 53202-25 | 3" Smart Klick Wall Bracket w/ wide base, adjusts 3-4.5" | 59 black, 65 brown, 90 grey +10% | $6.34 | each | box of 100; broken box $7.61 each | p. 16 |
| 52105-25 | Button Slide Carrier w/ Hook | $0.88 | each | 500; broken box $1.04 each | p. 16 | |
| 2525-25 | Overlap R | $15.43 | each | box of 25; broken box $18.55 each | p. 16 | |
| 2526-25 | Underlap L | $15.43 | each | box of 25; broken box $18.55 each | p. 16 | |
| 53206-25 | 6" Smart Klick Double Wall Bracket w/ wide base | 59 black, 65 brown, 90 grey +10% | $11.16 | each | box of 50; broken box $13.39 each | p. 16 |
| B8809-23-00 | Overlap R | $15.43 | each | box of 25; broken box $18.55 each | p. 16 | |
| B8809-24-00 | Underlap L Plastic Snap Master | 59 black +10% | $15.43 | each | box of 25; broken box $18.55 each | p. 16 |
| 3280-25 | 3" Wall Bracket, heavy duty projection 2 1/2" | 59 black, 65 brown, 90 grey +10% | $14.58 | each | box of 20; broken box $17.50 each | p. 16 |
| 52410-25 | Butt R | $21.36 | each | box of 50; broken box $25.66 each | p. 16 | |
| 52409-25 | Butt L Standard Butt Master w/ snaps and for baton use | 59 black +10% | $21.36 | each | box of 50; broken box $25.66 each | p. 16 |
| 3285-25 | 4" Wall Bracket, heavy duty projection 3 1/2" | 59 black, 90 grey +10% | $17.25 | each | box of 20; broken box $20.70 each | p. 16 |
| 2305-25 | Twist On End Stop | 59 black, 65 brown, 90 grey +10% | $2.64 | each | box of 100; broken box $3.18 each | p. 16 |
| 3281-25 | 6" Double Wall Bracket, heavy duty projection 1 1/2", 5 1/2" | 59 black, 65 brown, 90 grey +10% | $20.89 | each | box of 15; broken box $25.08 each | p. 16 |
| 54110-25 | 36" Fiberglass Baton w/ snap. | $9.26 | each | box of 100; broken box $11.11 each | p. 16 | |
| 2527-25 | Overlap L | $15.43 | each | box of 25; broken box $18.55 each | p. 16 | |
| 2528-25 | Underlap R Pinchpleat Masters | $15.43 | each | box of 25; broken box $18.55 each | p. 16 |
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
What finishes does the Forest DS track come in?
Finish codes as Forest prints them; the code replaces XX in the part number.
- 25White
- 89Graphite
Where the Forest DS track fits
In modern Miami condos with exposed tracks, DS is the profile we show when the client dislikes the look of a square track but does not want a rod. Graphite reads well against dark window frames. For heavier panels the same look scales up to DSXL.
Forest DS track: frequently asked
How much does a Forest DS track cost?
A 6 ft Forest DS track (white) costs $274.47; a 12 ft one costs $409.83. A 6 ft Forest DS track (graphite) costs $301.90; a 12 ft one costs $450.76. Prices are Forest's 2026 retail for the hardware only; installation is quoted at the measure.
What is the weight limit of the Forest DS track?
Forest rates it at 3 lb per foot, depending on the application.
What finishes does the Forest DS track come in?
25 White, 89 Graphite. XX in a part number stands for the finish code.
Does the Forest DS track come in black?
The DS track is made in white and graphite; graphite is priced at a small premium over white.
Compare with other Forest tracks
Forest DS track in Fort Lauderdale, Miami, Boca Raton & Palm Beach
Exotic Shades supplies and installs Forest hardware with drapery sewn in our own Fort Lauderdale workroom. Our workroom and showroom are at 4539 Powerline Rd in Fort Lauderdale, our second showroom is South of Fifth in Miami Beach, and the same in-house team measures and installs from Miami to Palm Beach.
Get a quote for Forest DS track
We measure, choose the hardware with you and quote the hardware, the drapery and the installation together. One free hour with our team routinely saves owners thousands in avoidable mistakes.
