Forest RMS Recessed Motorized Track System: the motorized track that sits in the ceiling
RMS recessed motorized track by Forest, with 2026 retail prices, sizes, finishes and specifications.
What is the Forest RMS Recessed Motorized Track System?

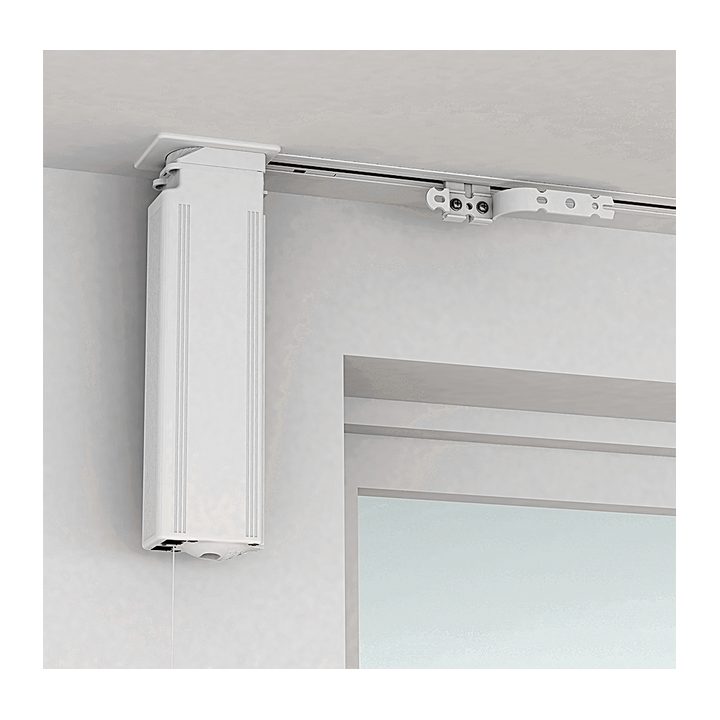

The Forest RMS Recessed Motorized Track System is a heavy-duty white track and Forest Shuttle motor made to sit in a ceiling recess, rated for 8 lb of drapery per foot. It can also be mounted on a wall or ceiling. A 6 ft Forest RMS recessed motorized track (Shuttle HD, white) costs $3,265.00; a 12 ft one costs $4,127.26. A 6 ft Forest RMS recessed motorized track (Shuttle HD, black) costs $3,591.51; a 12 ft one costs $4,540.05.
RMS combines the recess profile, fixing strip and wedge of the RTS track with a Forest Shuttle motor, pulley and cover plate. At 8 lb per foot it takes the heaviest motorized drapery in the Forest range. The assembled set includes the power supply and an EasyTouch remote or wall switch; HD, Eco and battery iOn motors are priced separately in the table below.
Forest RMS recessed motorized track specifications
Forest's published figures for the US market (forestdh.com, the 2026 brochure and the 2026 catalog).
| Profile | Heavy-duty white aluminum track in a recess profile |
|---|---|
| Maximum fabric weight | 8 lb per foot, depending on the application |
| Mounting | Recessed into the ceiling, or wall or ceiling mount |
| Motor | Any Forest Shuttle: HD, Eco or battery iOn |
| Controls | EasyTouch remote or wall switch included |
| Finishes | 25 White |
| Assembled set | Track, recess profile, fixing strip, wedge, masters, carriers, motor, pulley, cover plate, power supply and a remote or wall switch |
How much does a Forest RMS recessed motorized track cost?
A 6 ft Forest RMS recessed motorized track (Shuttle HD, white) costs $3,265.00; a 12 ft one costs $4,127.26.
A 6 ft Forest RMS recessed motorized track (Shuttle HD, black) costs $3,591.51; a 12 ft one costs $4,540.05.
| Length | Shuttle HD, white | Shuttle HD, black | Shuttle Eco | Shuttle iOn (battery) |
|---|---|---|---|---|
| 3 ft | $2,977.58 | $3,275.33 | $2,987.74 | $3,185.28 |
| 4 ft | $2,977.58 | $3,275.33 | $2,987.74 | $3,185.28 |
| 5 ft | $3,121.29 | $3,433.42 | $3,131.45 | $3,328.99 |
| 6 ft | $3,265.00 | $3,591.51 | $3,275.16 | $3,472.70 |
| 8 ft | $3,552.42 | $3,907.69 | $3,562.58 | $3,760.12 |
| 10 ft | $3,839.84 | $4,223.87 | $3,850.00 | $4,047.54 |
| 12 ft | $4,127.26 | $4,540.05 | $4,137.42 | $4,334.96 |
| 14 ft | $4,414.68 | $4,856.23 | $4,424.84 | $4,622.38 |
| 16 ft | $4,702.10 | $5,172.41 | $4,712.26 | $4,909.80 |
| 20 ft | $5,276.94 | $5,804.77 | $5,287.10 | $5,484.64 |
| 24 ft | $5,851.78 | $6,437.13 | $5,861.94 | $6,059.48 |
| Option | First 4 feet | Each additional foot | Catalog page |
|---|---|---|---|
| Shuttle HD, white | $2,977.58 | $143.71 | p. 81 |
| Shuttle HD, black | $3,275.33 | $158.09 | p. 81 |
| Shuttle Eco | $2,987.74 | $143.71 | p. 81 |
| Shuttle iOn (battery) | $3,185.28 | $143.71 | p. 81 |
Forest prices an assembled system as one amount for the first 4 feet plus a fixed amount for each additional foot; the catalog prints no price for part of a foot, so a length between two whole feet is priced at the next whole foot, and anything up to 4 feet costs the 4-foot price. Longer runs are quoted at the measure.
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
Forest RMS recessed motorized track parts and 2026 prices
28 parts and accessories with their 2026 retail prices, as printed in the Forest 2026 catalog. Parts sold by the box show the price each when bought by the full box, the box quantity, and the price each for a broken box.
Show all 28 parts and prices
| Part number | Description | Finish or option | Price | Unit | Pack | Catalog |
|---|---|---|---|---|---|---|
| 52925-25 | Shuttle HD (M) white | $1,606.07 | each | p. 81 | ||
| 52925-59 | Shuttle HD (M) black | $1,766.69 | each | p. 81 | ||
| 52960-25 | white | $364.72 | each | p. 81 | ||
| 52939-25 | Shuttle Eco (S) white See motor specs pages 71-72 | $1,275.37 | each | p. 81 | ||
| 52934-25 | Shuttle HD & Eco Power Cord 24 volt power supply with 16' cord | $204.22 | each | p. 81 | ||
| 52961-00 | EasyTouch Remote Holder | $10.58 | each | p. 81 | ||
| 52926-25 | Shuttle iOn white Includes battery charger below. See motor specs pages 71-72 | $1,597.24 | each | p. 81 | ||
| 52933-25 | white | $256.48 | each | p. 81 | ||
| 52924-59 | Shuttle iOn Battery Charger Additional charger for Shuttle iOn motor | $98.32 | each | p. 81 | ||
| 52955-25 | Bond Bridge Pro For voice and app control over RF. Easily pair using the Forest remote. Controls all of your devices in one hub. | $379.00 | each | p. 81 | ||
| 52949-25 | Shuttle iOn Battery Pack Additional battery pack for Shuttle iOn motor | $607.40 | each | p. 81 | ||
| 52948-25 | Wi-Fi Dongle - Order 1/motor For voice & app control over wi-fi. Provides bi-directional feedback. Use with Shuttles HD and Eco, not iOn. | $318.43 | each | p. 81 | ||
| 52954-25 | Sidekick Gen 3 Remote Works with or without Bond Bridge Pro, 1-5 channels. | $99.00 | each | p. 81 | ||
| 51623-25 | RMS Track white | $17.84 | per ft | p. 82 | ||
| 51723-25 | Recess Profile, 23 ' Order same length as track | $23.58 | per ft | p. 82 | ||
| 52512-25 | white Transport Belt Connector | $16.01 | each | box of 50; broken box $19.15 each | p. 82 | |
| 51724-25 | Recess Profile Fixing Strip, 23 ' Order 6" shorter than track | $4.96 | per ft | p. 82 | ||
| 53903-25 | Motor Pulley Connects motor to track | $116.83 | each | p. 82 | ||
| 53914-25 | Recess Profile Wedge Order 1 per track | $5.77 | each | box of 10; broken box $6.96 each | p. 82 | |
| 53911-25 | Upside Down Motor Pulley | $116.83 | each | p. 82 | ||
| 53908-25 | Overlap Right | $46.81 | each | box of 10; broken box $56.17 each | p. 82 | |
| 53909-25 | Underlap Left FMS Plus Master Carrier | $46.81 | each | box of 10; broken box $56.17 each | p. 82 | |
| 52008-25 | Slim Line Klick Carrier Draperies hang to conceal track | $1.30 | each | box of 250; broken box $1.57 each | p. 82 | |
| 53910-25 | Return Pulley | $58.38 | each | p. 82 | ||
| 52009-25 | Ball Bearing Carrier for motorization | $1.81 | each | box of 250; broken box $2.21 each | p. 82 | |
| 53912-25 | Cover Plate for Recess Motor and Return Pulley | $6.36 | each | p. 82 | ||
| 2114-25 | 60% fullness, 2 5/8 " OC | $1.48 | each | roll of 500; broken box $1.76 each | p. 82 | |
| 53913-25 | Cover Plate for Recess Motor, Upside Down Motor, and Return Pulley | $5.36 | each | p. 82 |
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
What finishes does the Forest RMS recessed motorized track come in?
Finish codes as Forest prints them; the code replaces XX in the part number.
- 25White
Where the Forest RMS recessed motorized track fits
A recessed motorized track leaves nothing at the ceiling line but a slot and the fabric. It has to be designed with the builder, with power brought to the motor end before the ceiling closes. That makes it a new-build or full-renovation choice from Fort Lauderdale to Palm Beach; our recessed curtain tracks page shows how the pocket is detailed.
Forest RMS recessed motorized track: frequently asked
How much does a Forest RMS recessed motorized track cost?
A 6 ft Forest RMS recessed motorized track (Shuttle HD, white) costs $3,265.00; a 12 ft one costs $4,127.26. A 6 ft Forest RMS recessed motorized track (Shuttle HD, black) costs $3,591.51; a 12 ft one costs $4,540.05. Prices are Forest's 2026 retail for the hardware only; installation is quoted at the measure.
What is the weight limit of the Forest RMS recessed motorized track?
Forest rates it at 8 lb per foot, depending on the application.
What finishes does the Forest RMS recessed motorized track come in?
25 White. XX in a part number stands for the finish code.
Does a recessed motorized track need power in the ceiling?
The Shuttle HD and Eco run on a 24 V power supply that needs an outlet or a wired supply near the motor end; the battery iOn does not. We plan the power with your electrician before the ceiling is closed.
