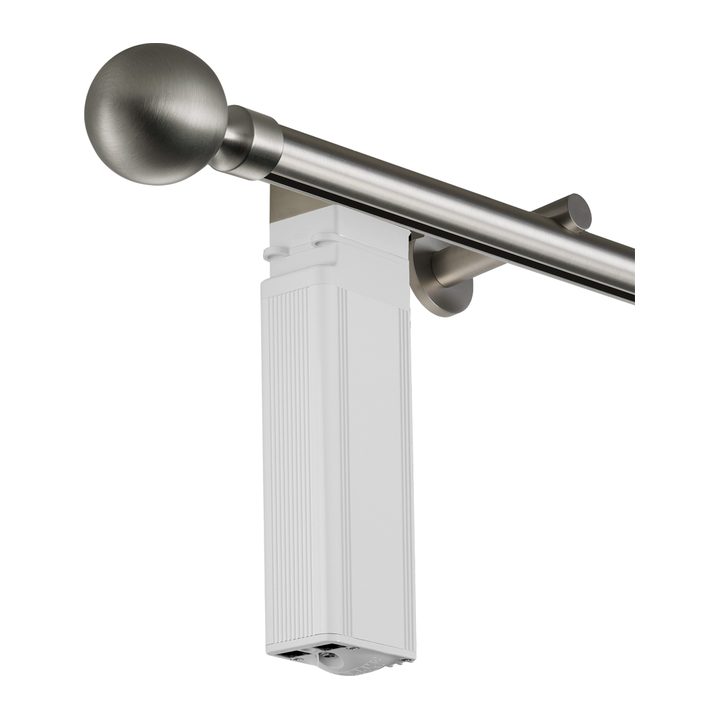

Forest Dresden Motor 2.0 Collection: a German-made motorized rod with no motor housing
Dresden Motor 2.0 rod by Forest, with 2026 retail prices, sizes, finishes and specifications.
What is the Forest Dresden Motor 2.0 Collection?
The Forest Dresden Motor 2.0 Collection is a 1 1/8 inch motorized rod whose motor connection is milled into the rail, so there is no separate motor housing and the finish runs unbroken end to end. It takes a Forest Shuttle, or comes motor-ready for Somfy, Lutron or Rollease. A 6 ft Forest Dresden Motor 2.0 rod (Shuttle HD, white) costs $4,724.06; a 12 ft one costs $5,874.32. A 6 ft Forest Dresden Motor 2.0 rod (Shuttle HD, black) costs $5,196.46; a 12 ft one costs $6,461.80.
The rail is German made, for light to medium weight drapery, and comes in nine finishes including polished chrome, satin brass, bronze matte, and beech, oak and walnut for the poles. The assembled set includes the rail with an end cap finial, carriers, masters, brackets, motor, power supply and pulleys, plus a remote or wall switch. Motor-ready sets let the drapery run on the motor brand the rest of the house uses.
Forest Dresden Motor 2.0 rod specifications
Forest's published figures for the US market (forestdh.com, the 2026 brochure and the 2026 catalog).
| Profile | 1 1/8 in German-made rail with the motor recess milled into the profile |
|---|---|
| Best for | Light to medium weight drapery |
| Motor | Forest Shuttle, or motor-ready for Somfy, Lutron or Rollease |
| Controls | EasyTouch remote or wall switch included |
| Mounting | Wall or ceiling |
| Finishes | 9: 22 Polished Chrome, 24 Satin Brass, 29 Satin Nickel, 48 Matte White, 59 Black, 70 Bronze Matte, and 222 Beech, 223 Oak, 224 Walnut (poles only) |
| Assembled set | Rail with end cap finial, masters, carriers, brackets, motor, power supply, motor and return pulleys and a remote or wall switch |
How much does a Forest Dresden Motor 2.0 rod cost?
A 6 ft Forest Dresden Motor 2.0 rod (Shuttle HD, white) costs $4,724.06; a 12 ft one costs $5,874.32.
A 6 ft Forest Dresden Motor 2.0 rod (Shuttle HD, black) costs $5,196.46; a 12 ft one costs $6,461.80.
| Length | Shuttle HD, white | Shuttle HD, black | Shuttle Eco | Shuttle iOn (battery) | Motor ready (non-Forest motor) |
|---|---|---|---|---|---|
| 3 ft | $4,340.64 | $4,774.68 | $4,256.15 | $4,331.80 | $2,520.08 |
| 4 ft | $4,340.64 | $4,774.68 | $4,256.15 | $4,331.80 | $2,520.08 |
| 5 ft | $4,532.35 | $4,985.57 | $4,447.86 | $4,523.51 | $2,711.79 |
| 6 ft | $4,724.06 | $5,196.46 | $4,639.57 | $4,715.22 | $2,903.50 |
| 8 ft | $5,107.48 | $5,618.24 | $5,022.99 | $5,098.64 | $3,286.92 |
| 10 ft | $5,490.90 | $6,040.02 | $5,406.41 | $5,482.06 | $3,670.34 |
| 12 ft | $5,874.32 | $6,461.80 | $5,789.83 | $5,865.48 | $4,053.76 |
| 14 ft | $6,257.74 | $6,883.58 | $6,173.25 | $6,248.90 | $4,437.18 |
| 16 ft | $6,641.16 | $7,305.36 | $6,556.67 | $6,632.32 | $4,820.60 |
| 20 ft | $7,408.00 | $8,148.92 | $7,323.51 | $7,399.16 | $5,587.44 |
| Option | First 4 feet | Each additional foot | Catalog page |
|---|---|---|---|
| Shuttle HD, white | $4,340.64 | $191.71 | p. 85 |
| Shuttle HD, black | $4,774.68 | $210.89 | p. 85 |
| Shuttle Eco | $4,256.15 | $191.71 | p. 85 |
| Shuttle iOn (battery) | $4,331.80 | $191.71 | p. 85 |
| Motor ready (non-Forest motor) | $2,520.08 | $191.71 | p. 85 |
Forest prices an assembled system as one amount for the first 4 feet plus a fixed amount for each additional foot; the catalog prints no price for part of a foot, so a length between two whole feet is priced at the next whole foot, and anything up to 4 feet costs the 4-foot price. Longer runs are quoted at the measure.
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
Forest Dresden Motor 2.0 rod parts and 2026 prices
39 parts and accessories with their 2026 retail prices, as printed in the Forest 2026 catalog. Parts sold by the box show the price each when bought by the full box, the box quantity, and the price each for a broken box. XX in a part number stands for the finish code; see the finishes below.
Show all 39 parts and prices
| Part number | Description | Finish or option | Price | Unit | Pack | Catalog |
|---|---|---|---|---|---|---|
| 52925-25 | Shuttle HD (M) white | $1,606.07 | each | p. 85 | ||
| 52960-25 | white | $364.72 | each | p. 85 | ||
| 52925-59 | Shuttle HD (M) black | $1,766.69 | each | p. 85 | ||
| 52939-25 | Shuttle Eco (S) white See motor specs pages 71-72 | $1,275.37 | each | p. 85 | ||
| 52934-25 | Shuttle HD & Eco Power Cord 24 volt power supply with 16' cord | $204.22 | each | p. 85 | ||
| 52961-00 | EasyTouch Remote Holder Optional and must be ordered separately | $10.58 | each | p. 85 | ||
| 52926-25 | Shuttle iOn white Includes battery charger below. See motor specs pages 71-72 | $1,597.24 | each | p. 85 | ||
| 52933-25 | white | $256.48 | each | p. 85 | ||
| 52924-59 | Shuttle iOn Battery Charger Additional charger for Shuttle iOn motor | $98.32 | each | p. 85 | ||
| 52955-25 | Bond Bridge Pro For voice and app control over RF. Easily pair using the Forest remote. Controls all of your devices in one hub. | $379.00 | each | p. 85 | ||
| 52949-25 | Shuttle iOn Battery Pack Additional battery pack for Shuttle iOn motor | $607.40 | each | p. 85 | ||
| 52948-25 | Wi-Fi Dongle - Order 1/motor | $318.43 | each | p. 85 | ||
| 52954-25 | Sidekick Gen 3 Remote Works with or without Bond Bridge Pro, 1-5 channels. | $99.00 | each | p. 85 | ||
| B825-28-XX | 1 1/8" Dresden Rail 19' 7" | $42.82 | per ft | p. 86 | ||
| B11473-15-XX | Ceiling Bracket 5/8" Projection | $87.71 | each | p. 86 | ||
| B8251517-59 | Rail Insert for Dresden | 59, 90 | $9.88 | per ft | p. 86 | |
| 53408-22 | Flush Ceiling Bracket Cannot use finials with this bracket | 22, 24, 25, 29, 59, 70 | $30.67 | each | p. 86 | |
| B124028-XX | End Cap Finial A finial is required. | $67.98 | each | p. 86 | ||
| B122028-XX | Inside Mount Bracket | $135.91 | each | p. 86 | ||
| B899-2-00 | Rail Connector | $41.66 | each | p. 86 | ||
| 52512-25 | white Transport Belt Connector | 59 black +10% | $14.54 | each | box of 50; broken box $17.41 each | p. 86 |
| 2114-25 | 60% fullness, 2 5/8 " OC | 25, 59 black | $1.48 | each | roll of 500; broken box $1.76 each | p. 86 |
| 52008-25 | Slim Line Klick Carrier | 59 black, 65 brown +10% | $1.30 | each | box of 250; broken box $1.57 each | p. 86 |
| B15683-48 | Dresden Return Pulley | 48, 59 | $182.06 | each | p. 86 | |
| 52009-25 | Ball Bearing Carrier for motorization | $1.81 | each | box of 250; broken box $2.21 each | p. 86 | |
| B11670-120-XX | Single Bracket | $226.88 | each | p. 86 | ||
| 52509-25 | Underlap L Swivel Foot Multifunctional Master | $15.54 | each | box of 100; broken box $18.61 each | p. 86 | |
| B11672-220-XX | Double Bracket | $257.32 | each | p. 86 | ||
| 52508-25A | Overlap R | $18.40 | each | box of 100; broken box $22.07 each | p. 86 | |
| 52509-25A | Underlap L Swivel Foot Multifunctional Master w/ snaps | $18.40 | each | box of 100; broken box $22.07 each | p. 86 | |
| 52409-25 | Butt Left Butt Master Carrier w/ snaps | 59 black +10% | $21.36 | each | box of 50; broken box $25.66 each | p. 86 |
| B11873-50-XX | Ceiling Bracket | $155.35 | each | p. 86 | ||
| 2552-25 | 6" Extension Arm for master Use w/ two one-way draw | $14.44 | each | box of 50; broken box $17.30 each | p. 86 | |
| B15679-R-48 | Forest Shuttle Motor Pulley | 48, 59 | $244.63 | each | p. 86 | |
| B15669-R-48 | Lutron Motor Pulley | 48, 59 | $269.10 | each | p. 86 | |
| B15699-R-48 | Somfy Motor Pulley | 48, 59 | $269.10 | each | p. 86 | |
| B25679-R-48 | Versa Motor Pulley | 48, 59 | $269.10 | each | p. 86 | |
| 52508-25 | Overlap R | $15.54 | each | box of 100; broken box $18.61 each | p. 86 | |
| 52410-25 | Butt Right | $21.36 | each | box of 50; broken box $25.66 each | p. 86 |
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
What finishes does the Forest Dresden Motor 2.0 rod come in?
Finish codes as Forest prints them; the code replaces XX in the part number.
- 22Polished Chrome
- 24Satin Brass
- 29Satin Nickel
- 48Matte White
- 59Black
- 70Bronze Matte
- 222Beech (poles only)
- 223Oak (poles only)
- 224Walnut (poles only)
Forest Dresden Motor 2.0 rod finials and prices
H is the height and P the projection from the end of the rod, where Forest publishes them. Pictures from Forest's library show one finish of each finial.
Flush Ceiling Bracket Cannot use Finial53408-22
$30.67 each
End Cap FinialB124028-XX
$67.98 each
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
Where the Forest Dresden Motor 2.0 rod fits
Forest Dresden Motor 2.0 rod: frequently asked
How much does a Forest Dresden Motor 2.0 rod cost?
A 6 ft Forest Dresden Motor 2.0 rod (Shuttle HD, white) costs $4,724.06; a 12 ft one costs $5,874.32. A 6 ft Forest Dresden Motor 2.0 rod (Shuttle HD, black) costs $5,196.46; a 12 ft one costs $6,461.80. Prices are Forest's 2026 retail for the hardware only; installation is quoted at the measure.
What finishes does the Forest Dresden Motor 2.0 rod come in?
22 Polished Chrome, 24 Satin Brass, 29 Satin Nickel, 48 Matte White, 59 Black, 70 Bronze Matte, 222 Beech, 223 Oak, 224 Walnut. XX in a part number stands for the finish code.
Can the Dresden Motor 2.0 run on a Lutron or Somfy motor?
Yes. Forest sells it motor-ready for Somfy, Lutron or Rollease motors, with the matching motor pulley, as well as with its own Shuttle motors.
