Forest Stuttgart Motor 2.0 Collection: a 1 5/8 inch rectangle motorized rail
Stuttgart Motor 2.0 rod by Forest, with 2026 retail prices, sizes, finishes and specifications.
What is the Forest Stuttgart Motor 2.0 Collection?

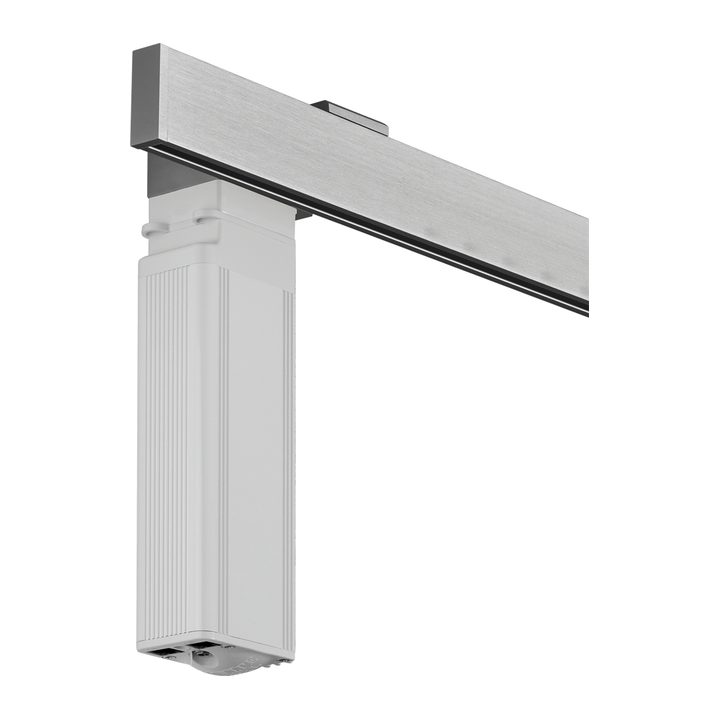

The Forest Stuttgart Motor 2.0 Collection is a 1 5/8 inch rectangle motorized rail with the motor recess milled into it, for light to medium weight drapery. It runs on a Forest Shuttle or comes motor-ready for Somfy, Lutron or Rollease. A 6 ft Forest Stuttgart Motor 2.0 rod (Shuttle HD, white) costs $5,382.83; a 12 ft one costs $7,102.73. A 6 ft Forest Stuttgart Motor 2.0 rod (Shuttle HD, black) costs $5,969.08; a 12 ft one costs $7,884.94.
Stuttgart is the deeper, flat-fronted profile of the Motor 2.0 family. It comes in polished chrome, satin nickel, matte white and black, and the assembled set includes the rail with end cap, carriers, masters, brackets, motor, power supply, pulleys and a remote or wall switch. Lutron, Somfy and other motor pulleys are listed in the parts table.
Forest Stuttgart Motor 2.0 rod specifications
Forest's published figures for the US market (forestdh.com, the 2026 brochure and the 2026 catalog).
| Profile | 1 5/8 in rectangle rail with the motor recess milled into the profile |
|---|---|
| Best for | Light to medium weight drapery |
| Motor | Forest Shuttle, or motor-ready for Somfy, Lutron or Rollease |
| Controls | EasyTouch remote or wall switch included |
| Mounting | Wall or ceiling |
| Finishes | 4: 22 Polished Chrome, 29 Satin Nickel, 48 Matte White, 59 Black |
| Assembled set | Rail with end cap, masters, carriers, brackets, motor, power supply, pulleys and a remote or wall switch |
How much does a Forest Stuttgart Motor 2.0 rod cost?
A 6 ft Forest Stuttgart Motor 2.0 rod (Shuttle HD, white) costs $5,382.83; a 12 ft one costs $7,102.73.
A 6 ft Forest Stuttgart Motor 2.0 rod (Shuttle HD, black) costs $5,969.08; a 12 ft one costs $7,884.94.
| Length | Shuttle HD, white | Shuttle HD, black | Shuttle Eco | Shuttle iOn (battery) | Motor ready (non-Forest motor) |
|---|---|---|---|---|---|
| 3 ft | $4,809.53 | $5,330.46 | $4,708.13 | $4,798.92 | $2,972.06 |
| 4 ft | $4,809.53 | $5,330.46 | $4,708.13 | $4,798.92 | $2,972.06 |
| 5 ft | $5,096.18 | $5,649.77 | $4,994.78 | $5,085.57 | $3,258.71 |
| 6 ft | $5,382.83 | $5,969.08 | $5,281.43 | $5,372.22 | $3,545.36 |
| 8 ft | $5,956.13 | $6,607.70 | $5,854.73 | $5,945.52 | $4,118.66 |
| 10 ft | $6,529.43 | $7,246.32 | $6,428.03 | $6,518.82 | $4,691.96 |
| 12 ft | $7,102.73 | $7,884.94 | $7,001.33 | $7,092.12 | $5,265.26 |
| 14 ft | $7,676.03 | $8,523.56 | $7,574.63 | $7,665.42 | $5,838.56 |
| 16 ft | $8,249.33 | $9,162.18 | $8,147.93 | $8,238.72 | $6,411.86 |
| 20 ft | $9,395.93 | $10,439.42 | $9,294.53 | $9,385.32 | $7,558.46 |
| Option | First 4 feet | Each additional foot | Catalog page |
|---|---|---|---|
| Shuttle HD, white | $4,809.53 | $286.65 | p. 89 |
| Shuttle HD, black | $5,330.46 | $319.31 | p. 89 |
| Shuttle Eco | $4,708.13 | $286.65 | p. 89 |
| Shuttle iOn (battery) | $4,798.92 | $286.65 | p. 89 |
| Motor ready (non-Forest motor) | $2,972.06 | $286.65 | p. 89 |
Forest prices an assembled system as one amount for the first 4 feet plus a fixed amount for each additional foot; the catalog prints no price for part of a foot, so a length between two whole feet is priced at the next whole foot, and anything up to 4 feet costs the 4-foot price. Longer runs are quoted at the measure.
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
Forest Stuttgart Motor 2.0 rod parts and 2026 prices
35 parts and accessories with their 2026 retail prices, as printed in the Forest 2026 catalog. Parts sold by the box show the price each when bought by the full box, the box quantity, and the price each for a broken box. XX in a part number stands for the finish code; see the finishes below.
Show all 35 parts and prices
| Part number | Description | Finish or option | Price | Unit | Pack | Catalog |
|---|---|---|---|---|---|---|
| 52925-25 | Shuttle HD (M) white | $1,606.07 | each | p. 89 | ||
| 52960-25 | white | $364.72 | each | p. 89 | ||
| 52925-59 | Shuttle HD (M) black | $1,766.69 | each | p. 89 | ||
| 52939-25 | Shuttle Eco (S) white See motor specs pages 71-72 | $1,275.37 | each | p. 89 | ||
| 52934-25 | Shuttle HD & Eco Power Cord 24 volt power supply with 16' cord | $204.22 | each | p. 89 | ||
| 52961-00 | EasyTouch Remote Holder Optional and must be ordered separately | $10.58 | each | p. 89 | ||
| 52926-25 | Shuttle iOn white Includes battery charger below. See motor specs pages 71-72 | $1,597.24 | each | p. 89 | ||
| 52933-25 | white | $256.48 | each | p. 89 | ||
| 52924-59 | Shuttle iOn Battery Charger Additional charger for Shuttle iOn motor | $98.32 | each | p. 89 | ||
| 52955-25 | Bond Bridge Pro For voice and app control over RF. Easily pair using the Forest remote. Controls all of your devices in one hub. | $379.00 | each | p. 89 | ||
| 52949-25 | Shuttle iOn Battery Pack Additional battery pack for Shuttle iOn motor | $607.40 | each | p. 89 | ||
| 52948-25 | Wi-Fi Dongle - Order 1/motor | $318.43 | each | p. 89 | ||
| 52954-25 | Sidekick Gen 3 Remote Works with or without Bond Bridge Pro, 1-5 channels. | $99.00 | each | p. 89 | ||
| B8251740-XX | Stuttgart Rectangle Rail 19' 7" | $81.83 | per ft | p. 90 | ||
| B1254017-XX | Stuttgart End Cap Finial | $101.95 | each | p. 90 | ||
| 52512-25 | white Transport Belt Connector | 59 black +10% | $14.54 | each | box of 50; broken box $17.41 each | p. 90 |
| B899-2-00 | Rail Connector | $41.66 | each | p. 90 | ||
| 2114-25 | 60% fullness, 2 5/8 " OC | 25, 59 black | $1.48 | each | roll of 500; broken box $1.76 each | p. 90 |
| 52008-25 | Slim Line Klick Carrier Draperies hang to conceal track | 59 black +10% | $1.30 | each | box of 250; broken box $1.57 each | p. 90 |
| 52009-25 | Ball Bearing Carrier for motorization | $1.81 | each | box of 250; broken box $2.21 each | p. 90 | |
| B15683-40-XX | Stuttgart Return Pulley | $182.06 | each | p. 90 | ||
| B21570-90-XX | Single Wall Bracket | $330.13 | each | p. 90 | ||
| 52509-25 | Underlap L Swivel Foot Multifunctional Master | $15.54 | each | box of 100; broken box $18.61 each | p. 90 | |
| 52508-25A | Overlap R | $18.40 | each | box of 100; broken box $22.07 each | p. 90 | |
| B11473-80-XX | Ceiling Bracket/ Invisible Wall Bracket 2 7/8" Projection | $170.82 | each | p. 90 | ||
| 52409-25 | Butt Left Butt Master Carrier w/ snaps | 59 black +10% | $21.36 | each | box of 50; broken box $25.66 each | p. 90 |
| B1224017-XX | Inside Mount Bracket | $63.74 | each | p. 90 | ||
| 2552-25 | 6" Extension Arm for master Use w/ two one-way draw | $14.44 | each | box of 50; broken box $17.30 each | p. 90 | |
| B15679-R-40-48 | Forest Shuttle Motor Pulley | 48, 59 | $244.63 | each | p. 90 | |
| B15669-R-40 | -48, 59 Lutron Motor Pulley | $269.10 | each | p. 90 | ||
| B15699-R-40 | -48, 59 Somfy Motor Pulley | $269.10 | each | p. 90 | ||
| B25679-R-40 | -48, 59 Versa Motor Pulley | $269.10 | each | p. 90 | ||
| 52508-25 | Overlap R | $15.54 | each | box of 100; broken box $18.61 each | p. 90 | |
| 52509-25A | Underlap L Swivel Foot Multifunctional Master w/ snaps | $18.40 | each | box of 100; broken box $22.07 each | p. 90 | |
| 52410-25 | Butt Right | $21.36 | each | box of 50; broken box $25.66 each | p. 90 |
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
What finishes does the Forest Stuttgart Motor 2.0 rod come in?
Finish codes as Forest prints them; the code replaces XX in the part number.
- 22Polished Chrome
- 29Satin Nickel
- 48Matte White
- 59Black
Forest Stuttgart Motor 2.0 rod finials and prices
H is the height and P the projection from the end of the rod, where Forest publishes them. Pictures from Forest's library show one finish of each finial.
Stuttgart End Cap FinialB1254017-XX
$101.95 each
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
Where the Forest Stuttgart Motor 2.0 rod fits
The rectangle face gives a strong horizontal line across a window wall, which designers use to square off uneven ceilings. We fit it on long living room runs where a motor is wanted but a plain track would look too utilitarian. The hand-drawn version is the Stuttgart Rectangle Rail.
Forest Stuttgart Motor 2.0 rod: frequently asked
How much does a Forest Stuttgart Motor 2.0 rod cost?
A 6 ft Forest Stuttgart Motor 2.0 rod (Shuttle HD, white) costs $5,382.83; a 12 ft one costs $7,102.73. A 6 ft Forest Stuttgart Motor 2.0 rod (Shuttle HD, black) costs $5,969.08; a 12 ft one costs $7,884.94. Prices are Forest's 2026 retail for the hardware only; installation is quoted at the measure.
What finishes does the Forest Stuttgart Motor 2.0 rod come in?
22 Polished Chrome, 29 Satin Nickel, 48 Matte White, 59 Black. XX in a part number stands for the finish code.
What motors fit the Stuttgart Motor 2.0?
Forest's own Shuttle HD, Eco and iOn motors, or Somfy, Lutron and other motors through the motor-ready version and its matching pulleys.
