Forest Hanover Motorized Collection: a slim curved-front motorized rail
Hanover motorized rod by Forest, with 2026 retail prices, sizes, finishes and specifications.

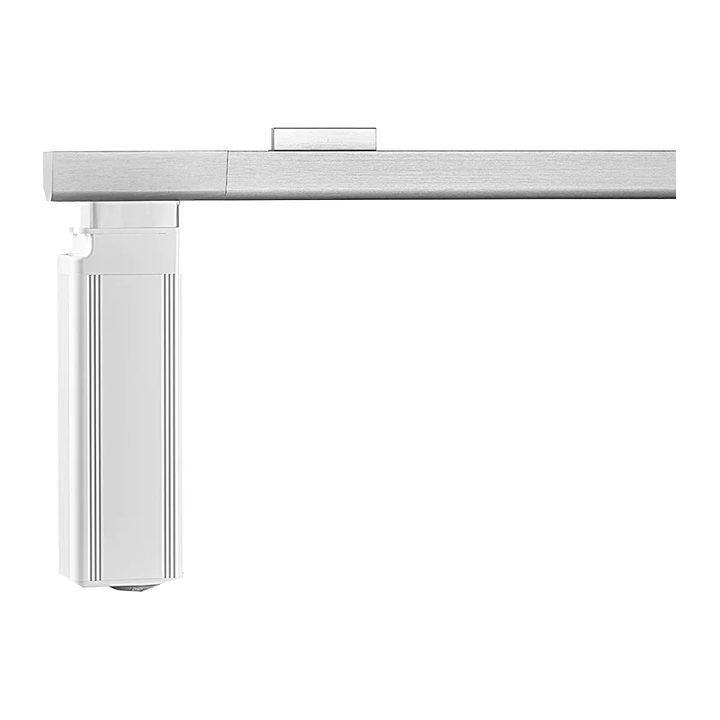

What is the Forest Hanover Motorized Collection?
The Forest Hanover Motorized Collection is a slim curved-front rail driven by any Forest Shuttle, rated for 4 lb of drapery per foot, up to 228 inches (19 feet) long. It mounts to the wall or ceiling. A 6 ft Forest Hanover motorized rod (Shuttle HD, white) costs $7,457.01; a 12 ft one costs $11,032.71. A 6 ft Forest Hanover motorized rod (Shuttle HD, black) costs $8,202.70; a 12 ft one costs $12,135.94.
Hanover has a soft curved face, in polished chrome, satin nickel, matte white or black. The assembled set includes the rail, masters, carriers, brackets, motor, power supply, pulleys and an EasyTouch remote or wall switch. Its 19 foot limit sets the largest single opening it can cover.
Forest Hanover motorized rod specifications
Forest's published figures for the US market (forestdh.com, the 2026 brochure and the 2026 catalog).
| Profile | Slim curved-front rail |
|---|---|
| Maximum fabric weight | 4 lb per foot, depending on the application |
| Maximum length | 228 in (19 ft) |
| Motor | Any Forest Shuttle |
| Controls | EasyTouch remote or wall switch included |
| Mounting | Wall or ceiling |
| Finishes | 4: 22 Polished Chrome, 29 Satin Nickel, 48 Matte White, 59 Black |
| Assembled set | Rail, masters, carriers, brackets, motor, power supply, pulleys and a remote or wall switch |
How much does a Forest Hanover motorized rod cost?
A 6 ft Forest Hanover motorized rod (Shuttle HD, white) costs $7,457.01; a 12 ft one costs $11,032.71.
A 6 ft Forest Hanover motorized rod (Shuttle HD, black) costs $8,202.70; a 12 ft one costs $12,135.94.
| Length | Shuttle HD, white | Shuttle HD, black | Shuttle Eco | Shuttle iOn (battery) |
|---|---|---|---|---|
| 3 ft | $6,265.11 | $6,891.62 | $5,944.65 | $6,255.83 |
| 4 ft | $6,265.11 | $6,891.62 | $5,944.65 | $6,255.83 |
| 5 ft | $6,861.06 | $7,547.16 | $6,540.60 | $6,851.78 |
| 6 ft | $7,457.01 | $8,202.70 | $7,136.55 | $7,447.73 |
| 8 ft | $8,648.91 | $9,513.78 | $8,328.45 | $8,639.63 |
| 10 ft | $9,840.81 | $10,824.86 | $9,520.35 | $9,831.53 |
| 12 ft | $11,032.71 | $12,135.94 | $10,712.25 | $11,023.43 |
| 14 ft | $12,224.61 | $13,447.02 | $11,904.15 | $12,215.33 |
| 16 ft | $13,416.51 | $14,758.10 | $13,096.05 | $13,407.23 |
| Option | First 4 feet | Each additional foot | Catalog page |
|---|---|---|---|
| Shuttle HD, white | $6,265.11 | $595.95 | p. 91 |
| Shuttle HD, black | $6,891.62 | $655.54 | p. 91 |
| Shuttle Eco | $5,944.65 | $595.95 | p. 91 |
| Shuttle iOn (battery) | $6,255.83 | $595.95 | p. 91 |
Forest prices an assembled system as one amount for the first 4 feet plus a fixed amount for each additional foot; the catalog prints no price for part of a foot, so a length between two whole feet is priced at the next whole foot, and anything up to 4 feet costs the 4-foot price. Sizes above 16 ft are quoted at the measure.
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
Forest Hanover motorized rod parts and 2026 prices
36 parts and accessories with their 2026 retail prices, as printed in the Forest 2026 catalog. Parts sold by the box show the price each when bought by the full box, the box quantity, and the price each for a broken box. XX in a part number stands for the finish code; see the finishes below.
Show all 36 parts and prices
| Part number | Description | Finish or option | Price | Unit | Pack | Catalog |
|---|---|---|---|---|---|---|
| 52925-25 | Shuttle HD (M) white | $1,606.07 | each | p. 91 | ||
| 52960-25 | white | $364.72 | each | p. 91 | ||
| 52925-59 | Shuttle HD (M) black | $1,766.69 | each | p. 91 | ||
| 52939-25 | Shuttle Eco (S) white See motor specs pages 71-72 | $1,275.37 | each | p. 91 | ||
| 52934-25 | Shuttle HD & Eco Power Cord 24 volt power supply with 16' cord | $204.22 | each | p. 91 | ||
| 52961-00 | EasyTouch Remote Holder Optional and must be ordered separately | $10.58 | each | p. 91 | ||
| 52926-25 | Shuttle iOn white Includes battery charger below. See motor specs pages 71-72 | $1,597.24 | each | p. 91 | ||
| 52933-25 | white | $256.48 | each | p. 91 | ||
| 52924-59 | Shuttle iOn Battery Charger Additional charger for Shuttle iOn motor | $98.32 | each | p. 91 | ||
| 52955-25 | Bond Bridge Pro For voice and app control over RF. | $379.00 | each | p. 91 | ||
| 52949-25 | Shuttle iOn Battery Pack Additional battery pack for Shuttle iOn motor | $607.40 | each | p. 91 | ||
| 52948-25 | Wi-Fi Dongle - Order 1/motor For voice & app control over wi-fi. | $318.43 | each | p. 91 | ||
| 52954-25 | Sidekick Gen 3 Remote Works with or without | $99.00 | each | p. 91 | ||
| B8223246-XX | Hanover Rail 19' 7" | $82.38 | per ft | p. 92 | ||
| B11473-50-XX | Ceiling Bracket 2" Projection | $153.26 | each | p. 92 | ||
| B11473-80-XX | Ceiling Bracket 2 7/8" Projection | $170.82 | each | p. 92 | ||
| B8221818-59/90 | Rail Insert for Hanover | $18.73 | per ft | p. 92 | ||
| B11679-L-46-XX | Left Motor Pulley | $1,064.08 | each | p. 92 | ||
| B11473-15-XX | Ceiling Bracket 5/8" Projection Two Piece Connected Snap Carrier w/ Square Base, in | $87.71 | each | p. 92 | ||
| 2114-25 | 60% fullness, 2 5/8" OC | 25, 59 black | $1.48 | each | roll of 500; broken box $1.76 each | p. 92 |
| B11679-R-46-XX | Right Motor Pulley | $1,064.08 | each | p. 92 | ||
| 2114-25 | 60% fullness, 2 5/8" OC | 25, 59 black | $740.00 | per roll | p. 92 | |
| B11683-L-46-XX | Left End Pulley | $589.39 | each | p. 92 | ||
| B11683-R-46-XX | Right End Pulley | $589.39 | each | p. 92 | ||
| 52008-25 | Slim Line Klick Carrier Draperies hang to conceal track | 59 black +10% | $1.30 | each | box of 250; broken box $1.57 each | p. 92 |
| 9012-25 | Transport Belt Kevlar reinforced | $16.82 | per ft | p. 92 | ||
| 52009-25 | Ball Bearing Carrier for motorization | $1.81 | each | box of 250; broken box $2.21 each | p. 92 | |
| 52508-25 | Overlap Right | $15.54 | each | box of 100; broken box $18.61 each | p. 92 | |
| 52509-25 | Underlap Left Swivel Foot Multifunctional Master | 59 black +10% | $15.54 | each | box of 100; broken box $18.61 each | p. 92 |
| 52508-25A | Overlap R | $18.40 | each | box of 100; broken box $22.07 each | p. 92 | |
| 52509-25A | Underlap L Swivel Foot Multifunctional Master w/ snaps | $18.40 | each | box of 100; broken box $22.07 each | p. 92 | |
| B11260-130-XX | Extended Wall Bracket P = 4 3/4" | $260.60 | each | p. 92 | ||
| 52410-25 | Butt Right | $21.36 | each | box of 50; broken box $25.66 each | p. 92 | |
| 52409-25 | Butt Left Butt Master Carrier w/ snaps | 59 black +10% | $21.36 | each | box of 50; broken box $25.66 each | p. 92 |
| 53408-22 | Flush Ceiling Bracket | 22, 25, 29, 59 | $30.67 | each | p. 92 | |
| 2552-25 | 6" Extension Arm for master Use w/ two one-way draw | $14.44 | each | box of 50; broken box $17.30 each | p. 92 |
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
What finishes does the Forest Hanover motorized rod come in?
Finish codes as Forest prints them; the code replaces XX in the part number.
- 22Polished Chrome
- 29Satin Nickel
- 48Matte White
- 59Black
Where the Forest Hanover motorized rod fits
It suits rooms where the rail is a visible design element and the opening is within 19 feet: bedrooms, studies, dining rooms. For longer walls we move to a track that splices, such as FMS.
Forest Hanover motorized rod: frequently asked
How much does a Forest Hanover motorized rod cost?
A 6 ft Forest Hanover motorized rod (Shuttle HD, white) costs $7,457.01; a 12 ft one costs $11,032.71. A 6 ft Forest Hanover motorized rod (Shuttle HD, black) costs $8,202.70; a 12 ft one costs $12,135.94. Prices are Forest's 2026 retail for the hardware only; installation is quoted at the measure.
What is the weight limit of the Forest Hanover motorized rod?
Forest rates it at 4 lb per foot, depending on the application.
What finishes does the Forest Hanover motorized rod come in?
22 Polished Chrome, 29 Satin Nickel, 48 Matte White, 59 Black. XX in a part number stands for the finish code.
What is the longest Forest Hanover motorized rod?
Forest lists a maximum length of 228 inches, 19 feet, for the Hanover motorized rail.
Compare with other Forest motorized
Forest Hanover motorized rod in Fort Lauderdale, Miami, Boca Raton & Palm Beach
Exotic Shades supplies and installs Forest hardware with drapery sewn in our own Fort Lauderdale workroom. Our workroom and showroom are at 4539 Powerline Rd in Fort Lauderdale, our second showroom is South of Fifth in Miami Beach, and the same in-house team measures and installs from Miami to Palm Beach.
Get a quote for Forest Hanover motorized rod
We measure, choose the hardware with you and quote the hardware, the drapery and the installation together. One free hour with our team routinely saves owners thousands in avoidable mistakes.
