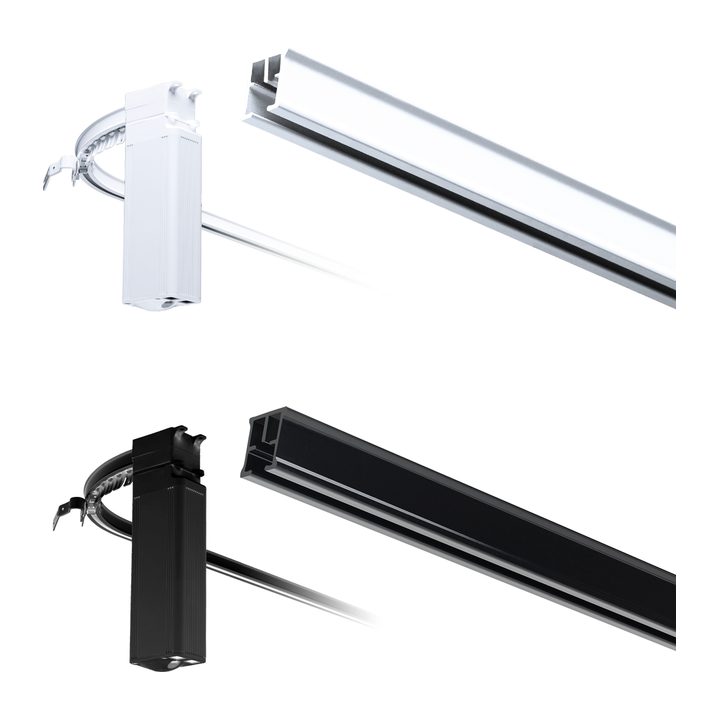

Forest FMS Motorized Track System: Forest's original motorized curtain track
FMS motorized track by Forest, with 2026 retail prices, sizes, finishes and specifications.
What is the Forest FMS Motorized Track System?
The Forest FMS Motorized Track System is a 3/4 inch aluminum track driven by a Forest Shuttle motor, rated for 6 lb of drapery per foot, with an EasyTouch remote or wall switch in the box. It is the motorized track for long runs and heavy drapery. A 6 ft Forest FMS motorized track (Shuttle HD, white) costs $2,932.63; a 12 ft one costs $3,198.97. A 6 ft Forest FMS motorized track (Shuttle HD, black) costs $3,225.88; a 12 ft one costs $3,518.80.
FMS pairs with any Forest Shuttle. The Shuttle HD moves up to 160 lb of drapery per motor (120 lb on a curved track), the Eco up to 100 lb and the battery iOn up to 55 lb. The motor mounts on either end, the track draws one way or from the center, and it can be bent or curved from an actual-size template. Control runs from the remote, a wall switch, a gentle tug on the drapery, an app through the Bond Bridge Pro, or a home automation system over RS485 or dry contacts. Forest also sells FMS motor-ready for a non-Forest motor.
Forest FMS motorized track specifications
Forest's published figures for the US market (forestdh.com, the 2026 brochure and the 2026 catalog).
| Profile | 3/4 in x 3/4 in aluminum track |
|---|---|
| Maximum fabric weight | 6 lb per foot, depending on the application |
| Motor | Any Forest Shuttle: HD (up to 160 lb per motor), Eco (up to 100 lb) or battery iOn (up to 55 lb) |
| Controls | EasyTouch remote or wall switch included; touch control, app and home automation options |
| Mounting | Wall or ceiling; motor on the left or right |
| Operation | One-way or center-open |
| Bends and curves | Can be bent or curved (actual-size template required) |
| Finishes | 2: 25 White, 59 Black |
| Assembled set | Track, brackets, masters, carriers, motor, power supply and an EasyTouch remote or wall switch |
How much does a Forest FMS motorized track cost?
A 6 ft Forest FMS motorized track (Shuttle HD, white) costs $2,932.63; a 12 ft one costs $3,198.97.
A 6 ft Forest FMS motorized track (Shuttle HD, black) costs $3,225.88; a 12 ft one costs $3,518.80.
| Length | Shuttle HD, white | Shuttle HD, black | Shuttle Eco, white | Shuttle iOn (battery), white | Motor ready (non-Forest motor) |
|---|---|---|---|---|---|
| 3 ft | $2,843.85 | $3,128.24 | $2,588.19 | $2,835.02 | $710.10 |
| 4 ft | $2,843.85 | $3,128.24 | $2,588.19 | $2,835.02 | $710.10 |
| 5 ft | $2,888.24 | $3,177.06 | $2,632.58 | $2,879.41 | $754.49 |
| 6 ft | $2,932.63 | $3,225.88 | $2,676.97 | $2,923.80 | $798.88 |
| 8 ft | $3,021.41 | $3,323.52 | $2,765.75 | $3,012.58 | $887.66 |
| 10 ft | $3,110.19 | $3,421.16 | $2,854.53 | $3,101.36 | $976.44 |
| 12 ft | $3,198.97 | $3,518.80 | $2,943.31 | $3,190.14 | $1,065.22 |
| 14 ft | $3,287.75 | $3,616.44 | $3,032.09 | $3,278.92 | $1,154.00 |
| 16 ft | $3,376.53 | $3,714.08 | $3,120.87 | $3,367.70 | $1,242.78 |
| 20 ft | $3,554.09 | $3,909.36 | $3,298.43 | $3,545.26 | $1,420.34 |
| 24 ft | $3,731.65 | $4,104.64 | $3,475.99 | $3,722.82 | $1,597.90 |
| Option | First 4 feet | Each additional foot | Catalog page |
|---|---|---|---|
| Shuttle HD, white | $2,843.85 | $44.39 | p. 75 |
| Shuttle HD, black | $3,128.24 | $48.82 | p. 75 |
| Shuttle Eco, white | $2,588.19 | $44.39 | p. 75 |
| Shuttle iOn (battery), white | $2,835.02 | $44.39 | p. 75 |
| Motor ready (non-Forest motor) | $710.10 | $44.39 | p. 75 |
Forest prices an assembled system as one amount for the first 4 feet plus a fixed amount for each additional foot; the catalog prints no price for part of a foot, so a length between two whole feet is priced at the next whole foot, and anything up to 4 feet costs the 4-foot price. Longer runs are quoted at the measure.
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
Forest FMS motorized track parts and 2026 prices
32 parts and accessories with their 2026 retail prices, as printed in the Forest 2026 catalog. Parts sold by the box show the price each when bought by the full box, the box quantity, and the price each for a broken box.
Show all 32 parts and prices
| Part number | Description | Finish or option | Price | Unit | Pack | Catalog |
|---|---|---|---|---|---|---|
| 52925-25 | Shuttle HD (M) white | $1,606.07 | each | p. 75 | ||
| 52925-59 | Shuttle HD (M) black | $1,766.69 | each | p. 75 | ||
| 52960-25 | white | $364.72 | each | p. 75 | ||
| 52939-25 | Shuttle Eco (S) white See motor specs pages 71-72 | $1,275.37 | each | p. 75 | ||
| 52934-25 | Shuttle HD & Eco Power Cord 24 volt power supply with 16' cord | $204.22 | each | p. 75 | ||
| 52961-00 | EasyTouch Remote Holder | $10.58 | each | p. 75 | ||
| 52926-25 | Shuttle iOn white Includes battery charger below. See motor specs pages 71-72 | $1,597.24 | each | p. 75 | ||
| 52933-25 | white | $256.48 | each | p. 75 | ||
| 52924-59 | Shuttle iOn Battery Charger Additional charger for Shuttle iOn motor | $98.32 | each | p. 75 | ||
| 52955-25 | Bond Bridge Pro For voice and app control over RF. Easily pair using the Forest remote. Controls all of your devices in one hub. | $379.00 | each | p. 75 | ||
| 52949-25 | Shuttle iOn Battery Pack Additional battery pack for Shuttle iOn motor | $607.40 | each | p. 75 | ||
| 52948-25 | Wi-Fi Dongle - Order 1/motor For voice & app control over wi-fi. Provides bi-directional feedback. Use with Shuttles HD and Eco, not iOn. | $318.43 | each | p. 75 | ||
| 52954-25 | Sidekick Gen 3 Remote Works with or without Bond Bridge Pro, 1-5 channels. | $99.00 | each | p. 75 | ||
| 51319-25 | white 19 ' x 10 tracks per bundle | 59 black +10% | $8.40 | per ft | p. 76 | |
| 52009-25 | Ball Bearing Carrier for motorization | $1.81 | each | box of 250; broken box $2.21 each | p. 76 | |
| 3906-25 | Track Connector and Key 3904-00 | 59 black +10% | $24.44 | each | p. 76 | |
| 52508-25 | Overlap Right | $15.54 | each | box of 100; broken box $18.61 each | p. 76 | |
| 52509-25 | Underlap Left Swivel Foot Multifunctional Master | 59 black +10% | $15.54 | each | box of 100; broken box $18.61 each | p. 76 |
| 3003-25 | HD Klick Ceiling Bracket | 59 black +10% | $2.63 | each | box of 100; broken box $3.18 each | p. 76 |
| 52508-25A | Overlap Right | $18.40 | each | box of 100; broken box $22.07 each | p. 76 | |
| 52509-25A | Underlap Left Swivel Foot Multifunctional Master w/ snaps | 59A black +10% | $18.40 | each | box of 100; broken box $22.07 each | p. 76 |
| 30031-25 | Ceiling Bracket Cover | 59 black +10% | $1.10 | each | box of 100; broken box $1.32 each | p. 76 |
| 52410-25 | Butt Right | $21.36 | each | box of 50; broken box $25.66 each | p. 76 | |
| 52409-25 | Butt Left Butt Master Carrier w/ snaps | 59 black +10% | $21.36 | each | box of 50; broken box $25.66 each | p. 76 |
| 53202-25 | 3 " Klick Single Wall Bracket with wide base | 59 black +10% | $6.34 | each | box of 100; broken box $7.61 each | p. 76 |
| 2552-25 | 6" Extension Arm for master Use w/ two one-way draw | $14.44 | each | box of 50; broken box $17.30 each | p. 76 | |
| 53206-25 | 6" Klick Double Wall Bracket with wide base adjusts 2 1/2 "- 4" and 6"- 7 1/2 " | 59 black +10% | $11.16 | each | box of 50; broken box $13.39 each | p. 76 |
| 52909-25 | Rollease Versa/Motionblinds Motor Pulley Connects motor to track | $89.34 | each | p. 76 | ||
| 2114-25 | 60% fullness, 2 5/8 " OC | 25, 59 black | $1.48 | each | roll of 500; broken box $1.76 each | p. 76 |
| 52910-25 | Return Pulley | 59 black +10% | $51.36 | each | p. 76 | |
| 52008-25 | Slim Line Klick Carrier Draperies hang to conceal track | 59 black +10% | $1.30 | each | box of 250; broken box $1.57 each | p. 76 |
| 52512-25 | white Transport Belt Connector | 59 black +10% | $14.54 | each | box of 50; broken box $17.41 each | p. 76 |
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
What finishes does the Forest FMS motorized track come in?
Finish codes as Forest prints them; the code replaces XX in the part number.
- 25White
- 59Black

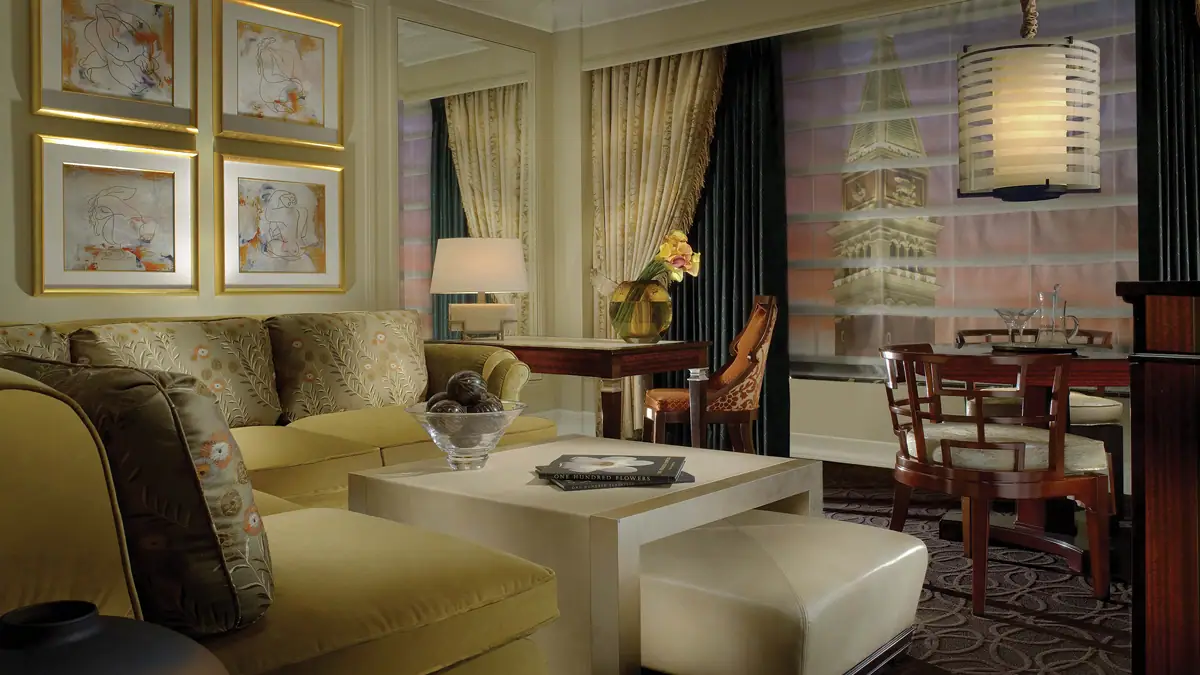

Where the Forest FMS motorized track fits
On waterfront homes from Sunny Isles to Palm Beach the track choice follows the room: FMS fits where the drapery is long and heavy and the owner wants a Forest motor. We sew the ripplefold or pinch pleat panels in our workroom and program the controls. For Somfy and Lutron alternatives, see motorized curtain tracks and motorized drapes.
Forest FMS motorized track: frequently asked
How much does a Forest FMS motorized track cost?
A 6 ft Forest FMS motorized track (Shuttle HD, white) costs $2,932.63; a 12 ft one costs $3,198.97. A 6 ft Forest FMS motorized track (Shuttle HD, black) costs $3,225.88; a 12 ft one costs $3,518.80. Prices are Forest's 2026 retail for the hardware only; installation is quoted at the measure.
What is the weight limit of the Forest FMS motorized track?
Forest rates it at 6 lb per foot, depending on the application.
What finishes does the Forest FMS motorized track come in?
25 White, 59 Black. XX in a part number stands for the finish code.
How much drapery can a Forest Shuttle motor move?
Forest rates the Shuttle HD at 160 lb per motor (120 lb on a curved track), the Shuttle Eco at 100 lb (90 lb curved) and the battery Shuttle iOn at 55 lb (40 lb curved).
Can the FMS track work with my home automation?
Yes. Shuttle motors take an EasyTouch remote or wall switch, app and voice control through the Bond Bridge Pro or Forest Wi-Fi dongle, and wired integration over RS485 or dry contacts, which we set up with your integrator.
