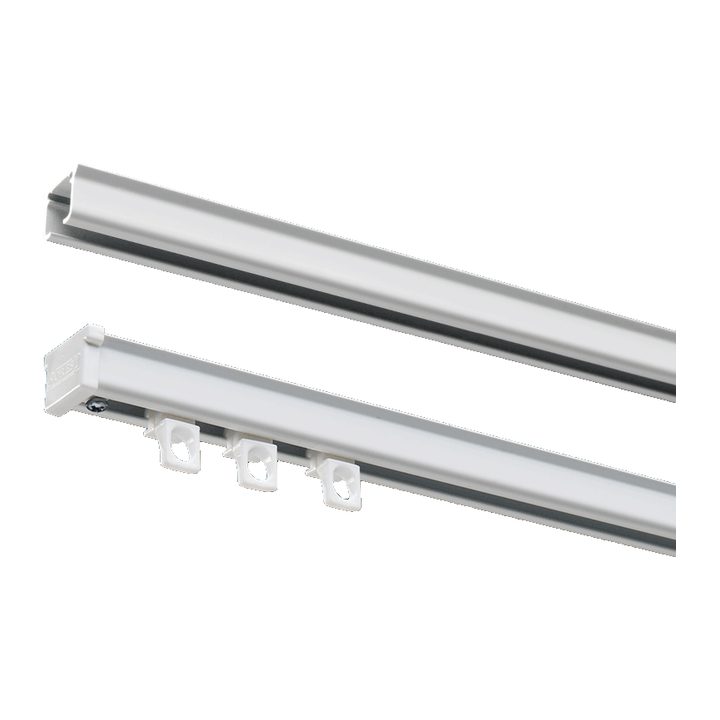

Forest KS Klick System: the light to medium duty track that curves tightest
KS track by Forest, with 2026 retail prices, sizes, finishes and specifications.
What is the Forest KS Klick System?
The Forest KS Klick System is a slim 3/4 by 1/2 inch aluminum curtain track for light to medium drapery, rated for 3 lb per foot, that curves to a 4 inch radius. It is the Forest track for arched, round and triangular windows and for sheers. A 6 ft Forest KS track (white) costs $203.06; a 12 ft one costs $317.90. A 6 ft Forest KS track (black, brown or grey) costs $223.37; a 12 ft one costs $349.73.
KS was Forest's first click-on track and it is still the one to use where the window is not square. It curves and reverse curves to 4 inches, half the radius of CS, so it can follow an arch or a round turret. The Smart Klick brackets have optional covers that hide the screws, and the carriers are offset so pleats hang straight. Sticks come in 13 ft 1 in, 16 ft 4 in and 19 ft 8 in lengths, in white, black, brown or grey.
Forest KS track specifications
Forest's published figures for the US market (forestdh.com, the 2026 brochure and the 2026 catalog).
| Profile | 3/4 in x 1/2 in aluminum extrusion |
|---|---|
| Maximum fabric weight | 3 lb per foot, depending on the application |
| Track lengths | 13 ft 1 in, 16 ft 4 in and 19 ft 8 in |
| Mounting | Wall or ceiling, Smart Klick brackets with optional screw covers |
| Operation | Hand or baton draw, one-way or center-open |
| Bends and curves | Curves and reverse curves to a 4 in radius; suits arched, round and triangular windows |
| Stackback per width | Ripplefold 6 in, pinch pleat 7 in, cubicle 5 in, accordiafold 5 in |
| Finishes | 4: 25 White, 59 Black, 65 Brown, 90 Grey |
| Assembled set | Track, brackets, masters, pinch pleat or ripplefold carriers and a 36 in white fiberglass baton |
How much does a Forest KS track cost?
A 6 ft Forest KS track (white) costs $203.06; a 12 ft one costs $317.90.
A 6 ft Forest KS track (black, brown or grey) costs $223.37; a 12 ft one costs $349.73.
| Length | White | Black, brown or grey |
|---|---|---|
| 3 ft | $164.78 | $181.25 |
| 4 ft | $164.78 | $181.25 |
| 5 ft | $183.92 | $202.31 |
| 6 ft | $203.06 | $223.37 |
| 8 ft | $241.34 | $265.49 |
| 10 ft | $279.62 | $307.61 |
| 12 ft | $317.90 | $349.73 |
| 14 ft | $356.18 | $391.85 |
| 16 ft | $394.46 | $433.97 |
| 20 ft | $471.02 | $518.21 |
| 24 ft | $547.58 | $602.45 |
| Option | First 4 feet | Each additional foot | Catalog page |
|---|---|---|---|
| White | $164.78 | $19.14 | p. 9 |
| Black, brown or grey | $181.25 | $21.06 | p. 9 |
Forest prices an assembled system as one amount for the first 4 feet plus a fixed amount for each additional foot; the catalog prints no price for part of a foot, so a length between two whole feet is priced at the next whole foot, and anything up to 4 feet costs the 4-foot price. Longer runs are quoted at the measure.
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
Forest KS track parts and 2026 prices
37 parts and accessories with their 2026 retail prices, as printed in the Forest 2026 catalog. Parts sold by the box show the price each when bought by the full box, the box quantity, and the price each for a broken box.
Show all 37 parts and prices
| Part number | Description | Finish or option | Price | Unit | Pack | Catalog |
|---|---|---|---|---|---|---|
| 32801-25 | Wall Bracket Cover use with 3280, 3285 & 3281 | 59 black, 90 grey +10% | $3.76 | each | box of 50; broken box $4.51 each | p. 10 |
| 1013-25 | white 13' 1" track length | $5.78 | per ft | p. 10 | ||
| 1016-59 | black 16' 4" track length | $6.26 | per ft | p. 10 | ||
| 2001-25 | Klick Carrier, for pinch pleat | 59 black, 65 brown, 90 grey +10% | $0.68 | each | box of 500; broken box $0.80 each | p. 10 |
| 3905-25 | Track Connector, key 3904-00 | 59 black, 90 grey +10% | $12.06 | each | box of 50; broken box $14.46 each | p. 10 |
| 2004-25 | Snap Carrier, for accordiafold Two Piece Connected Snap | 59 black +10% | $0.68 | each | box of 500; broken box $0.80 each | p. 10 |
| 2309-25 | KS End Cap Multifunctional | 59 black, 65 brown, 90 grey +10% | $1.49 | each | box of 100; broken box $1.80 each | p. 10 |
| 2114-25 | Carrier w/ Square Base Use 1 1/4" snap tape | 25, 59 black | $1.48 | each | p. 10 | |
| 2309-25S | KS End Cap Short reduces light gap | 59S black, 90S grey +10% | $1.49 | each | box of 100; broken box $1.80 each | p. 10 |
| 9100-00 | Channel Protector | $21.26 | each | p. 10 | ||
| 3001-25 | Regular Duty Ceiling Bracket | 59 black, 90 grey +10% | $1.54 | each | box of 100; broken box $1.87 each | p. 10 |
| 52003-25 | Economy Slide | 65 brown +10% | $0.35 | each | box of 2000; broken box $0.42 each | p. 10 |
| 3901-25 | Ceiling Splice/Bracket | 59 black +10% | $2.64 | each | box of 50; broken box $3.18 each | p. 10 |
| 52004-25 | Low Profile Ball Bearing Carrier | $1.81 | each | box of 1000; broken box $2.21 each | p. 10 | |
| 3003-25 | Heavy Duty Ceiling Bracket w/ Smart Klick | 59 black, 65 brown, 90 grey | $2.63 | each | box of 100; broken box $3.18 each | p. 10 |
| 2201-25 | Klick Carrier w/ Stainless Hook Use with grommets | 59 black +10% | $1.76 | each | box of 100; broken box $2.14 each | p. 10 |
| 30031-25 | Ceiling Bracket Cover use with 3003-XX | 59 black, 65 brown, 90 grey | $1.10 | each | box of 100; broken box $1.32 each | p. 10 |
| 52005-25 | Button Slide Carrier | $0.29 | each | 1,000; broken box $0.34 each | p. 10 | |
| 52105-25 | Button Slide Carrier w/ Hook | $0.88 | each | 500; broken box $1.04 each | p. 10 | |
| 53202-25 | 3" Smart Klick Wall Bracket w/ wide base, adjusts 3-4.5" | 59 black, 65 brown, 90 grey | $6.34 | each | box of 100; broken box $7.61 each | p. 10 |
| 2526-25 | Underlap L | $15.43 | each | box of 25; broken box $18.55 each | p. 10 | |
| 53206-25 | 6" Smart Klick Double Wall Bracket w/ wide base adjusts 2.5"-4" & 6"-7.5" | 59 black, 65 brown, 90 grey | $11.16 | each | box of 50; broken box $13.39 each | p. 10 |
| B8809-23-00 | Overlap R | $15.43 | each | box of 25; broken box $18.55 each | p. 10 | |
| B8809-24-00 | Underlap L Plastic Snap Master | 59 black +10% | $15.43 | each | box of 25; broken box $18.55 each | p. 10 |
| 3280-25 | 3" Wall Bracket, heavy duty projection 2 1/2" | 59 black, 65 brown, 90 grey | $14.58 | each | box of 20; broken box $17.50 each | p. 10 |
| 52410-25 | Butt R | $21.36 | each | box of 50; broken box $25.66 each | p. 10 | |
| 52409-25 | Butt L Standard Butt Master with snaps and for baton use | 59 black +10% | $21.36 | each | box of 50; broken box $25.66 each | p. 10 |
| 3285-25 | 4" Wall Bracket, heavy duty projection 3 1/2" | 59 black, 90 grey | $17.25 | each | box of 20; broken box $20.70 each | p. 10 |
| 2305-25 | Twist On End Stop | 59 black, 65 brown, 90 grey +10% | $2.64 | each | box of 100; broken box $3.18 each | p. 10 |
| 3281-25 | 6" Double Wall Bracket, heavy duty projection 1 1/2", 5 1/2" | 59 black, 65 brown, 90 grey | $20.89 | each | box of 15; broken box $25.08 each | p. 10 |
| 54110-25 | 36" Fiberglass Baton w/ snap. | $9.26 | each | box of 100; broken box $11.11 each | p. 10 | |
| 1016-25 | white 16' 4" track length | $5.78 | per ft | p. 10 | ||
| 1016-65 | brown 16' 4" track length | $6.26 | per ft | p. 10 | ||
| 1016-90 | grey 16' 4" track length | $6.26 | per ft | p. 10 | ||
| 2525-25 | Overlap R | $15.43 | each | box of 25; broken box $18.55 each | p. 10 | |
| 2527-25 | Overlap L | $15.43 | each | box of 25; broken box $18.55 each | p. 10 | |
| 2528-25 | Underlap R Pinchpleat Masters | $15.43 | each | box of 25; broken box $18.55 each | p. 10 |
Hardware only. Professional installation is quoted at the measure. Prices are 2026 retail, before tax, and may change.
What finishes does the Forest KS track come in?
Finish codes as Forest prints them; the code replaces XX in the part number.
- 25White
- 59Black
- 65Brown
- 90Grey
Forest KS track: frequently asked
How much does a Forest KS track cost?
A 6 ft Forest KS track (white) costs $203.06; a 12 ft one costs $317.90. A 6 ft Forest KS track (black, brown or grey) costs $223.37; a 12 ft one costs $349.73. Prices are Forest's 2026 retail for the hardware only; installation is quoted at the measure.
What is the weight limit of the Forest KS track?
Forest rates it at 3 lb per foot, depending on the application.
What finishes does the Forest KS track come in?
25 White, 59 Black, 65 Brown, 90 Grey. XX in a part number stands for the finish code.
What is the smallest curve the Forest KS track can take?
KS curves and reverse curves to a 4 inch radius or a continuous curve, which is why it suits arched, round and triangular windows.
