Lutron E Screen Fabric
92 colourways, openness 0.5% to 10%, solar screen, up to 120 inches wide. Every swatch and every specification, from a certified Lutron dealer in Fort Lauderdale and Miami Beach.
The reference solar screen, in every openness Lutron makes
E Screen is the reference solar screen in Lutron's library and the one we reach for first on a wall of South Florida glass. It is a fiberglass and vinyl weave (36% fiberglass, 64% vinyl) that stays flat and dimensionally stable in humidity, rolls cleanly on tubes up to 120 inches wide, and comes in five openness factors: 0.5%, 1%, 3%, 5% and 10%. That range is the point. The same colour can be ordered tighter for a west-facing room and more open for a north-facing one, so a whole floor reads as one fabric while each window gets the glare control it actually needs.
The colour card is built on two-tone weaves: White/White, White/Pearl and White/Linen for bright, light-reflecting interiors; Pearl/Pearl, Pearl/Linen and Pearl/Grey for warmer neutrals; and the Charcoal family (Charcoal/Charcoal, Charcoal/Grey, Charcoal/Grey-Stone, Charcoal/Cocoa, Charcoal/Apricot) where view clarity matters most. Dark weaves are always the clearest to look through; light weaves reflect more heat. Lutron also lists E Screen in two special versions, E Screen THEIA (22 colourways at rated openness values between 1.1% and 4.6%) and E Screen with KOOLBLACK (15 charcoal colourways at 1%, 3% and 5%), both on the same 120-inch width.
E Screen
11 colours, 55 colourways. Openness 0.5%, 1%, 3%, 5%, 10%; up to 120 in wide; fire listed.
Colourways
0.5%1%3%5%10%
0.5%1%3%5%10%
0.5%1%3%5%10%
0.5%1%3%5%10%
0.5%1%3%5%10%
0.5%1%3%5%10%
0.5%1%3%5%10%
0.5%1%3%5%10%
0.5%1%3%5%10%
0.5%1%3%5%10%
0.5%1%3%5%10%
E Screen - THEIA™
11 colours, 22 colourways. Openness 1.1% to 4.6%; up to 120 in wide; fire listed.
Colourways
1.6%3.8%
1.7%3.9%
1.7%3.9%
1.2%4.0%
1.1%4.1%
1.1%4.0%
1.6%4.6%
1.7%4.6%
1.6%4.5%
1.7%4.5%
1.9%4.4%
E Screen with KOOLBLACK™
5 colours, 15 colourways. Openness 1%, 3%, 5%; up to 120 in wide; fire listed.
Colourways
Every E Screen colourway, with Lutron's published figures
| Swatch | Colour | Code | Openness | Tv | Ts | Rs | As | Back | Width | Sample no. | Docs |
|---|---|---|---|---|---|---|---|---|---|---|---|
| White/White | S0202E-0.5 | 0.5% | 10% | 13% | 78% | 9% | Same as Face | 120 in | WSF-S0202E-0.5 | HPD | |
| White/White | S0202-E-1 | 1% | 11% | 14% | 75% | 11% | Same as Face | 120 in | WSF-S0202-E-1 | HPD | |
| White/White | S0202-E-3 | 3% | 13% | 16% | 73% | 11% | Same as Face | 120 in | WSF-S0202-E-3 | HPD | |

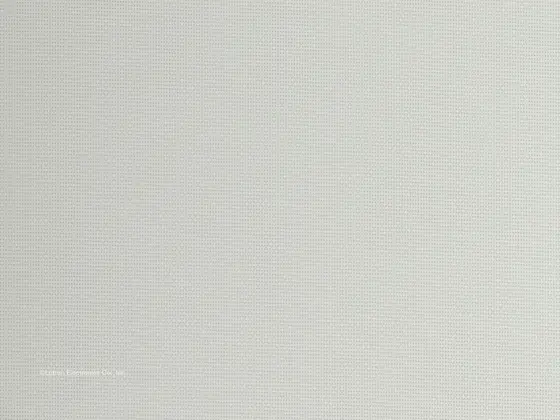

| White/White | S0202-E-5 | 5% | 17% | 20% | 71% | 9% | Same as Face | 120 in | WSF-S0202-E-5 | HPD | |

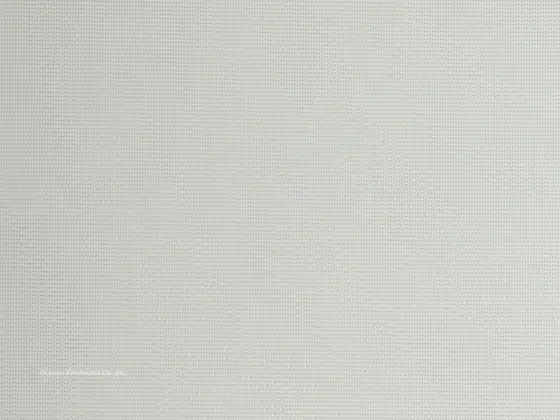

| White/White | S0202-E-10 | 10% | 22% | 25% | 66% | 9% | Same as Face | 120 in | WSF-S0202-E-10 | HPD | |

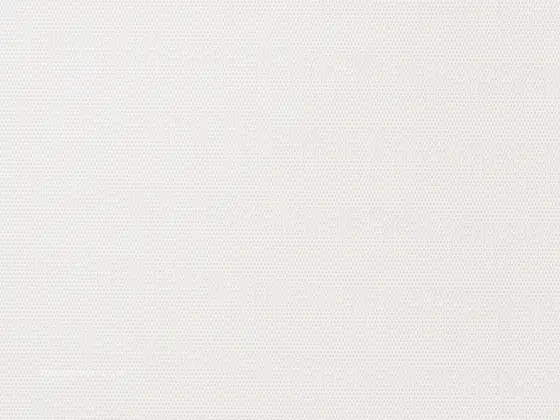

| White/Linen | S0220E-0.5 | 0.5% | 9% | 13% | 71% | 16% | Same as Face | 120 in | WSF-S0220E-0.5 | HPD | |
| White/Linen | S0220-E-1 | 1% | 10% | 14% | 66% | 20% | Same as Face | 120 in | WSF-S0220-E-1 | HPD | |

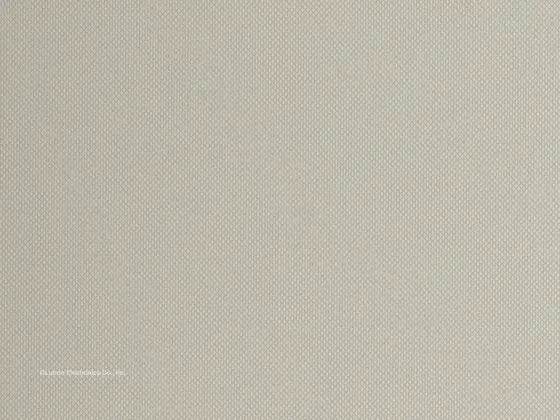

| White/Linen | S0220-E-3 | 3% | 12% | 16% | 63% | 21% | Same as Face | 120 in | WSF-S0220-E-3 | HPD | |

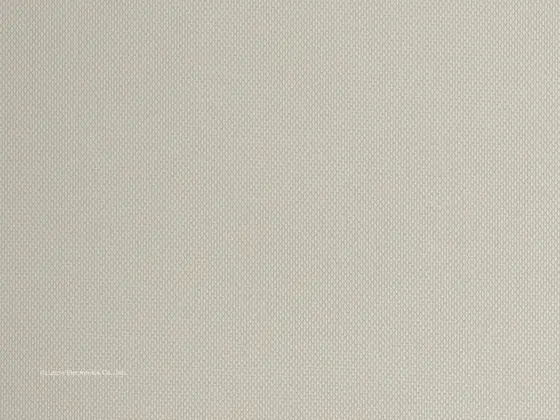

| White/Linen | S0220-E-5 | 5% | 16% | 20% | 62% | 18% | Same as Face | 120 in | WSF-S0220-E-5 | HPD | |

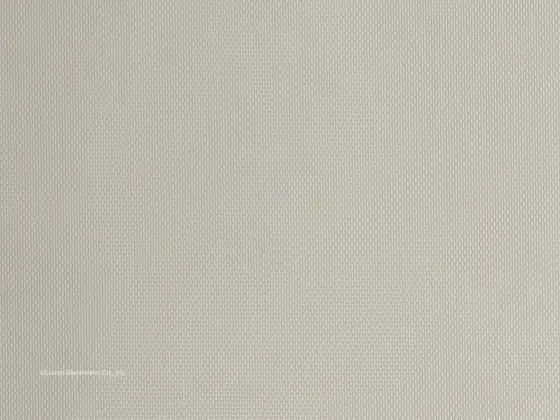

| White/Linen | S0220-E-10 | 10% | 22% | 25% | 58% | 17% | Same as Face | 120 in | WSF-S0220-E-10 | HPD | |

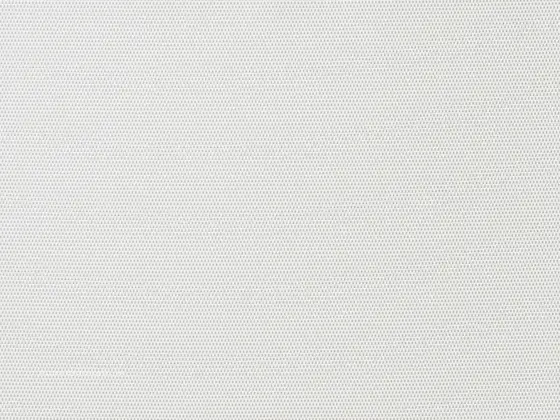

| White/Pearl | S0207E-0.5 | 0.5% | 6% | 8% | 64% | 28% | Same as Face | 120 in | WSF-S0207E-0.5 | HPD | |

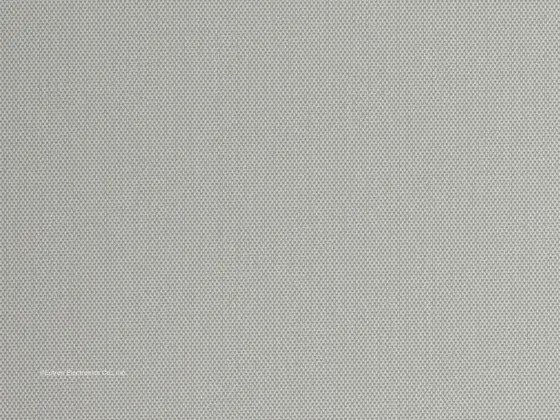

| White/Pearl | S0207-E-1 | 1% | 6% | 9% | 58% | 33% | Same as Face | 120 in | WSF-S0207-E-1 | HPD | |

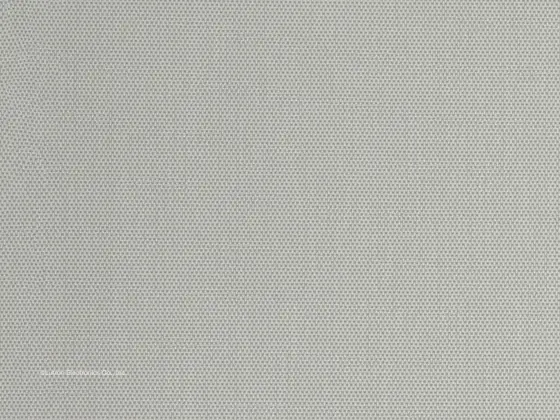

| White/Pearl | S0207-E-3 | 3% | 8% | 10% | 52% | 38% | Same as Face | 120 in | WSF-S0207-E-3 | HPD | |

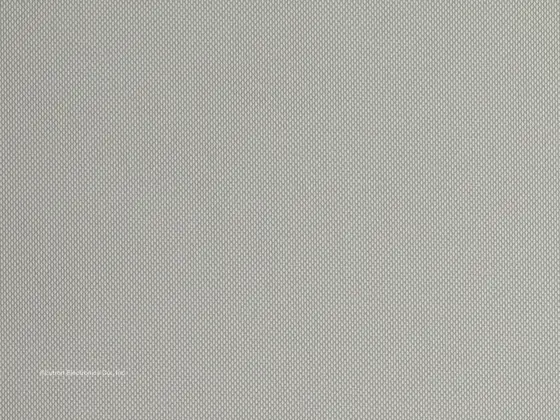

| White/Pearl | S0207-E-5 | 5% | 9% | 12% | 51% | 37% | Same as Face | 120 in | WSF-S0207-E-5 | HPD | |

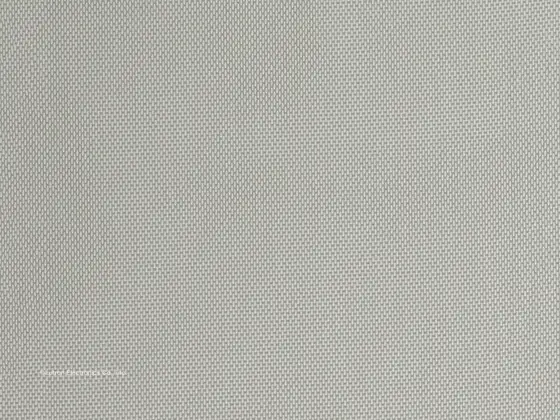

| White/Pearl | S0207-E-10 | 10% | 18% | 20% | 50% | 30% | Same as Face | 120 in | WSF-S0207-E-10 | HPD | |

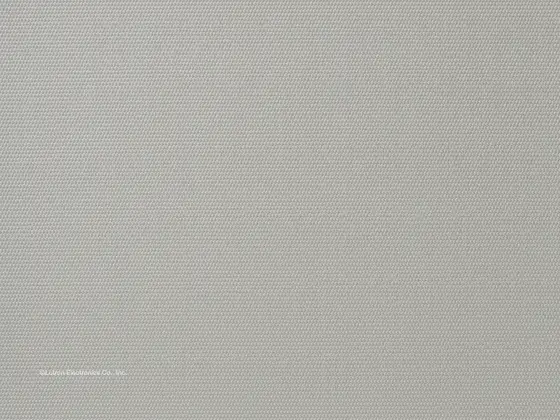

| Pearl/Linen | S0720E-0.5 | 0.5% | 3% | 6% | 39% | 55% | Same as Face | 120 in | WSF-S0720E-0.5 | HPD | |
| Pearl/Linen | S0720-E-1 | 1% | 5% | 7% | 39% | 54% | Same as Face | 120 in | WSF-S0720-E-1 | HPD | |
| Pearl/Linen | S0720-E-3 | 3% | 11% | 13% | 39% | 48% | Same as Face | 120 in | WSF-S0720-E-3 | HPD | |

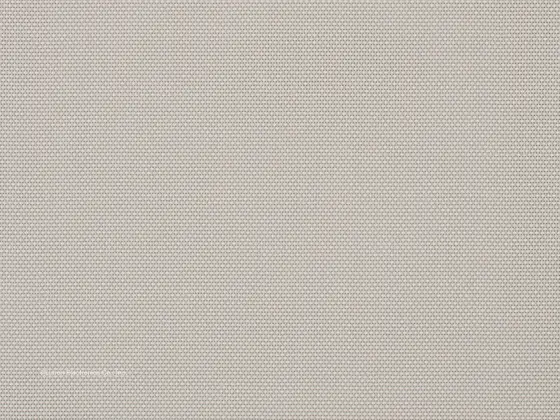

| Pearl/Linen | S0720-E-5 | 5% | 12% | 15% | 37% | 48% | Same as Face | 120 in | WSF-S0720-E-5 | HPD | |

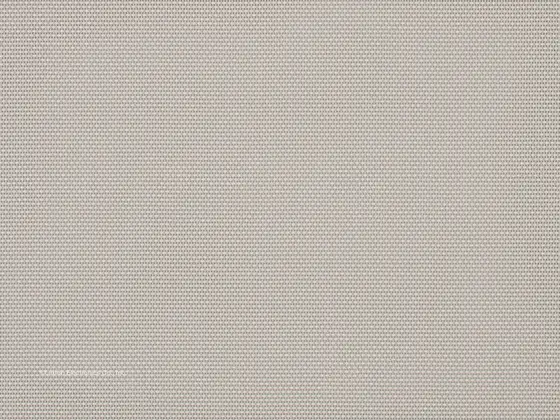

| Pearl/Linen | S0720-E-10 | 10% | 17% | 19% | 35% | 46% | Same as Face | 120 in | WSF-S0720-E-10 | HPD | |

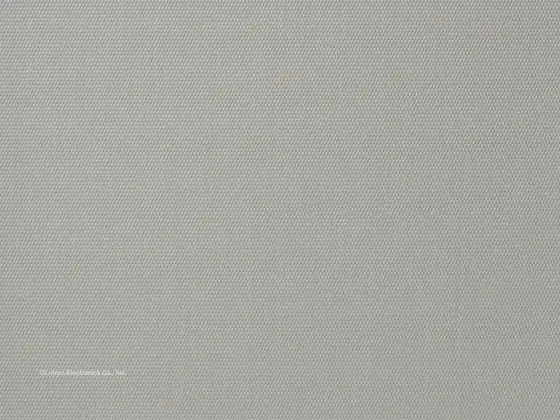

| Pearl/Pearl | S0707E-0.5 | 0.5% | 2% | 4% | 36% | 60% | Same as Face | 120 in | WSF-S0707E-0.5 | HPD | |
| Pearl/Pearl | S0707-E-1 | 1% | 3% | 5% | 33% | 62% | Same as Face | 120 in | WSF-S0707-E-1 | HPD | |

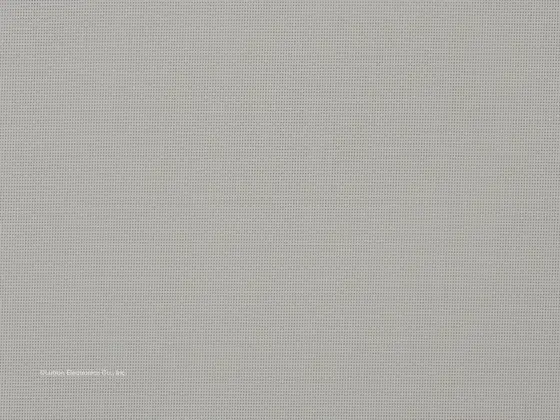

| Pearl/Pearl | S0707-E-3 | 3% | 8% | 9% | 32% | 59% | Same as Face | 120 in | WSF-S0707-E-3 | HPD | |

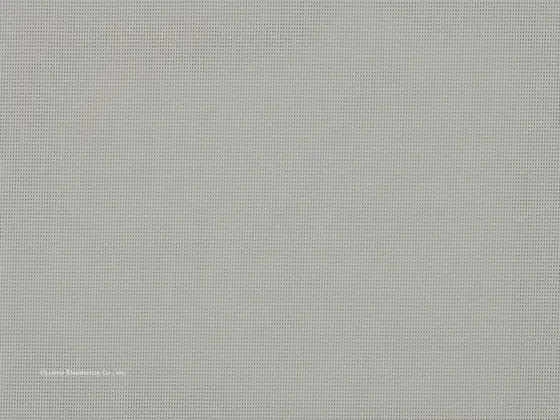

| Pearl/Pearl | S0707-E-5 | 5% | 10% | 12% | 31% | 57% | Same as Face | 120 in | WSF-S0707-E-5 | HPD | |

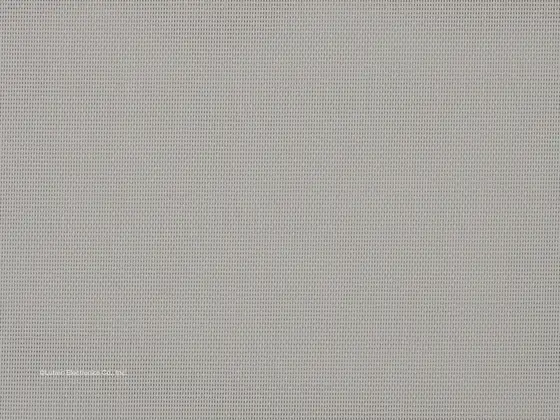

| Pearl/Pearl | S0707-E-10 | 10% | 14% | 16% | 30% | 54% | Same as Face | 120 in | WSF-S0707-E-10 | HPD | |

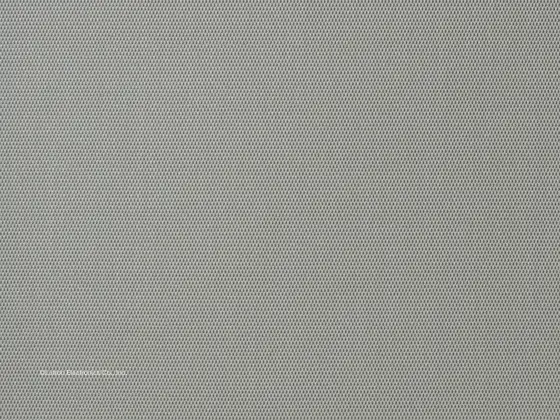

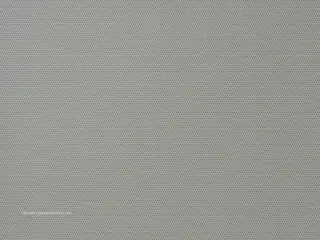

| Pearl/Grey | S0701E-0.5 | 0.5% | 2% | 4% | 33% | 63% | Same as Face | 120 in | WSF-S0701E-0.5 | HPD | |

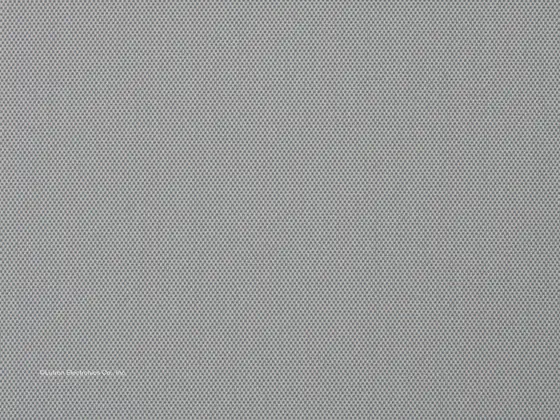

| Pearl/Grey | S0701-E-1 | 1% | 3% | 5% | 29% | 66% | Same as Face | 120 in | WSF-S0701-E-1 | HPD | |

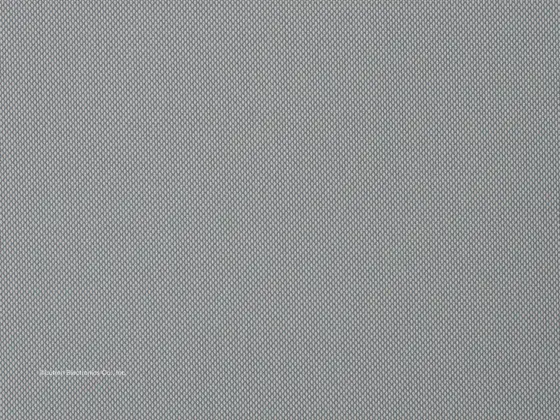

| Pearl/Grey | S0701-E-3 | 3% | 8% | 10% | 27% | 63% | Same as Face | 120 in | WSF-S0701-E-3 | HPD | |

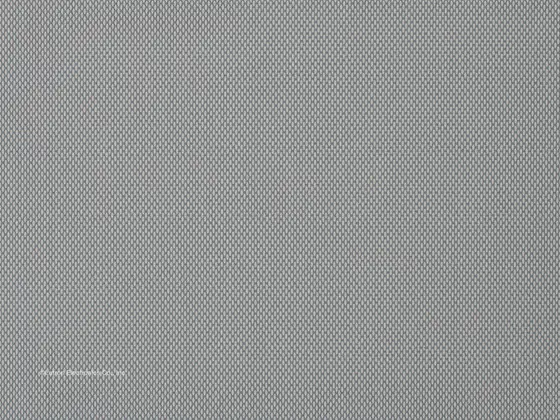

| Pearl/Grey | S0701-E-5 | 5% | 10% | 12% | 27% | 61% | Same as Face | 120 in | WSF-S0701-E-5 | HPD | |

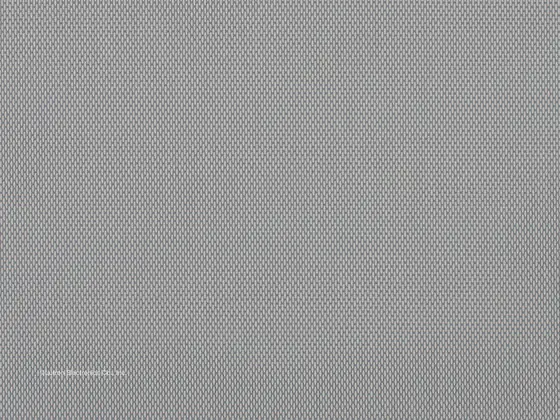

| Pearl/Grey | S0701-E-10 | 10% | 14% | 16% | 26% | 58% | Same as Face | 120 in | WSF-S0701-E-10 | HPD | |

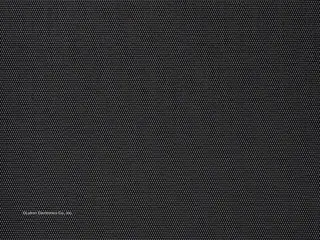

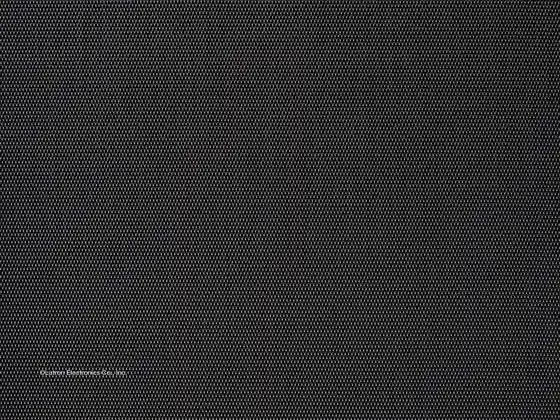

| Charcoal/Grey-Stone | S0M22E-0.5 | 0.5% | 0% | 0% | 8% | 92% | Same as Face | 120 in | WSF-S0M22E-0.5 | HPD | |
| Charcoal/Grey-Stone | S0M22-E-1 | 1% | 2% | 2% | 11% | 87% | Same as Face | 120 in | WSF-S0M22-E-1 | HPD | |
| Charcoal/Grey-Stone | S0M22-E-3 | 3% | 6% | 7% | 13% | 80% | Same as Face | 120 in | WSF-S0M22-E-3 | HPD | |

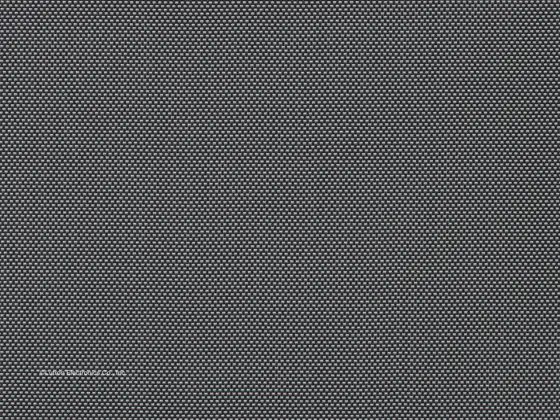

| Charcoal/Grey-Stone | S0M22-E-5 | 5% | 9% | 9% | 12% | 79% | Same as Face | 120 in | WSF-S0M22-E-5 | HPD | |

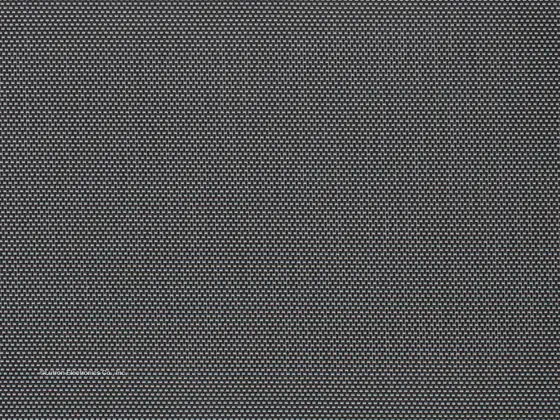

| Charcoal/Grey-Stone | S0M22-E-10 | 10% | 11% | 11% | 10% | 79% | Same as Face | 120 in | WSF-S0M22-E-10 | HPD | |

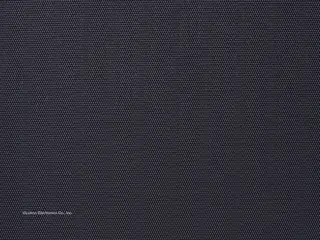

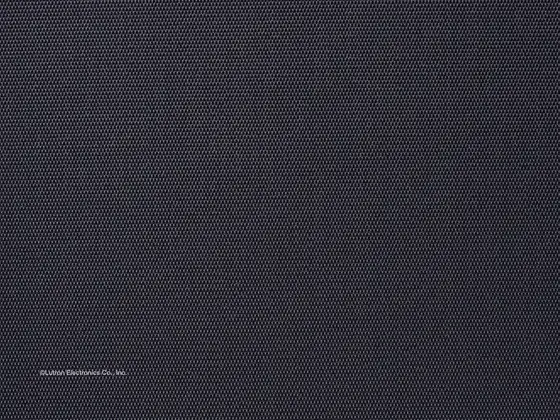

| Charcoal/Grey | S3001E-0.5 | 0.5% | 0% | 0% | 7% | 93% | Same as Face | 120 in | WSF-S3001E-0.5 | HPD | |
| Charcoal/Grey | S3001-E-1 | 1% | 2% | 3% | 9% | 88% | Same as Face | 120 in | WSF-S3001-E-1 | HPD | |

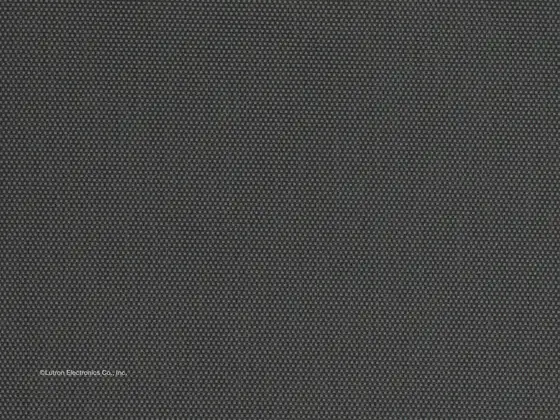

| Charcoal/Grey | S3001-E-3 | 3% | 5% | 5% | 10% | 85% | Same as Face | 120 in | WSF-S3001-E-3 | HPD | |

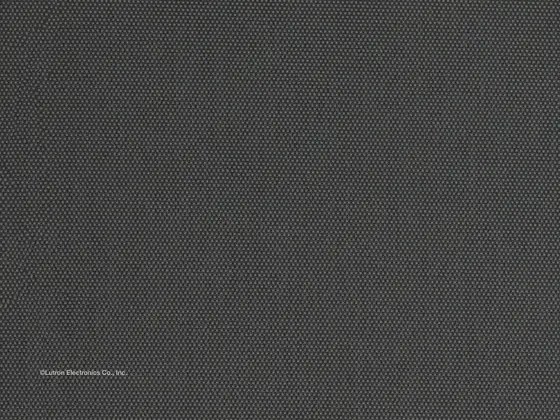

| Charcoal/Grey | S3001-E-5 | 5% | 7% | 7% | 10% | 83% | Same as Face | 120 in | WSF-S3001-E-5 | HPD | |

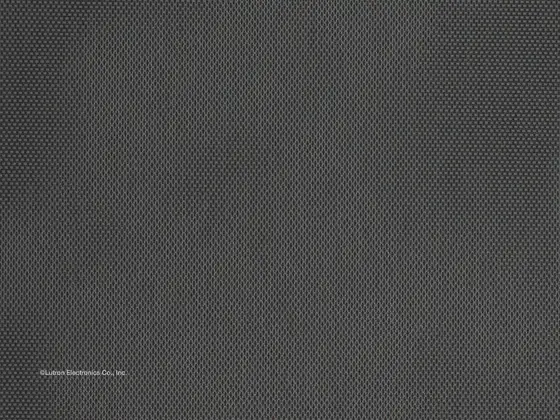

| Charcoal/Grey | S3001-E-10 | 10% | 11% | 12% | 8% | 80% | Same as Face | 120 in | WSF-S3001-E-10 | HPD | |

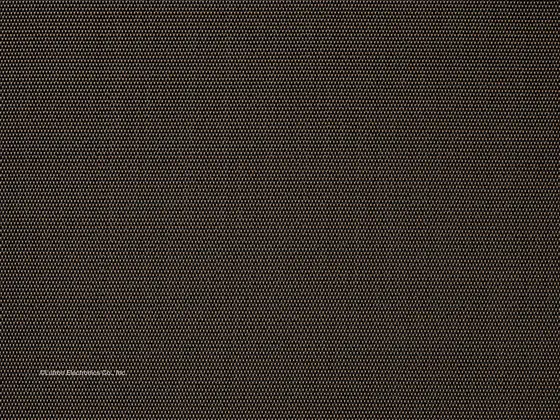

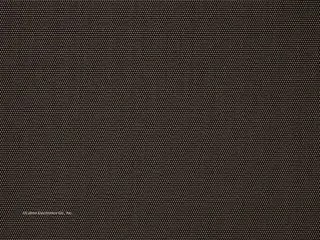

| Charcoal/Apricot | S3071E-0.5 | 0.5% | 0% | 0% | 10% | 90% | Same as Face | 120 in | WSF-S3071E-0.5 | HPD | |

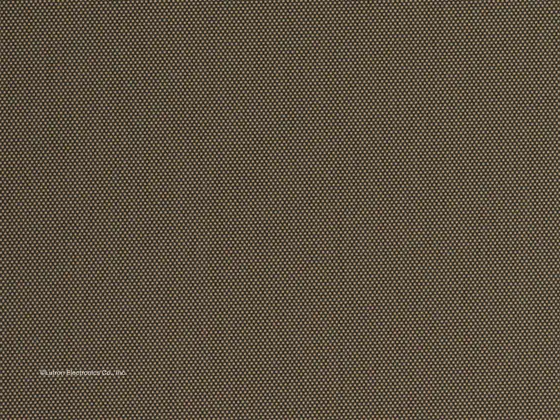

| Charcoal/Apricot | S3071-E-1 | 1% | 1% | 1% | 13% | 86% | Same as Face | 120 in | WSF-S3071-E-1 | HPD | |
| Charcoal/Apricot | S3071-E-3 | 3% | 7% | 7% | 18% | 75% | Same as Face | 120 in | WSF-S3071-E-3 | HPD | |

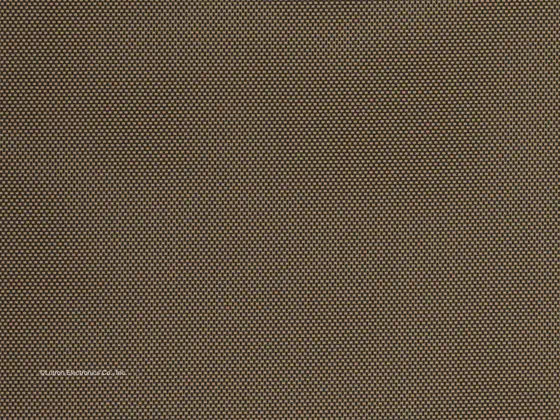

| Charcoal/Apricot | S3071-E-5 | 5% | 6% | 7% | 15% | 78% | Same as Face | 120 in | WSF-S3071-E-5 | HPD | |

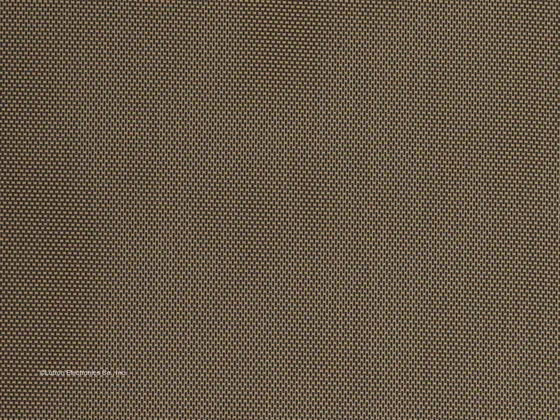

| Charcoal/Apricot | S3071-E-10 | 10% | 13% | 14% | 14% | 72% | Same as Face | 120 in | WSF-S3071-E-10 | HPD | |

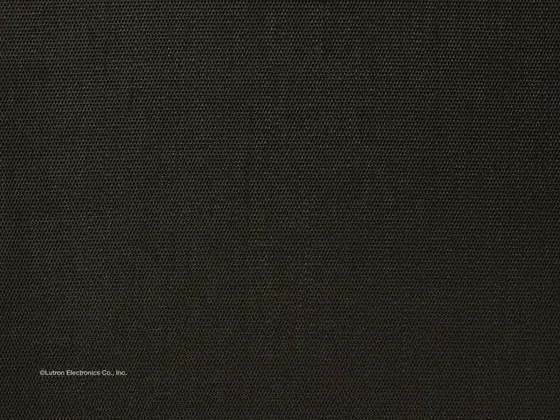

| Charcoal/Cocoa | S3061E-0.5 | 0.5% | 0% | 0% | 9% | 91% | Same as Face | 120 in | WSF-S3061E-0.5 | HPD | |
| Charcoal/Cocoa | S3061-E-1 | 1% | 2% | 2% | 5% | 93% | Same as Face | 120 in | WSF-S3061-E-1 | HPD | |
| Charcoal/Cocoa | S3061-E-3 | 3% | 3% | 4% | 7% | 89% | Same as Face | 120 in | WSF-S3061-E-3 | HPD | |

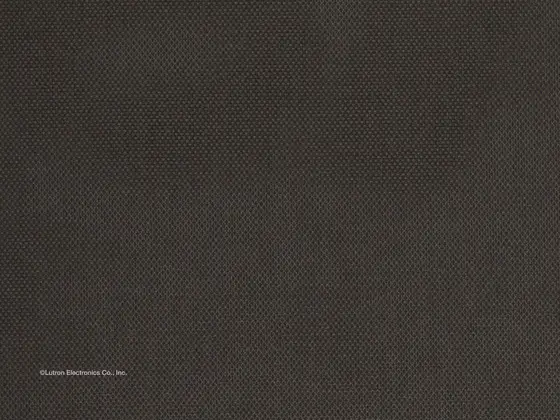

| Charcoal/Cocoa | S3061-E-5 | 5% | 7% | 7% | 6% | 87% | Same as Face | 120 in | WSF-S3061-E-5 | HPD | |

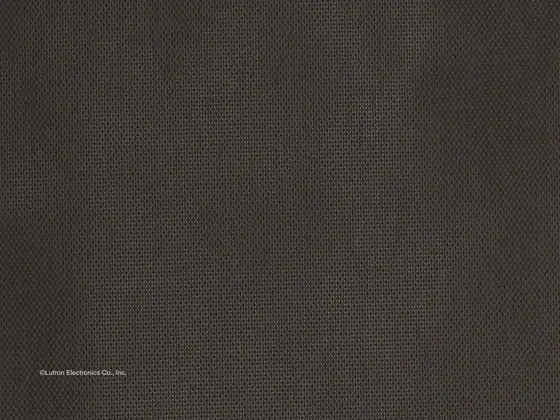

| Charcoal/Cocoa | S3061-E-10 | 10% | 11% | 11% | 5% | 84% | Same as Face | 120 in | WSF-S3061-E-10 | HPD | |

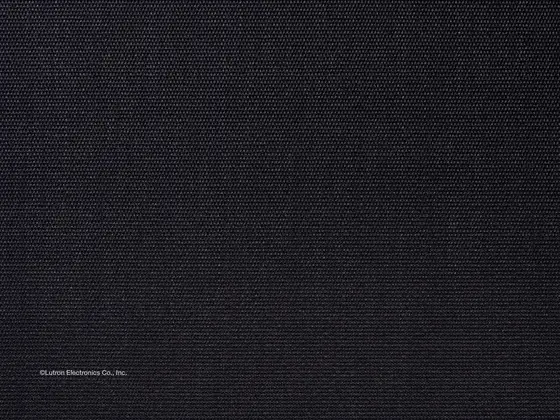

| Charcoal/Charcoal | S3030E-0.5 | 0.5% | 0% | 0% | 4% | 96% | Same as Face | 120 in | WSF-S3030E-0.5 | HPD | |
| Charcoal/Charcoal | S3030-E-1 | 1% | 1% | 1% | 4% | 95% | Same as Face | 120 in | WSF-S3030-E-1 | HPD | |

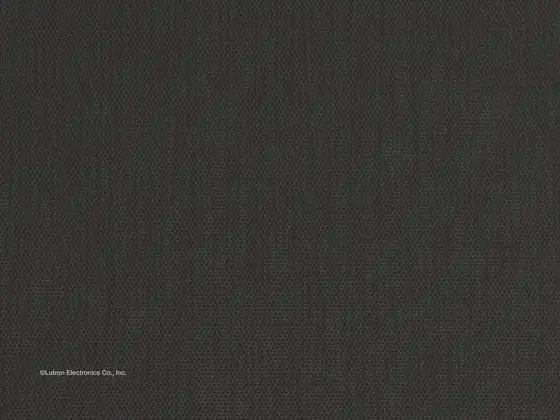

| Charcoal/Charcoal | S3030-E-3 | 3% | 4% | 5% | 4% | 91% | Same as Face | 120 in | WSF-S3030-E-3 | HPD | |

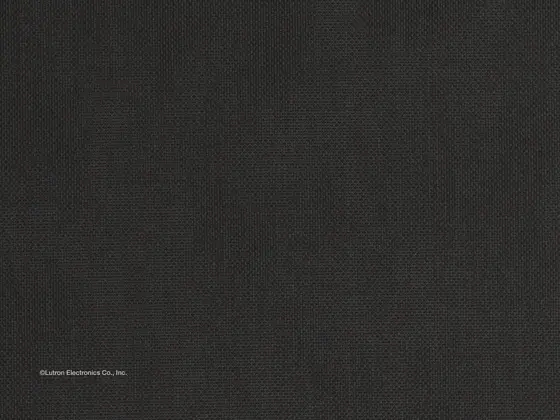

| Charcoal/Charcoal | S3030-E-5 | 5% | 4% | 4% | 6% | 90% | Same as Face | 120 in | WSF-S3030-E-5 | HPD | |

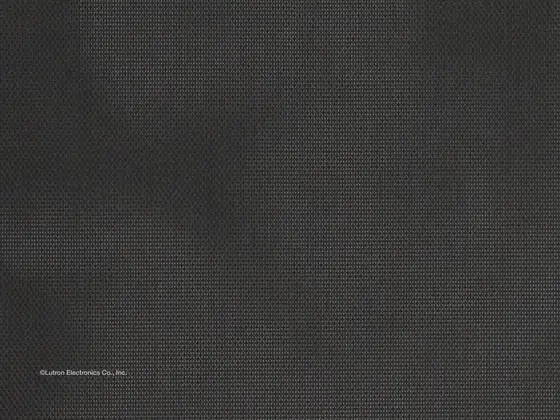

| Charcoal/Charcoal | S3030-E-10 | 10% | 12% | 12% | 3% | 85% | Same as Face | 120 in | WSF-S3030-E-10 | HPD | |
| White/White | S0202ET-A | 1.6% | 13% | 14% | 75% | 11% | Same as Face | 120 in | WSF-S0202ET-A | HPD | |

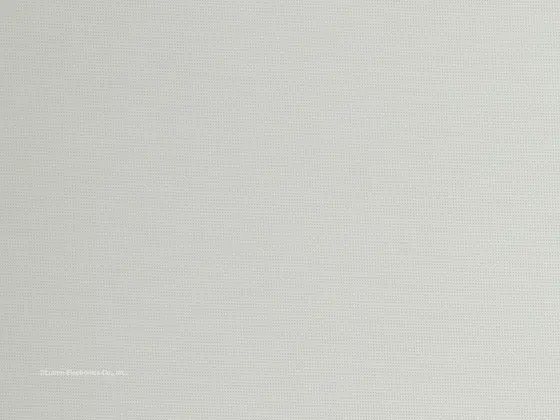

| White/White | S0202ET-B | 3.8% | 15% | 16% | 73% | 11% | Same as Face | 120 in | WSF-S0202ET-B | HPD | |

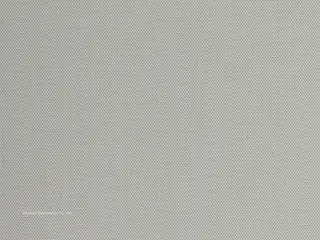

| White/Pearl | S0207ET-A | 1.7% | 7% | 9% | 58% | 33% | Same as Face | 120 in | WSF-S0207ET-A | HPD | |
| White/Pearl | S0207ET-B | 3.9% | 8% | 10% | 52% | 38% | Same as Face | 120 in | WSF-S0207ET-B | HPD | |

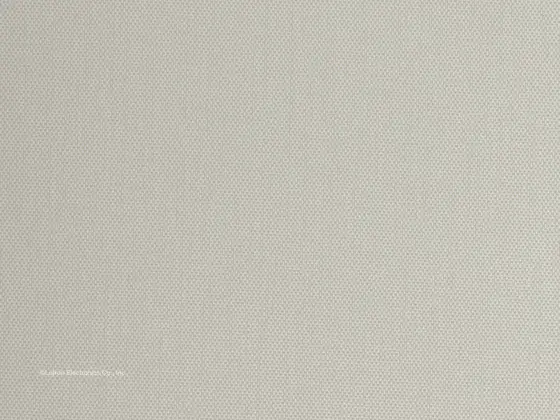

| White/Linen | S0220ET-A | 1.7% | 11% | 14% | 66% | 20% | Same as Face | 120 in | WSF-S0220ET-A | HPD | |
| White/Linen | S0220ET-B | 3.9% | 14% | 16% | 63% | 21% | Same as Face | 120 in | WSF-S0220ET-B | HPD | |

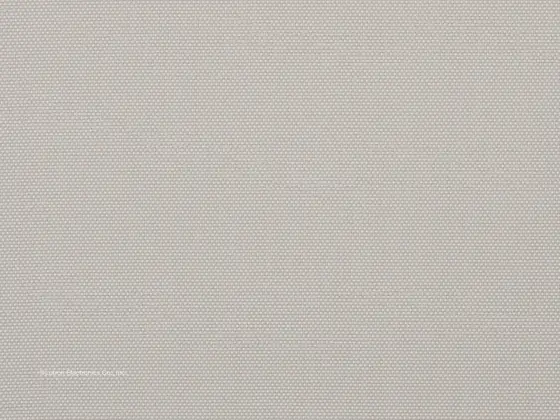

| Pearl/Linen | S0720ET-A | 1.2% | 5% | 7% | 39% | 54% | Same as Face | 120 in | WSF-S0720ET-A | HPD | |

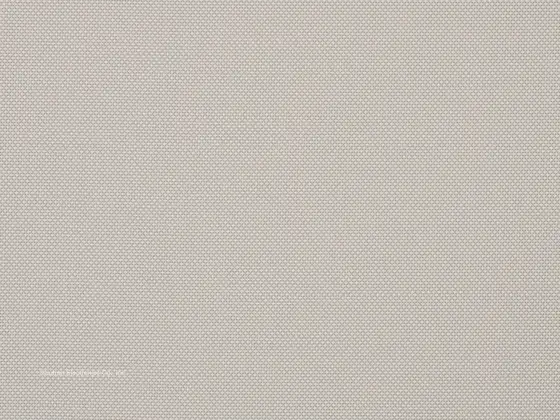

| Pearl/Linen | S0720ET-B | 4.0% | 8% | 13% | 39% | 48% | Same as Face | 120 in | WSF-S0720ET-B | HPD | |
| Pearl/Pearl | S0707ET-A | 1.1% | 3% | 5% | 33% | 62% | Same as Face | 120 in | WSF-S0707ET-A | HPD | |
| Pearl/Pearl | S0707ET-B | 4.1% | 6% | 9% | 32% | 59% | Same as Face | 120 in | WSF-S0707ET-B | HPD | |

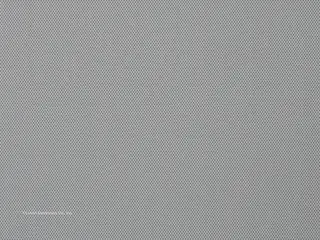

| Pearl/Grey | S0701ET-A | 1.1% | 3% | 5% | 29% | 66% | Same as Face | 120 in | WSF-S0701ET-A | HPD | |
| Pearl/Grey | S0701ET-B | 4.0% | 6% | 10% | 27% | 63% | Same as Face | 120 in | WSF-S0701ET-B | HPD | |

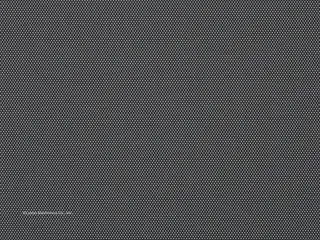

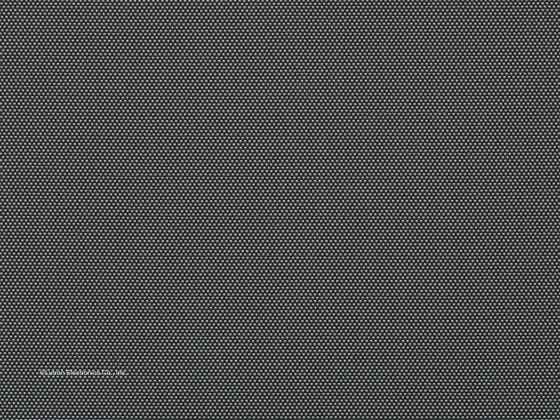

| Charcoal/Grey-Stone | S0M22ET-A | 1.6% | 2% | 2% | 11% | 87% | Same as Face | 120 in | WSF-S0M22ET-A | HPD | |

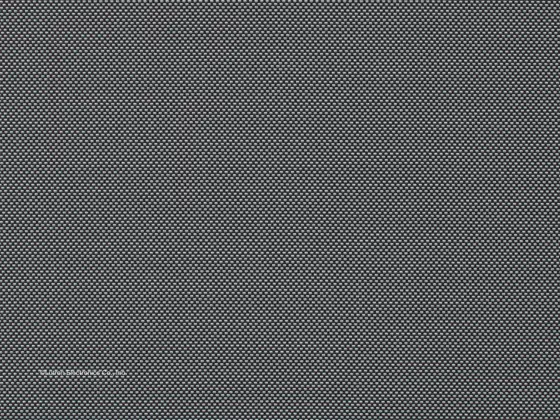

| Charcoal/Grey-Stone | S0M22ET-B | 4.6% | 6% | 7% | 13% | 80% | Same as Face | 120 in | WSF-S0M22ET-B | HPD | |

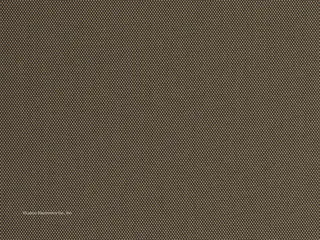

| Charcoal/Apricot | S3071ET-A | 1.7% | 2% | 1% | 13% | 86% | Same as Face | 120 in | WSF-S3071ET-A | HPD | |

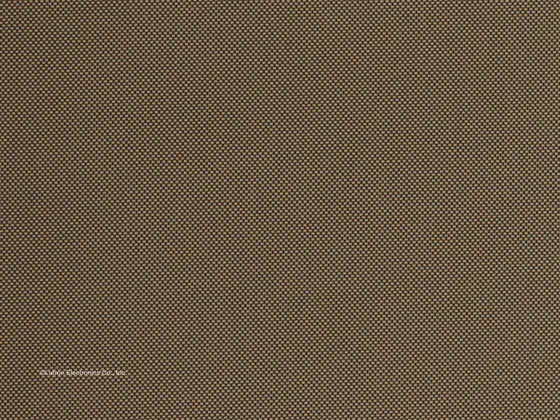

| Charcoal/Apricot | S3071ET-B | 4.6% | 6% | 7% | 18% | 75% | Same as Face | 120 in | WSF-S3071ET-B | HPD | |

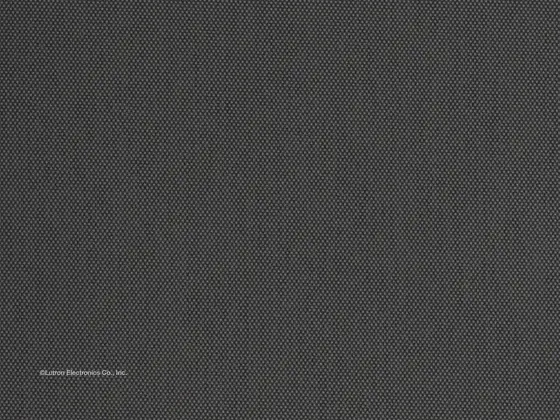

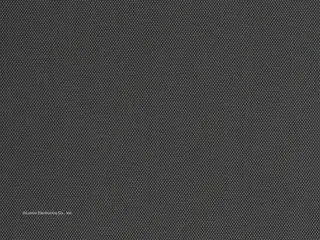

| Charcoal/Grey | S3001ET-A | 1.6% | 2% | 3% | 9% | 88% | Same as Face | 120 in | WSF-S3001ET-A | HPD | |
| Charcoal/Grey | S3001ET-B | 4.5% | 5% | 5% | 10% | 85% | Same as Face | 120 in | WSF-S3001ET-B | HPD | |

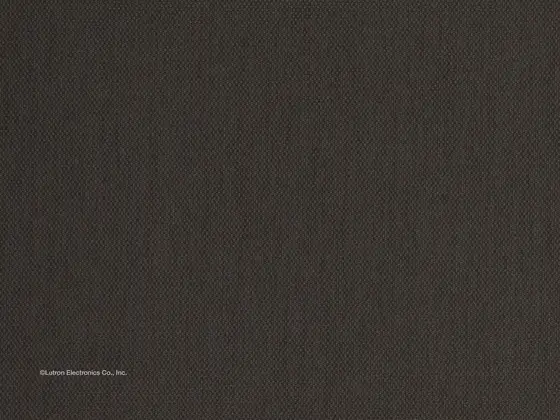

| Charcoal/Cocoa | S3061ET-A | 1.7% | 2% | 2% | 5% | 93% | Same as Face | 120 in | WSF-S3061ET-A | HPD | |

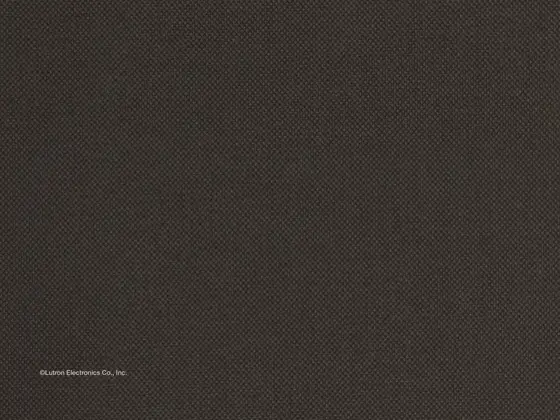

| Charcoal/Cocoa | S3061ET-B | 4.5% | 4% | 4% | 7% | 89% | Same as Face | 120 in | WSF-S3061ET-B | HPD | |

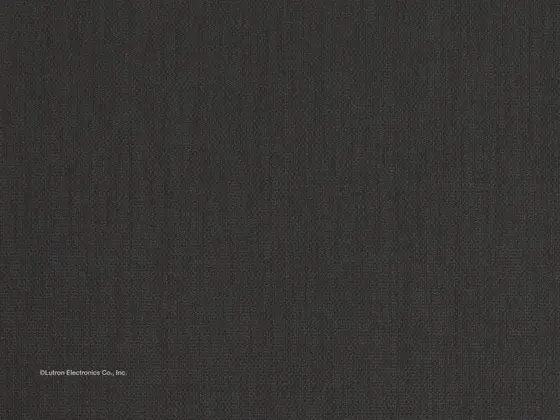

| Charcoal/Charcoal | S3030ET-A | 1.9% | 2% | 1% | 4% | 95% | Same as Face | 120 in | WSF-S3030ET-A | HPD | |
| Charcoal/Charcoal | S3030ET-B | 4.4% | 4% | 5% | 4% | 91% | Same as Face | 120 in | WSF-S3030ET-B | HPD | |

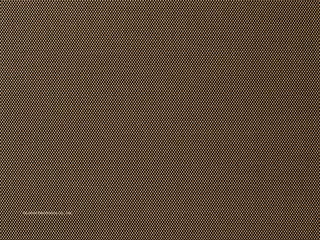

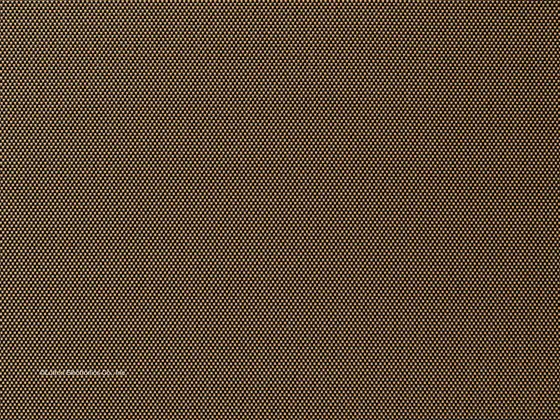

| Charcoal/Apricot | S3571-KB-1 | 1% | 3% | 14% | 39% | 47% | Same as Face | 120 in | WSF-S3571-KB-1 | HPD | |

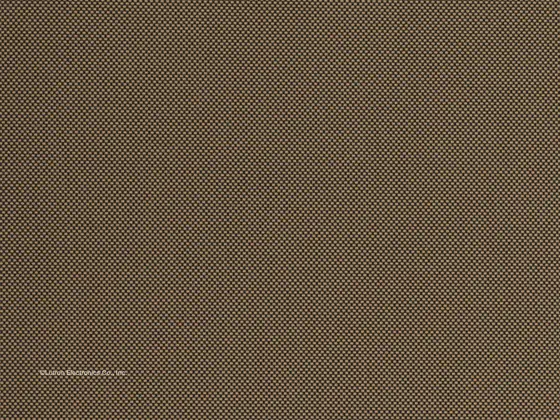

| Charcoal/Apricot | S3571-KB-3 | 3% | 6% | 18% | 38% | 44% | Same as Face | 120 in | WSF-S3571-KB-3 | HPD | |

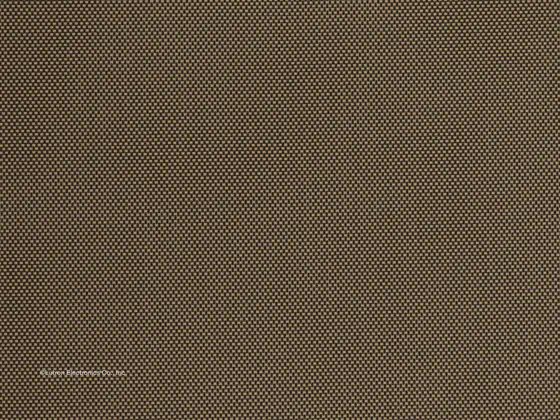

| Charcoal/Apricot | S3571-KB-5 | 5% | 9% | 21% | 37% | 42% | Same as Face | 120 in | WSF-S3571-KB-5 | HPD | |

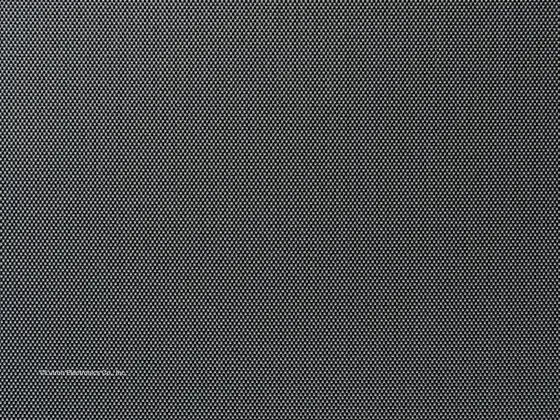

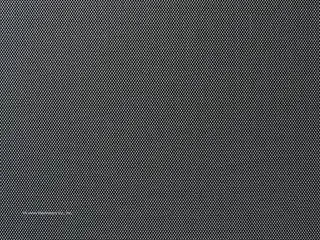

| Charcoal/Grey-Stone | S0M22-KB-1 | 1% | 3% | 12% | 38% | 50% | Same as Face | 120 in | WSF-S0M22-KB-1 | HPD | |

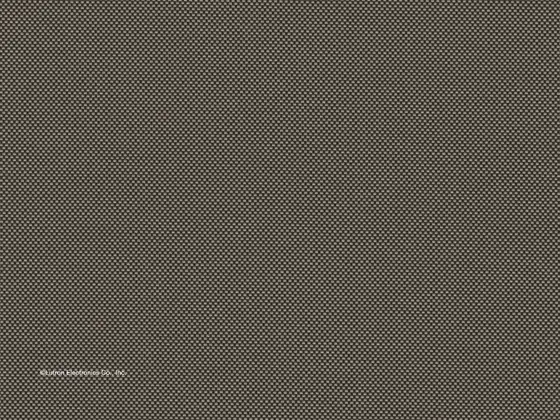

| Charcoal/Grey-Stone | S0M22-KB-3 | 3% | 7% | 16% | 38% | 46% | Same as Face | 120 in | WSF-S0M22-KB-3 | HPD | |

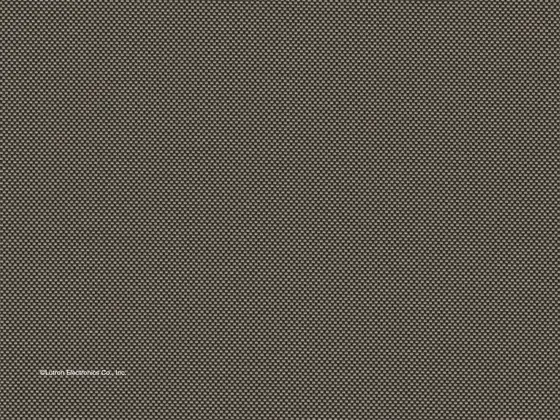

| Charcoal/Grey-Stone | S0M22-KB-5 | 5% | 9% | 19% | 36% | 45% | Same as Face | 120 in | WSF-S0M22-KB-5 | HPD | |

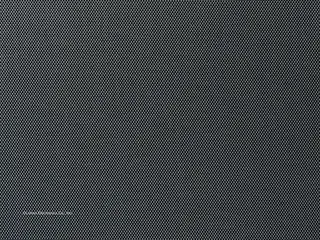

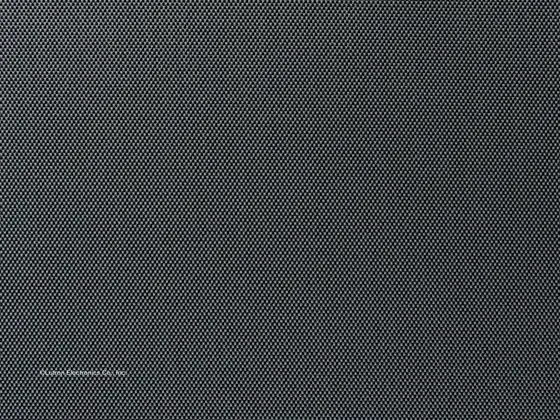

| Charcoal/Grey | S3001-KB-1 | 1% | 2% | 11% | 40% | 49% | Same as Face | 120 in | WSF-S3001-KB-1 | HPD | |

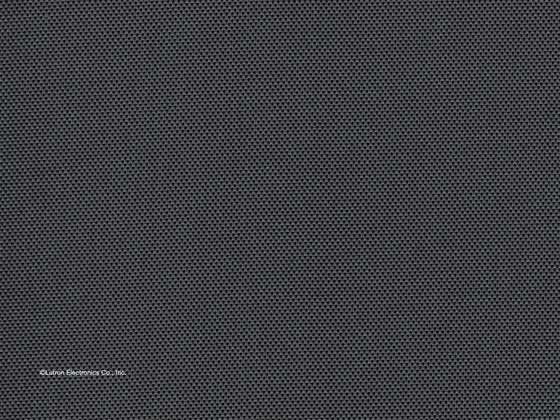

| Charcoal/Grey | S3001-KB-3 | 3% | 5% | 14% | 40% | 46% | Same as Face | 120 in | WSF-S3001-KB-3 | HPD | |

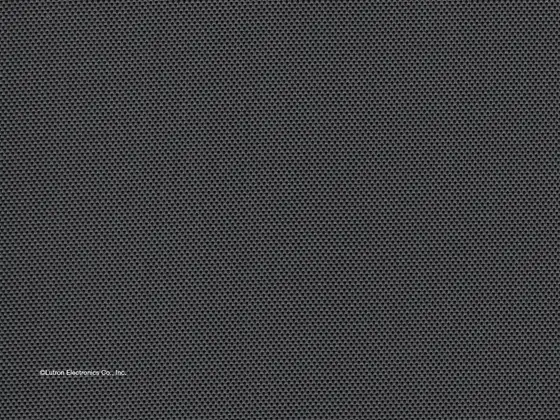

| Charcoal/Grey | S3001-KB-5 | 5% | 7% | 17% | 38% | 45% | Same as Face | 120 in | WSF-S3001-KB-5 | HPD | |

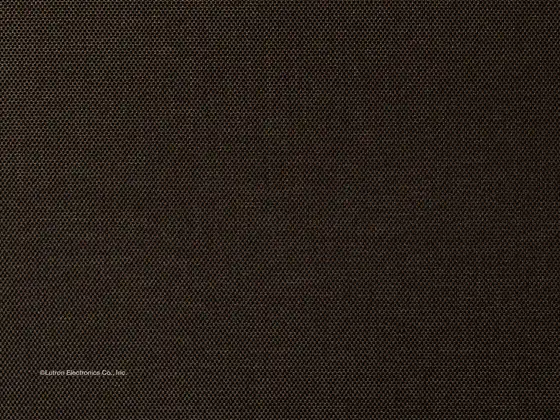

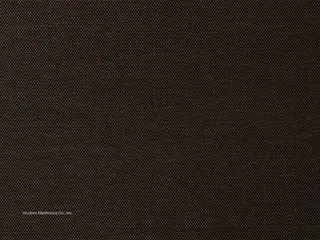

| Charcoal/Cocoa | S3532-KB-1 | 1% | 2% | 12% | 36% | 52% | Same as Face | 120 in | WSF-S3532-KB-1 | HPD | |

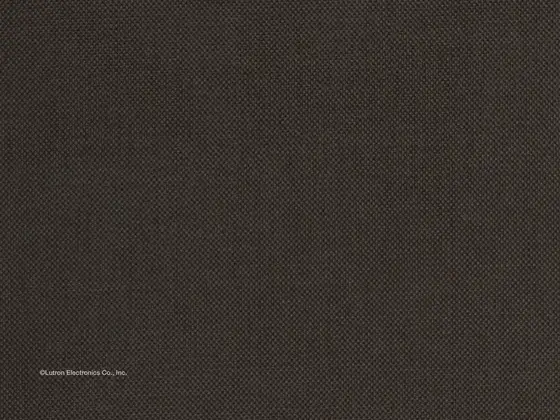

| Charcoal/Cocoa | S3532-KB-3 | 3% | 6% | 17% | 35% | 48% | Same as Face | 120 in | WSF-S3532-KB-3 | HPD | |

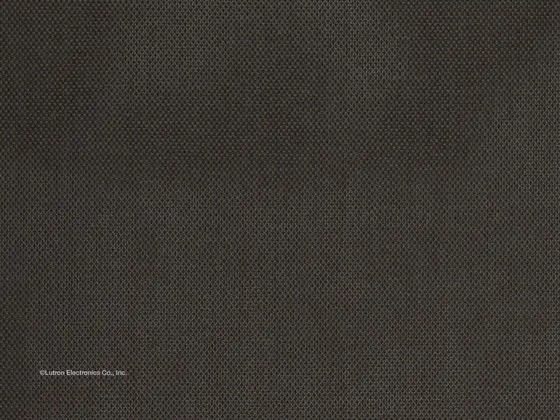

| Charcoal/Cocoa | S3532-KB-5 | 5% | 7% | 19% | 32% | 49% | Same as Face | 120 in | WSF-S3532-KB-5 | HPD | |

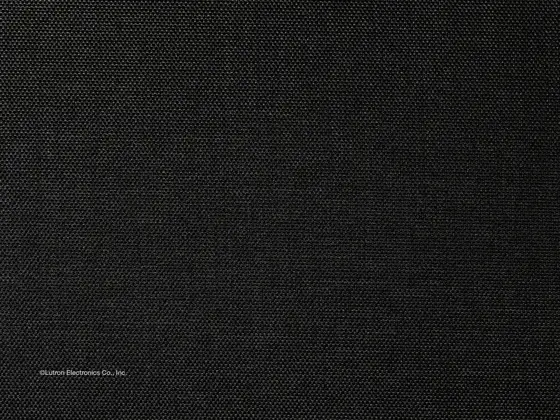

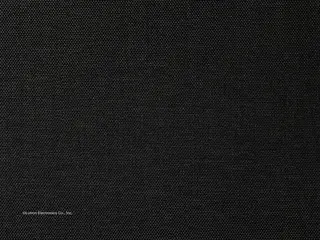

| Charcoal/Charcoal | S3535-KB-1 | 1% | 2% | 12% | 35% | 53% | Same as Face | 120 in | WSF-S3535-KB-1 | HPD | |

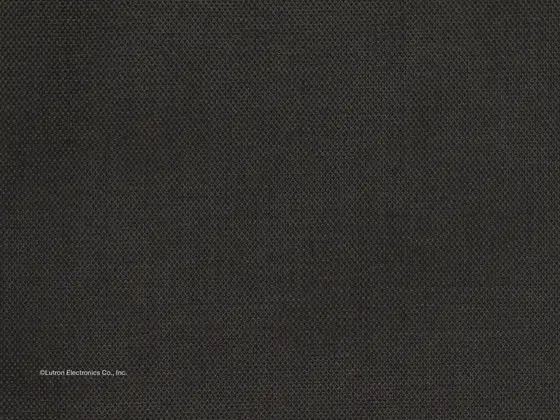

| Charcoal/Charcoal | S3535-KB-5 | 5% | 6% | 18% | 33% | 49% | Same as Face | 120 in | WSF-S3535-KB-5 | HPD | |

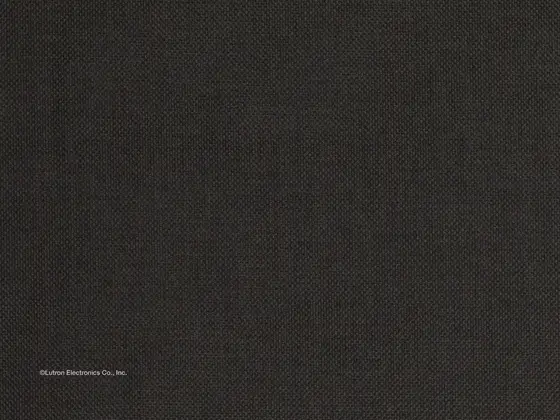

| Charcoal/Charcoal | S3535-KB-3 | 3% | 6% | 17% | 34% | 49% | Same as Face | 120 in | WSF-S3535-KB-3 | HPD |
Tv = visible light transmitted, Ts = solar energy transmitted, Rs = solar energy reflected, As = solar energy absorbed, as published by Lutron. Sample numbers are Lutron memo-sample codes; we bring the samples to the consultation.
Where E Screen works here
On an ocean-facing wall in Sunny Isles or Fort Lauderdale we usually specify 3% or 5%: the horizon stays visible through the weave, the glare on a white sofa is gone, and the room stops heating up by mid-afternoon. At Turnberry Ocean Club the living spaces run Lutron Sivoia QS rollers in E Screen 5% White/Linen for exactly that reason. For a west-facing Intracoastal room, 1% or a KOOLBLACK charcoal is the better call: the KOOLBLACK charcoals reflect a far larger share of solar energy than a plain charcoal weave (solar reflectance in the 30s against single digits), so you keep the dark-fabric view without the dark-fabric heat.
E Screen: frequently asked
Which E Screen openness should I choose for an ocean view?
3% or 5% for most South Florida exposures: the view stays readable through the weave and glare is controlled. Go to 1% on west-facing glass or where a TV faces the window, and 10% only on north-facing rooms where you want the maximum view and heat is not the problem. We order the Lutron samples of the colours you shortlist so you can judge them in your own light.
What is the difference between E Screen, E Screen THEIA and E Screen with KOOLBLACK?
Same 36% fiberglass, 64% vinyl base and the same 120-inch width. Standard E Screen comes in 0.5% to 10% openness. THEIA is Lutron's version with rated openness values such as 1.6% or 4.5% across 22 colourways. KOOLBLACK is the charcoal range with a heat-reflective construction, so a dark, see-through weave performs closer to a light one. We confirm which version suits the project when we quote.
How wide can a Lutron E Screen shade be?
Lutron publishes a maximum usable fabric width of 120 inches for E Screen. It can be seamed for wider openings, or two shades share one headrail and move together. We confirm the exact limit for the chosen system when we measure.
Which Lutron shades use E Screen?
E Screen is made up on Lutron roller shades and tensioned skylight shades. Colourways approved for tensioned shades can also cover skylights and sloped glass. As a certified Lutron dealer in Fort Lauderdale and Miami Beach we order it for any Lutron system it is offered on and install it with our own team.
Can I see E Screen samples before ordering?
Yes. Lutron makes memo samples of every E Screen colourway on this page; tell us which colours you are considering and we order them from Lutron for your consultation. Both our Fort Lauderdale workroom (by appointment) and our Miami Beach showroom have Lutron shades running so you can see the fabrics in motion.
Compare E Screen with
T Screen
A twill-weave screen with a softer, textile look
M Screen
A quieter neutral palette in 1%, 3% and 5%
Basketweave
A dense 1% weave in twelve solid colours
Basketweave 27
The two-tone basketweave with a white or black back
Basketweave 90
Bright White and eight more, at 1% to 10%, up to 124 inches wide
Basketweave 4000 Eco
Nine colours, three openness factors, from the Sustainable Solar Screens range
Lutron E Screen shades in Fort Lauderdale, Miami, Boca Raton & Palm Beach
We order E Screen from Lutron for any project from Miami to Palm Beach, make the shades up in our Fort Lauderdale workroom on the Lutron system the window calls for, and install and program them with our own team. Both showrooms, 4539 Powerline Rd in Fort Lauderdale (by appointment) and 500 South Pointe Dr #150 in Miami Beach, have Lutron shades running so you can see the fabric in motion.
See E Screen in your own light
Book a complimentary in-home consultation. Shortlist the colours you like and we order the Lutron samples, bring demo motors, and give honest answers about openness, colour and what your windows actually need.
