Golf Course Home, Boca Raton

Lacquered basswood shutters with blackout honeycomb hidden behind them in the guest house, ripplefold drapery under a custom wood valance in the main house, and SheerWeave roller shades on Somfy - installed 18 feet up, with a staircase in the way.

★★★★★Rated 5.0 · 121 reviews Fort Lauderdale · 34 Miami Beach · Somfy Expert
Watch

Two houses, one fairway

A minute across the property: the master bedroom under its custom valance, the guest house shutters open to the golf course, and the honeycomb behind them for a dark morning.

Designer, builder, or integrator? Download the two-page case study (PDF) →

Project Case Study

Shutters by day, dark by morning

A golf course home in Boca Raton, fresh out of a major remodel, with a main house and a guest house on the same property. We worked the whole project in collaboration with the owner's designer, who reviewed and approved our recommendations room by room. The guest house came first: lacquered basswood plantation shutters with 3 1/2 inch louvers and a hidden tilt - no visible tilt rod on the face of the panel - which reads far more modern than a traditional shutter, plus Phifer SheerWeave 2500 roller shades in V21 Charcoal on Somfy Sonesse 30 RTS motors.

Then the owner asked for something shutters alone cannot give: absolutely no light in the morning. Louvers close well, but they are louvers - a little daylight always finds the edges. The answer was a blackout honeycomb behind each shutter, Coulisse Edmonton in White, so that with the shutters open the honeycomb disappears and with both closed the room is dark. Those windows sit 18 feet up, with a staircase in the way and no power at the openings, so the honeycombs run on Somfy Cord Lift WireFree CL32 RTS battery motors, recharged by Somfy solar panels on the glass - nobody will be climbing up there to change a battery.

In the main house, the master bedroom got ripplefold drapery in Kravet Smart 35515-116, a performance chenille, hung under a custom wood valance that hides the track. The shades run from a Telis 16 RTS remote and the Somfy TaHoma hub, and the owner has since added them to the house's Control4 system. A remodel of an older house leaves few openings truly square, so we caulked and finished every frame as we went - the shutters and valance read straight, which on a job like this is most of the craft.

Options & Details

Project at a glance

Location

Private residence · Boca Raton, FL - a golf course community in Palm Beach County. Main house and guest house, freshly remodeled.

Guest house shutters

Lacquered basswood plantation shutters with 3 1/2 inch louvers and hidden tilt - no visible tilt rod - on windows up to 18 feet high, with a staircase in the way of the install.

Behind the shutters

Coulisse Edmonton blackout honeycomb in White on Somfy Cord Lift WireFree CL32 RTS motors, added at the owner's request for a fully dark morning. Battery packs recharged by Somfy WireFree solar panels, because there is no power at those windows.

Guest house roller shades

Phifer SheerWeave 2500 - a 1% openness screen - in V21 Charcoal, on Somfy Sonesse 30 RTS motors.

Main house master bedroom

Ripplefold drapery in Kravet Smart 35515-116 performance chenille, hung under a custom wood valance that conceals the track.

Motorization & control

Somfy RTS throughout: a Telis 16 RTS remote in hand, the Somfy TaHoma hub for the app, scenes and schedules, and the shades later integrated into the owner's Control4 system.

Partners & fabrication

Every recommendation reviewed and approved with the owner's designer. Drapery sewn in our own Fort Lauderdale workroom; shutters, shades and valance installed by our own team, including the caulking and finishing a just-remodeled house needs.

The Palette

Fabric schedule

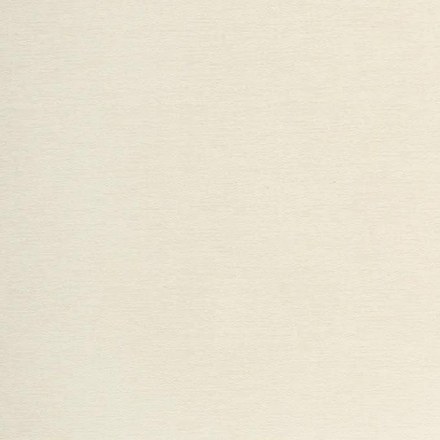

Kravet Smart 35515-116 performance chenille fabric swatch, off-white

Kravet Smart · 35515-116 - Master Bedroom Ripplefold

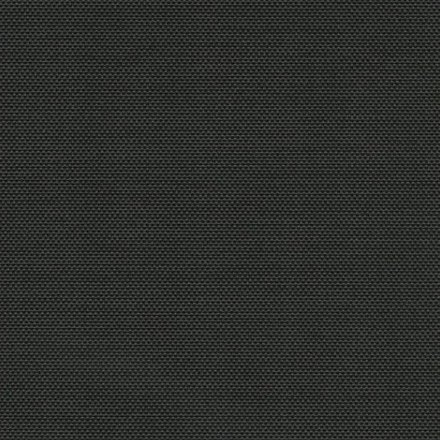

Phifer SheerWeave 2500 V21 Charcoal roller shade fabric swatch

Phifer · SheerWeave 2500 V21 Charcoal - Guest House Rollers

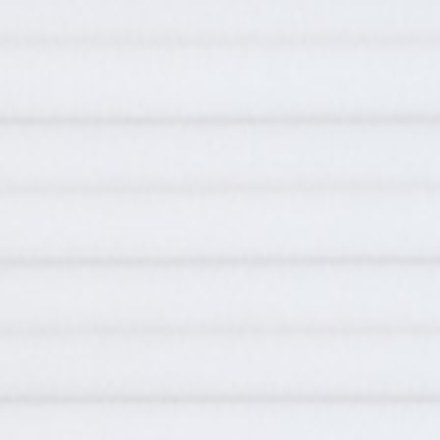

Coulisse Edmonton blackout honeycomb fabric swatch in White

Coulisse · Edmonton White - Honeycomb Behind the Shutters

Tap a fabric for its full specification.

Kravet Smart 35515-116 performance chenille fabric swatch, off-whiteKravet Smart · 35515-116 - Master Bedroom Ripplefold
HouseKravet Smart · Inside Out Performance Fabrics
Pattern · Colour35515 · 116
TypePerformance chenille, rated for indoor and outdoor use
Width57 in · approx. 145 cm
Composition100% high-UV polyester, acrylic backed
PerformanceSoil and stain repellent finish · bleach cleanable · 63,000 double rubs
CertificationsGREENGUARD Gold · PFAS free · made in the USA
In this projectMaster bedroom ripplefold drapery under the custom wood valance
Supplier35515-116 at Kravet
Phifer SheerWeave 2500 V21 Charcoal roller shade fabric swatchPhifer · SheerWeave 2500 V21 Charcoal - Guest House Rollers
HousePhifer · SheerWeave
Style · Colour2500 · V21 Charcoal
TypeSolar screen roller fabric
OpennessApproximately 1% · approximately 99% UV blockage
Composition37% fiberglass, 63% vinyl on fiberglass
Widths63, 98 and 126 in
CertificationsGREENGUARD Gold · NFPA 701 · RoHS and REACH compliant · Microban antimicrobial
In this projectGuest house roller shades on Somfy Sonesse 30 RTS motors
SupplierSheerWeave 2500 at Phifer
Coulisse Edmonton blackout honeycomb fabric swatch in WhiteCoulisse · Edmonton White - Honeycomb Behind the Shutters
HouseCoulisse · Honeycomb collection
Fabric · ColourEdmonton · White
TypeBlackout (dim-out) honeycomb, plain weave with a subtle sheen
Width366 cm · 144 in
CompositionPolyester
PaletteNeutral range - White, Ivory, Oyster and Grey
In this projectBehind the guest house shutters, on Somfy Cord Lift WireFree CL32 RTS motors with solar charging
SupplierHoneycomb at Coulisse
Selected Work

Across the property

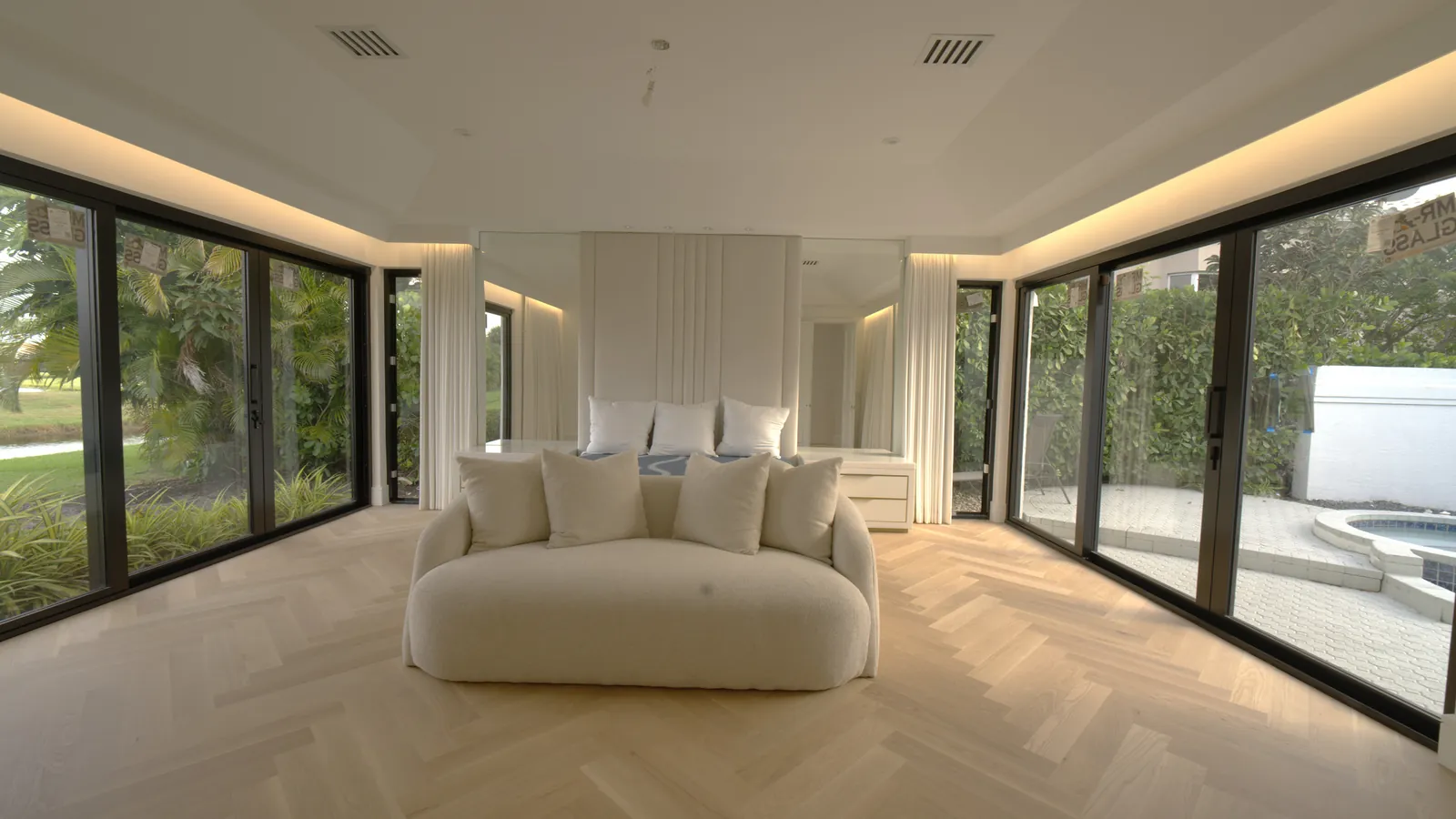

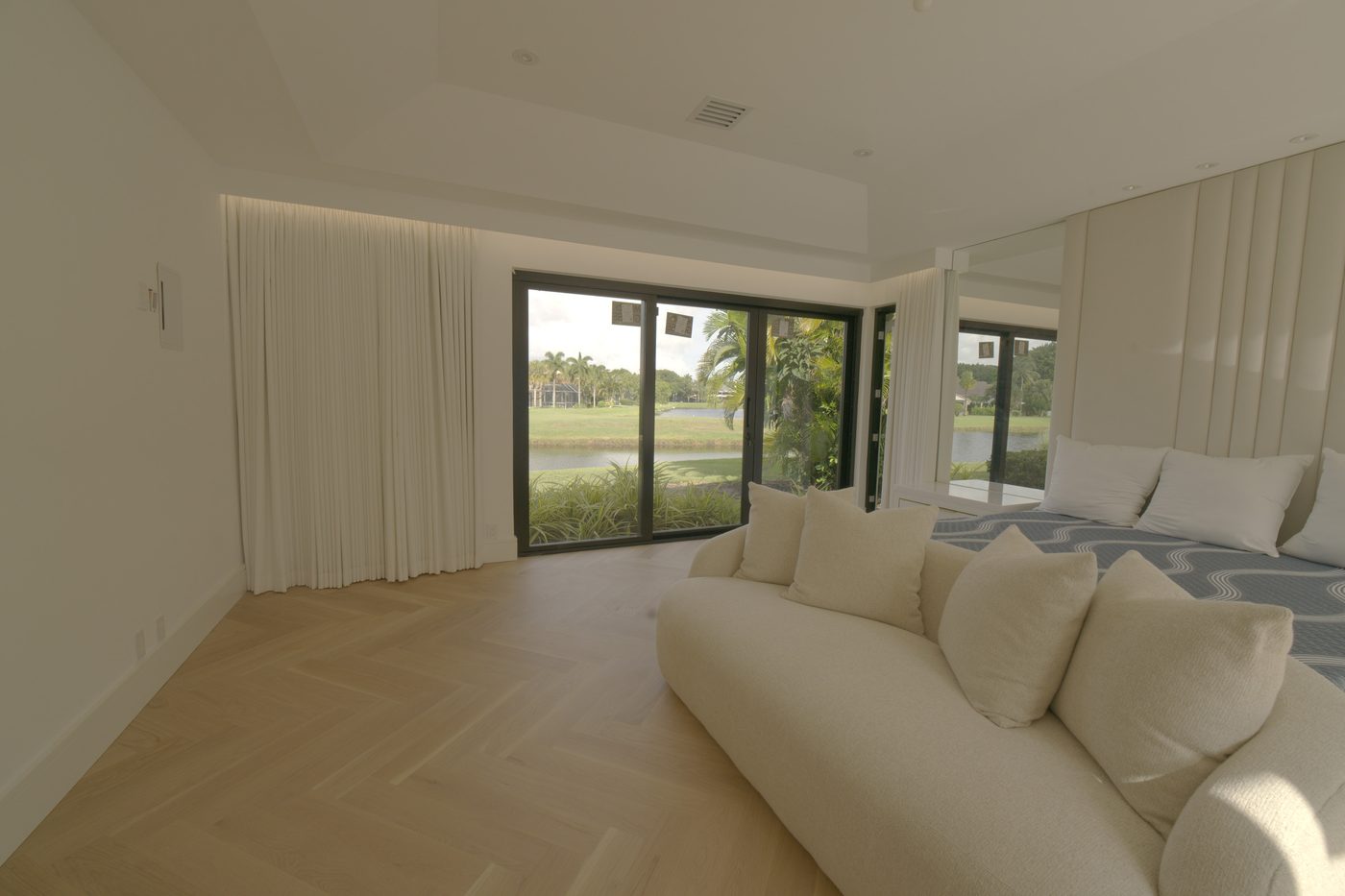

Master bedroom with the ripplefold drapery stacked open and the golf course through the glass doors

The Fairway View

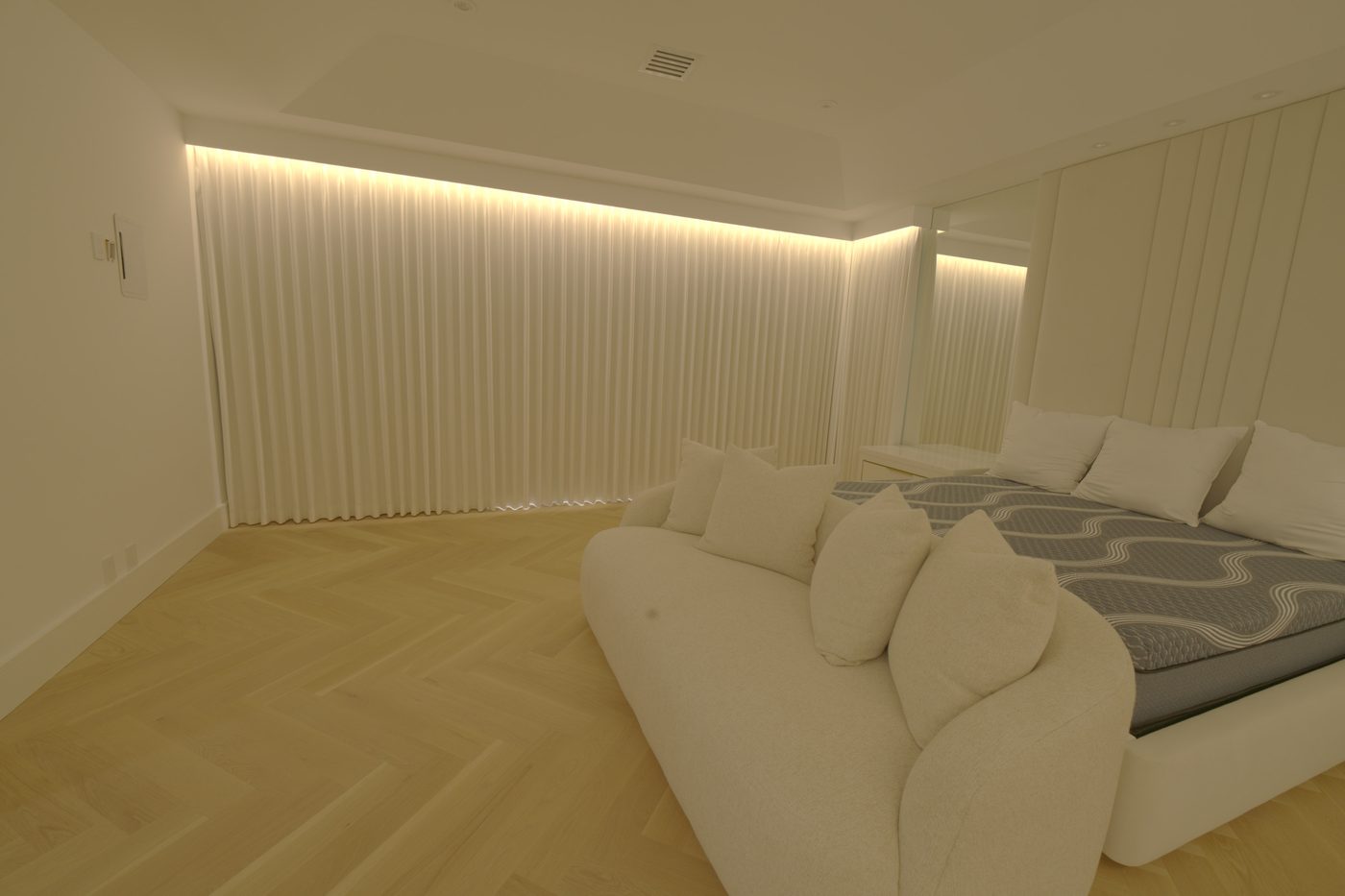

Master bedroom with the Kravet Smart ripplefold drapery closed under the custom wood valance

Under the Valance

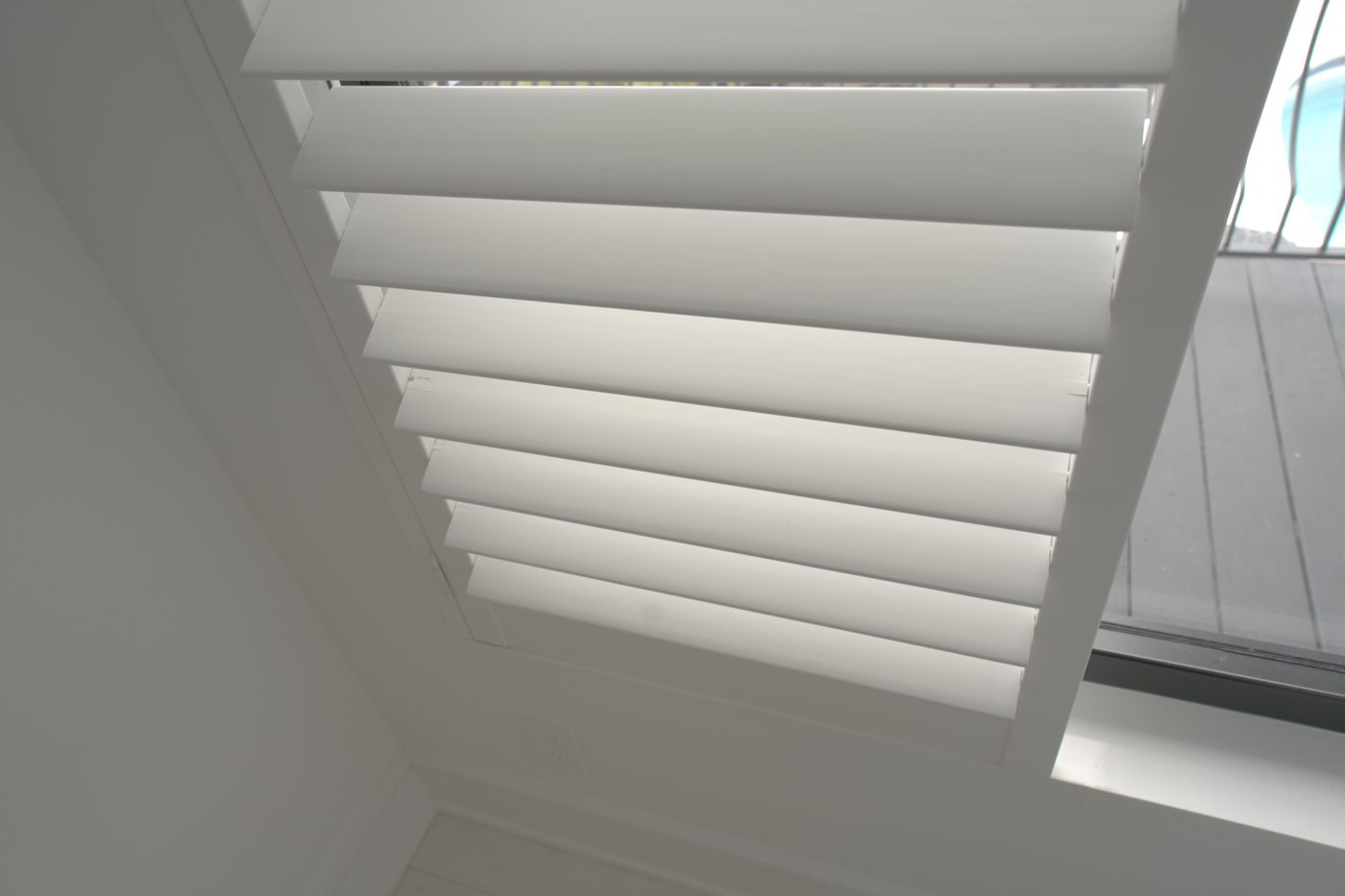

Close-up of lacquered basswood shutter louvers with no visible tilt rod on a high guest house window

3 1/2 in. Louvers, No Tilt Rod

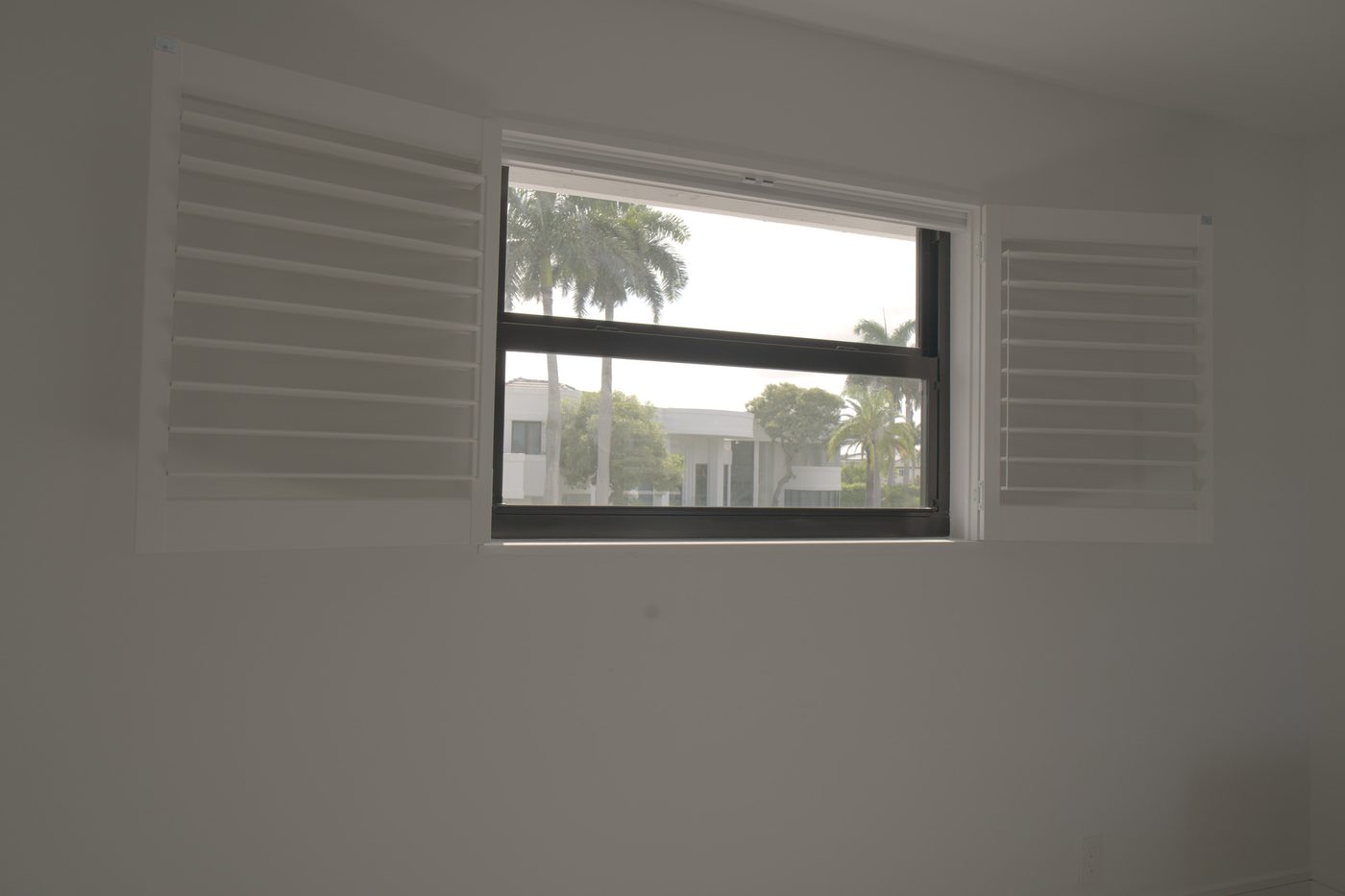

Guest house window with the shutter panels swung open and palm trees outside

Shutters Open

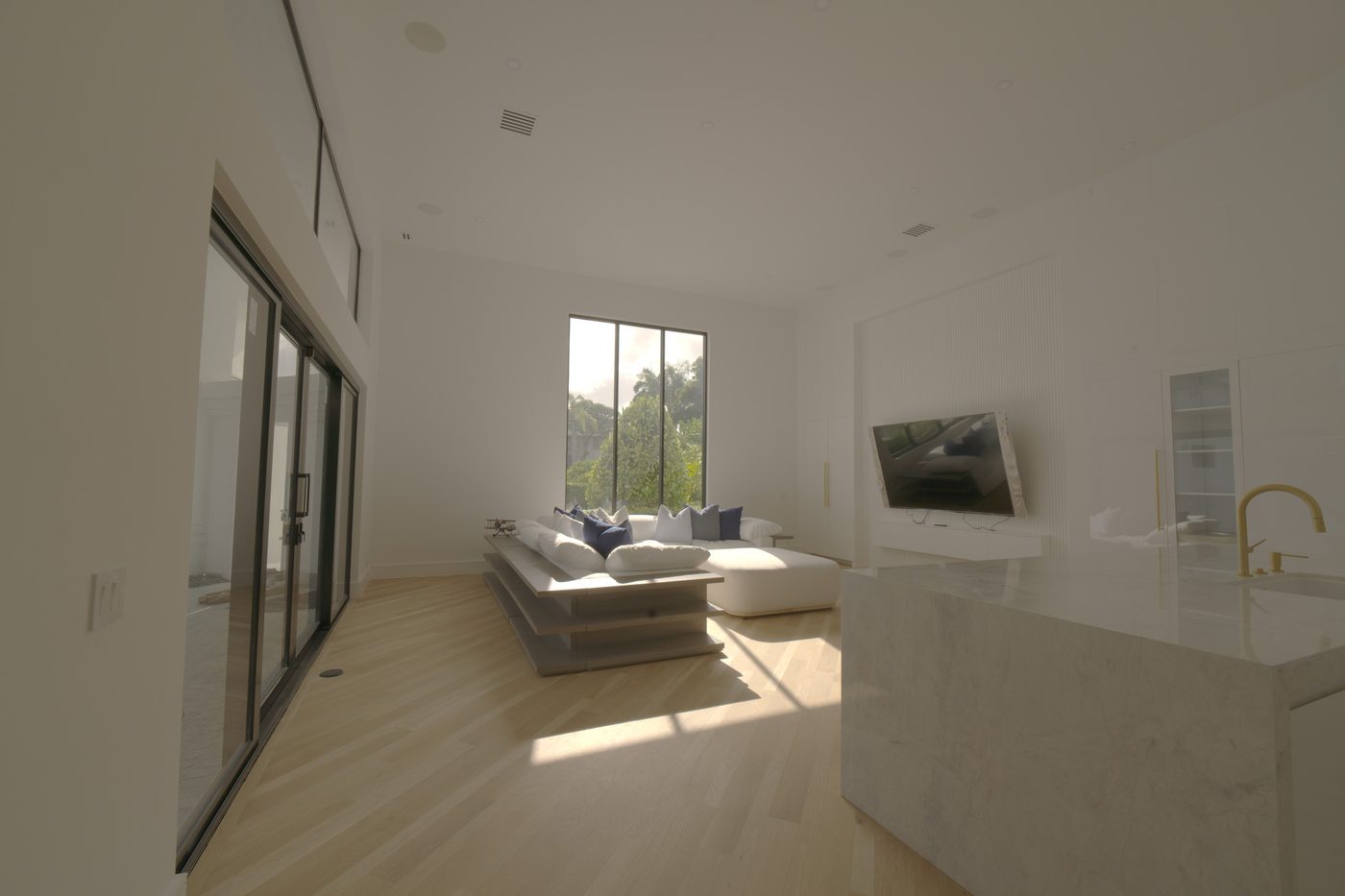

Guest house living room with a tall window, sofa and kitchen island

The Guest House

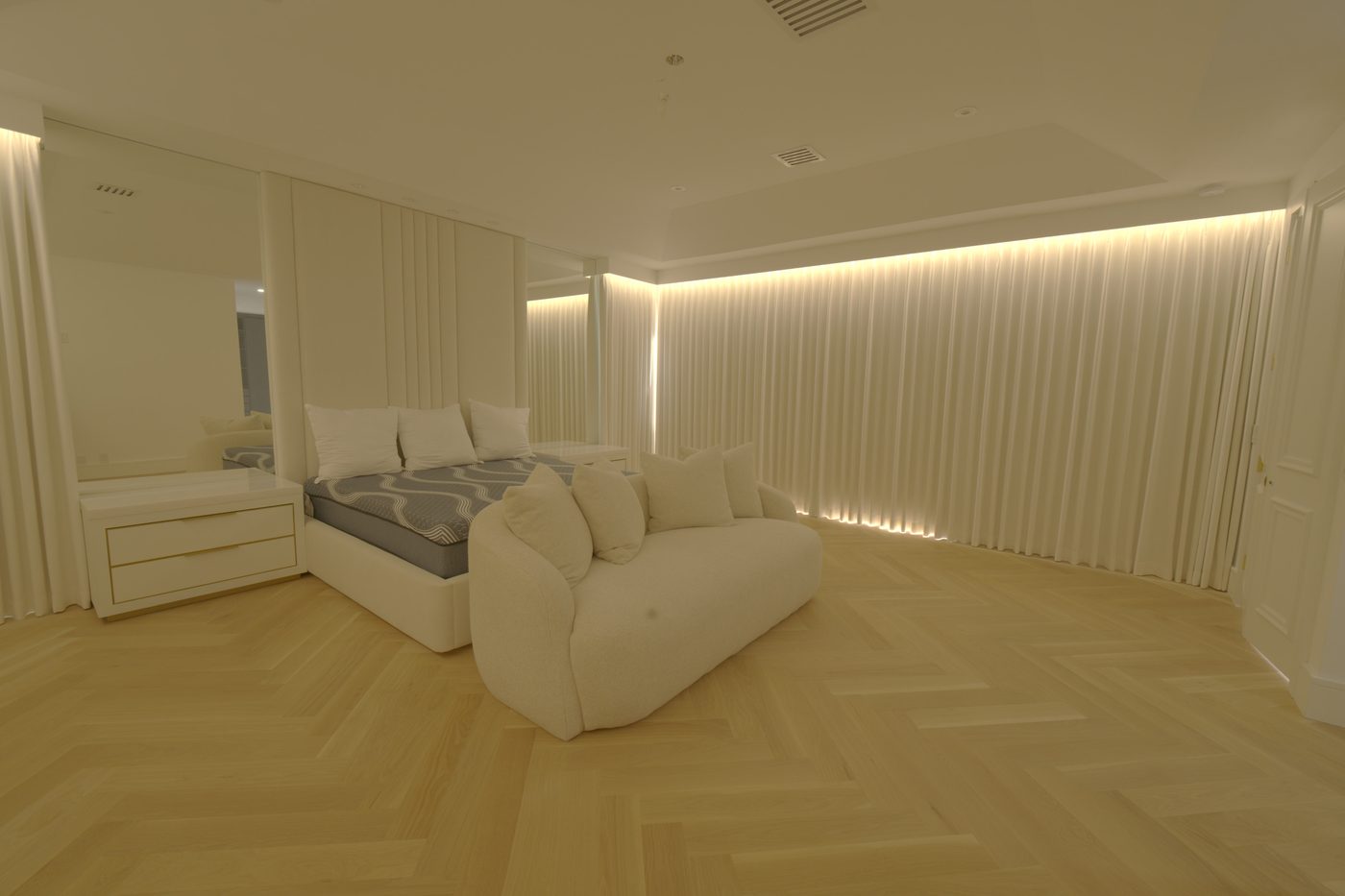

Master bedroom with the ripplefold drapery closed all the way around under the valance

Lights Out

The Hardware

The components on this project

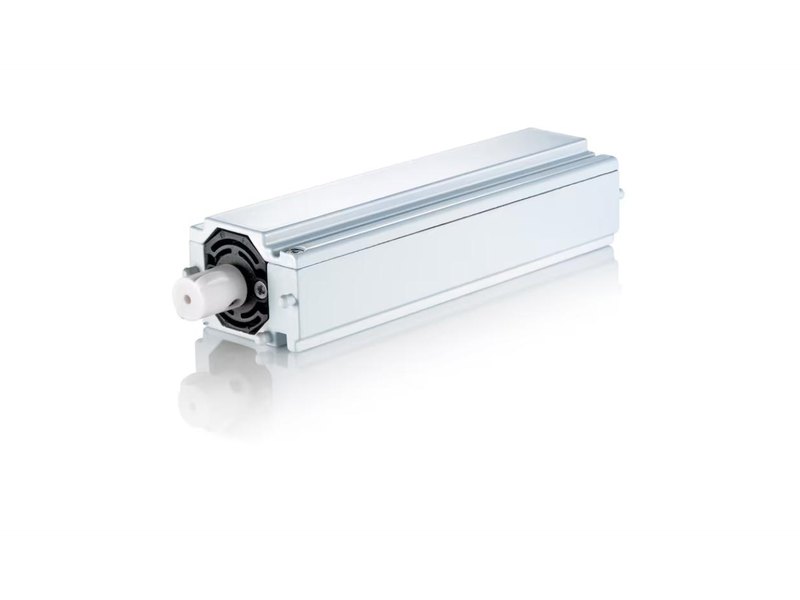

Somfy Cord Lift WireFree CL32 RTS motor - Somfy product photo
Somfy Cord Lift WireFree CL32 RTS · Somfy product photo

Somfy Cord Lift WireFree CL32 RTS

Battery motor for the honeycomb behind the shutters

Somfy's lift motor for cellular, pleated and roman shades, made for hard-to-reach windows where wiring is a problem. Here it drives the Coulisse Edmonton honeycombs 18 feet up in the guest house, with nothing run through the finished walls.

TypeCord lift motor for cellular, pleated and roman shades
Power12 V DC external battery pack, rechargeable Li-ion
ChargingSomfy WireFree Li-ion solar panel kit on the glass
RadioSomfy RTS, 433.42 MHz
ControlTelis 16 RTS remote, TaHoma app and scenes, Control4

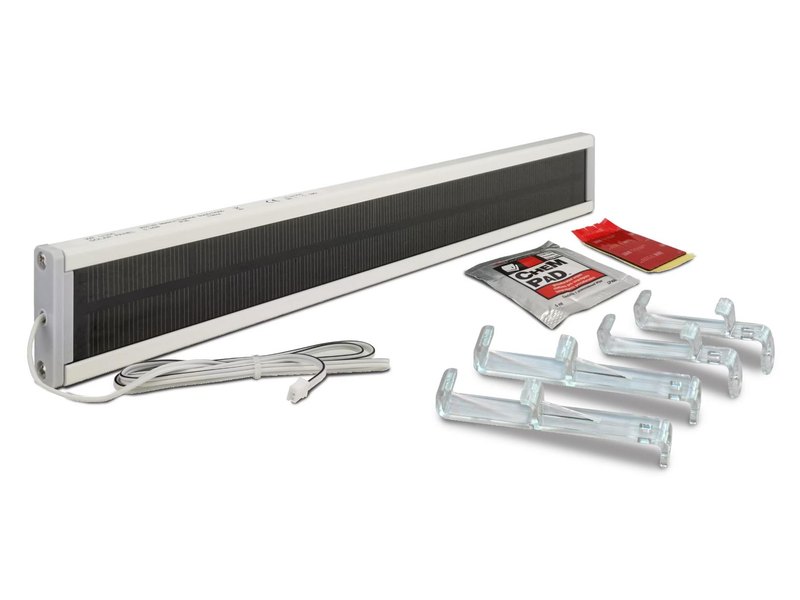

Somfy WireFree Li-ion solar panel kit with brackets and glass mount adhesive - Somfy product photo
Somfy WireFree Li-ion Solar Panel Kit · Somfy product photo

Somfy WireFree Li-ion Solar Panel Kit

Keeps the CL32 battery packs charged - no power at those windows

There was no electrical supply at the high guest house windows, and no one wants to bring a ladder up a staircase to swap batteries. A low-profile Somfy solar panel sits on the glass behind each honeycomb and tops up the Li-ion pack every day.

TypeSolar charger for Somfy WireFree Li-ion battery packs
MountingGlass-mount adhesive and brackets included - no electrician
ProfileSlim panel that hides behind the shade
Works withCord Lift, Sonesse ULTRA 30, Sonesse 28 and 40, Tilt 50 and Roll Up Li-ion motors

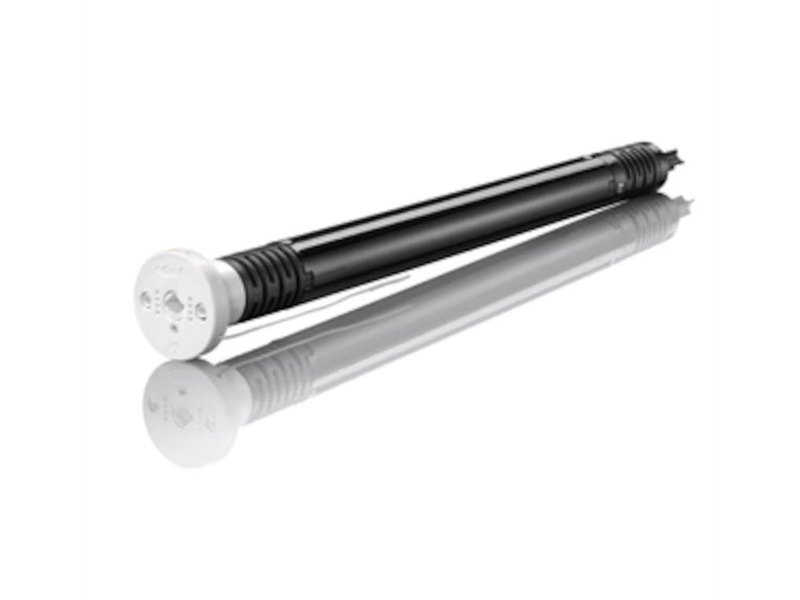

Somfy Sonesse 30 RTS roller shade motor - Somfy product photo
Somfy Sonesse 30 RTS · Somfy product photo

Somfy Sonesse 30 RTS

Ultra-quiet motor behind the SheerWeave roller shades

The compact Sonesse 30 tube motor drives the Phifer SheerWeave 2500 V21 Charcoal rollers in the guest house - the quiet end of Somfy's range, so a shade moving in the next room is not something you hear.

TypeSonesse 30 tube motor for roller shades
SoundSomfy's ultra-quiet Sonesse family
RadioSomfy RTS, 433.42 MHz
ControlTelis 16 RTS, TaHoma, Control4

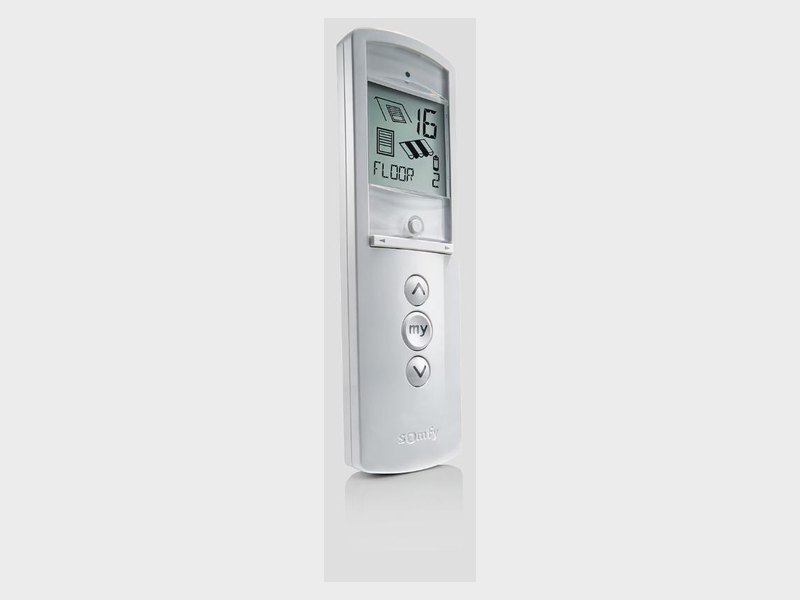

Somfy Telis 16 RTS Pure handheld remote with screen - Somfy product photo
Somfy Telis 16 RTS · Somfy product photo

Somfy Telis 16 RTS

One remote, sixteen channels

A handheld remote with a screen that names each channel, so the owner can move one shade, a room, or everything at once without reaching for a phone.

Channels16, with an on-screen display
RadioSomfy RTS, 433.42 MHz
Power2 AAA batteries
In this projectRollers and honeycombs in the guest house

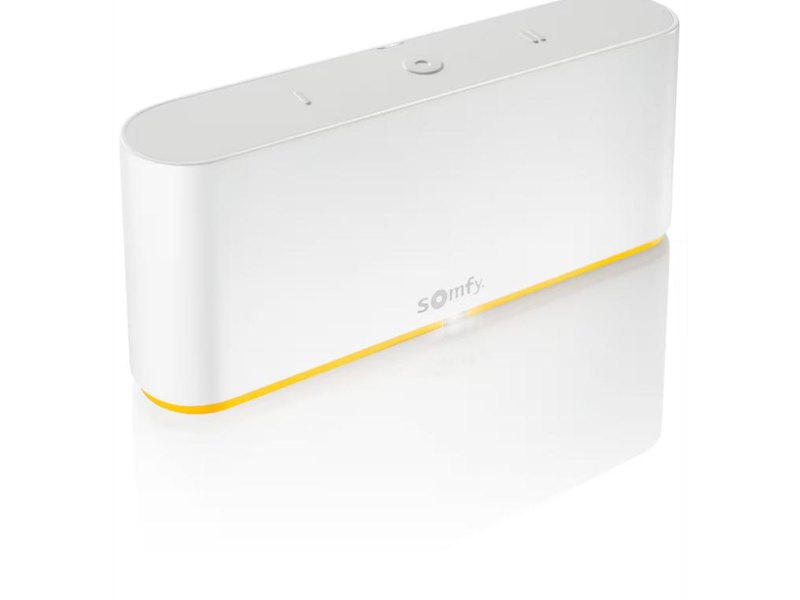

Somfy TaHoma switch smart-home hub - Somfy product photo
Somfy TaHoma switch · Somfy product photo

Somfy TaHoma

The hub - app, schedules, and the door to Control4

TaHoma puts every RTS shade in the Somfy app with schedules and scenes, and it is the piece that let the owner's integrator bring the shades into the house's Control4 system afterwards.

TypeSomfy TaHoma hub for RTS and Zigbee motors
CapacityUp to 40 RTS channels and 60 Zigbee products
VoiceAmazon Alexa, Google Home, Apple Home
IntegrationControl4, Crestron and Savant through the Somfy Synergy API

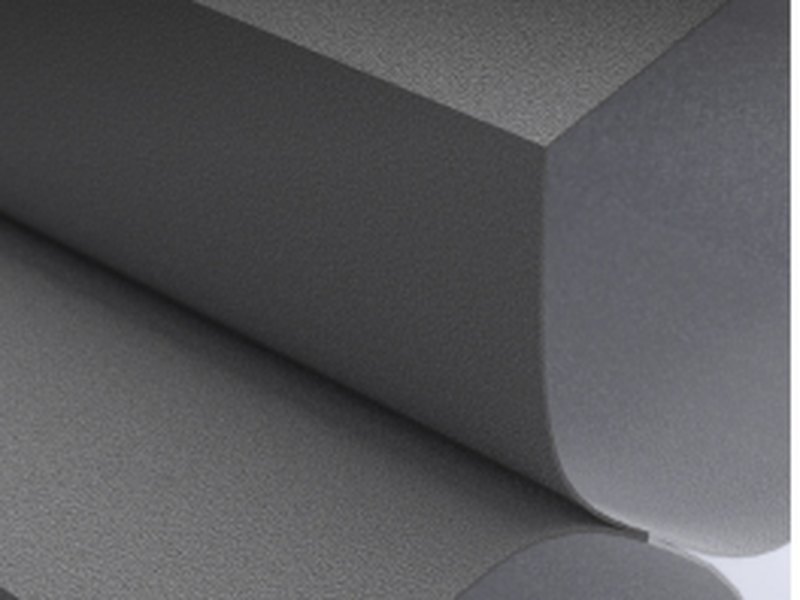

Coulisse Edmonton honeycomb fabric close-up - Coulisse collection image
Coulisse Edmonton honeycomb · Coulisse collection image, shown in Grey - installed here in White

Coulisse Edmonton honeycomb

The blackout layer behind the shutters

A plain honeycomb with a subtle sheen from Coulisse's neutral Edmonton range, in the blackout construction. Behind an open shutter it is invisible; behind a closed one it finishes the job the louvers cannot.

FabricCoulisse Edmonton, White
Light controlBlackout (dim-out) honeycomb
Width366 cm · 144 in
MotorSomfy Cord Lift WireFree CL32 RTS with solar charging
Good to Know

Frequently asked

Why put a honeycomb shade behind a shutter?

Shutters give the look and the daytime light control, but closed louvers still let a little daylight through at the edges. When the owner asked for a completely dark morning in the guest house, we added a blackout honeycomb behind each shutter - Coulisse Edmonton in White. Shutters open, the honeycomb is invisible; both closed, the room is dark. More on honeycomb shades.

How do you power motorized shades 18 feet up with no wiring?

The honeycombs run on Somfy Cord Lift WireFree CL32 RTS battery motors, and each battery pack is recharged by a Somfy WireFree Li-ion solar panel mounted on the glass. No electrician, no wiring through finished walls, and nobody has to climb up there to change a battery. Battery and solar shades.

What is a shutter with no visible tilt rod?

A traditional plantation shutter has a vertical tilt rod on the face of the panel. On this project the tilt mechanism is hidden, so the 3 1/2 inch louvers move together with nothing on the front of the panel - a cleaner, more modern look that suits a contemporary remodel. More on plantation shutters.

Do you work in Boca Raton and the rest of Palm Beach County?

Yes - we measure, fabricate and install across Boca Raton and up the coast to Palm Beach, with drapery sewn in our own Fort Lauderdale workroom and installed by our own crew. Talk to us.
