Mermet M Screen Fabric
39 colourways, openness 1%, 3%, 5%, solar screen, up to 122 inches wide. Every swatch and every published specification, from the workroom that cuts Mermet in Fort Lauderdale and installs it from Miami to Palm Beach.

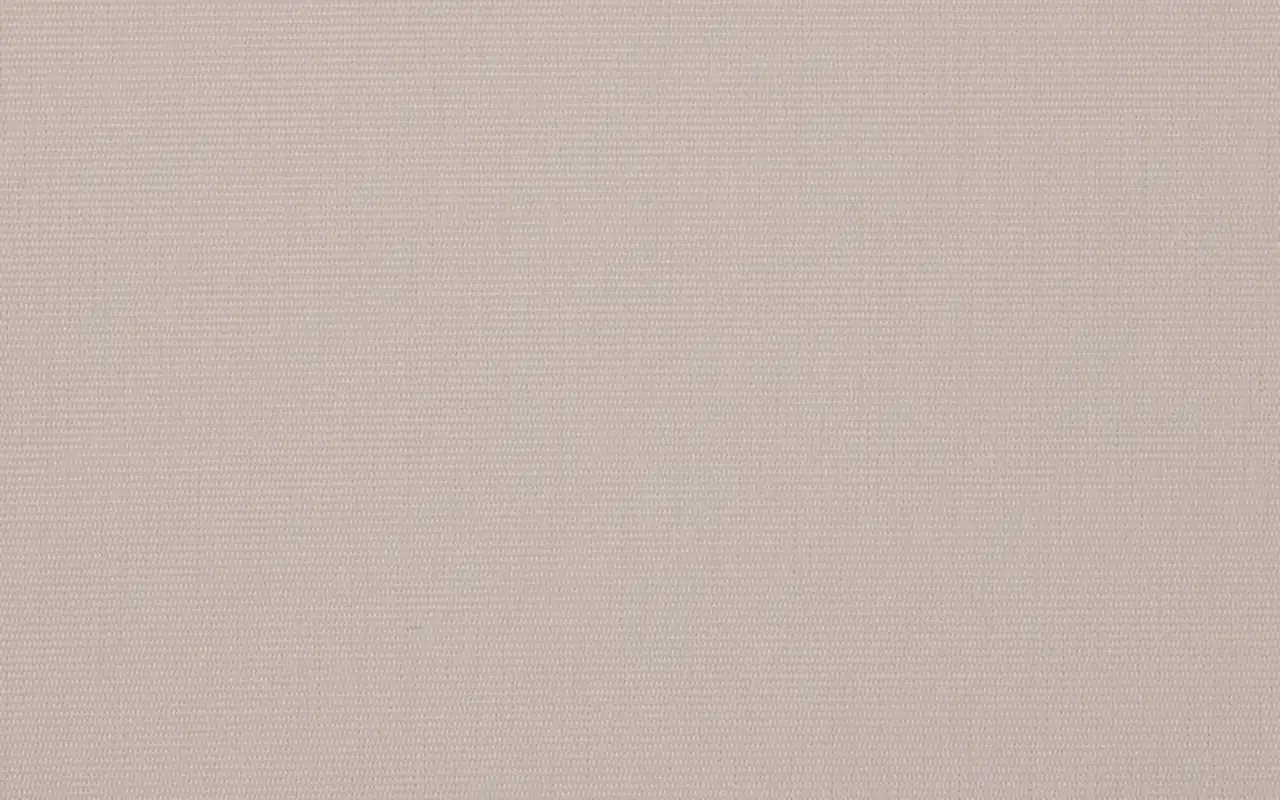

The rib weave, in the warmest neutral card Mermet makes
M Screen shares E Screen's 36% fiberglass and 64% vinyl construction but is woven as a 1x2 rib, which gives it a fine horizontal grain instead of a basketweave grid. It comes in 1%, 3% and 5%, at 98 and 122 inches wide, in thirteen colours: White/White, White/Pearl, White/Stone, White/Linen, Pearl/Pearl, Pearl/Linen, Linen/Stone, Linen/Sable-Cocoa, Charcoal/Grey, Charcoal/Sable, Charcoal/Apricot, Charcoal/Cocoa and Charcoal/Charcoal. The Stone, Linen and Sable combinations are the reason to look at it: they sit between the bright whites and the greys and flatter warm interiors that a pure white screen can make look cold.
The numbers hold up next to E Screen. White/White reflects 76% of the solar energy that reaches it, Charcoal/Charcoal absorbs 95%, and visible transmission across the card runs from 1% to 18%, with Linen/Stone the most open at 18%. UV blockage is about 99% at 1%, 97% at 3% and 95% at 5%. Acoustically the 1% weave reaches NRC 0.30, among the higher values in the library, which is worth knowing in a room of glass and stone. Fire listings are NFPA 701 TM#1, California Title 19 and CAN/ULC-S109.
M Screen
13 colours, 39 colourways. Openness 1%, 3%, 5%; up to 122 in wide; fire listed.
Colourways
1%3%5%
1%3%5%
1%3%5%
1%3%5%
1%3%5%
1%3%5%
1%3%5%
1%3%5%
1%3%5%
1%3%5%
1%3%5%
1%3%5%
1%3%5%
Every M Screen colourway, with Mermet's published figures
| Swatch | Colour | Code | Openness | Tv | Ts | Rs | As | Rv | SHGC int. | SHGC ext. | Width | Docs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

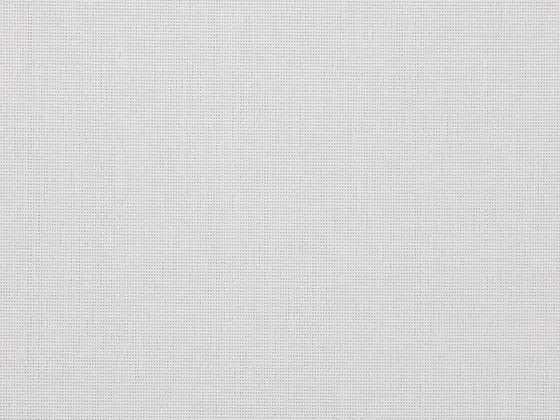

| White | White | A02A02 1% | 1% | 12 | 15 | 76 | 9 | 81 | 0.24 | 0.13 | 122 in | Spec sheet (PDF) · Mermet page | |

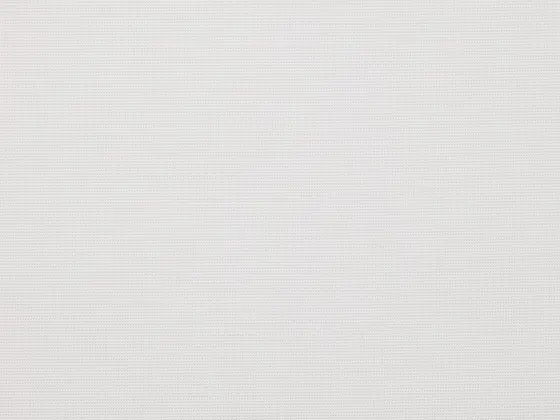

| White | White | A02A02 3% | 3% | 16 | 18 | 71 | 11 | 76 | 0.29 | 0.16 | 122 in | Spec sheet (PDF) · Mermet page | |
| White | White | A02A02 5% | 5% | 16 | 19 | 71 | 10 | 75 | 0.30 | 0.16 | 122 in | Spec sheet (PDF) · Mermet page | |

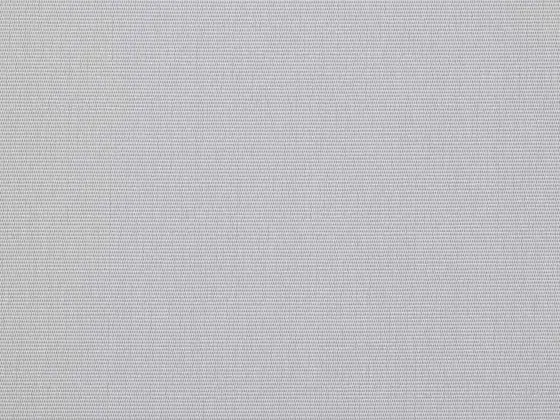

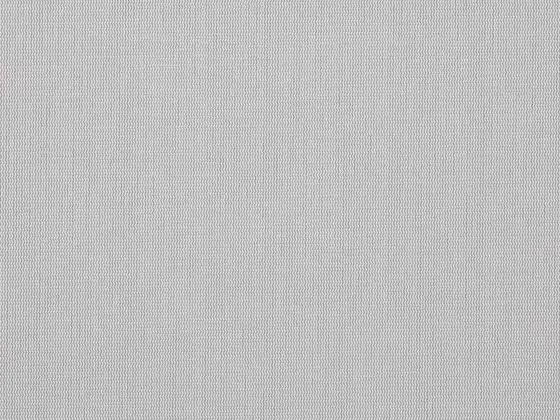

| White | Pearl | A02A07 1% | 1% | 7 | 9 | 59 | 32 | 64 | 0.32 | 0.10 | 122 in | Spec sheet (PDF) · Mermet page | |

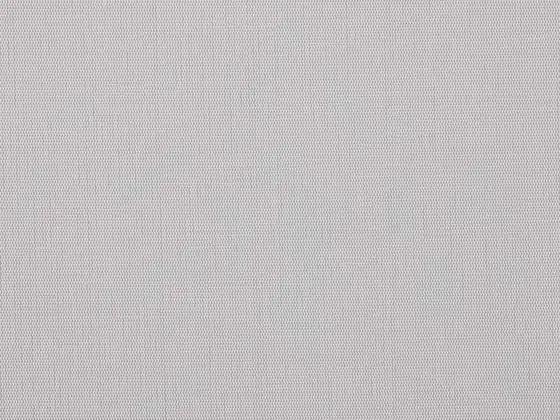

| White | Pearl | A02A07 3% | 3% | 8 | 10 | 54 | 36 | 58 | 0.37 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |
| White | Pearl | A02A07 5% | 5% | 12 | 15 | 52 | 33 | 56 | 0.40 | 0.14 | 122 in | Spec sheet (PDF) · Mermet page | |

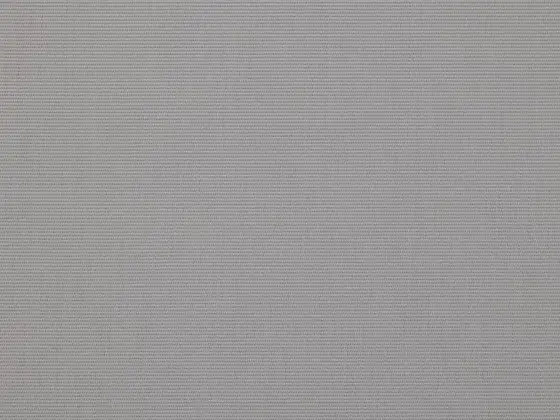

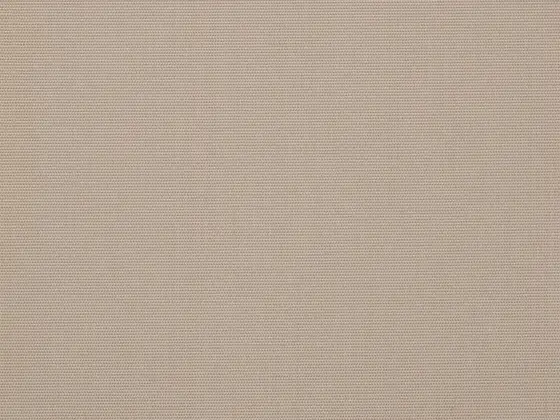

| Pearl | Linen | A07A20 1% | 1% | 5 | 8 | 36 | 56 | 38 | 0.44 | 0.12 | 122 in | Spec sheet (PDF) · Mermet page | |
| Pearl | Linen | A07A20 3% | 3% | 8 | 11 | 40 | 49 | 42 | 0.46 | 0.12 | 122 in | Spec sheet (PDF) · Mermet page | |

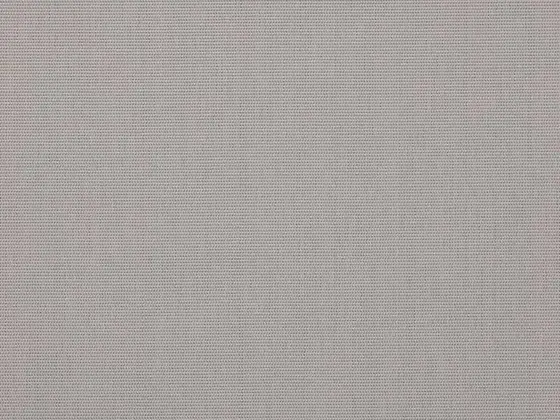

| Pearl | Linen | A07A20 5% | 5% | 9 | 12 | 39 | 49 | 41 | 0.47 | 0.13 | 122 in | Spec sheet (PDF) · Mermet page | |

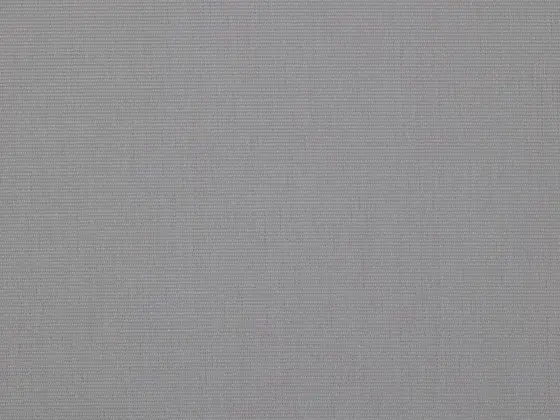

| Pearl | Pearl | A07A07 1% | 1% | 4 | 5 | 32 | 63 | 34 | 0.45 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |

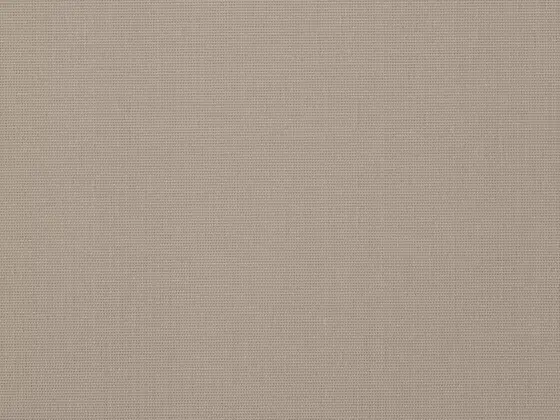

| Pearl | Pearl | A07A07 3% | 3% | 5 | 7 | 34 | 59 | 36 | 0.48 | 0.10 | 122 in | Spec sheet (PDF) · Mermet page | |

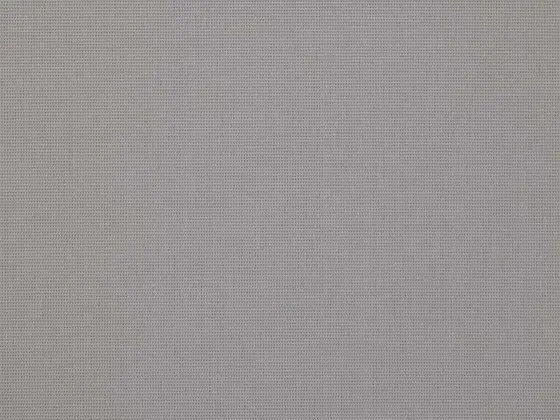

| Pearl | Pearl | A07A07 5% | 5% | 7 | 10 | 33 | 57 | 35 | 0.50 | 0.12 | 122 in | Spec sheet (PDF) · Mermet page | |

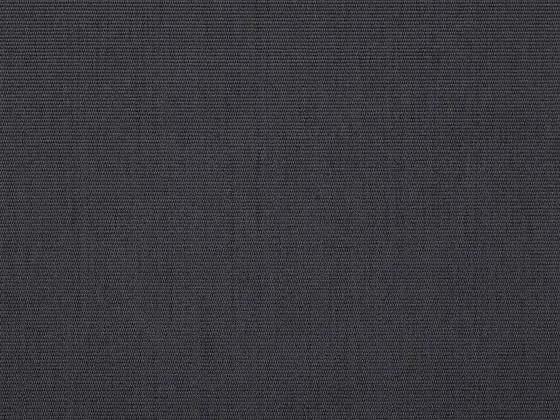

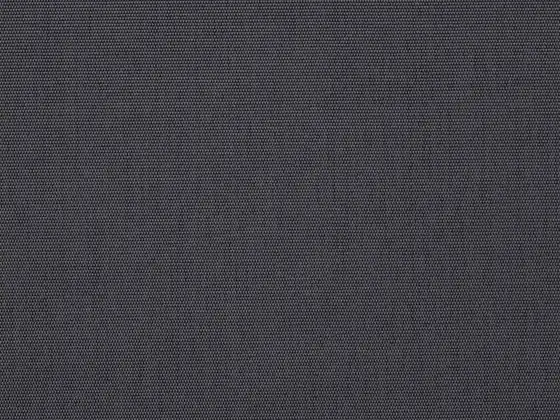

| Charcoal | Grey | A30A01 1% | 1% | 2 | 2 | 7 | 91 | 7 | 0.56 | 0.12 | 122 in | Spec sheet (PDF) · Mermet page | |

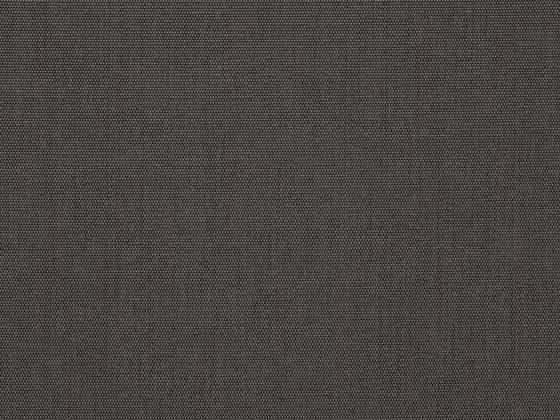

| Charcoal | Grey | A30A01 3% | 3% | 2 | 2 | 8 | 90 | 8 | 0.61 | 0.09 | 122 in | Spec sheet (PDF) · Mermet page | |
| Charcoal | Grey | A30A01 5% | 5% | 5 | 6 | 8 | 86 | 8 | 0.63 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |

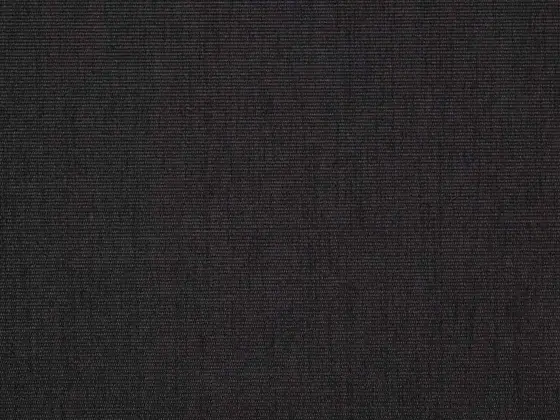

| Charcoal | Charcoal | A30A30 1% | 1% | 1 | 1 | 4 | 95 | 4 | 0.57 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |

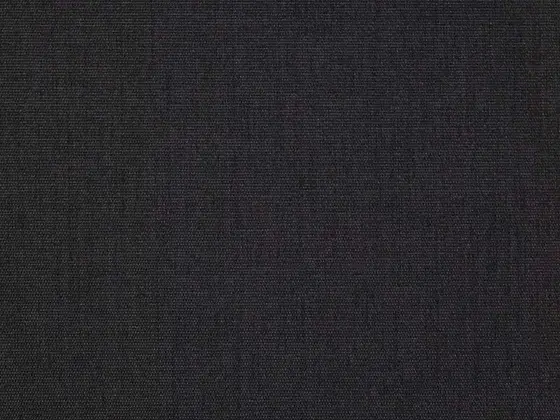

| Charcoal | Charcoal | A30A30 3% | 3% | 3 | 3 | 4 | 93 | 4 | 0.63 | 0.10 | 122 in | Spec sheet (PDF) · Mermet page | |

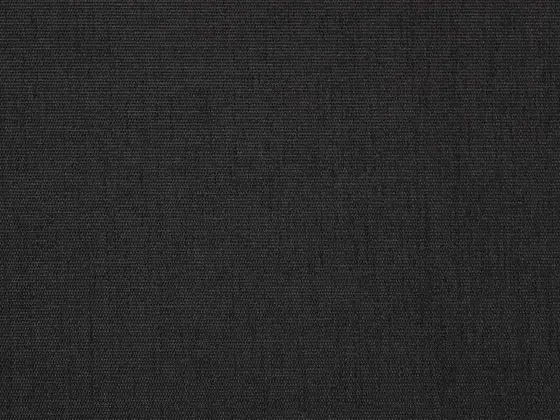

| Charcoal | Charcoal | A30A30 5% | 5% | 3 | 3 | 4 | 93 | 4 | 0.64 | 0.09 | 122 in | Spec sheet (PDF) · Mermet page | |

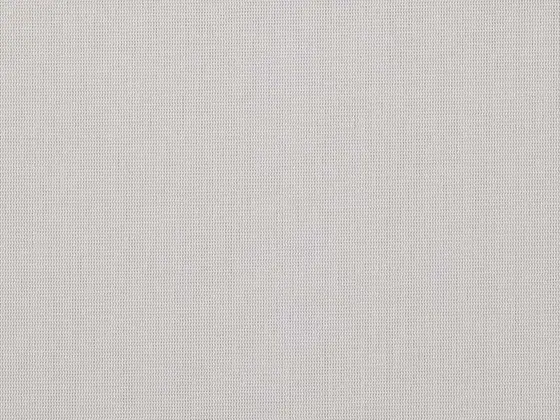

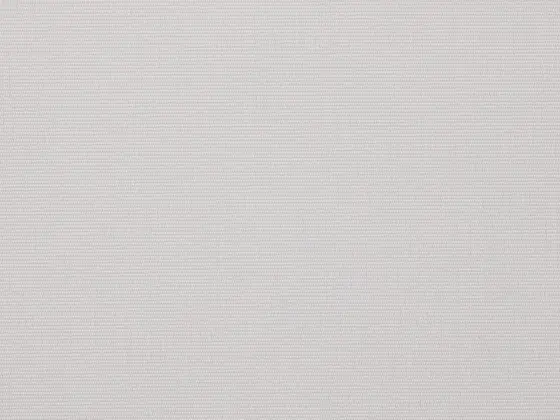

| White | Stone | A02A22 1% | 1% | 16 | 18 | 67 | 15 | 71 | 0.30 | 0.16 | 122 in | Spec sheet (PDF) · Mermet page | |

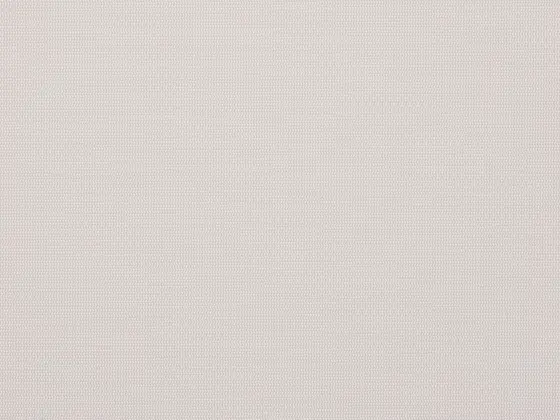

| White | Stone | A02A22 3% | 3% | 18 | 21 | 62 | 17 | 66 | 0.35 | 0.18 | 122 in | Spec sheet (PDF) · Mermet page | |
| White | Stone | A02A22 5% | 5% | 18 | 21 | 61 | 18 | 65 | 0.36 | 0.18 | 122 in | Spec sheet (PDF) · Mermet page | |

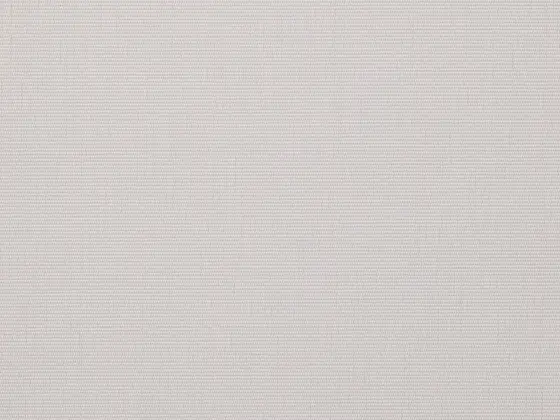

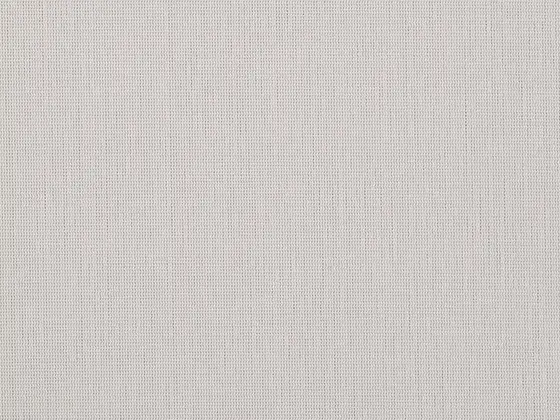

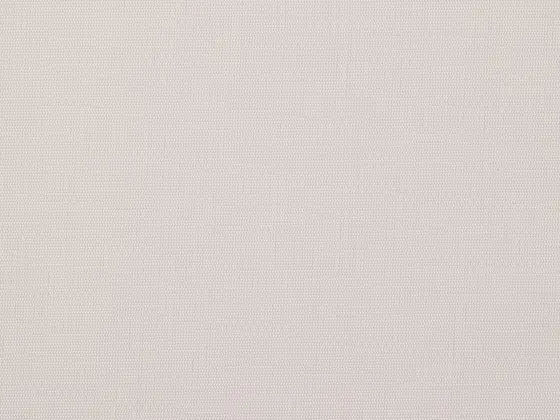

| White | Linen | A02A20 1% | 1% | 12 | 15 | 67 | 18 | 72 | 0.29 | 0.14 | 122 in | Spec sheet (PDF) · Mermet page | |
| White | Linen | A02A20 3% | 3% | 11 | 15 | 64 | 21 | 67 | 0.33 | 0.13 | 122 in | Spec sheet (PDF) · Mermet page | |
| White | Linen | A02A20 5% | 5% | 15 | 19 | 61 | 20 | 64 | 0.36 | 0.16 | 122 in | Spec sheet (PDF) · Mermet page | |

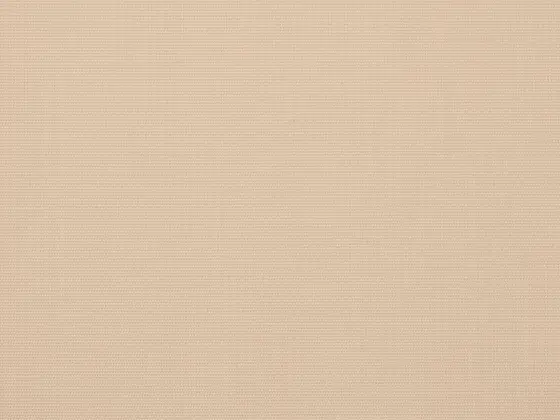

| Linen | Stone | A20A22 1% | 1% | 18 | 21 | 50 | 29 | 53 | 0.39 | 0.19 | 122 in | Spec sheet (PDF) · Mermet page | |
| Linen | Stone | A20A22 3% | 3% | 16 | 21 | 51 | 28 | 53 | 0.41 | 0.18 | 122 in | Spec sheet (PDF) · Mermet page | |

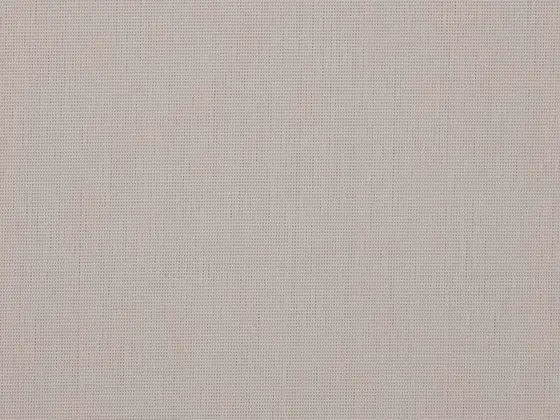

| Linen | Stone | A20A22 5% | 5% | 18 | 22 | 50 | 28 | 52 | 0.42 | 0.19 | 122 in | Spec sheet (PDF) · Mermet page | |

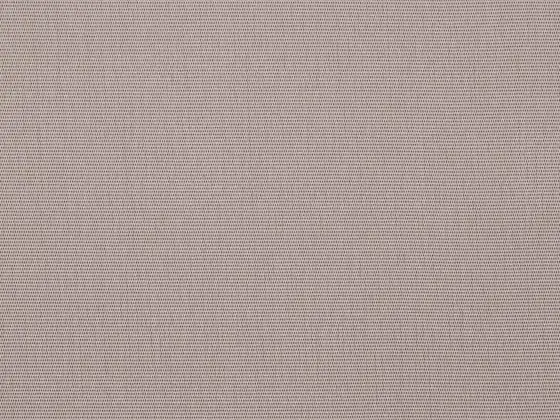

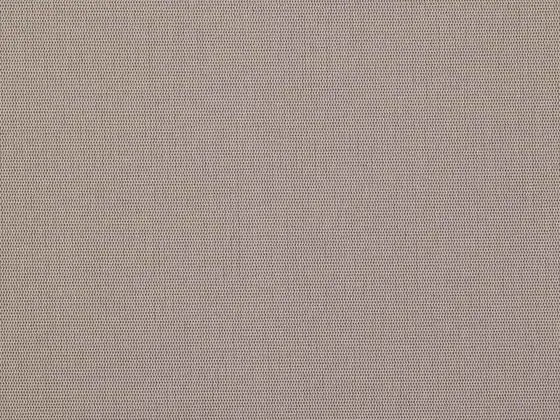

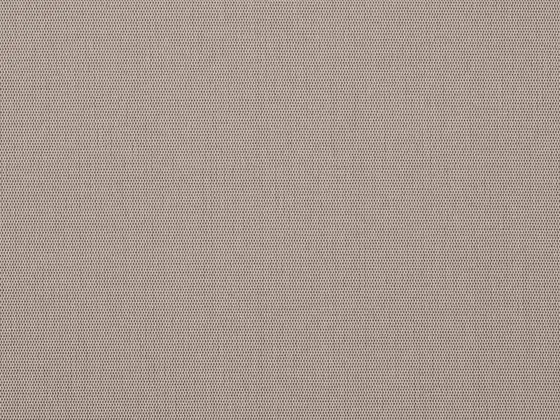

| Linen | Sable-Cocoa | A0M166 1% | 1% | 9 | 11 | 39 | 50 | 41 | 0.43 | 0.14 | 122 in | Spec sheet (PDF) · Mermet page | |
| Linen | Sable-Cocoa | A0M166 3% | 3% | 7 | 9 | 35 | 56 | 37 | 0.48 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |
| Linen | Sable-Cocoa | A0M166 5% | 5% | 10 | 12 | 36 | 52 | 37 | 0.49 | 0.13 | 122 in | Spec sheet (PDF) · Mermet page | |

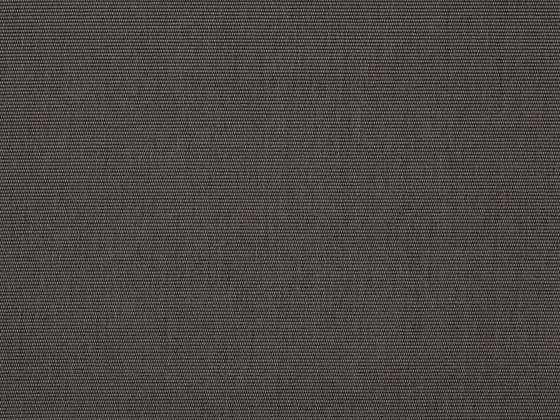

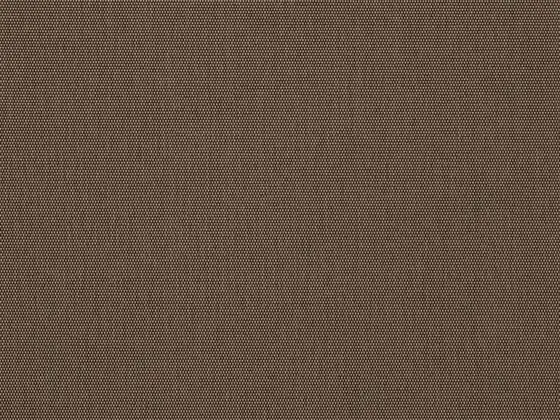

| Charcoal | Sable | A30A10 1% | 1% | 2 | 3 | 10 | 87 | 10 | 0.55 | 0.12 | 122 in | Spec sheet (PDF) · Mermet page | |
| Charcoal | Sable | A30A10 3% | 3% | 4 | 4 | 12 | 84 | 13 | 0.59 | 0.10 | 122 in | Spec sheet (PDF) · Mermet page | |

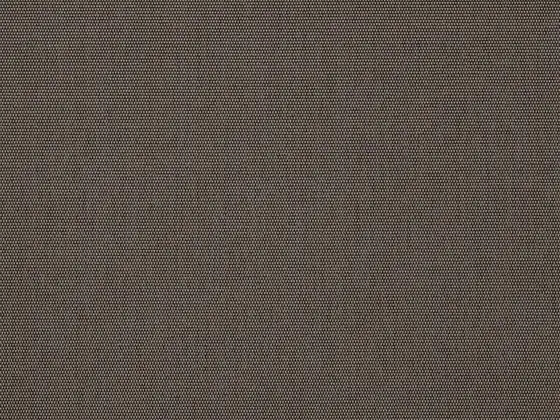

| Charcoal | Sable | A30A10 5% | 5% | 5 | 6 | 13 | 81 | 13 | 0.60 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |

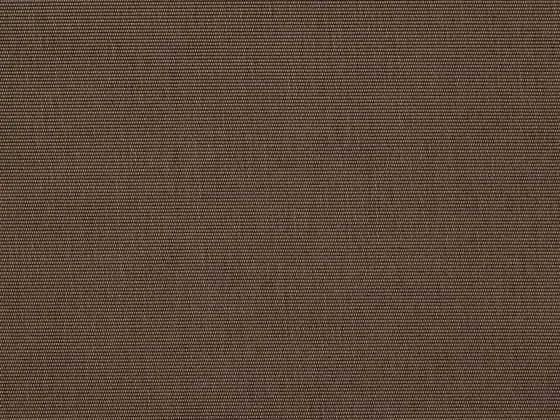

| Charcoal | Apricot | A30A71 1% | 1% | 2 | 3 | 11 | 86 | 11 | 0.55 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |
| Charcoal | Apricot | A30A71 3% | 3% | 5 | 5 | 13 | 82 | 14 | 0.59 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |

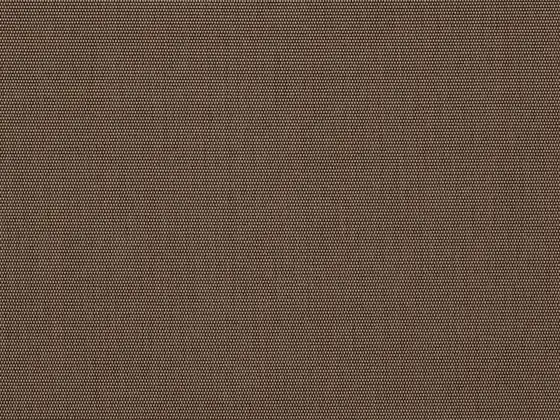

| Charcoal | Apricot | A30A71 5% | 5% | 7 | 7 | 13 | 80 | 13 | 0.60 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |

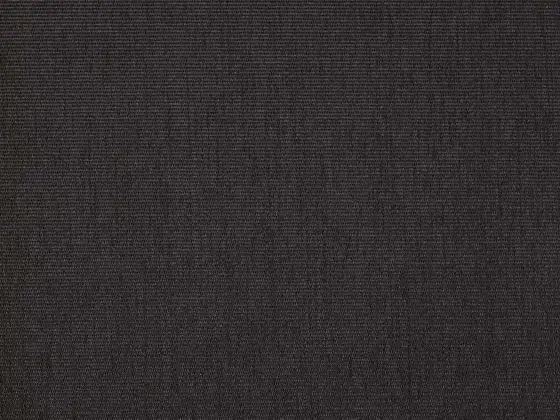

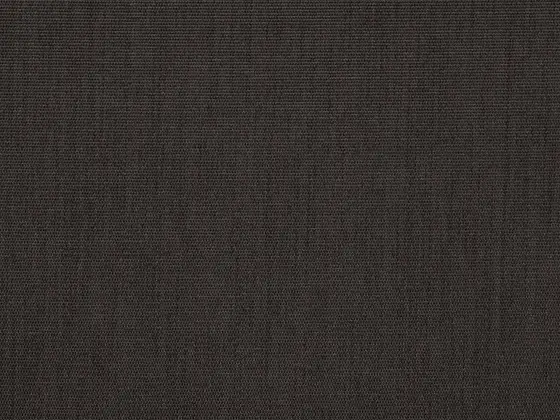

| Charcoal | Cocoa | A30A61 1% | 1% | 2 | 2 | 5 | 93 | 5 | 0.57 | 0.12 | 122 in | Spec sheet (PDF) · Mermet page | |

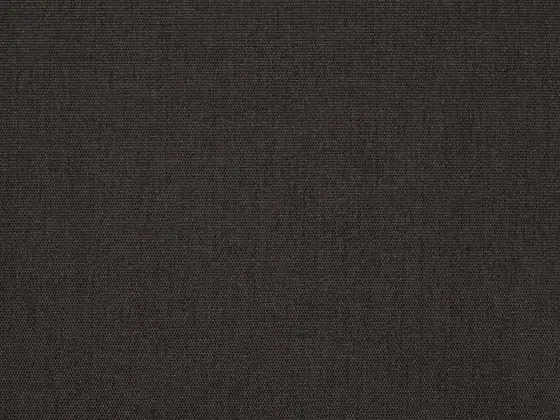

| Charcoal | Cocoa | A30A61 3% | 3% | 3 | 3 | 5 | 92 | 5 | 0.62 | 0.10 | 122 in | Spec sheet (PDF) · Mermet page | |
| Charcoal | Cocoa | A30A61 5% | 5% | 4 | 5 | 5 | 90 | 5 | 0.64 | 0.10 | 122 in | Spec sheet (PDF) · Mermet page |
Tv = visible light transmitted, Ts = solar energy transmitted, Rs = solar energy reflected, As = solar energy absorbed, Rv = visible light reflected, in percent, as published by Mermet USA for the fabric on its own. SHGC int. and SHGC ext. = solar heat gain coefficient of the fabric mounted inside or outside residential double glazing, from the same spec sheets; UPF = Mermet's ultraviolet protection rating where it publishes one. We bring the sample books to the consultation.
Where M Screen works here
Coral Gables and Boca Raton interiors with travertine, wood ceilings and pale oak are where M Screen earns its place. Linen/Stone at 3% on a lanai wall gives a room the look of a woven textile from inside while behaving exactly like a technical screen. On a bright white contemporary condo, E Screen is usually the closer match; when a client tells us the white shades in the showroom feel clinical, M Screen is what we bring out next.
M Screen is the warm-neutral rib weave; E Screen is the wider, cooler basketweave card, and M Screen Deco takes the same rib into seven bicolour stone and earth tones at 3% and 5%.
M Screen: frequently asked
E Screen or M Screen?
The same fibre and coating and the same fire listings, different weave and different colour card. E Screen has five openness factors, a 0.5% weave and the KOOLBLACK charcoals; M Screen has three openness factors and the Stone, Linen and Sable tones that suit warm interiors. We usually bring both cards to the first appointment.
How wide can an M Screen shade be?
98 or 122 inches depending on the roll, which covers most openings in one piece. On a wider slider we make two shades on one shared headrail and align the gap at the mullion, or move the room to a fabric woven at 122 inches throughout.
How wide can a Mermet M Screen shade be?
Mermet publishes standard roll widths of 98" (250 cm), 122" (310 cm) for M Screen, so a single shade can run to about 122 inches wide before a seam or a second shade is needed. Wider openings are covered with two shades on one headrail programmed to move together, or with a seam placed where the mullion hides it. We confirm the exact limit for the chosen system when we measure.
Which shades can be made in M Screen?
M Screen is a roller shade fabric. We source it directly from Mermet, so the same weave goes on Lutron, Somfy, Crestron or Vertilux motors or a manual chain, cut and finished in our Fort Lauderdale workroom and installed by our own team from Miami to Palm Beach.
Can I see M Screen samples before ordering?
Yes. We keep the Mermet sample books in the Fort Lauderdale workroom (4539 Powerline Rd, by appointment) and the Miami Beach showroom (500 South Pointe Dr #150), and we bring the colours you shortlist to the in-home consultation so you can hold them against your glass in your own light.
