Mermet S Screen Fabric
30 colourways, openness 1%, 4%, 5%, solar screen, up to 122 inches wide. Every swatch and every published specification, from the workroom that cuts Mermet in Fort Lauderdale and installs it from Miami to Palm Beach.

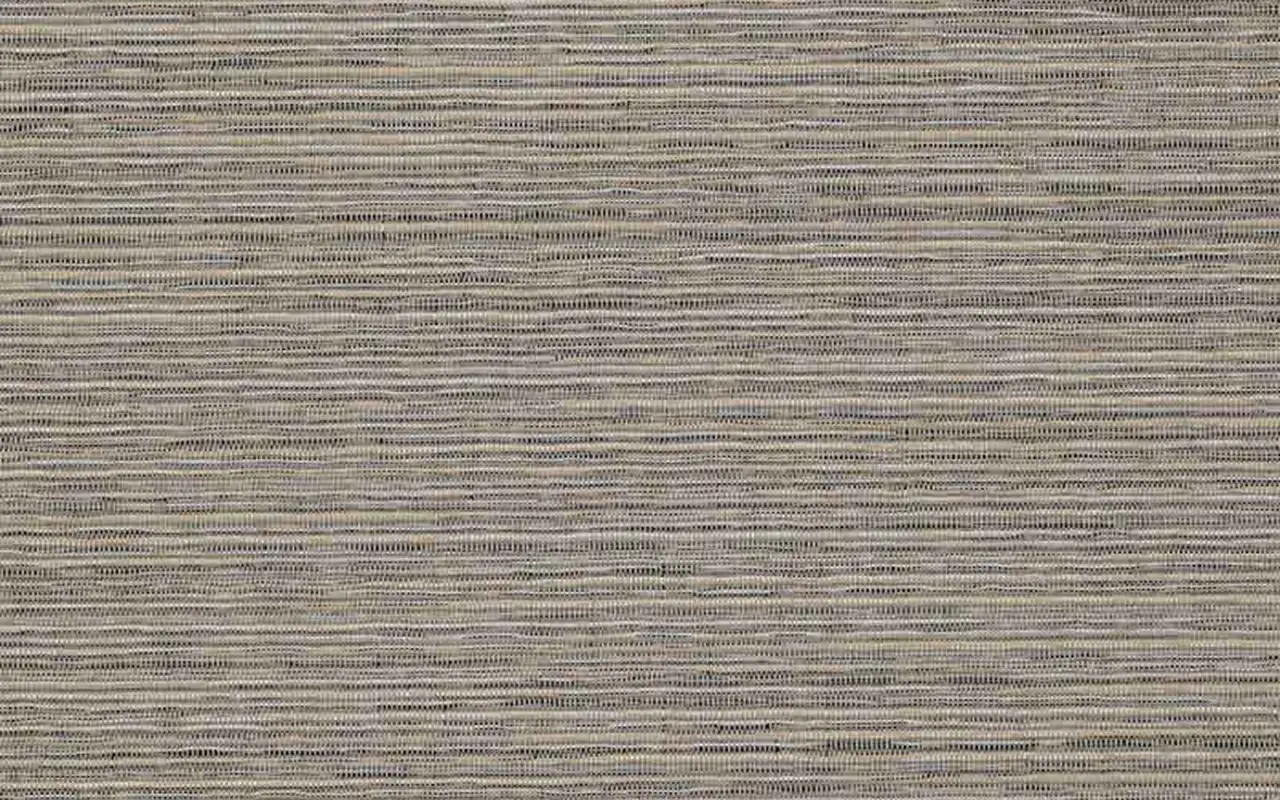

A wrapped-yarn screen with the hand of a natural textile
S Screen is the heaviest fabric in the Mermet library and the one that looks least like a technical screen. It is built from wrapped yarn bundles in a plain weave, 33.6% fiberglass and 59.6% vinyl, 122 inches wide, and it weighs 19.1 oz per square yard at 0.041 inches thick in the 1% weave. It comes at 1% and 4% in ten colours named for materials rather than shades: Porcelain, Marble, Seasalt, Jute, Cork, Papyrus, Nougat, Ginger, Granite and Peppercorn. Visible transmission runs 3% to 10% and solar reflectance 31% to 63%, so it is a genuine glare fabric with a textile surface.
S Screen Naturals is the second half of this page: the same wrapped bundles in a fancy weave at 5% openness, 98 inches wide and lighter at 15 oz per square yard, in ten colours named for mountains from Pyrenees and Denali to Shasta and Everest. Visible transmission of 9% to 18% makes it the most open fabric of the two, and the one to specify where the view matters as much as the texture. Both carry NFPA 701 TM#1, California Title 19 and CAN/ULC-S109, GREENGUARD Gold and RoHS lead free.
S Screen
10 colours, 20 colourways. Openness 1%, 4%; up to 122 in wide; fire listed.
Colourways
S Screen Naturals
10 colours. Openness 5%; up to 98 in wide; fire listed.
Colourways
Every S Screen colourway, with Mermet's published figures
| Swatch | Fabric | Colour | Code | Openness | Tv | Ts | Rs | As | Rv | SHGC int. | SHGC ext. | Width | Docs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

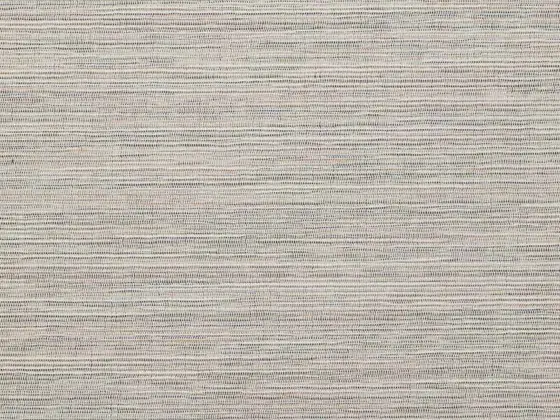

| S Screen | Porcelain | A02AD1 1% | 1% | 8 | 10 | 63 | 27 | 67 | 0.30 | 0.10 | 122 in | Spec sheet (PDF) · Mermet page | |

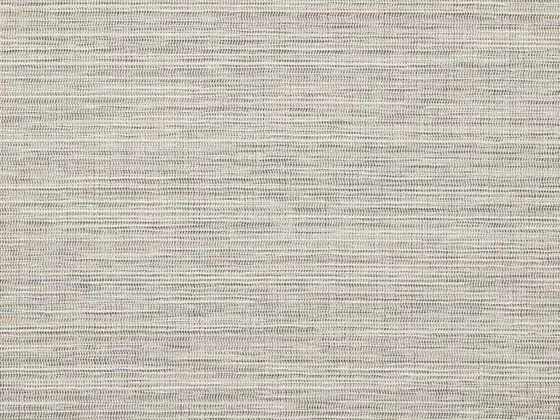

| S Screen | Porcelain | A02AD1 4% | 4% | 10 | 12 | 59 | 29 | 62 | 0.36 | 0.12 | 122 in | Spec sheet (PDF) · Mermet page | |

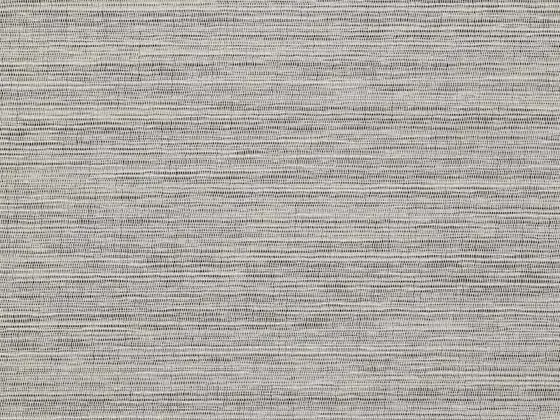

| S Screen | Marble | A02ADC 1% | 1% | 6 | 8 | 56 | 36 | 60 | 0.33 | 0.10 | 122 in | Spec sheet (PDF) · Mermet page | |

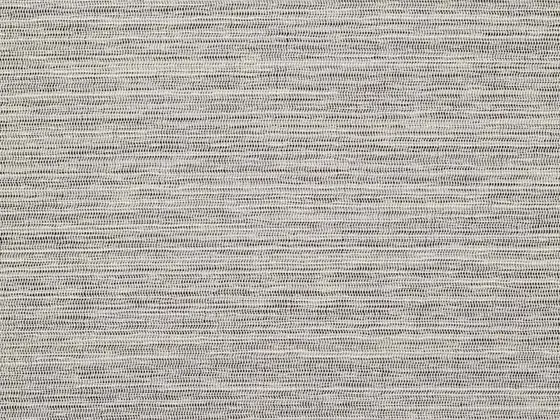

| S Screen | Marble | A02ADC 4% | 4% | 9 | 10 | 48 | 42 | 51 | 0.41 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |

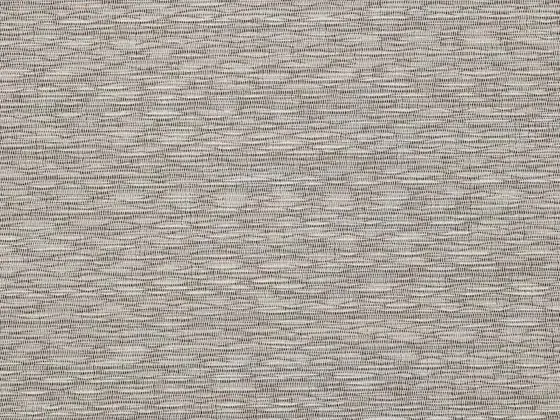

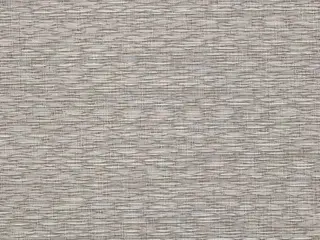

| S Screen | Seasalt | A02AP1 1% | 1% | 6 | 9 | 62 | 29 | 63 | 0.31 | 0.10 | 122 in | Spec sheet (PDF) · Mermet page | |

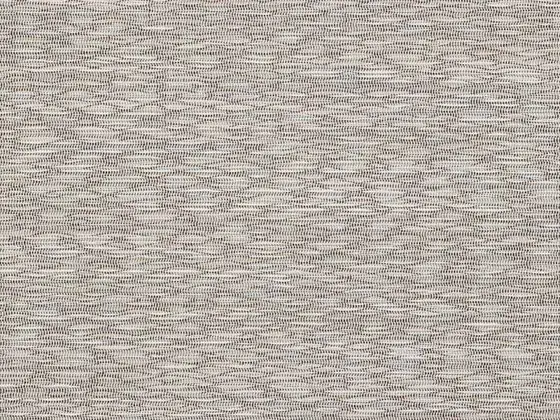

| S Screen | Seasalt | A02AP1 4% | 4% | 9 | 11 | 54 | 35 | 54 | 0.39 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |

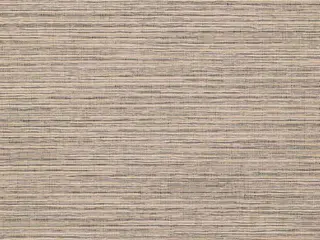

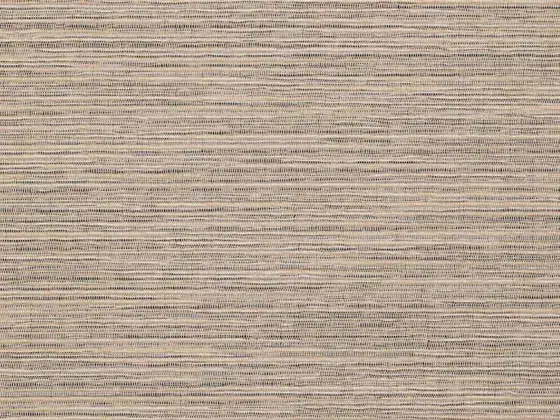

| S Screen | Jute | A20AC1 1% | 1% | 7 | 9 | 46 | 45 | 48 | 0.39 | 0.12 | 122 in | Spec sheet (PDF) · Mermet page | |

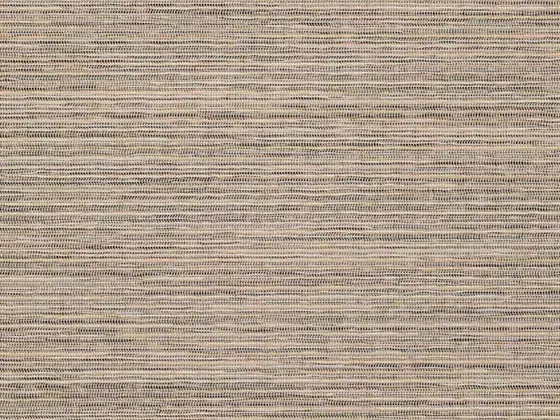

| S Screen | Jute | A20AC1 4% | 4% | 9 | 11 | 43 | 46 | 44 | 0.44 | 0.12 | 122 in | Spec sheet (PDF) · Mermet page | |

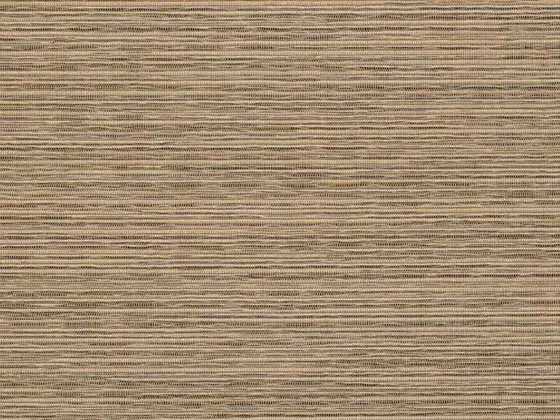

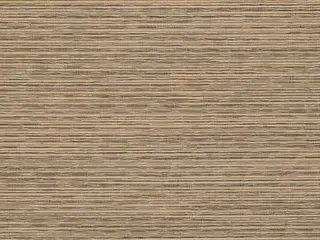

| S Screen | Cork | A10AC2 1% | 1% | 5 | 7 | 37 | 56 | 37 | 0.44 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |

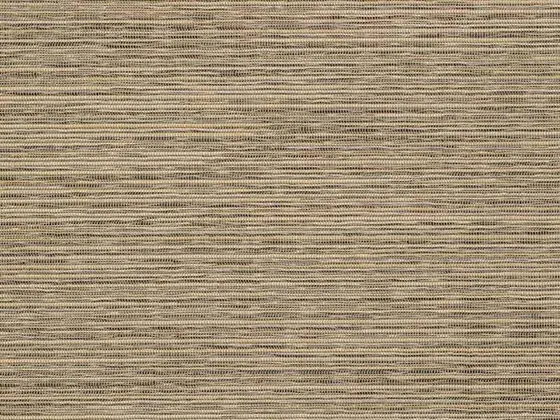

| S Screen | Cork | A10AC2 4% | 4% | 8 | 10 | 35 | 55 | 34 | 0.49 | 0.12 | 122 in | Spec sheet (PDF) · Mermet page | |

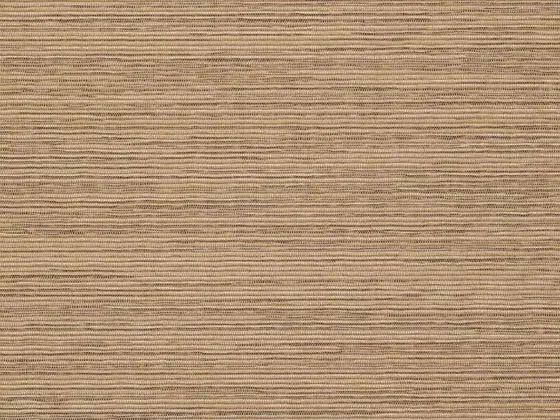

| S Screen | Papyrus | A10AN5 1% | 1% | 5 | 7 | 39 | 54 | 39 | 0.43 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |

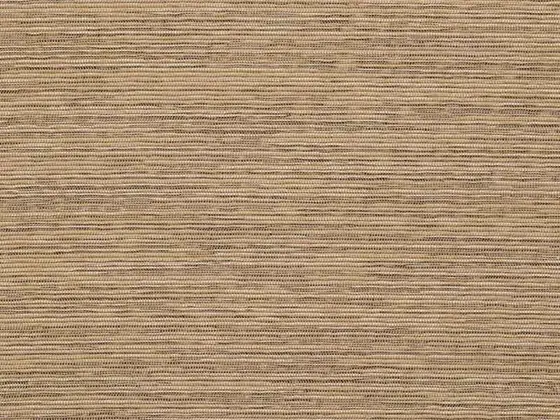

| S Screen | Papyrus | A10AN5 4% | 4% | 9 | 11 | 38 | 51 | 37 | 0.48 | 0.12 | 122 in | Spec sheet (PDF) · Mermet page | |

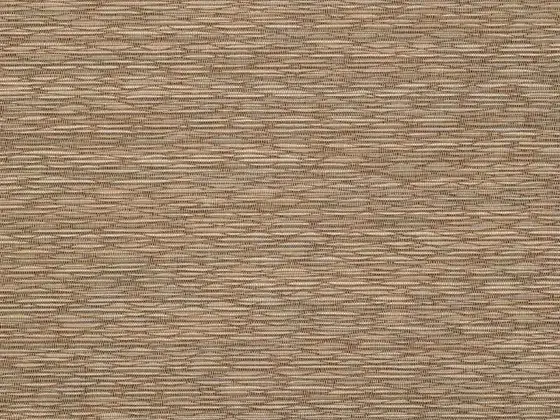

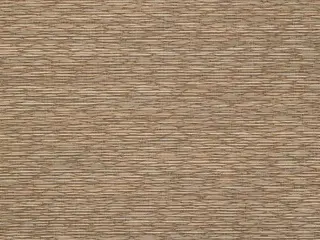

| S Screen | Nougat | A10AP1 1% | 1% | 5 | 7 | 39 | 54 | 37 | 0.47 | 0.12 | 122 in | Spec sheet (PDF) · Mermet page | |

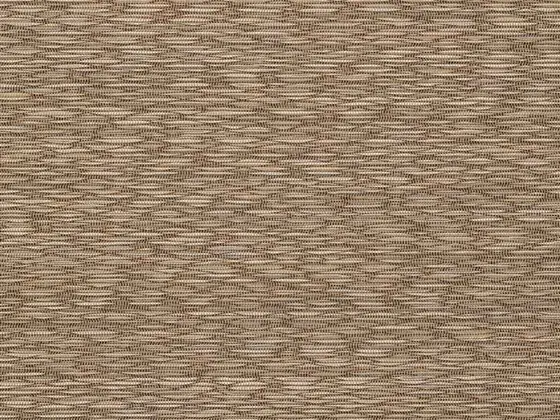

| S Screen | Nougat | A10AP1 4% | 4% | 7 | 10 | 37 | 53 | 34 | 0.49 | 0.12 | 122 in | Spec sheet (PDF) · Mermet page | |

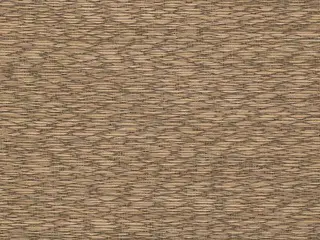

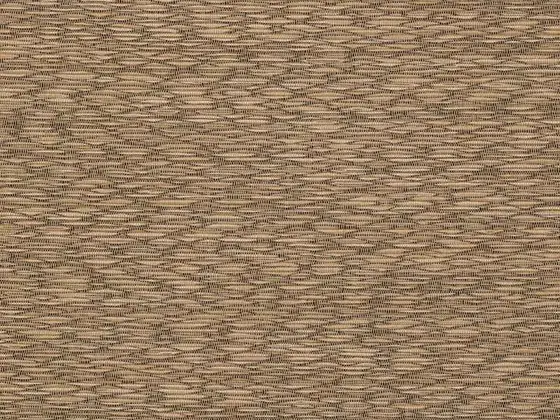

| S Screen | Ginger | A10AB6 1% | 1% | 4 | 5 | 33 | 62 | 33 | 0.45 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |

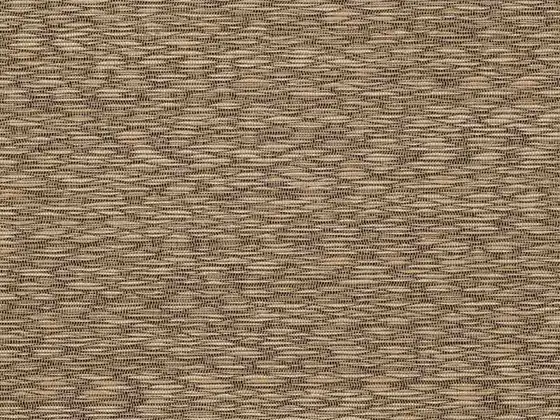

| S Screen | Ginger | A10AB6 4% | 4% | 6 | 9 | 36 | 55 | 33 | 0.49 | 0.11 | 122 in | Spec sheet (PDF) · Mermet page | |

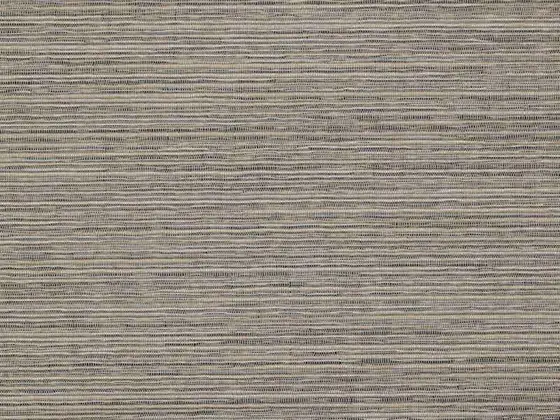

| S Screen | Granite | A07AC1 1% | 1% | 3 | 5 | 34 | 61 | 36 | 0.44 | 0.10 | 122 in | Spec sheet (PDF) · Mermet page | |

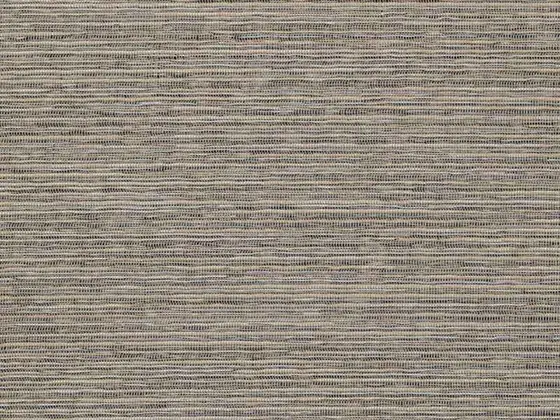

| S Screen | Granite | A07AC1 4% | 4% | 8 | 9 | 31 | 60 | 32 | 0.51 | 0.12 | 122 in | Spec sheet (PDF) · Mermet page | |

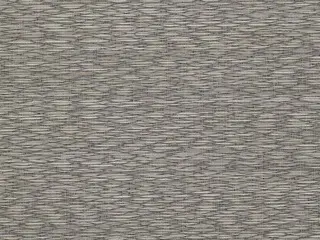

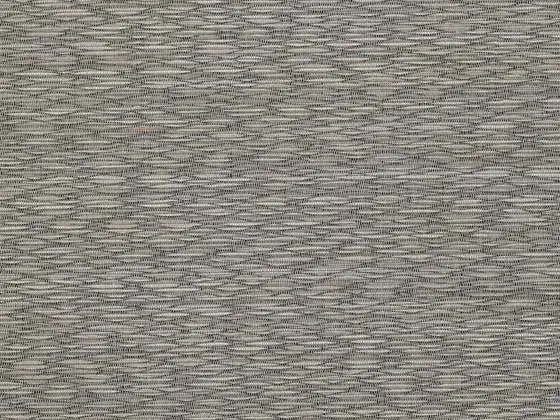

| S Screen | Peppercorn | A07AB1 1% | 1% | 3 | 4 | 31 | 65 | 33 | 0.46 | 0.10 | 122 in | Spec sheet (PDF) · Mermet page | |

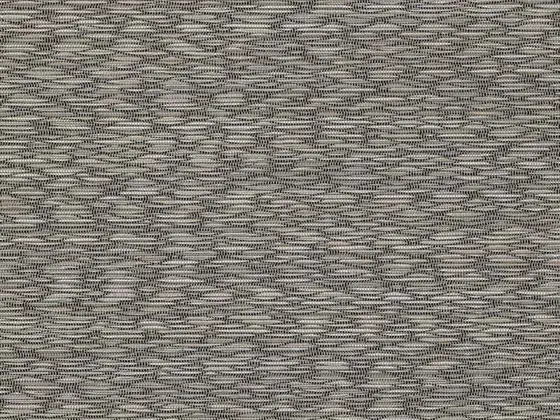

| S Screen | Peppercorn | A07AB1 4% | 4% | 5 | 7 | 32 | 61 | 28 | 0.51 | 0.10 | 122 in | Spec sheet (PDF) · Mermet page | |

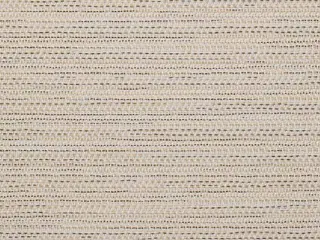

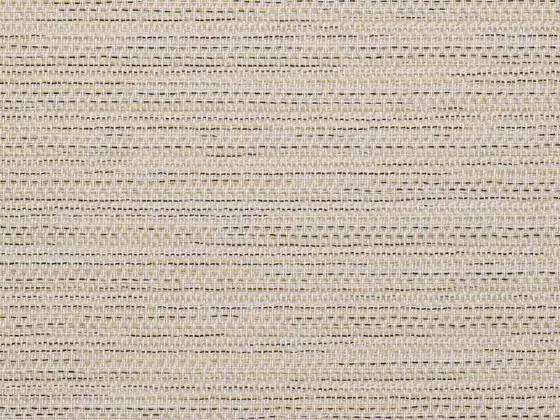

| S Screen Naturals | Pyrenees | A00PYR 5% | 5% | 18 | 19 | 63 | 18 | 68 | 0.32 | 0.17 | 98 in | Spec sheet (PDF) · Mermet page | |

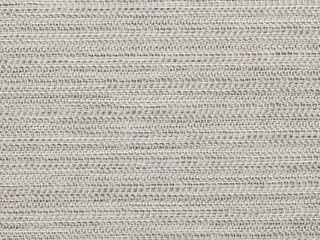

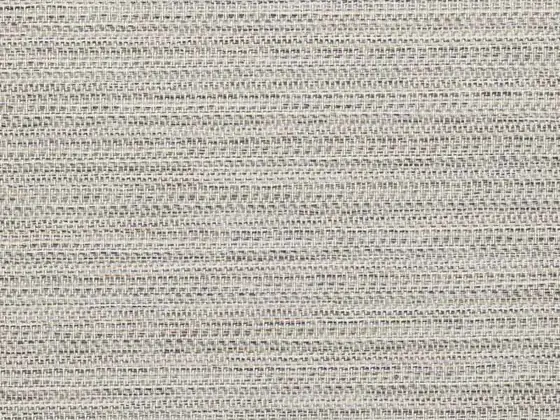

| S Screen Naturals | Denali | A00DEN 5% | 5% | 15 | 16 | 58 | 26 | 63 | 0.34 | 0.15 | 98 in | Spec sheet (PDF) · Mermet page | |

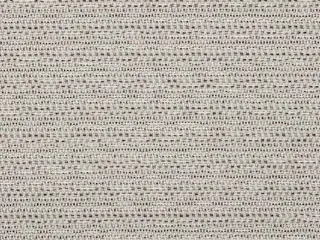

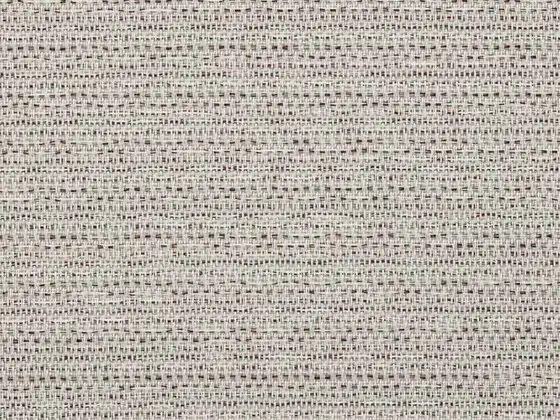

| S Screen Naturals | Matterhorn | A00MAT 5% | 5% | 15 | 16 | 54 | 30 | 58 | 0.37 | 0.16 | 98 in | Spec sheet (PDF) · Mermet page | |

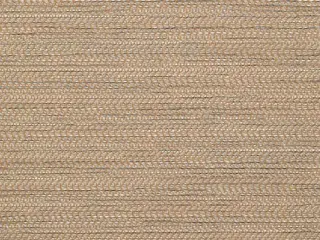

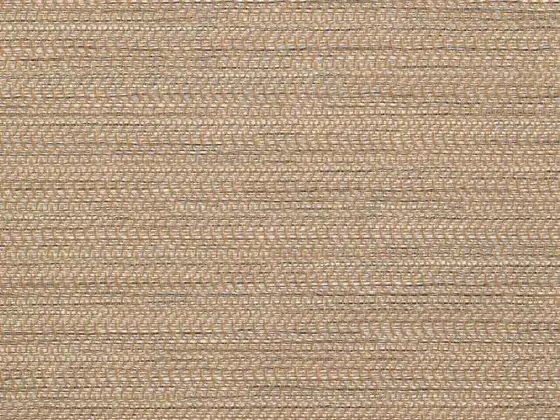

| S Screen Naturals | Sierra | A00SIE 5% | 5% | 13 | 15 | 46 | 39 | 48 | 0.41 | 0.15 | 98 in | Spec sheet (PDF) · Mermet page | |

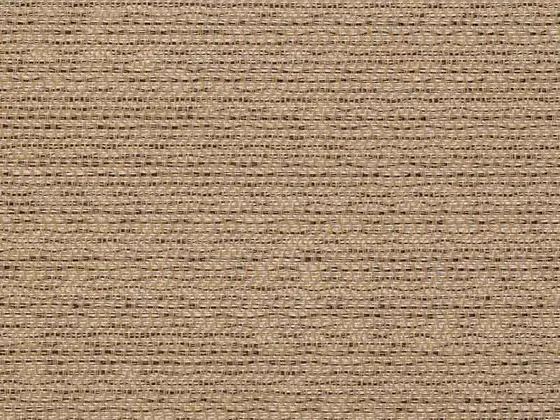

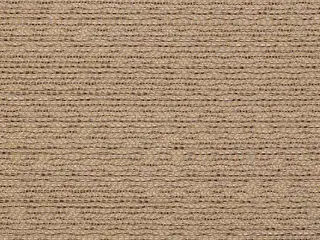

| S Screen Naturals | Appalachian | A00APP 5% | 5% | 13 | 14 | 40 | 46 | 41 | 0.44 | 0.16 | 98 in | Spec sheet (PDF) · Mermet page | |

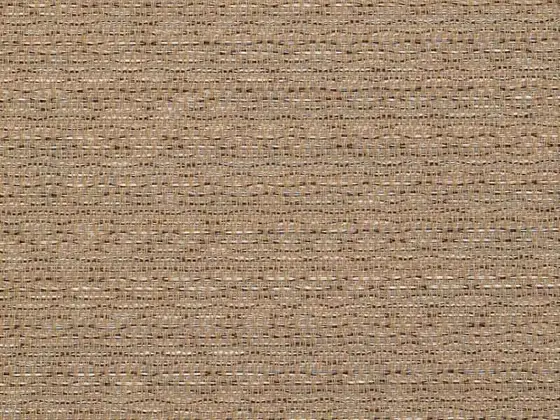

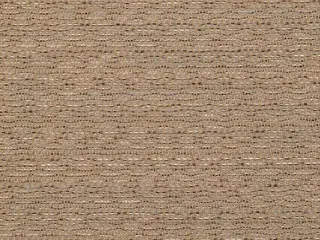

| S Screen Naturals | Olympus | A00OLY 5% | 5% | 12 | 14 | 35 | 51 | 36 | 0.46 | 0.16 | 98 in | Spec sheet (PDF) · Mermet page | |

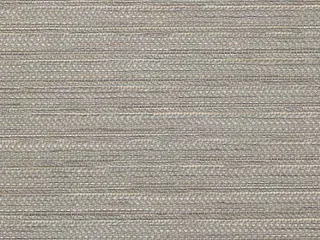

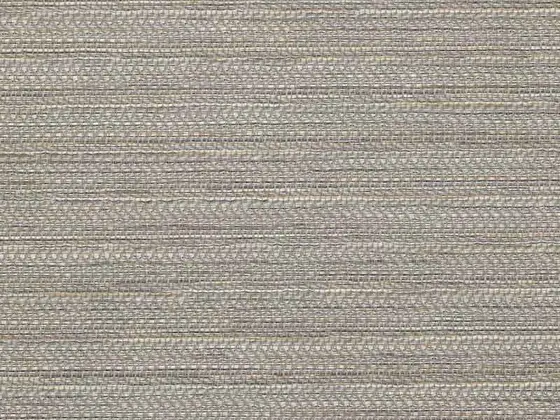

| S Screen Naturals | Cascade | A00CAS 5% | 5% | 11 | 12 | 43 | 45 | 46 | 0.42 | 0.14 | 98 in | Spec sheet (PDF) · Mermet page | |

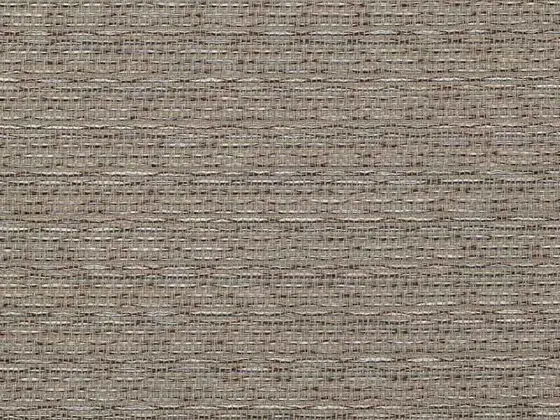

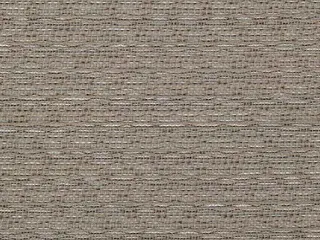

| S Screen Naturals | Rainier | A00RAI 5% | 5% | 10 | 12 | 37 | 51 | 38 | 0.45 | 0.14 | 98 in | Spec sheet (PDF) · Mermet page | |

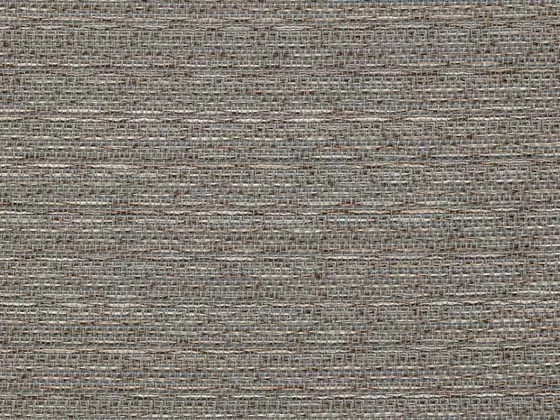

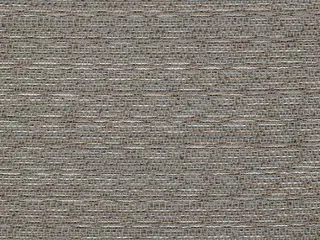

| S Screen Naturals | Shasta | A00SHA 5% | 5% | 9 | 11 | 35 | 54 | 36 | 0.46 | 0.14 | 98 in | Spec sheet (PDF) · Mermet page | |

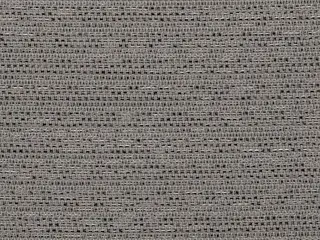

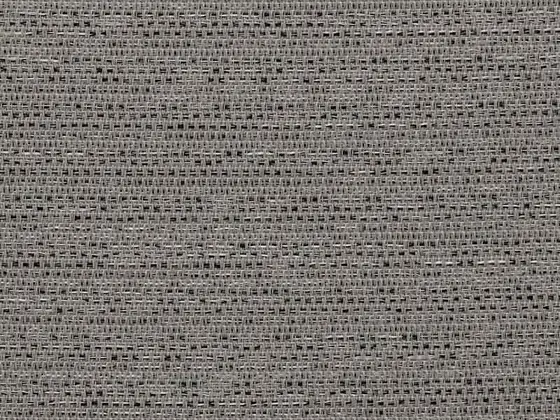

| S Screen Naturals | Everest | A00EVE 5% | 5% | 9 | 10 | 31 | 59 | 32 | 0.47 | 0.14 | 98 in | Spec sheet (PDF) · Mermet page |
Tv = visible light transmitted, Ts = solar energy transmitted, Rs = solar energy reflected, As = solar energy absorbed, Rv = visible light reflected, in percent, as published by Mermet USA for the fabric on its own. SHGC int. and SHGC ext. = solar heat gain coefficient of the fabric mounted inside or outside residential double glazing, from the same spec sheets; UPF = Mermet's ultraviolet protection rating where it publishes one. We bring the sample books to the consultation.
Where S Screen works here
S Screen goes into rooms where the roller is exposed and the fabric has to hold its own against the furniture: Miami Beach and Palm Beach living rooms, studies with one large window, and any interior built around limestone, rattan and pale wood. We hold the 1% weave for hard exposures and use S Screen Naturals at 5% on shaded or covered glass where the point is the texture and the daylight rather than the glare.
S Screen is the textile end of the screen range: E Screen and M Screen are lighter technical weaves, and the Deco cards get their character from bicolour yarn rather than from the yarn bundle itself.
S Screen: frequently asked
Is S Screen a solar screen or a decorative fabric?
Both, which is the point. Mermet lists it as a decorative weave, but it is vinyl-coated fiberglass with published openness, light and solar figures like any screen: 1% and 4% on S Screen and 5% on Naturals, with visible transmission from 3% to 18% across the two cards. It is specified for the cloth and then checked against the numbers.
Why is it so much heavier than E Screen?
The wrapped yarn bundles. At 19.1 oz per square yard and 0.041 inches thick, S Screen is roughly half again as heavy as a 1% E Screen, which is what gives it the hand of a coarse linen. On a tall shade that weight hangs flat, and it also means a slightly larger roll on the tube, which we allow for in the pocket.
How wide can a Mermet S Screen shade be?
Mermet publishes standard roll widths of 122" (310 cm); 98" (250 cm) for S Screen, so a single shade can run to about 122 inches wide before a seam or a second shade is needed. Wider openings are covered with two shades on one headrail programmed to move together, or with a seam placed where the mullion hides it. We confirm the exact limit for the chosen system when we measure.
Which shades can be made in S Screen?
S Screen is a roller shade fabric. We source it directly from Mermet, so the same weave goes on Lutron, Somfy, Crestron or Vertilux motors or a manual chain, cut and finished in our Fort Lauderdale workroom and installed by our own team from Miami to Palm Beach.
Can I see S Screen samples before ordering?
Yes. We keep the Mermet sample books in the Fort Lauderdale workroom (4539 Powerline Rd, by appointment) and the Miami Beach showroom (500 South Pointe Dr #150), and we bring the colours you shortlist to the in-home consultation so you can hold them against your glass in your own light.
Compare S Screen with
E Screen Deco
The E Screen basketweave, woven in bicolour yarn
M Screen Deco
The rib weave in seven stone and earth tones
T Screen Deco
A satin screen in coffee tones with a white street side
E Screen
The reference solar screen, in every openness Mermet weaves
T Screen
A reversible satin screen with a different colour on each face
M Screen
The rib weave, in the warmest neutral card Mermet makes
Mermet S Screen shades in Fort Lauderdale, Miami, Boca Raton & Palm Beach
We source S Screen directly from Mermet for any project from Miami to Palm Beach, cut and finish the shades in our Fort Lauderdale workroom on the Lutron, Somfy, Crestron or manual system the window calls for, and install them with our own team. Both showrooms, 4539 Powerline Rd in Fort Lauderdale (by appointment) and 500 South Pointe Dr #150 in Miami Beach, have motorized shades running so you can see the fabric in motion.
See S Screen in your own light
Book a complimentary in-home consultation. Shortlist the colours you like and we bring the Mermet samples, demo motors, and honest answers about openness, colour and what your windows actually need.
