Phifer SheerWeave 5000 Fabric

37 colourways, solar screen, up to 98 inches wide. Every swatch and every published specification, from the workroom that cuts Phifer in Fort Lauderdale and installs it from Miami to Palm Beach.

★★★★★Rated 5.0 · 122 reviews Fort Lauderdale · 35 Miami Beach · Lutron Certified Dealer · Updated September 2026

Phifer Fabric Library

A jacquard card of thirty-seven patterns, each with its own numbers

SheerWeave 5000 is the decorative end of the Phifer range: thirty-seven jacquard patterns rather than a single weave with a colour card. Phifer does not publish one composition, weight, thickness or openness factor for the line, because they vary from pattern to pattern, and the design page below lists the figures per colourway rather than per style. Widths are 74 and 98 inches, the published acoustic value is NRC 0.15, and Phifer lists a Microban antimicrobial additive, GREENGUARD Gold, RoHS and REACH compliance and the ANSI/WCMA A100.1 lead-content standard.

The patterns run in named families: Bliss, Tweed, Bark, Bamboo, Chenille, Metro, Linen, Marble, Jute, Feather and Seaglass, each paired with a second colour, as in Linen/Pearl, Jute/Coffee, Bark/Tiger Oak or Seaglass/Crystal. The performance spread is enormous and it is the whole reason to read the table: visible transmission runs from 5% in Jute/Coffee to 45% in Seaglass/Crystal, solar reflectance from 15% to 71%, and absorptance from 7% to 80%. Two patterns from the same card can behave like completely different fabrics on the same window.

Request a Swatch Budgetary Price Ask for a Price

Solar Screen

SheerWeave 5000

37 colours. Up to 98 in wide.

Fabric typeSolar Screen

Standard widths74" and 98" (187.96 cm and 248.9 cm)

CompositionThese results vary from pattern to pattern. Refer to individual colors.

WeightThese results vary from pattern to pattern. Refer to individual colors.

ThicknessThese results vary from pattern to pattern. Refer to individual colors.

UV blockageThese results vary from pattern to pattern. Refer to individual colors.

Fire listingsNone published by Phifer

CertificationsGREENGUARD Gold, RoHS, REACH, ANSI/WCMA A100.1 lead content

AntimicrobialMicroban antimicrobial additive; ASTM E 2180, ASTM G21, ASTM G22, ASTM D3273, AATCC 30 Part 3, GREENGUARD Mold and Bacteria Standard ASTM 6329

Noise reduction coefficient0.15

Made up asRoller shades, Roman shades and panel tracks

PVCVinyl-coated yarn

Colourways

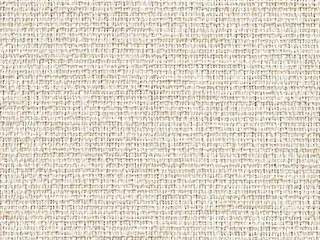

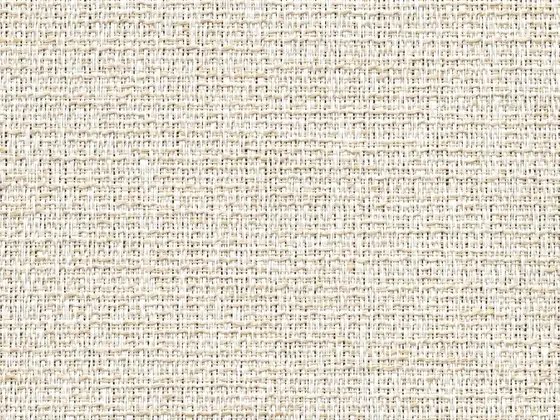

Chenille / Marshmallow

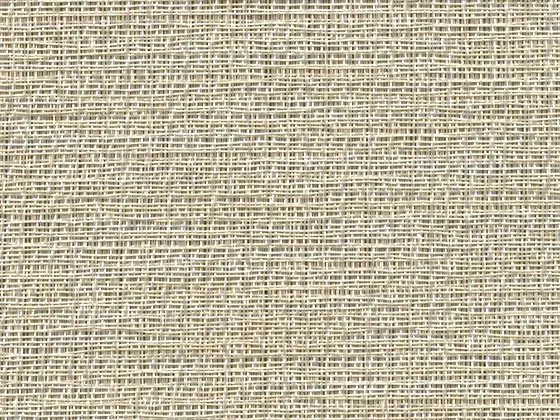

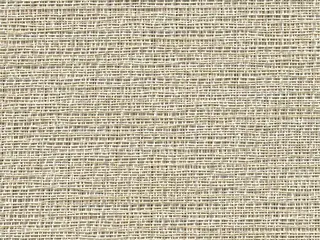

Seaglass / Chardonnay

Specifications

Every SheerWeave 5000 colourway, with Phifer's published figures

Colour	Code	Openness	Tv	Ts	Rs	As	SHGC single	SHGC insul.	Width	Docs

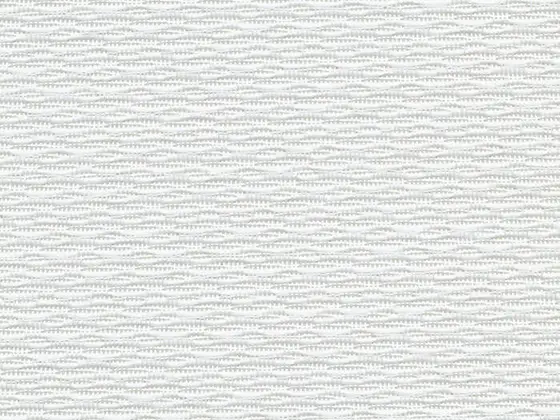

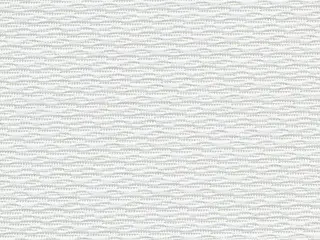

Bliss / Cotton	5000 T07	-	31	29	62	9	0.34	0.24	98 in	Swatch card (PDF) · Phifer product page

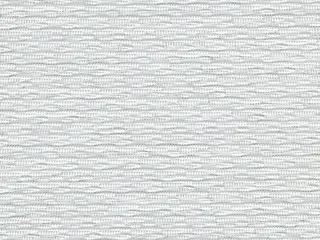

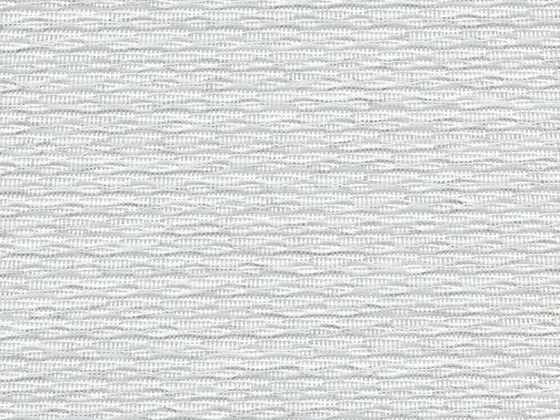

Bliss / Frost	5000 T08	-	26	26	55	19	0.37	0.26	98 in	Swatch card (PDF) · Phifer product page

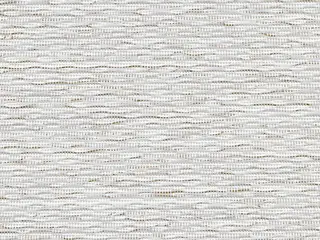

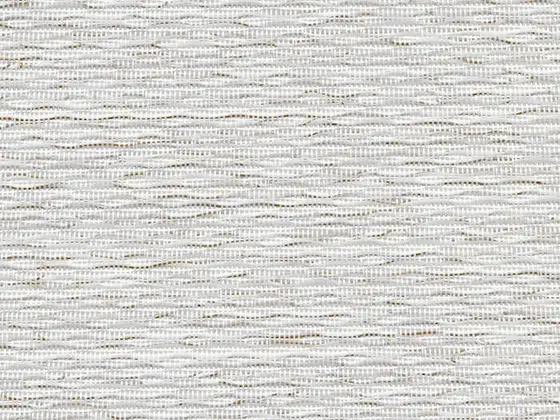

Bliss / Natural	5000 T09	-	25	26	53	21	0.38	0.26	98 in	Swatch card (PDF) · Phifer product page

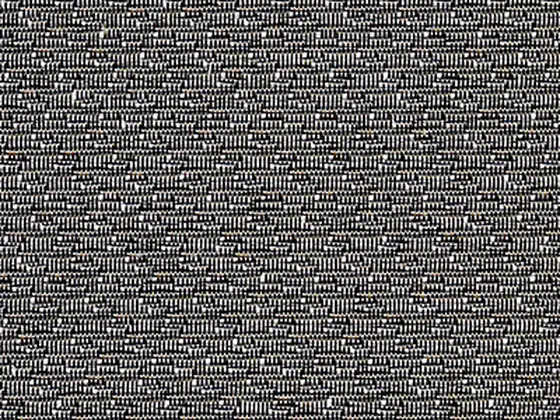

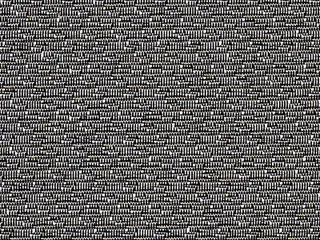

Bliss / Shadow	5000 T10	-	6	7	20	73	0.53	0.33	98 in	Swatch card (PDF) · Phifer product page

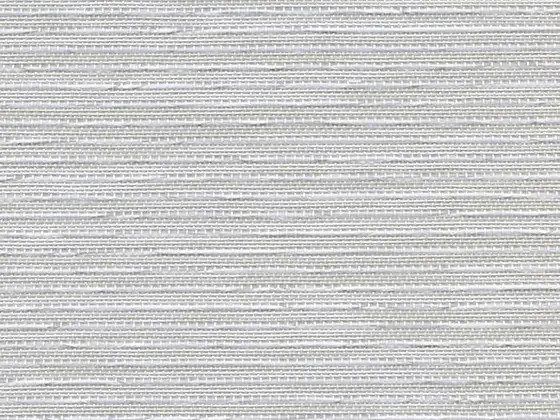

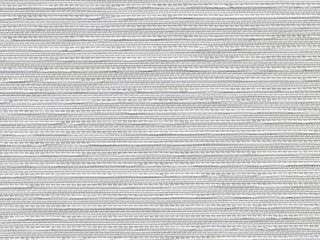

Tweed / Satin	5000 T24	-	29	29	48	23	0.42	0.28	98 in	Swatch card (PDF) · Phifer product page

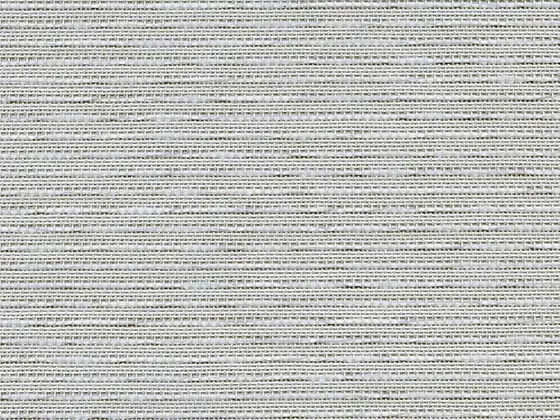

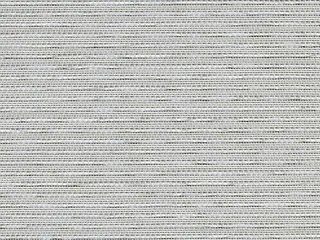

Tweed / Glacier	5000 T25	-	10	14	45	41	0.40	0.27	98 in	Swatch card (PDF) · Phifer product page

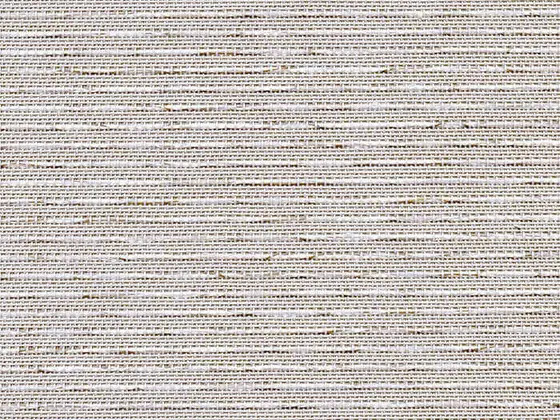

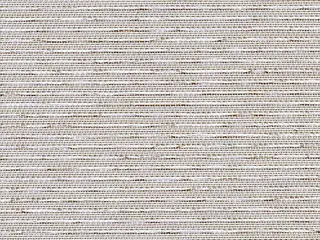

Tweed / Putty	5000 T26	-	9	13	42	45	0.42	0.28	98 in	Swatch card (PDF) · Phifer product page

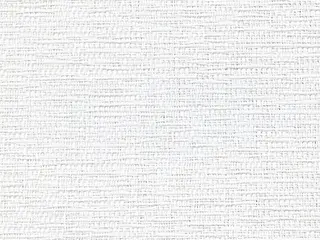

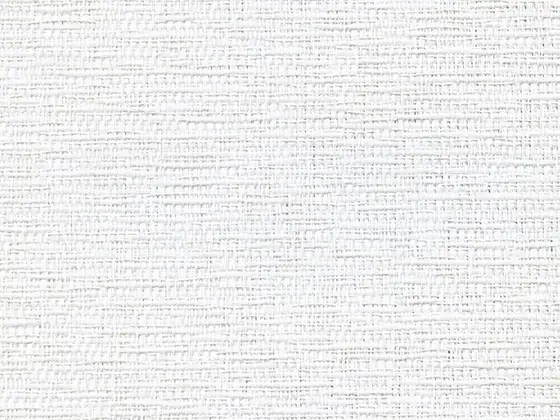

Bark / Eggshell	5000 S10	-	14	16	70	14	0.27	0.21	98 in	Swatch card (PDF) · Phifer product page

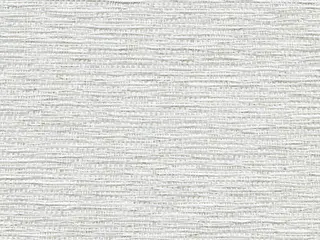

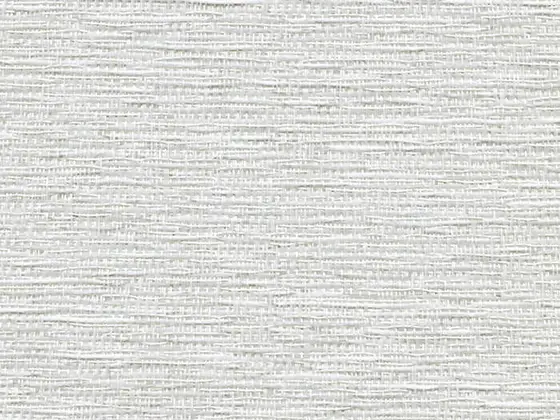

Bark / Sterling	5000 S11	-	23	23	53	24	0.38	0.26	98 in	Swatch card (PDF) · Phifer product page

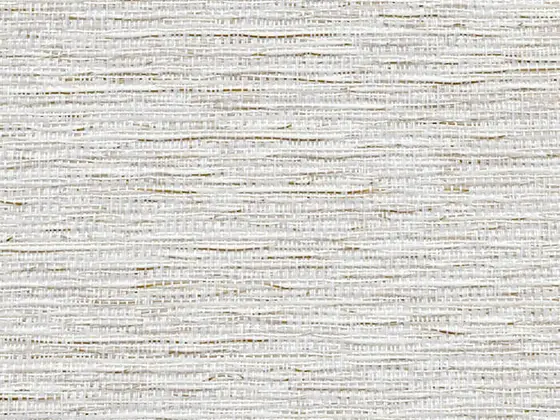

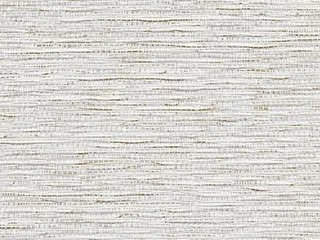

Bark / Antique	5000 S12	-	23	24	52	24	0.38	0.26	98 in	Swatch card (PDF) · Phifer product page

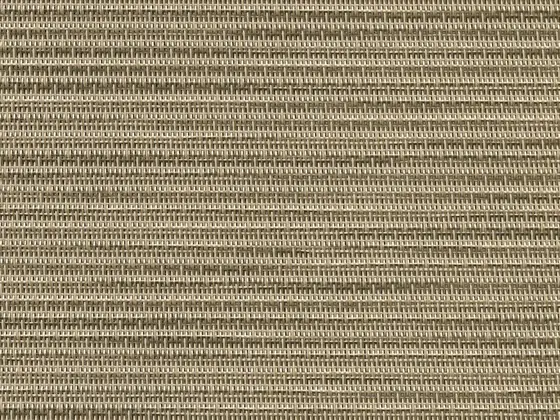

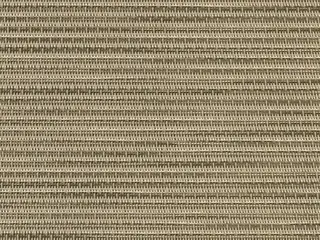

Bamboo / Wheat	5000 Q46	-	16	19	29	52	0.50	0.32	98 in	Swatch card (PDF) · Phifer product page

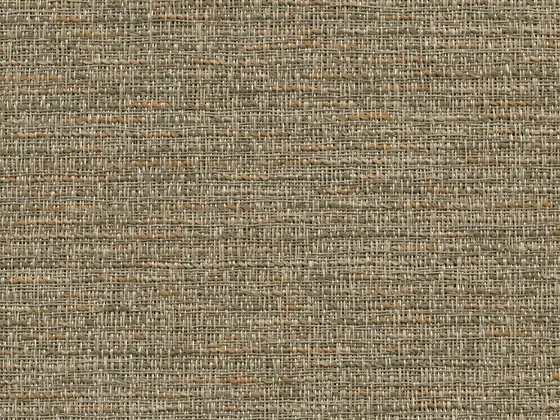

Chenille / Driftwood	5000 R92	-	14	12	26	62	0.50	0.32	98 in	Swatch card (PDF) · Phifer product page

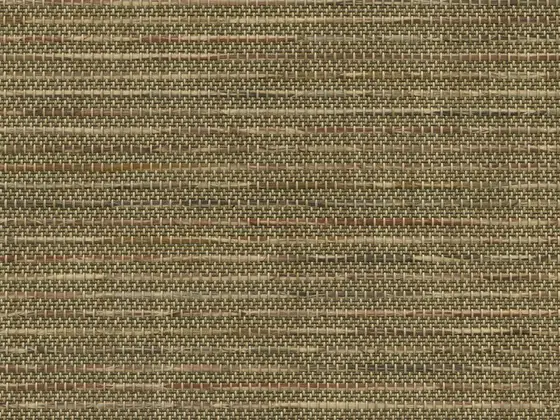

Tweed / Buckeye	5000 Q95	-	9	9	28	63	0.49	0.31	98 in	Swatch card (PDF) · Phifer product page

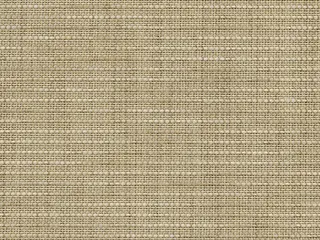

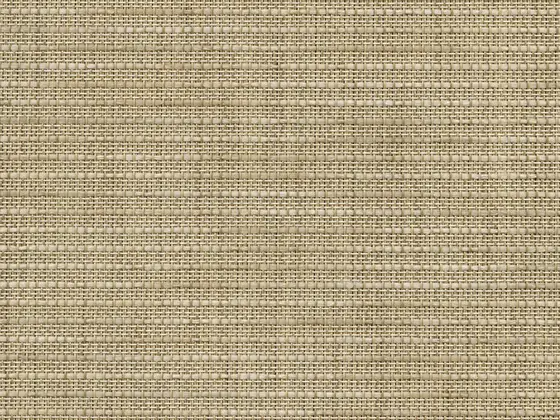

Tweed / Oatmeal	5000 Q94	-	10	11	34	55	0.46	0.30	98 in	Swatch card (PDF) · Phifer product page

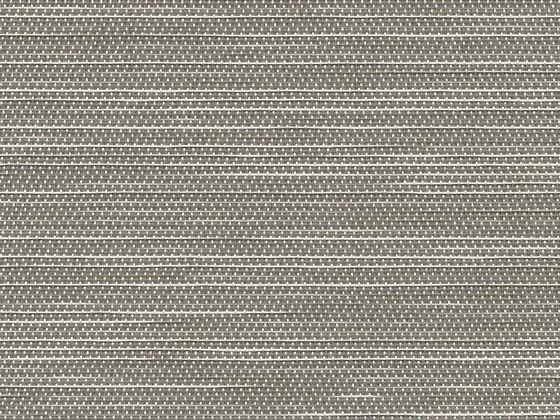

Metro / Platinum	5000 Q66	-	28	29	31	40	0.51	0.32	98 in	Swatch card (PDF) · Phifer product page

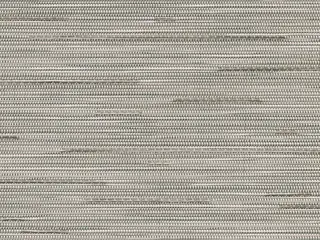

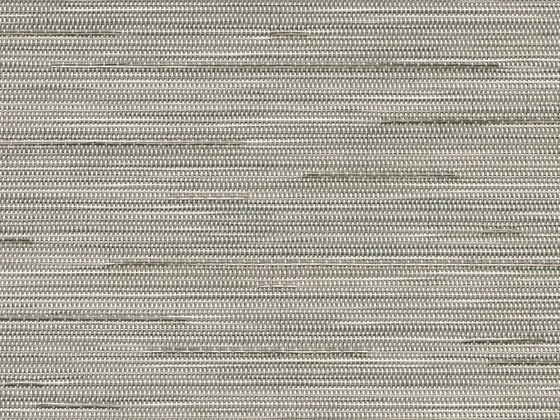

Linen / Clay	5000 Q65	-	23	23	32	45	0.50	0.31	98 in	Swatch card (PDF) · Phifer product page

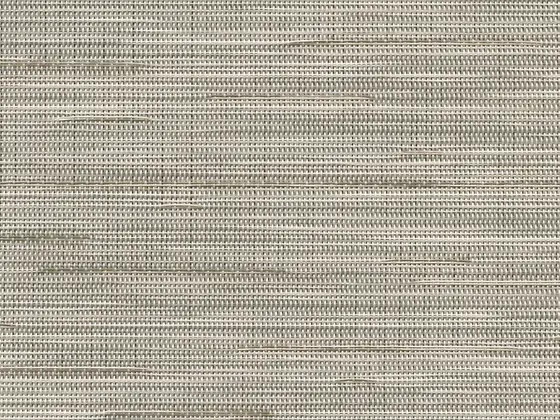

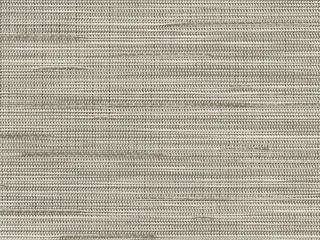

Linen / Taupe	5000 Q64	-	20	22	39	39	0.45	0.30	98 in	Swatch card (PDF) · Phifer product page

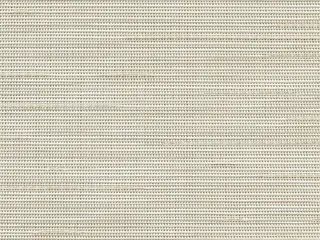

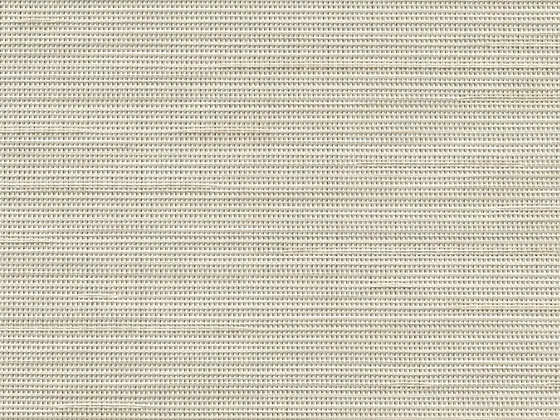

Linen / Pearl	5000 Q63	-	33	36	50	14	0.42	0.28	98 in	Swatch card (PDF) · Phifer product page

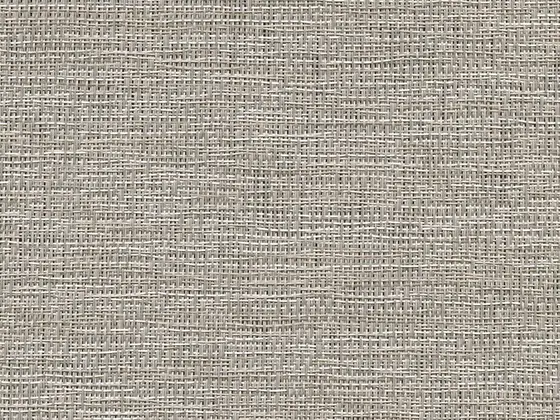

Bark / Pewter	5000 Q62	-	13	11	35	54	0.45	0.30	98 in	Swatch card (PDF) · Phifer product page

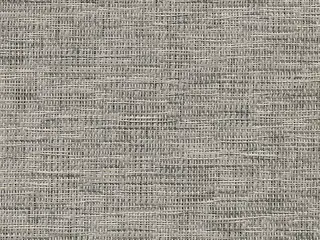

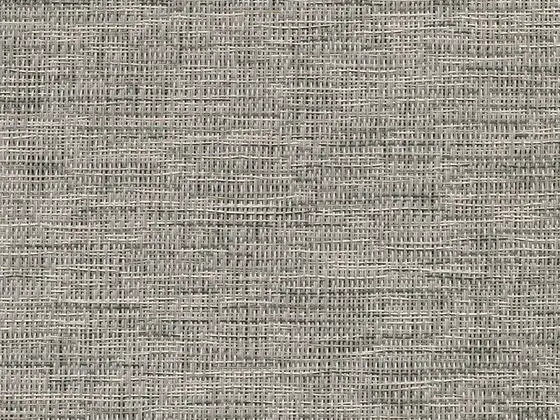

Bark / Ash	5000 Q61	-	11	8	29	63	0.48	0.31	98 in	Swatch card (PDF) · Phifer product page

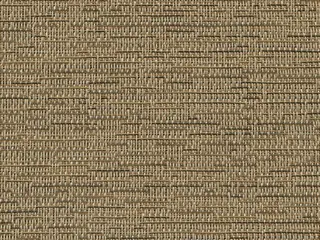

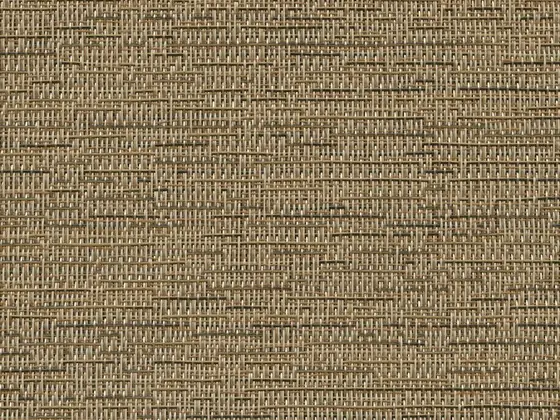

Bark / Tiger Oak	5000 Q50	-	16	17	24	59	0.52	0.33	98 in	Swatch card (PDF) · Phifer product page

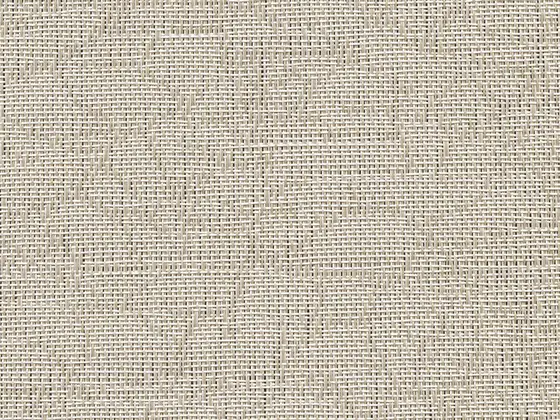

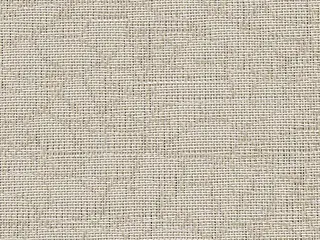

Marble / Sand	5000 Q43	-	9	9	48	43	0.37	0.26	98 in	Swatch card (PDF) · Phifer product page

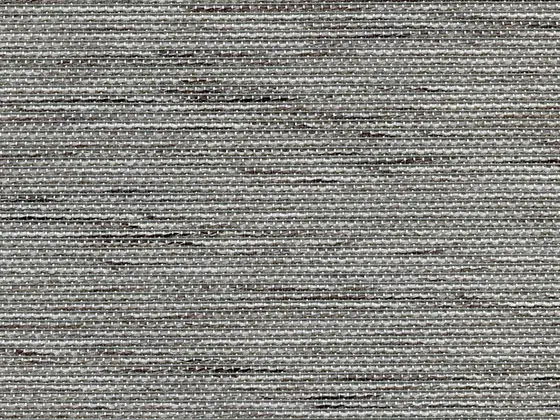

Jute / Smoke	5000 V18	-	15	17	49	34	0.39	0.27	98 in	Swatch card (PDF) · Phifer product page

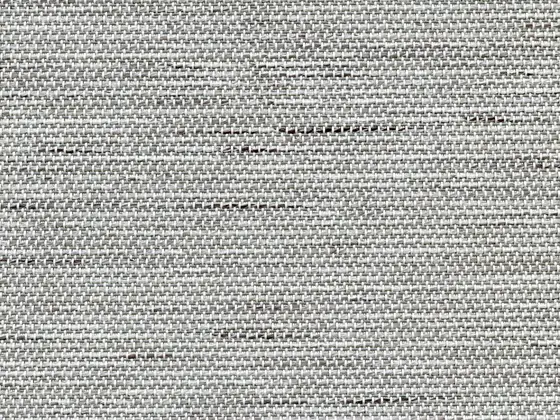

Jute / Fog	5000 V17	-	6	9	58	34	0.32	0.24	98 in	Swatch card (PDF) · Phifer product page

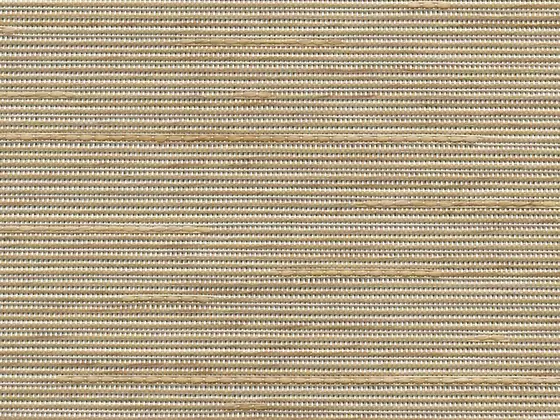

Linen / Cream	5000 U12	-	21	22	46	31	0.42	0.28	98 in	Swatch card (PDF) · Phifer product page

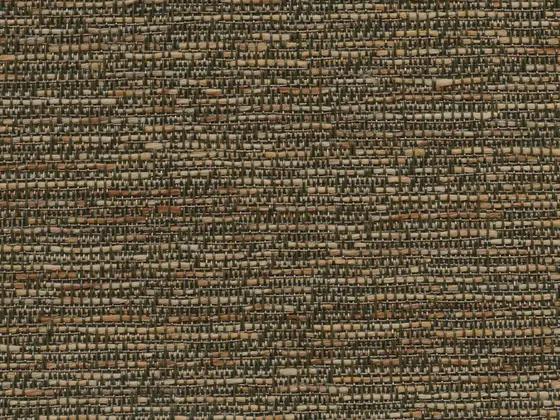

Bark / Sienna	5000 R95	-	6	6	16	78	0.55	0.34	98 in	Swatch card (PDF) · Phifer product page

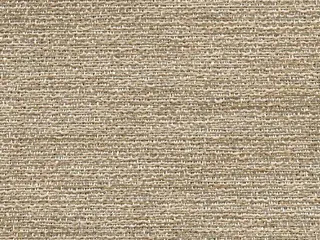

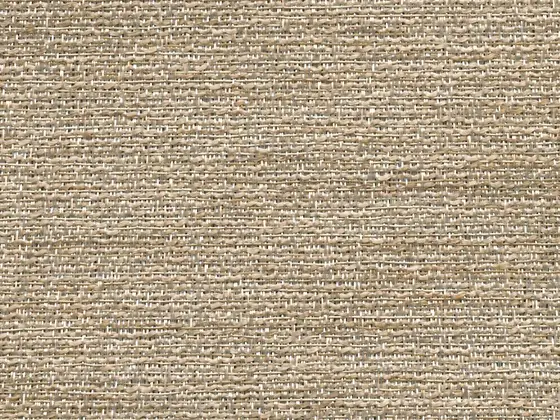

Chenille / Honey	5000 R91	-	24	26	47	27	0.42	0.28	98 in	Swatch card (PDF) · Phifer product page
Chenille / Marshmallow	5000 R89	-	15	16	67	17	0.29	0.22	98 in	Swatch card (PDF) · Phifer product page

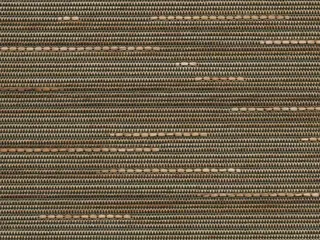

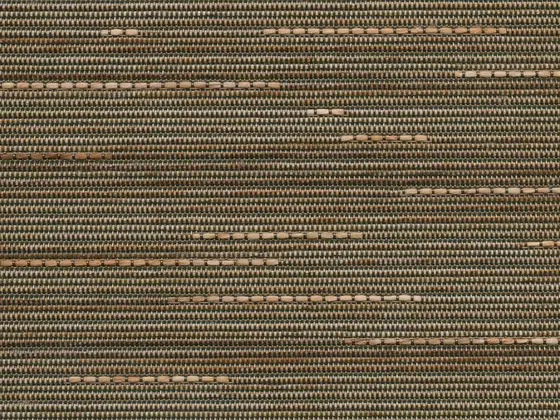

Linen / Cinnamon	5000 R12	-	8	6	20	74	0.52	0.33	98 in	Swatch card (PDF) · Phifer product page

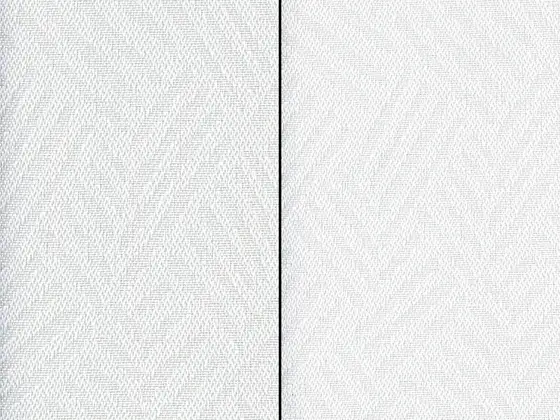

Feather / Clear	5000 R05	-	17	18	71	11	0.27	0.21	98 in	Swatch card (PDF) · Phifer product page

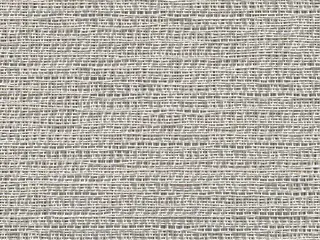

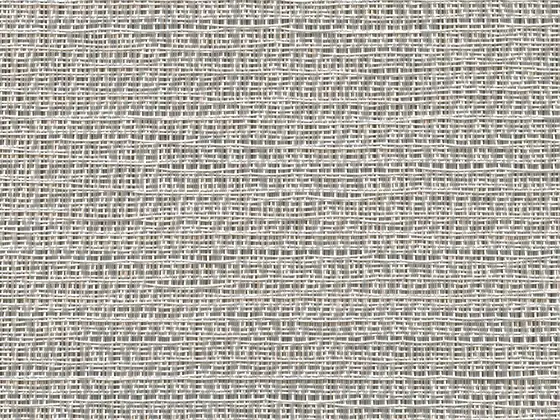

Seaglass / Crystal	5000 U29	-	45	44	49	7	0.44	0.29	98 in	Swatch card (PDF) · Phifer product page
Seaglass / Chardonnay	5000 U28	-	41	40	43	17	0.47	0.30	98 in	Swatch card (PDF) · Phifer product page

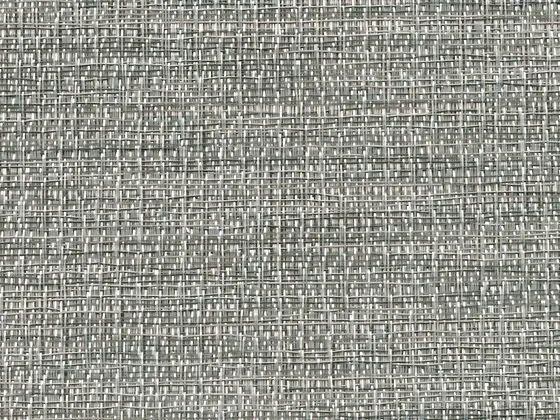

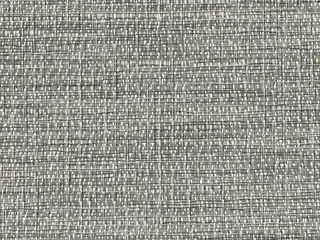

Seaglass / Silver	5000 U24	-	37	33	27	40	0.54	0.34	98 in	Swatch card (PDF) · Phifer product page

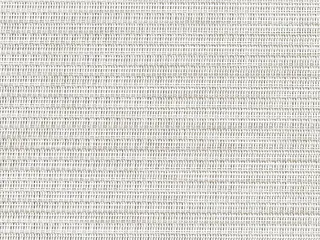

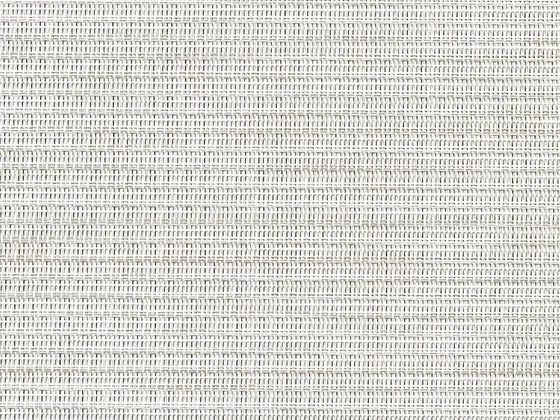

Bamboo / Birch	5000 P60	-	18	21	59	20	0.34	0.24	98 in	Swatch card (PDF) · Phifer product page

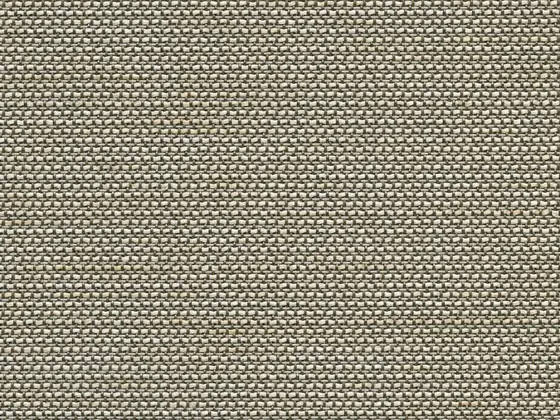

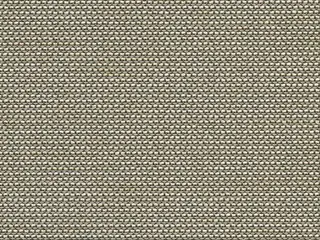

Jute / Coffee	5000 R88	-	5	5	15	80	0.55	0.35	98 in	Swatch card (PDF) · Phifer product page

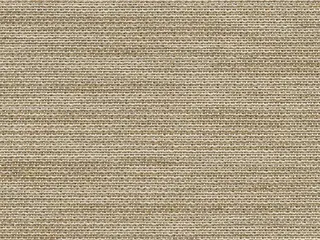

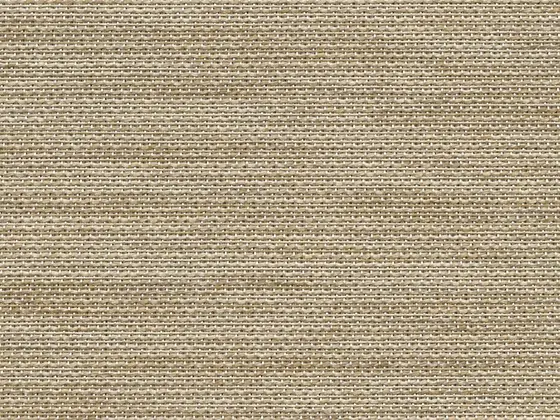

Jute / Latte	5000 R87	-	21	24	50	26	0.40	0.27	98 in	Swatch card (PDF) · Phifer product page

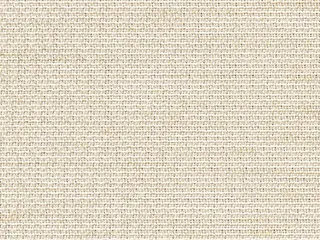

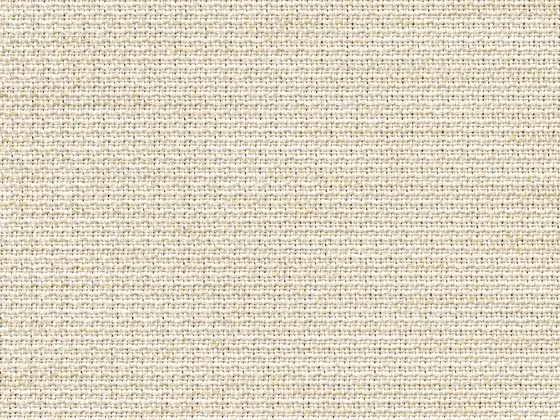

Jute / Parchment	5000 R85	-	10	13	70	17	0.26	0.21	98 in	Swatch card (PDF) · Phifer product page

Tv = visible light transmitted, Ts = solar energy transmitted, Rs = solar energy reflected, As = solar energy absorbed, in percent, as published by Phifer for the fabric on its own. SHGC single = solar heat gain coefficient of the fabric behind single 1/4 in clear glass (1/8 in where that is what Phifer publishes), SHGC insul. = behind 1 in insulating glass with a high-performance coating (1/2 in clear where published). Exterior SunTex and SunScreen figures are for the fabric installed outside the glass at a 30 degree profile angle. We bring the sample books to the consultation.

South Florida

Where SheerWeave 5000 works here

This is the card we bring when the shade is part of the decorating scheme rather than the mechanical specification: a dining room, a bedroom, a Palm Beach or Coconut Grove interior where a plain grey screen would look wrong. Because the numbers vary so widely we check the individual pattern against the exposure before we quote it, and on hard west glass we usually put a proper screen at the window and keep the jacquard for the softer elevations.

Good to Know

SheerWeave 5000: frequently asked

Why is there no single openness figure?

Because there is no single weave. Phifer publishes composition, weight, thickness and openness per pattern for this line, so the honest answer for any given colourway is the row in the table on this page. Visible transmission across the card runs from 5% to 45%, which is a wider spread than any other Phifer fabric.

Is SheerWeave 5000 fire rated?

Phifer publishes no fire listing for this line, which sets it apart from the rest of the SheerWeave range. For a hotel, an office, a condo common area or anything else that needs NFPA 701, we specify a different fabric and say so at the quote stage.

Which patterns keep the most view?

The Seaglass patterns: Seaglass/Crystal publishes 45% visible transmission, Seaglass/Chardonnay 41% and Seaglass/Silver 37%. At the other end, Jute/Coffee and Bliss/Shadow publish 5% and 6%, which is screen territory. Everything in between is on the page.

How wide can a Phifer SheerWeave 5000 shade be?

Phifer publishes standard roll widths of 74" and 98" (187.96 cm and 248.9 cm) for SheerWeave 5000, so a single shade can run to about 98 inches wide before a seam or a second shade is needed. Wider openings are covered with two shades on one headrail programmed to move together, or with a seam placed where the mullion hides it. We confirm the exact limit for the chosen system when we measure.

Which shades can be made in SheerWeave 5000?

SheerWeave 5000 is made up as roller shades, roman shades and panel tracks. We source it directly from Phifer, so the same weave goes on Lutron, Somfy, Crestron or Vertilux motors or a manual chain, cut and finished in our Fort Lauderdale workroom and installed by our own team from Miami to Palm Beach.

Can I see SheerWeave 5000 samples before ordering?

Yes. We keep the Phifer sample books in the Fort Lauderdale workroom (4539 Powerline Rd, by appointment) and the Miami Beach showroom (500 South Pointe Dr #150), and we bring the colours you shortlist to the in-home consultation so you can hold them against your glass in your own light.
