What are the Crestron shade power supplies?
Every wired Crestron Digital QMT motor runs on 24 V DC from a Crestron power supply, one home run per motor: the CSA-PWS40 wall pack for a single motor, the plenum-rated CSA-PWS2S-JBOX-ZUMLINK-CN in a 4 x 4 junction box for two, and the CSA-PWS10S-HUB-ENET for up to ten motors with a built-in Cresnet hub and an Ethernet to Cresnet bridge.

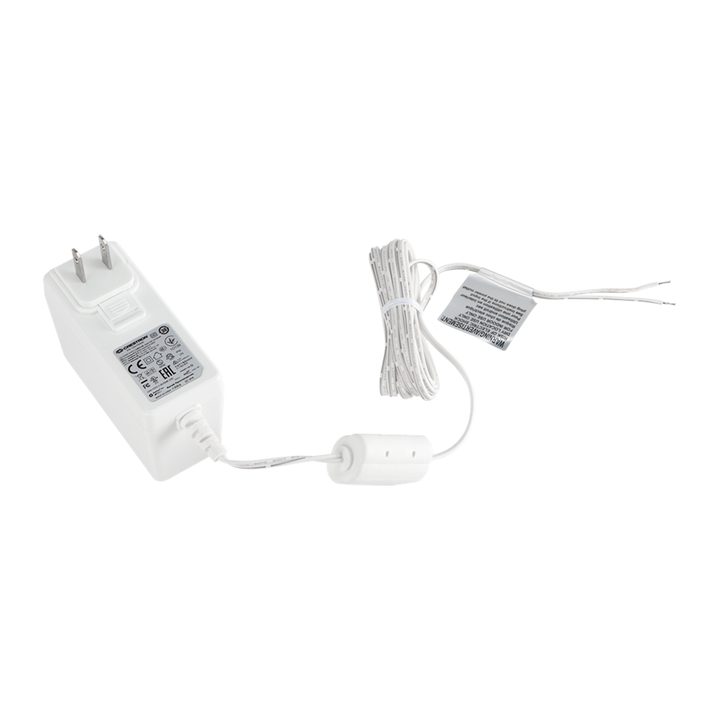

The CSA-PWS40 is a 40 W, 24 V DC regulated pack that plugs into an outlet and feeds one roller shade or drapery motor through an 8 ft cable; the CSAI-PWS40 is its international version. The CSA-PWS2S-JBOX-ZUMLINK-CN gives 100 W in total, 50 W per output, for two motors or a motor and Cresnet devices, with Zum Link ports for Crestron's Zum lighting, and is UL 2043 rated for air-handling spaces. The CSA-PWS10S-HUB-ENET is the equipment-closet piece: ten outputs at 60 W each, 250 W continuous, a self-resetting fuse on every output, five Cresnet hub segments, an Ethernet port so the whole bank talks to the processor over the network, master up and down buttons for testing, and a case that fits Crestron's CAEN enclosures. The CSA-PWS-TBLOCK-2 and -3 (and the CSAI versions) are the replacement inline terminal blocks for the motor leads. Crestron's Cresnet run limit is about 130 ft standard and 500 ft on Cresnet HP, which decides where the supplies live.
Crestron shade power supplies: every model Crestron lists
8 models on crestron.com. CSMI and CSAI part numbers are the international versions of the same product.
| Model | Crestron description | Output | Motors served | Mounting | Spec sheet |
|---|---|---|---|---|---|
| CSA-PWS40 | Power Pack for CSM-QMTDC Series Motors, 24 VDC, 40 W | - | - | 94V-0 polycarbonate, white, outlet-mountable | |
| CSAI-PWS40 (international) | Power Pack for CSM-QMTDC Series Motors, 24 VDC, 40 W, International | - | - | 94V-0 polycarbonate, white, outlet-mountable | |
| CSA-PWS2S-JBOX-ZUMLINK-CN | Two-Motor J-Box Mounted Power Supply for Motorized Shading Solutions | 100 W (4.2A) @24VDC total, LPS; 50 W (2.1A) @24VDC per output, LPS; 75 W @24VDC total (continuous load) for additional Cresnet devices | - | Mounts using screws on the back of the enclosure. Meets UL 2043 requirements for installation in an environmental air-handling (plenum) space | |
| CSA-PWS10S-HUB-ENET | 10-Motor Power Supply with Ethernet to Cresnet Bridge and Cresnet Hub | 24 Volts DC, 60 Watt max/output LPS; 250 Watts Total Continuous Load; 525 Watts 2 minutes ON, 10 minutes OFF Limited Duty Cycle | Provides power for up to (10) Crestron® roller shade motors, (10) drapery system motors, or a combination of the two up to a total of (10) motors with each motor homerun to the power supply; 10 Drapery System solutions carry 145 lbs load each | Metal, grey | |
| CSA-PWS-TBLOCK-2 | Terminal Block for CSA-PWS10S-HUB-ENET & CAEN-1X1, US/NA | - | - | - | |
| CSA-PWS-TBLOCK-3 | Terminal Block for CSA-PWS10S-HUB-ENET & CAEN-2X1, US/NA | - | - | - | |
| CSAI-PWS-TBLOCK-2 (international) | Terminal Block for CSA-PWS10S-HUB-ENET & CAEN-1X1, International | - | - | - | |
| CSAI-PWS-TBLOCK-3 (international) | Terminal Block for CSA-PWS10S-HUB-ENET & CAEN-2X1, International | - | - | - |
CSA-PWS40 specifications
Crestron's published figures for the CSA-PWS40, Power Pack for CSM-QMTDC Series Motors, 24 VDC, 40 W. The other models on this page differ in the points the table above shows.
| Power Requirements | |
|---|---|
| Power Requirements | Input |
| Power Requirements | Output |
| Connections | |
| Line | (1) NEMA 1-15P ungrounded AC power plug, line power input |
| Load | (1) 8 ft (2.43 m) attached cable with inline ferrite core and flying leads; Connect only one CSM‑QMTDC series roller shade or drapery track motor |
| Construction | |
| Construction | 94V-0 polycarbonate, white, outlet-mountable |
| Environmental | |
| Temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 15% to 95% RH (noncondensing) |
| Environmental | For indoor use only |
| Dimensions | |
| Height | 2.91 in (74 mm) |
| Width | 1.71 in (43 mm) |
| Depth | 2.21 in. (53 mm); Projects 1.54 in. (39 mm) from the AC outlet |
| Weight | |
| Weight | 6.4 oz (182 g) |
| Compliance | |
| Compliance | cETLus 60950, cETLus UL1310, UL, SELV, EAC, LPS, 2MOPP, CE, Ukraine UKRSepro, VCCI, RoHS Level VI, FCC, CAN ICES-3, IP52, Double Insulation, WEEE |
Power supplies documents from Crestron
Spec sheets, guides and certificates published by Crestron (PDF, opens on crestron.com).
- Spec Sheet for: CSA-PWS40
- Quick Start for: CSA-PWS40 and CSAI-PWS40
- CAD Drawing for: CSA-PWS40
- Specification: Roller Window Shades (DOCX)
- Specification: Roller Window Shades (PDF)
- Spec Sheet for: CSAI-PWS40
- Spec Sheet for: CSAI‑PWS40
- CAD Drawing for: CSAI-PWS40
- Spec Sheet for: CSA-PWS2S-JBOX-ZUMLINK-CN
- Spec Sheet: CSA-PWS2S-JBOX-ZUMLINK-CN
- Product Information: CSA-PWS2S-JBOX-ZUMLINK-CN
- Design Guide: Crestron® Shading Solutions
- Product Manual: Crestron Zum Lighting Control
- CAD Drawing: CSA-PWS2S-JBOX-ZUMLINK-CN
Where the power supplies fit
In a South Florida condo the supplies sit in the AV closet or a media cabinet, one PWS10S for every ten shades and drapery tracks, with a home run of 4-conductor Cresnet to each window pulled before the drywall. That home-run rule, no daisy chains, is the one thing to tell the electrician early; our pre-wiring guide has the cable gauges and run lengths. A single retrofit shade near an outlet takes a PWS40 behind the sofa; a shade in a suspended ceiling takes the plenum-rated PWS2S. The battery shades need none of this.
