Phifer SheerWeave 4550/4650 Fabric
8 colourways, openness 3%, 5%, solar screen, up to 98 inches wide. Every swatch and every published specification, from the workroom that cuts Phifer in Fort Lauderdale and installs it from Miami to Palm Beach.

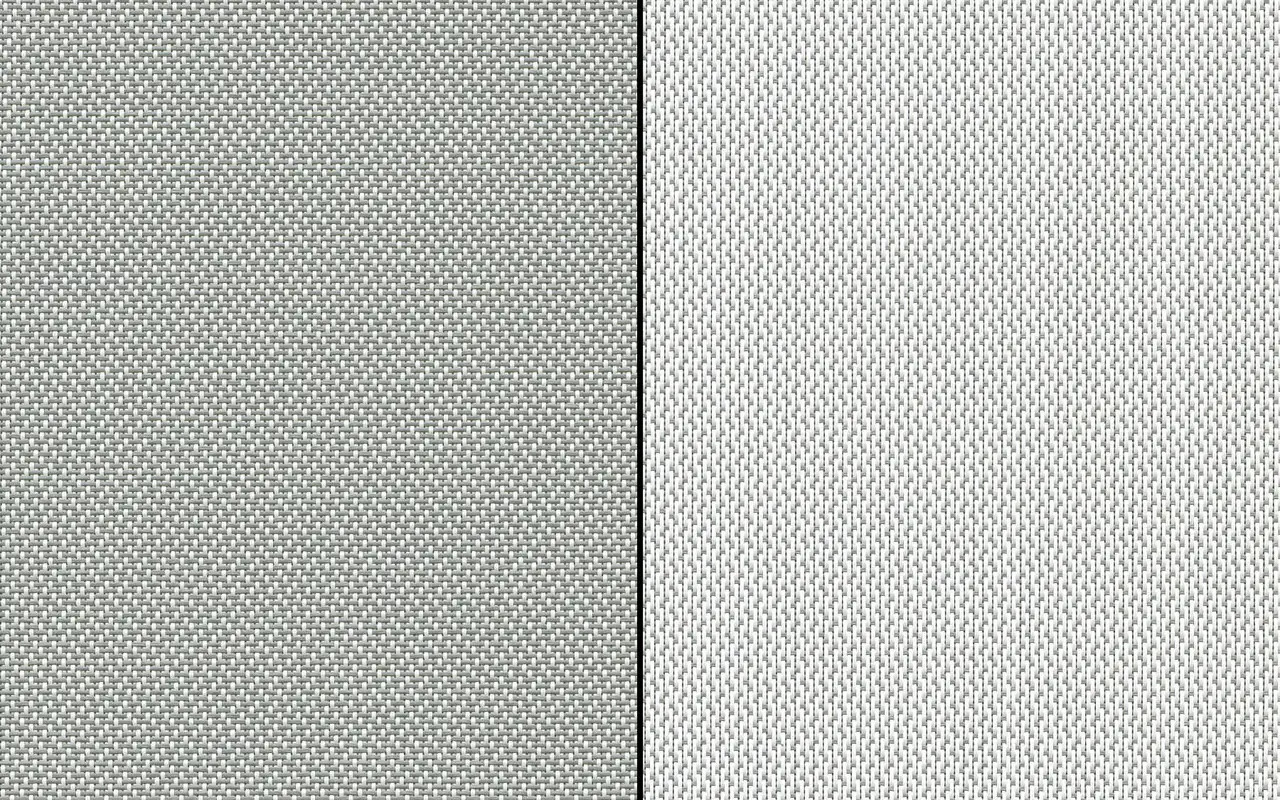

A twill weave with a two-sided face, in four colours
Styles 4650 at 3% and 4550 at 5% are woven as a twill from thin vinyl-coated polyester yarns, 17% polyester and 83% vinyl on polyester, which gives the fabric a diagonal grain and a different appearance on each side. They are the lighter members of the polyester group at 13.3 and 13.0 oz per square yard and 0.026 and 0.025 inches thick, and they come in two widths only, 63 and 98 inches. Phifer publishes UV blockage of about 97% and 95% and acoustic values of NRC 0.10 and 0.15.
There are four colours: Linen, Granite, Chestnut and Coal. What is unusual is how little the numbers move across them. Visible transmission runs 7% to 11% and solar reflectance 47% to 59%, so even the dark Coal reflects 47% of the solar energy that hits it, where a dark yarn in a single-sided weave would reflect single digits. That is the twill construction doing its job: a dark face for view clarity with a reflective back working behind it. Microban, GREENGUARD Gold, RoHS and REACH and a full fire set are all listed.
SheerWeave 4550/4650
4 colours, 8 colourways. Openness 3%, 5%; up to 98 in wide; fire listed.
Colourways
Every SheerWeave 4550/4650 colourway, with Phifer's published figures
| Swatch | Colour | Code | Openness | Tv | Ts | Rs | As | SHGC single | SHGC insul. | Width | Docs |
|---|---|---|---|---|---|---|---|---|---|---|---|

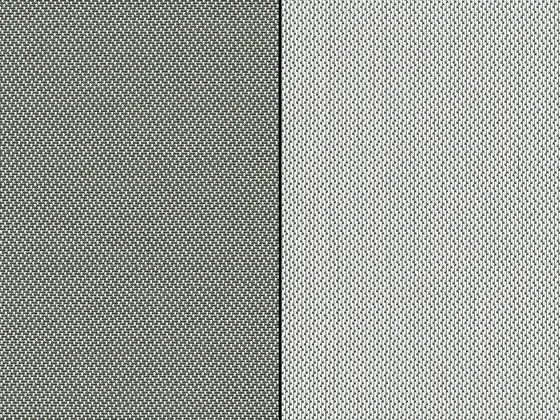

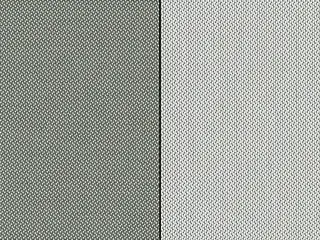

| Chestnut | 4650 V47 | 3% | 8 | 7 | 48 | 45 | 0.37 | 0.26 | 98 in | Swatch card (PDF) · Phifer product page | |

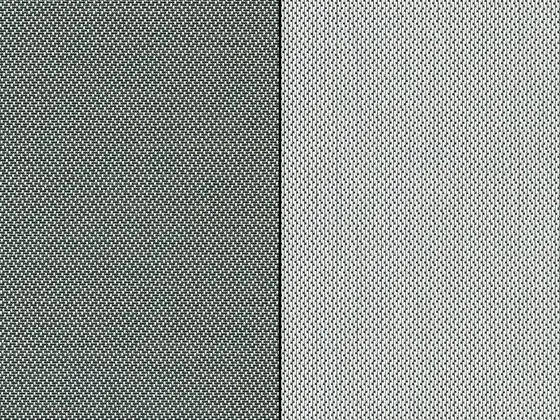

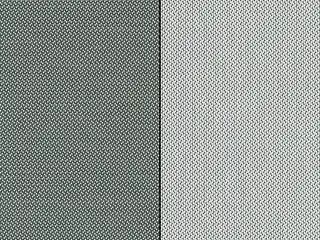

| Coal | 4650 V45 | 3% | 7 | 5 | 47 | 48 | 0.37 | 0.26 | 98 in | Swatch card (PDF) · Phifer product page | |

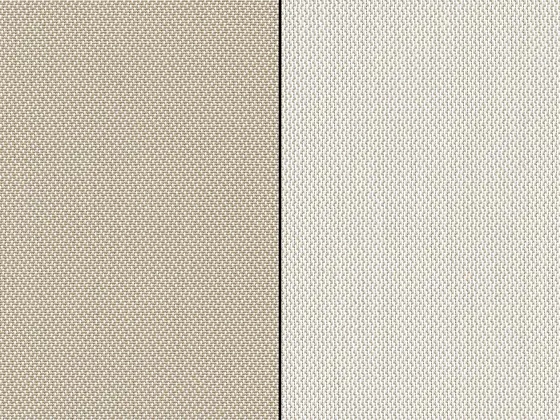

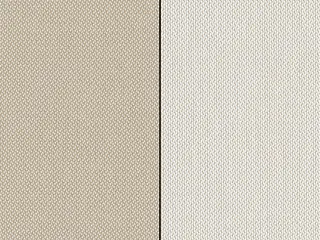

| Linen | 4650 P65 | 3% | 8 | 7 | 58 | 35 | 0.32 | 0.23 | 98 in | Swatch card (PDF) · Phifer product page | |

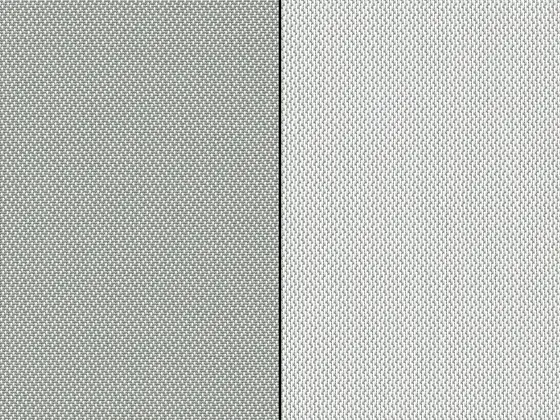

| Granite | 4650 P10 | 3% | 8 | 6 | 55 | 39 | 0.33 | 0.24 | 98 in | Swatch card (PDF) · Phifer product page | |

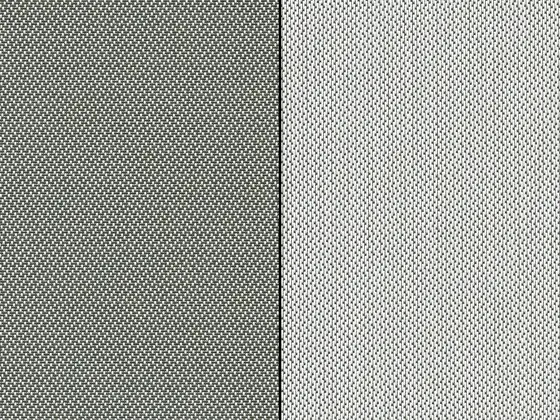

| Chestnut | 4550 V47 | 5% | 11 | 9 | 48 | 43 | 0.37 | 0.26 | 98 in | Swatch card (PDF) · Phifer product page | |

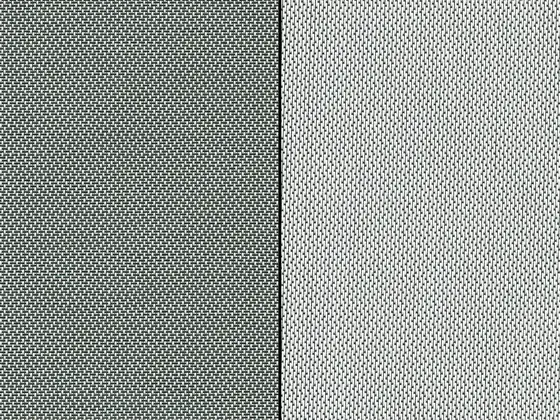

| Coal | 4550 V45 | 5% | 9 | 8 | 48 | 44 | 0.37 | 0.26 | 98 in | Swatch card (PDF) · Phifer product page | |

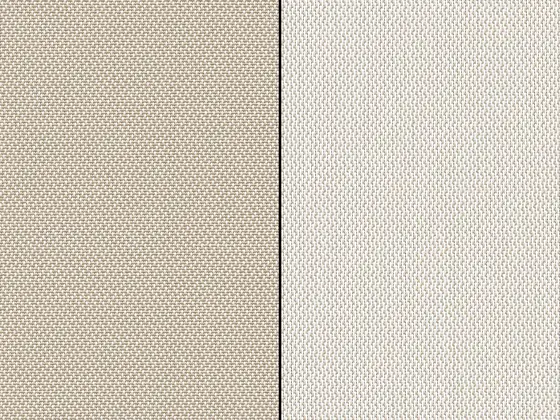

| Linen | 4550 P65 | 5% | 10 | 9 | 59 | 32 | 0.31 | 0.23 | 98 in | Swatch card (PDF) · Phifer product page | |

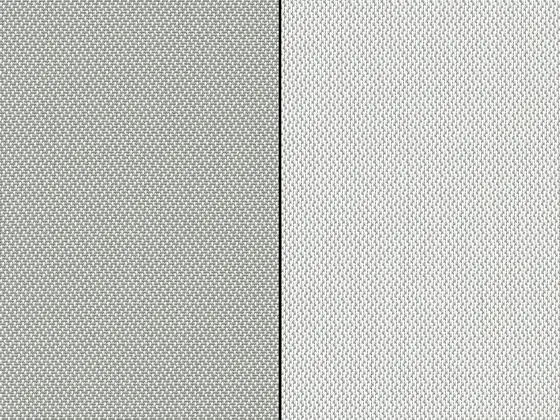

| Granite | 4550 P10 | 5% | 8 | 7 | 56 | 37 | 0.33 | 0.24 | 98 in | Swatch card (PDF) · Phifer product page |
Tv = visible light transmitted, Ts = solar energy transmitted, Rs = solar energy reflected, As = solar energy absorbed, in percent, as published by Phifer for the fabric on its own. SHGC single = solar heat gain coefficient of the fabric behind single 1/4 in clear glass (1/8 in where that is what Phifer publishes), SHGC insul. = behind 1 in insulating glass with a high-performance coating (1/2 in clear where published). Exterior SunTex and SunScreen figures are for the fabric installed outside the glass at a 30 degree profile angle. We bring the sample books to the consultation.
Where SheerWeave 4550/4650 works here
A dark, clear-view screen that still reflects heat is a useful thing on South Florida glass, and Coal at 3% is the colourway that delivers it here. The limit is width: at 98 inches this fabric will not cover a wide slider in one piece, so we tend to specify it on standard windows and use the 126-inch cards for the big openings.
The two-sided twill version of SheerWeave 4500/4600: fewer colours and a narrower roll, but a dark face that still reflects heat.
SheerWeave 4550/4650: frequently asked
Why does the dark colour still reflect heat?
Because the two sides of the twill are different. Phifer publishes 47% solar reflectance for Coal, against 3% for a comparable dark colour in a single-sided polyester weave, so you keep the view clarity of a dark face without handing all of the heat to the fabric.
How wide can one shade be?
98 inches. That is the limit for both styles, so wide sliders take two shades on a shared headrail. For a single shade over a wide opening in a similar palette, the 4500/4600 card goes to 126 inches.
How wide can a Phifer SheerWeave 4550/4650 shade be?
Phifer publishes standard roll widths of 63" and 98" (160.0 cm and 248.9 cm) for SheerWeave 4550/4650, so a single shade can run to about 98 inches wide before a seam or a second shade is needed. Wider openings are covered with two shades on one headrail programmed to move together, or with a seam placed where the mullion hides it. We confirm the exact limit for the chosen system when we measure.
Which shades can be made in SheerWeave 4550/4650?
SheerWeave 4550/4650 is made up as roller shades, roman shades and panel tracks. We source it directly from Phifer, so the same weave goes on Lutron, Somfy, Crestron or Vertilux motors or a manual chain, cut and finished in our Fort Lauderdale workroom and installed by our own team from Miami to Palm Beach.
Can I see SheerWeave 4550/4650 samples before ordering?
Yes. We keep the Phifer sample books in the Fort Lauderdale workroom (4539 Powerline Rd, by appointment) and the Miami Beach showroom (500 South Pointe Dr #150), and we bring the colours you shortlist to the in-home consultation so you can hold them against your glass in your own light.
Compare SheerWeave 4550/4650 with
SheerWeave 4800
A 1% screen in twelve solid colours, thick and near-opaque
SheerWeave 4901/4903
Thirteen colours at 1% and 3%, with the best acoustic figure in the library
SheerWeave 5000
A jacquard card of thirty-seven patterns, each with its own numbers
SheerWeave 5500
A decorative 5% sheer where the light comes through the yarn
SheerWeave 8000
100% polyester at 3%, Cradle to Cradle certified, 118 inches wide
SheerWeave Basic
Five colours, three openness factors, 126 inches, no extras
Phifer SheerWeave 4550/4650 shades in Fort Lauderdale, Miami, Boca Raton & Palm Beach
We source SheerWeave 4550/4650 directly from Phifer for any project from Miami to Palm Beach, cut and finish the shades in our Fort Lauderdale workroom on the Lutron, Somfy, Crestron or manual system the window calls for, and install them with our own team. Both showrooms, 4539 Powerline Rd in Fort Lauderdale (by appointment) and 500 South Pointe Dr #150 in Miami Beach, have motorized shades running so you can see the fabric in motion.
