Five rooms, two layers, one gesture
A private waterfront residence at The Ritz-Carlton Residences, Miami Beach: ripplefold sheers and blackout draperies on Lutron Sivoia QS motorized tracks, every panel sewn in our own atelier.

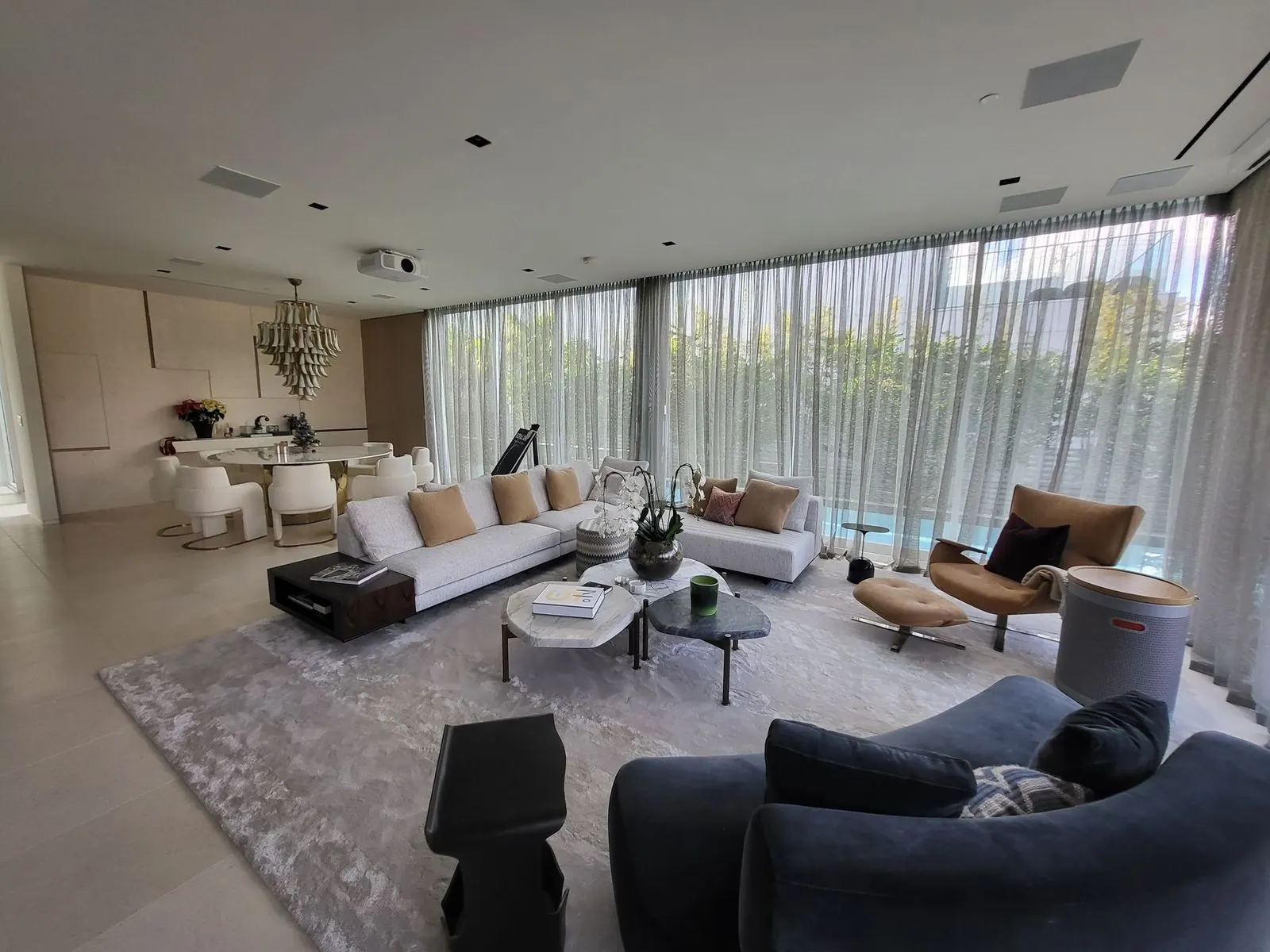

Inside the residence
Ripplefold sheers gliding on Lutron Sivoia QS tracks across the social areas, blackout closing in the bedrooms, and the compact stack that keeps the water view open.
Glass on every wall, and nowhere to hide the hardware
This residence is built around its water view. Nearly every principal room opens onto floor-to-ceiling glass, with ceilings at ten feet in the social areas, the master and both children's bedrooms, and nine feet in the guest suite. That is a beautiful problem: the taller the opening, the more the drapery has to behave - which is why every track here is a Lutron Sivoia QS drapery drive set inside a recessed ceiling pocket.
Interior design was by Fanny Haim & Associates, who specified a two-layer treatment for the bedrooms - a sheer for daytime, a blackout behind it for sleep - and stationary ripplefold side panels to frame the social areas, over a quiet third layer of Lutron Basketweave Pearl solar shades. Our job was to make five rooms of that specification move silently, stack narrowly, and land on the same Lutron system as the rest of the house.
Project at a glance
Location
Private waterfront residence · The Ritz-Carlton Residences, Miami Beach, FL - floor-to-ceiling glass in nearly every principal room, ceilings at ten feet.
Designer
Fanny Haim & Associates - the fabric schedule and interior direction, five treatment zones specified room by room.
Treatments
Ripplefold sheers and blackout draperies on two independent Lutron Sivoia QS tracks per bedroom opening; stationary ripplefold side panels in the social areas.
Solar layer
Lutron Basketweave Pearl at 1% openness behind the drapery, on Sivoia QS rollers - glare and heat handled before the fabric sees them.
System
Every drive native to the residence's Lutron system: the drapery joins the lighting scenes - "Good night" closes the bedrooms, "Morning" opens the sheers - with no second app or hub.
Fabrication & install
Every panel cut and sewn in our own atelier; pocket dimensions confirmed on site, tracks set dead level over ten-foot openings, every motor addressed and programmed to the house system.
Why Sivoia QS on every track
Synchronised, not merely motorized
Every drapery track in the residence runs on Lutron Sivoia QS. Across a wall of glass this matters more than it sounds: the panels start together, travel together and stop together, so a room reads as one movement instead of four motors arriving at slightly different times.
Quiet enough for a bedroom
Sivoia QS was engineered around near-silent operation. In the master and children's rooms the blackout layer can close on a schedule without waking anyone - the reason we specify it over cheaper track motors in sleeping rooms.
One system, not a second remote
Because the tracks are native Lutron, the drapery joins the same scenes as the lighting. "Good night" closes blackout in the bedrooms; "Morning" opens sheers across the social areas. No separate app, no separate hub. See our Lutron collection.
Ripplefold on snap tape
Every panel is ripplefold rather than pleated. On a motorized track it is the smoothest heading available, and the compact stack keeps the open drapery off the glass - critical when the view is the reason for the room. More on ripplefold draperies.
The fabric schedule
Five treatment zones, specified by the designer and fabricated by us. Fabric houses at this level are the difference between a drape that hangs and a drape that falls.
| Zone | Treatment | Fabric | Mill / vendor |
|---|---|---|---|
| WT-1 Den & social areas |
Ripplefold stationary side panels |  Gilbert #96J8081 Open-weave natural sheer |
JF Fabrics |
| WT-2 Guest bedroom |
Ripplefold sheer + blackout |  Maddox, Antique #F1282/01 Striated open sheer Velvet blackout liner |
Clarke & Clarke |
| WT-4 Master bedroom |
Ripplefold sheer + blackout |  Marquis Papyrus #5774, Sand Crinkled organic-texture sheer · Pindler  Exetor, Flax #222 Velvet blackout drape · Norbar |
Pindler Norbar |
| WT-5 Children's bedroom 1 |
Ripplefold sheer + blackout |  Mirage Collection, Fog 100% Belgian linen, 118" wide-width · Jean de Merry  Spencer Ink #DE13944 Melange wool flannel jacquard · Holland & Sherry |
Jean de Merry Holland & Sherry |
| WT-3 Children's bedroom 2 |
Ripplefold sheer + blackout |  Composite, Rain Open-weave linen sheer · Fabricut  Fitzroy Parchment #DE13945 Melange wool jacquard · Holland & Sherry |
Fabricut Holland & Sherry |
A detail that shows the level: the Holland & Sherry wool flannel in children's bedroom 1 is a reversible cloth, and the schedule called for the lighter face outward. Get that backwards and the room reads wrong - which is exactly the kind of thing a workroom catches and a drop-shipper does not.
Tap a fabric for its full specification - the Lutron and Holland & Sherry fabrics link to their pages in our libraries.
Lutron · Basketweave Pearl - Solar Shades
| Program | Lutron Fabric Collections · Classico / Commercial collections |
| Pattern · Colour | Basketweave · Pearl · PP75-48-1 |
| Type | Solar screen · roller shades |
| Openness | 1% |
| Composition | 24% polyester · 76% vinyl on polyester |
| Max usable width | 96 in (2438 mm) · railroadable · seamable |
| Acoustics | NRC 0.30 |
| Fire rating | NFPA 701 · CA Title 19 · CAN/ULC-S109 · BS 5867-2B |
| Certifications | GREENGUARD · lead-free · RoHS · anti-microbial properties |
| In this project | Solar shades behind the drapery layers, on Sivoia QS rollers on the residence's Lutron system |
| More | Our Lutron Basketweave page · Lutron solar screen fabrics · Basketweave at Lutron Fabrics |
Jean de Merry · Mirage Fog - Sheers
| House | Jean de Merry · Mirage Collection |
| Colour | Fog |
| Type | Belgian linen sheer |
| In this project | Ripplefold sheers on Lutron Sivoia QS tracks - children's bedroom 1 |
| More | Our sheer draperies · The fabric libraries we work from |
Fabricut · Composite Rain - Sheers
| House | Fabricut |
| Pattern · Colour | Composite · Rain |
| Type | Open-weave linen sheer |
| In this project | Ripplefold sheers on Sivoia QS tracks - children's bedroom 2 |
| More | Our sheer draperies · The fabric libraries we work from |
JF Fabrics · Gilbert - Sheers
| House | JF Fabrics |
| Pattern · Colour | Gilbert · 96J8081 |
| Type | Open-weave natural sheer |
| In this project | Stationary ripplefold side panels in the den and social areas, on Sivoia QS tracks |
| More | Our sheer draperies · Ripplefold draperies |
Clarke & Clarke · Maddox Antique - Sheers
| House | Clarke & Clarke |
| Pattern · Colour | Maddox · Antique · F1282/01 |
| Type | Striated sheer |
| In this project | Guest bedroom sheer layer on Sivoia QS tracks, with a velvet blackout liner behind it |
| More | Our sheer draperies · The fabric libraries we work from |

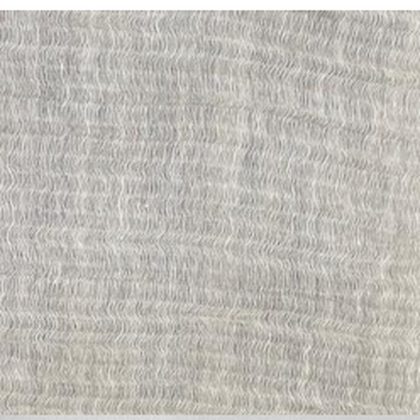

Pindler · Marquis Papyrus Sand - Sheers
| House | Pindler |
| Pattern · Colour | Marquis Papyrus · 5774 Sand |
| Type | Crinkled sheer |
| In this project | Master bedroom sheer layer on Sivoia QS tracks |
| More | Our sheer draperies · The fabric libraries we work from |

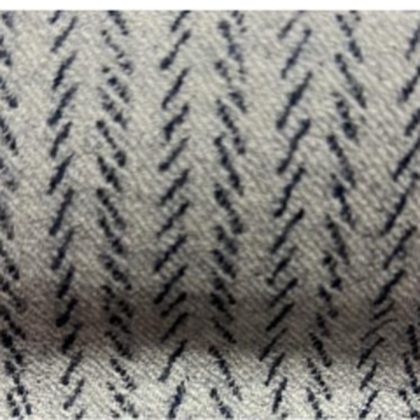

Holland & Sherry · Spencer Ink - Drapery
| House | Holland & Sherry |
| Pattern · Colour | Spencer · Ink · DE13944 |
| Type | Melange wool flannel jacquard - a reversible cloth, hung with the lighter face outward as the schedule called for |
| In this project | Blackout drapery in children's bedroom 1, on Sivoia QS tracks |
| More | Our Holland & Sherry drapery library · Blackout draperies |

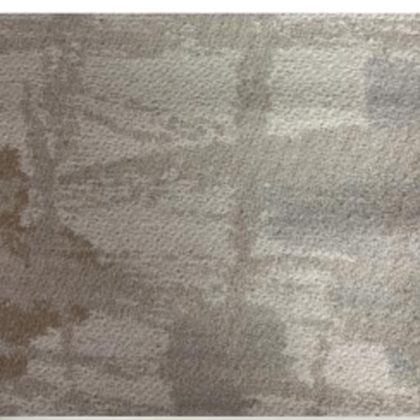

Holland & Sherry · Fitzroy Parchment - Drapery
| House | Holland & Sherry |
| Pattern · Colour | Fitzroy · Parchment · DE13945 |
| Type | Melange wool jacquard |
| In this project | Blackout drapery in children's bedroom 2, on Sivoia QS tracks |
| More | Our Holland & Sherry drapery library · Blackout draperies |

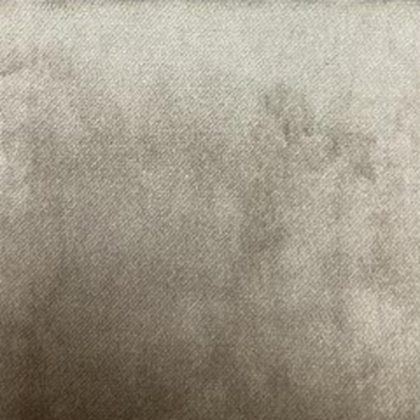

Norbar · Exetor Flax - Blackout Drapery
| House | Norbar Fabrics |
| Pattern · Colour | Exetor · Flax · 222 |
| Type | Velvet blackout |
| In this project | Master bedroom blackout drapery, on Sivoia QS tracks |
| More | Our blackout draperies · The fabric libraries we work from |
What the 1% screen behind the drapery does
Behind the designer's sheers and blackout drapery sits a quiet third layer: Lutron Basketweave in Pearl at 1% openness. It is the tightest weave we install and Pearl is a light colour, so the numbers are all about protection: 3% of daylight through, 67% of the sun's energy reflected, 4% transmitted. Lutron rates it at 14% view-through, enough to keep the bay as a presence behind the sheers without ever competing with them. The drapery layers do the rest: the sheers soften what the screen lets in, and the blackouts take the bedrooms dark.
Figures: Lutron fabric specifications for Basketweave Pearl PP75-48-1, retrieved September 2026.
Read next: Openness 1% vs 3% vs 5% vs 10% · Dark or light solar shade fabric? · Basketweave colourways
What you never see once the drapes are hung
The reason these panels disappear into the architecture is the work that happened before the fabric arrived: pocket dimensions confirmed on site, tracks set dead level over ten-foot openings, and every motor addressed and programmed to the house system.

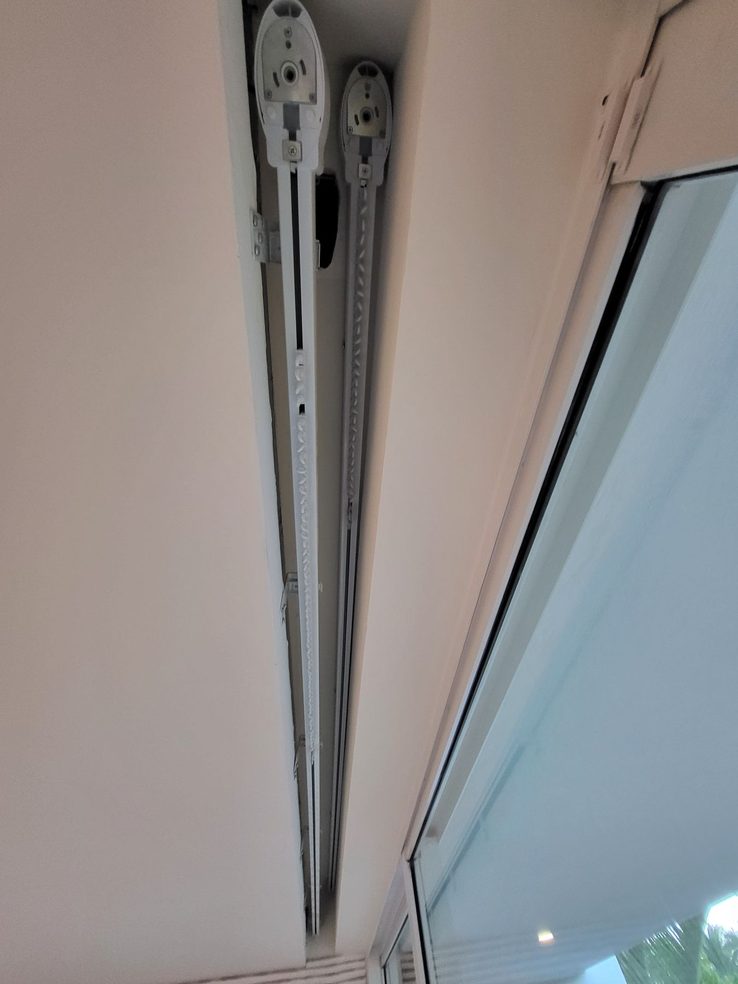

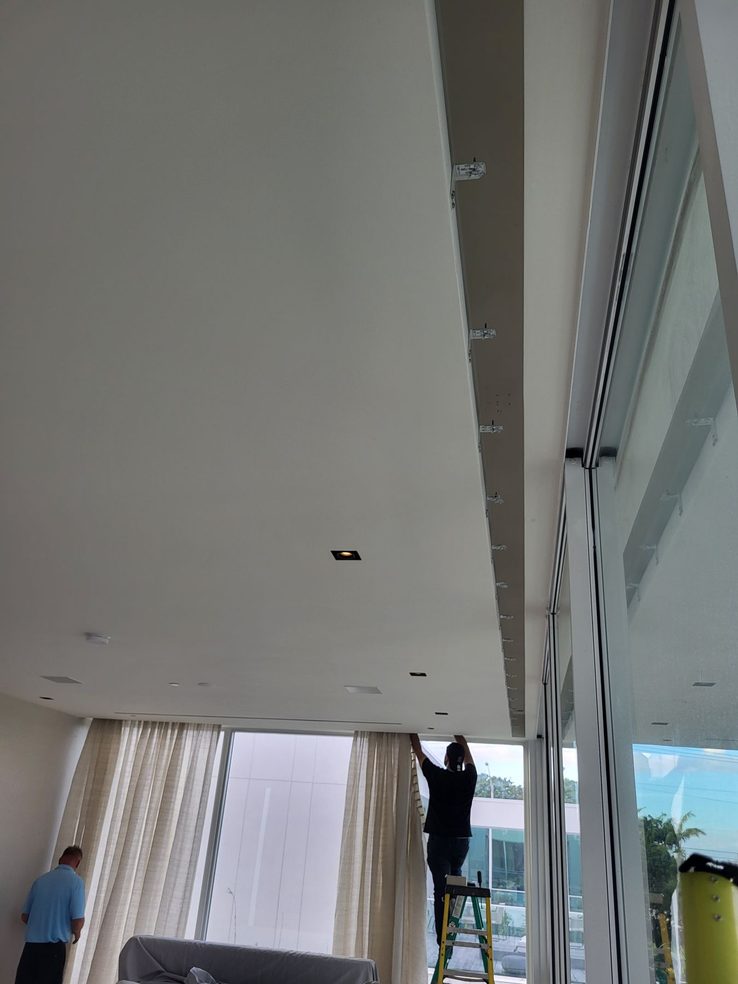

Track in pocket
Fitting the sheer layer

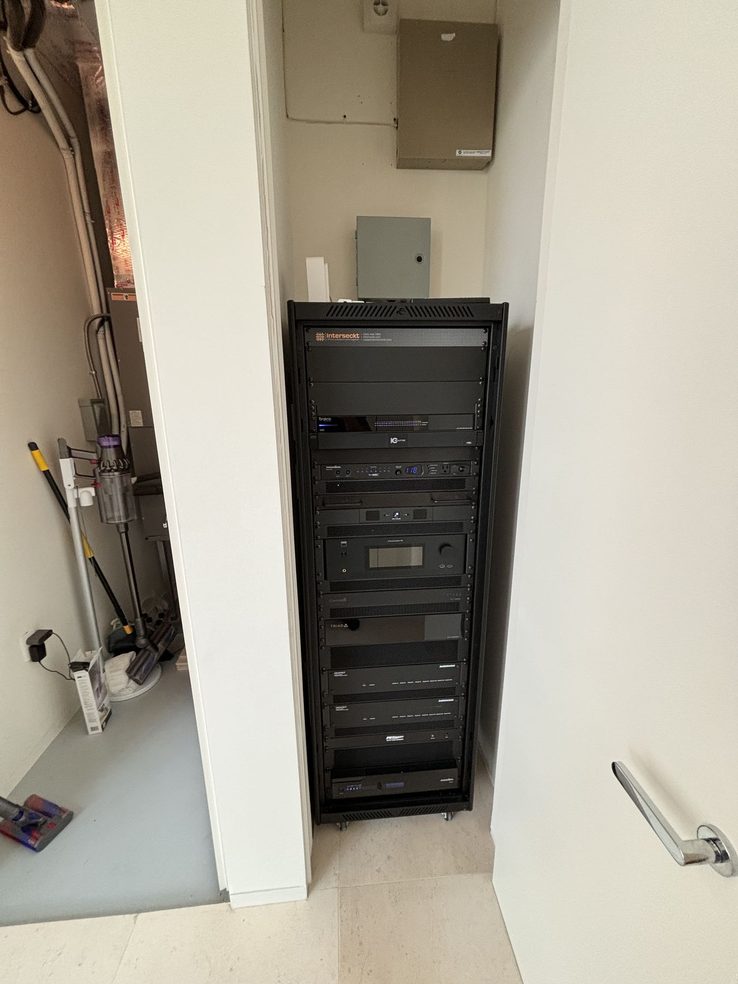

The control rack

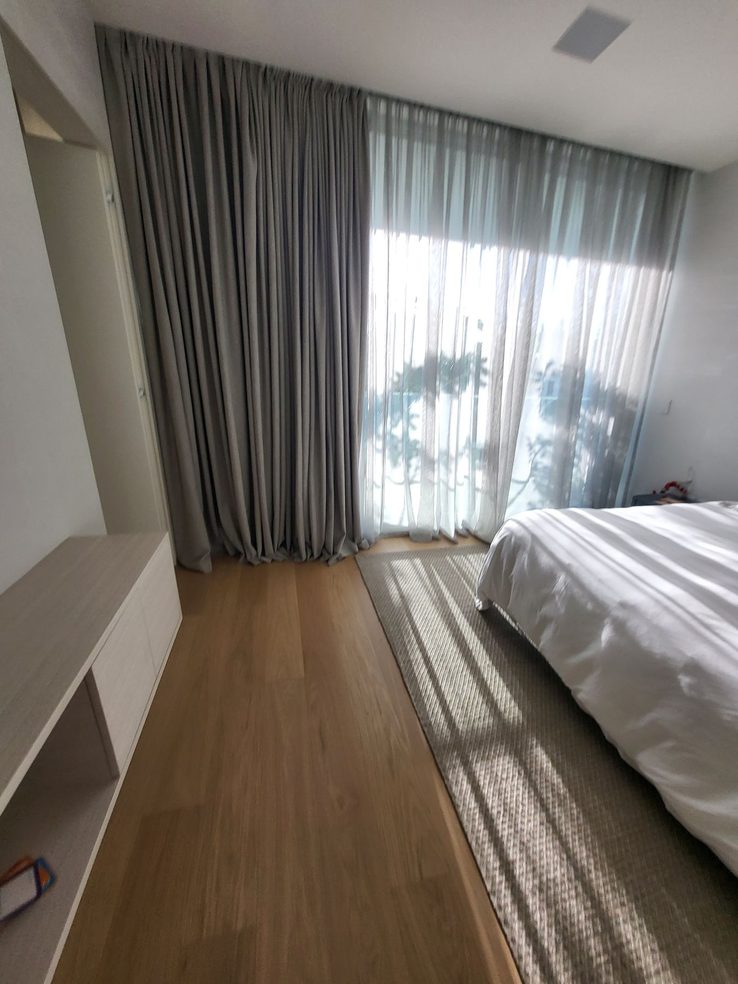

Stack, fully open
Wave consistency

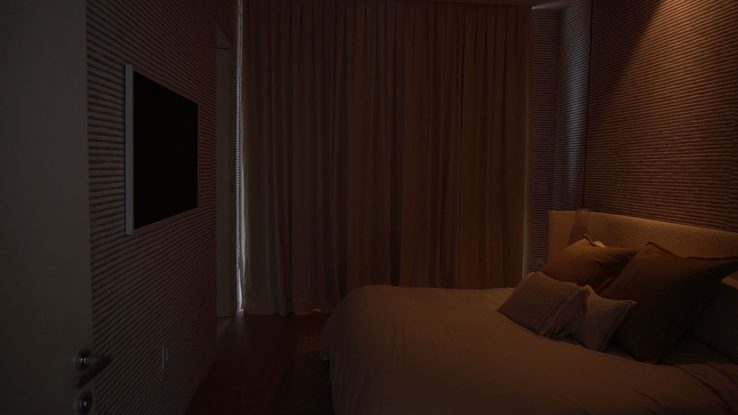

Blackout, closed
Finished

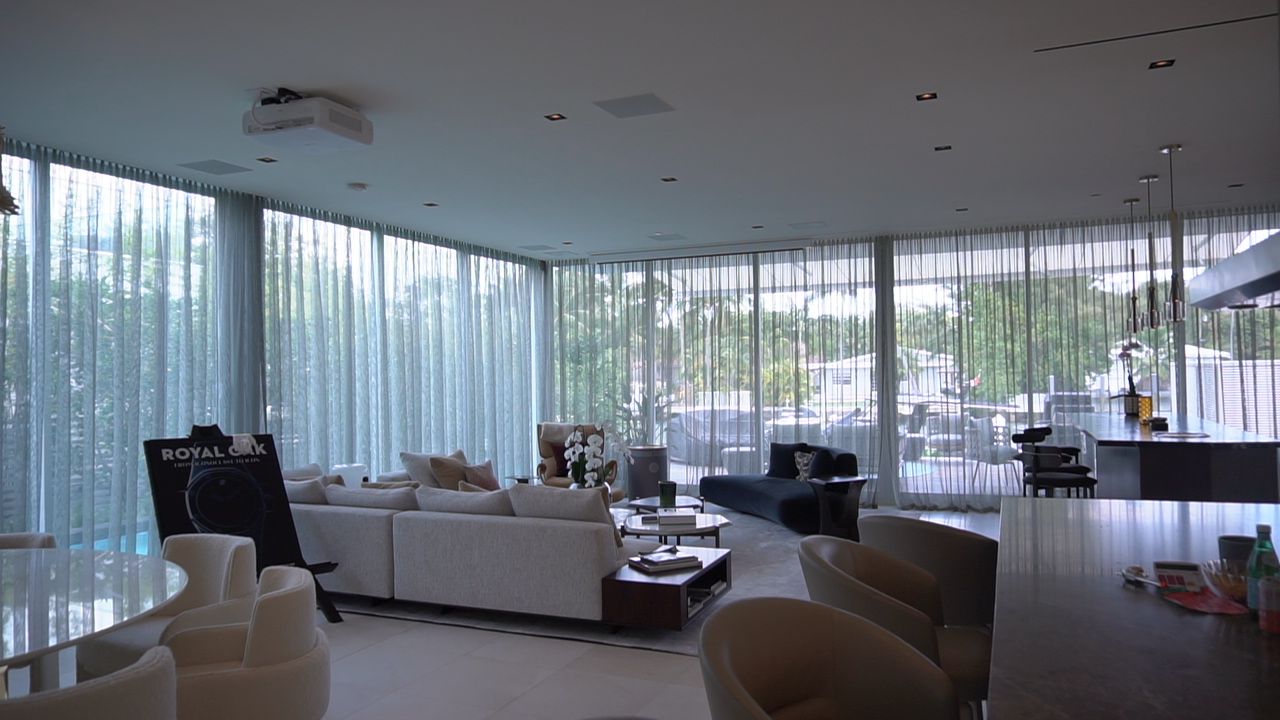

Sheers across the water wall
Framing the view
Privacy without darkness

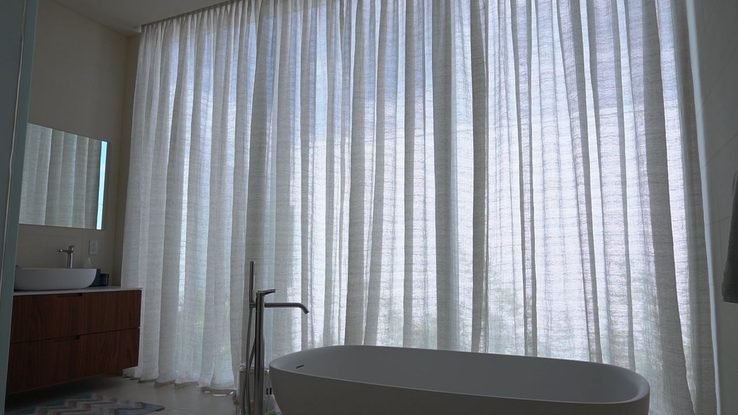

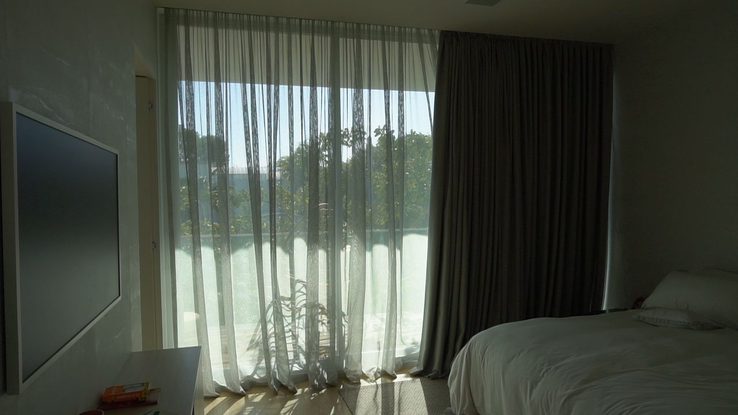

Sheer layer, daytime
Two layers per opening, five rooms, one control system - and from the inside, nothing to see but fabric and water. That is the whole point of doing it this way.
The components on this project
Lutron Sivoia QS drapery drive
Wired Lutron drapery track
Sheer and blackout layers on independent Sivoia QS tracks inside every ceiling pocket - five rooms on the home's Lutron system, every track in sync, so a whole wall of sheers opens as one gesture and joins the lighting scenes instead of needing its own remote.
| Type | Lutron motorized drapery track - ripple fold or pinch pleat, straight or curved |
| Capacity | Up to 175 lb of drapery on the D175 drive; tracks to 18 ft with no splice |
| Power | Low-voltage wiring (Class 2) |
| Speed | Master carrier 6 in per second |
| Control | Lutron QS wired link - keypads, apps and scenes, alongside the lighting |
| In this project | Two tracks per bedroom opening (sheer in front, blackout behind) and the stationary side panels in the social areas - set dead level in recessed ceiling pockets |
Lutron Sivoia QS roller shade drive
The solar layer behind the drapery
Behind the designer's sheers and blackouts sits a quiet third layer: Basketweave Pearl 1% solar shades on wired Sivoia QS rollers, on the same system as the tracks, so glare and heat are handled before the fabric sees them.
| Type | Lutron's wired motorized roller shade - the drive lives inside the tube |
| Power | Low-voltage wiring (Class 2) - power and data on one run |
| Sound | Under 44 dBA at 3 ft |
| Alignment | Intelligent Hembar Alignment - shades stay within 1/8 in of each other, moving or stopped |
| Fabric | Lutron Basketweave Pearl, 1% openness |
| In this project | The solar shades behind the drapery layers |
The Lutron system and its scenes
One system, not a second remote
Because the tracks and rollers are native Lutron, the drapery joins the same scenes as the lighting: "Good night" closes the blackouts in the bedrooms, "Morning" opens the sheers across the social areas. No separate app, no separate hub - every motor addressed and programmed to the house system from the control rack.
| Type | The residence's Lutron control system - shading and lighting on one processor |
| Shading link | Lutron QS wired link - every drapery drive and roller on low-voltage runs back to the rack |
| Scenes | Keypad and app scenes shared with the lighting - Good night, Morning |
| Programming | Every motor addressed and programmed by our own team |
| In this project | Five rooms of drapery and the solar layer, on one system |
Ripplefold snap tape and carriers
The heading that makes the stack
Every panel is ripplefold: the fabric rides on snap tape along the track rather than hanging in sewn pleats, so the drapery travels in continuous S-waves and stacks compactly off the glass - the smoothest heading there is for a motorized track.
| Type | Ripplefold heading - snap tape sewn to the panel, snapped to the track carriers |
| Why here | Smoothest glide on a motorized track; the narrowest stack when the view is the reason for the room |
| Fullness | Set by the carrier spacing on the track, not by the pleating |
| In this project | Every sheer, blackout and side panel in the residence |
Frequently asked
Why Sivoia QS instead of a standard motorized track?
Sivoia QS moves panels at a controlled, near-silent speed and keeps every track in the home in sync, so a whole wall of sheers opens as one gesture. It also lives natively on the same Lutron system as the lighting, so drapery joins scenes instead of needing its own remote. Compare the options on our motorized curtain tracks page · Lutron drapery tracks.
What exactly is ripplefold?
The fabric rides on snap tape along the track rather than hanging in sewn pleats, producing continuous S-waves and a very compact stack. It is the smoothest-gliding heading for motorization and the right choice on walls of glass. See ripplefold draperies.
How do the sheer and blackout layers share one window?
Each opening carries two independent tracks inside the ceiling pocket - sheer in front, blackout behind. Both motorized, so a room moves from open view to full darkness without a cord in sight. More on blackout draperies · Recessed curtain tracks.
Can you work with my designer's specification?
Routinely - this project was built to the interior designer's fabric schedule. We handle measurement, fabrication and installation against your designer's selections. See our trade program · For interior designers.
Do you serve other Miami Beach buildings?
Yes. We work throughout Miami and Miami Beach, including Ella Miami Beach, Palma and Six Fisher Island. Miami and Miami Beach · Ella Miami Beach · Palma · Six Fisher Island · all building guides.
Who sewed the draperies?
Our own seamstresses, in our own South Florida atelier. Nothing here was subcontracted to an outside workroom. Read about the workroom.
